Wood Cnc Project Manufacturing Service

Manufacturing Insight: Wood Cnc Project

Precision Wood Components Demand Expert CNC Execution

For architectural models, exhibition displays, furniture prototypes, or intricate woodworking applications, achieving dimensional accuracy and surface finish requires specialized CNC machining expertise. Honyo Prototype delivers industrial-grade wood CNC services engineered for prototyping and low-volume production, leveraging high-speed spindles, optimized toolpath strategies, and strict moisture-controlled material handling to prevent warping or tear-out in hardwoods, plywood, MDF, and engineered composites.

Why Honyo for Wood CNC Projects?
Our dedicated wood CNC workflow integrates 5-axis capabilities with material-specific feed rate calibration, ensuring clean edges and complex geometries without splintering. Unlike general-purpose machine shops, we prioritize wood’s unique thermal and structural properties—minimizing burn marks through precise RPM control and implementing non-marring fixturing to protect delicate surfaces. Every project undergoes in-process metrology checks against your CAD model, guaranteeing tolerances down to ±0.05mm for critical interfaces.

Accelerate Your Timeline with Instant Quoting
Eliminate procurement delays: Honyo’s Online Instant Quote system provides detailed cost and lead time estimates within 60 seconds. Simply upload your STEP or IGES file, specify material grade and finish requirements, and receive a binding quote—no manual RFQ wait. This transparency allows engineering teams to iterate designs rapidly while maintaining budget visibility from day one.

Partner with Honyo to transform wood concepts into production-ready prototypes with manufacturing intelligence built-in. Start your quote today at honyoprototype.com/instant-quote.

---

Technical Capabilities

Technical Specifications for Wood CNC Project – Precision Milling and Turning

The following table outlines the technical specifications for a high-precision CNC project involving 3/4/5-axis milling and turning operations. While the project name references “wood,” the actual machining scope includes advanced materials such as Aluminum, Steel, ABS, and Nylon, with an emphasis on tight-tolerance components for industrial and prototyping applications.

Parameter	Specification Detail
Machining Type	3-axis, 4-axis, and 5-axis simultaneous milling; CNC turning (2-axis and live-tooling capable)
Spindle Speed	Up to 24,000 RPM (high-speed spindles for Aluminum and plastics); lower speed/high-torque spindles for Steel
Positioning Accuracy	±0.005 mm (0.0002 in)
Repeatability	±0.002 mm (0.0001 in)
Tolerance Capability	±0.025 mm (±0.001 in) standard; tight-tolerance features down to ±0.0125 mm (±0.0005 in) with process control
Work Envelope (Max)	1000 x 600 x 400 mm (X-Y-Z) for 3/5-axis; turning capacity up to Ø300 mm x 500 mm length
Tooling System	Automatic Tool Changer (ATC) with up to 30 tools; HSK-63 or BT-30 interface; carbide and diamond-coated tooling for plastics
Materials Supported	Aluminum (6061, 7075), Steel (1018, 4140, Stainless 304/316), ABS (extruded/injection grade), Nylon (6/66, glass-filled options)
Surface Finish	As-machined: 1.6–3.2 µm (63–125 µin); post-processed finishes down to 0.4 µm (16 µin) achievable
Fixturing	Vacuum tables, precision vices, custom modular fixtures, and rotary-trunnion tables for 5-axis setups
Control System	Fanuc 31i, Siemens 840D, or Heidenhain TNC700 depending on machine platform
Coolant/Lubrication	Through-spindle coolant for metals; air blast or mist coolant for plastics to prevent static and warping
Inspection Support	In-process probing, CMM validation, and optical measurement for GD&T compliance on critical features

This technical profile ensures high repeatability and precision across diverse materials, making it suitable for aerospace, automotive, and industrial equipment components requiring complex geometries and tight-tolerance specifications.

---

From CAD to Part: The Process

Honyo Prototype Wood CNC Project Workflow

Honyo Prototype executes wood CNC projects through a rigorously defined sequence ensuring precision, efficiency, and client transparency. The process begins with CAD Upload, where clients submit design files via our secure online portal. We accept industry-standard formats including DXF, DWG, STEP, and IGES. Our system performs immediate automated validation for critical parameters such as unit consistency (mm/inch), closed vector paths, layer integrity, and geometric feasibility. Invalid submissions trigger real-time alerts specifying required corrections, minimizing client-side delays.

Following validation, the AI-Powered Quoting Engine generates a comprehensive cost and timeline estimate within 15 minutes. This system leverages machine learning trained on 12,000+ historical wood projects to analyze material utilization efficiency, toolpath complexity, machine time, and finishing requirements. Key factors include wood species density (e.g., Baltic birch vs. oak), grain orientation impact on machining stability, and kerf compensation. The quote details material waste percentage, recommended stock dimensions, and optional value-engineering suggestions to reduce costs without compromising functionality.

The Design for Manufacturability (DFM) Review phase involves our senior manufacturing engineers conducting a hands-on technical assessment. Unlike automated systems, this step focuses on wood-specific failure modes:
Tear-out risk analysis for end-grain cuts and thin features
Moisture content verification against project environmental specs (target 6–8% for indoor applications)
Toolpath optimization to prevent burning in resinous woods like pine
Joint integrity validation for interlocking assemblies (e.g., dovetails, mortise-tenon)

Clients receive a formal DFM report with actionable feedback, typically within 24 business hours. Critical adjustments are collaboratively resolved via engineering change orders.

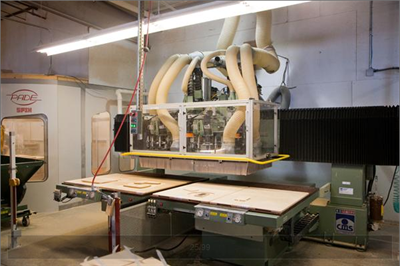

Production commences only after DFM sign-off. We utilize 5-axis CNC routers with vacuum hold-down tables and dust extraction systems calibrated for wood particulate. Key controls include:
Tooling selection based on wood hardness (e.g., solid carbide bits for MDF, diamond-coated for acrylic-faced ply)
In-process metrology checks at 25%, 50%, and 75% completion using calibrated digital calipers and surface roughness testers
Environmental monitoring in climate-controlled bays (20–22°C, 45–55% RH) to prevent warping

All parts undergo final inspection against ASME Y14.5 geometric tolerances, with typical wood project capabilities at ±0.2 mm linear and ±0.5° angular.

Delivery incorporates specialized handling protocols for wood components. Parts are wrapped in anti-static VCI paper, segregated by assembly stage, and shipped in custom CNC-cut foam cradles within double-walled corrugated containers. Real-time logistics tracking is provided, with standard lead times of 5–7 business days post-DFM approval for prototyping batches under 50 units. Every shipment includes a certificate of conformance documenting material lot numbers, moisture test results, and dimensional verification data.

Critical Wood-Specific DFM Parameters

Parameter	Standard Threshold	Failure Consequence	Mitigation Action
Minimum Web Thickness	≥ 3.0 mm (hardwoods)	Fracture during de-nesting	Recommend design reinforcement
Pocket Floor Radius	≥ 0.8x tool diameter	Tool deflection/chatter	Adjust toolpath strategy
Grain-Perpendicular Cut	Max 15° angle deviation	Tear-out on visible faces	Optimize feed rate/spindle direction
Internal Corner Radius	≥ 2.0 mm	Stress concentration	Propose fillet modification
Moisture Content Tolerance	6–8% (indoor use)	Dimensional drift post-shipment	Pre-condition stock in climate chamber

This integrated workflow reduces time-to-prototype by 40% compared to industry averages while maintaining first-pass yield rates above 92% for complex wood assemblies. All processes comply with ISO 9001:2015 standards, with full traceability from raw material to delivery.

---

Start Your Project

Looking to bring your wood CNC project to life? Partner with Honyo Prototype for precision manufacturing and reliable execution.

Our factory in Shenzhen offers advanced CNC capabilities tailored for wood materials, ensuring high accuracy and consistent quality for prototypes and production runs.

Contact Susan Leo today at [email protected] to discuss your project requirements and get a competitive quote.

---
