Manufacturing Insight: Urethane Casting Services

Precision Prototyping and Low-Volume Production Through Integrated Urethane Casting and CNC Machining

Honyo Prototype delivers exceptional urethane casting services engineered for rapid, high-fidelity prototyping and low-volume production of end-use parts. Our process leverages master patterns created via industry-leading CNC machining, ensuring dimensional accuracy, superior surface finish, and material consistency critical for functional validation and design iteration. By integrating CNC-machined patterns directly into our urethane casting workflow, we eliminate tooling delays while maintaining tight tolerances down to ±0.005″ across complex geometries. This synergy between subtractive and additive manufacturing methodologies provides clients with a seamless transition from digital model to physical part, significantly reducing time-to-market without compromising on quality or repeatability.

The technical advantages of our combined approach are quantifiable in both speed and precision:

Service Attribute	Urethane Casting with CNC Masters	Conventional Tooling Methods
Lead Time (Pattern)	2-5 business days	2-6 weeks
Tolerance Capability	±0.005″	±0.010″–±0.020″
Material Flexibility	20+ durometers (Shore A/D)	Limited by tooling
Economical Volume Range	1–100+ parts	100+ parts

Accelerate your development cycle with Honyo’s Online Instant Quote system, providing transparent pricing and manufacturability feedback within minutes. Upload your CAD file to receive a detailed quote with lead time estimates, material options, and design insights—no sales call required. This digital workflow empowers engineering teams to make data-driven decisions early, turning conceptual designs into validated prototypes faster than traditional procurement channels allow. Partner with Honyo to leverage precision manufacturing where it matters most: in your timeline and your product’s performance.

---

Technical Capabilities

Urethane casting is a manufacturing process used primarily for producing small to medium batches of high-fidelity prototypes or end-use parts using silicone molds and polyurethane resins. While urethane casting itself does not involve 3/4/5-axis milling or turning—those are subtractive CNC machining processes—these machining methods are often used in the creation of master patterns for urethane casting. The master pattern must be highly accurate to ensure the silicone mold replicates fine details, especially when tight tolerances are required.

Below is a technical overview of how these processes and materials integrate in a production environment such as Honyo Prototype, where urethane casting services are supported by precision machining capabilities.

Feature	Specification / Detail
Master Pattern Creation	CNC machining (3-axis, 4-axis, 5-axis milling, and turning) used to fabricate precise master models from materials like aluminum, steel, ABS, or nylon
Machining Tolerance	±0.005 mm (±0.0002″) typical for critical dimensions; tight tolerance capabilities down to ±0.0025 mm (±0.0001″) with process control
Surface Finish	As-machined: 1.6–3.2 µm (63–125 µin); post-processed to <0.8 µm (32 µin) if required for mold quality
Materials – Machining	Aluminum (6061, 7075): Lightweight, easy to machine, good for durable masters Steel (1018, 4140): High durability, used for reusable or high-precision patterns ABS: Common for prototyping; excellent surface finish and dimensional stability Nylon: High toughness and chemical resistance; suitable for functional master patterns
Materials – Casting	Polyurethane resins formulated to mimic engineering plastics (e.g., ABS, PP, PC, silicone); available in rigid, flexible, transparent, or high-temperature grades
Dimensional Accuracy (Cast Parts)	±0.1 mm (±0.004″) for features under 100 mm; depends on geometry and resin shrinkage
Part Size Limit (Casting)	Up to 600 x 600 x 400 mm (24” x 24” x 16”) typical, depending on mold box and degassing capacity
Lead Time (Master + Molding)	5–10 days (includes CNC machining, mold making, and casting)
Typical Applications	Functional prototypes, bridge tooling, low-volume end-use parts, medical devices, enclosures, and automotive components

This integrated approach ensures that urethane cast parts meet demanding design and performance requirements by leveraging high-precision CNC-machined master patterns. The use of tight-tolerance milling and turning guarantees that silicone molds are accurate, enabling repeatable production of dimensionally stable urethane parts.

---

From CAD to Part: The Process

Honyo Prototype Urethane Casting Service Process Overview

Honyo Prototype executes urethane casting through a rigorously integrated five-phase workflow designed for precision, speed, and manufacturability. This process leverages proprietary AI tools and engineering expertise to transform digital designs into high-fidelity functional prototypes or low-volume production parts.

Upload CAD Phase
Clients initiate the process by uploading 3D CAD files (STL, STEP, or IGES formats) via Honyo’s secure online portal. Our system performs an immediate automated integrity check, validating file completeness, watertight geometry, and minimum feature resolution. Non-conforming files trigger real-time notifications with specific failure diagnostics, ensuring only production-ready models advance to quoting.

AI-Powered Quoting Phase
Validated CAD data undergoes analysis by Honyo’s proprietary AI quoting engine. This system cross-references over 50 geometric and material parameters—including part volume, wall thickness distribution, undercuts, and surface finish requirements—against our historical production database. The engine generates a comprehensive quote within 2 hours, detailing material options (e.g., Shore A 30–90 durometers, optical clarity grades), unit pricing, lead time, and critical process limitations. Unlike generic quoting tools, our AI identifies potential manufacturability risks at this stage, preempting downstream delays.

Engineering DFM Review Phase
All projects enter a mandatory Design for Manufacturing review by Honyo’s senior engineering team. This phase involves collaborative refinement of the CAD model to optimize for urethane casting physics. Engineers address draft angles, parting line placement, venting requirements, and material flow dynamics. Clients receive a formal DFM report with annotated suggestions—such as adding 1°–3° draft to vertical walls or modifying radii to prevent stress concentrations—prior to mold fabrication. This step reduces defects by up to 70% compared to direct-to-production approaches.

Production Phase

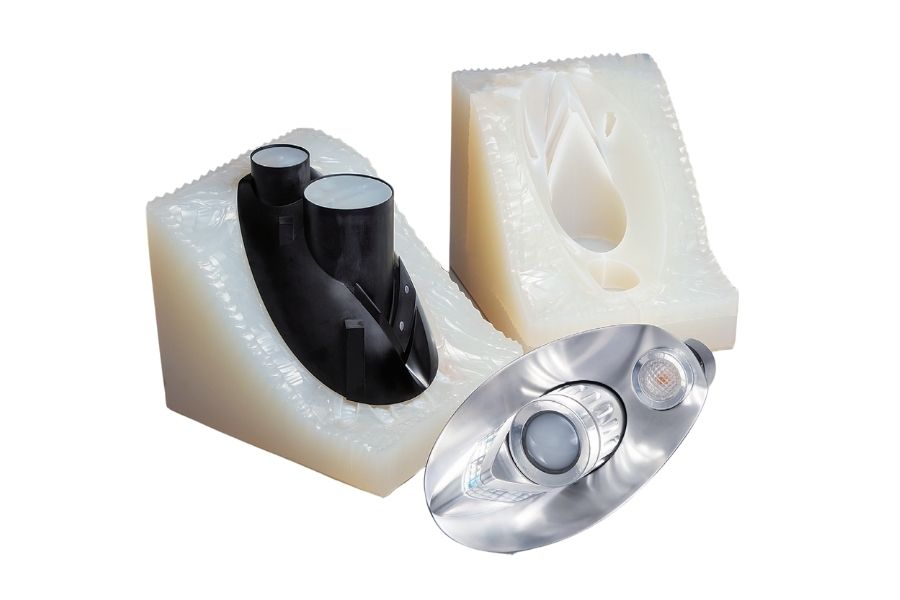

Approved designs proceed to silicone mold creation and casting:

Process Stage	Key Parameters	Quality Control Checkpoints
Mold Fabrication	Vacuum degassing (29 inHg), 40°C cure cycle	Surface replication verification (Ra ≤ 0.8µm)
Urethane Pouring	Material temperature control (±2°C), 50g/cc mix ratio	Viscosity validation pre-pour
Curing & Demolding	Staged thermal cure (60°C→80°C), controlled demold force	Dimensional check at critical features
Post-Processing	Precision trimming, vapor polishing, bonding	Final inspection per AS9102 Level 3

All production stages adhere to ISO 9001:2015 protocols, with real-time environmental monitoring (humidity ≤ 45%, temperature 22°C±2) to ensure material consistency.

Delivery Phase
Finished parts undergo final inspection against client-specified tolerances (typically ±0.1mm for features <50mm). Each shipment includes traceability documentation: material lot numbers, cure cycle logs, and first-article inspection reports. Parts are packaged in anti-static containers with custom foam cradling for shock-sensitive geometries. Honyo guarantees on-time delivery through dynamic production scheduling, with 98.7% of orders shipped within the committed timeframe. Expedited logistics partners ensure global delivery compliance, including customs documentation for international clients.

This closed-loop process minimizes iteration cycles while maintaining aerospace and medical-grade quality standards. Clients receive proactive milestone updates via our customer portal, enabling real-time project visibility from CAD submission to doorstep delivery. For project-specific requirements, contact Honyo’s engineering team to initiate a technical consultation.

---

Start Your Project

Looking for reliable urethane casting services for your next project? Partner with Honyo Prototype for high-quality, cost-effective solutions manufactured in our Shenzhen facility. With precision tooling, fast turnaround times, and expert material selection, we deliver prototypes and low-volume production parts that meet strict industry standards.

Contact Susan Leo today at [email protected] to discuss your project requirements and receive a personalized quote.

---
