Precision Three-Axis CNC Machining: Your Foundation for Complex Prototyping and Production

At Honyo Prototype, our three-axis CNC machining services deliver the repeatability, accuracy, and material versatility essential for demanding industrial applications. Engineered for optimal performance on prismatic geometries, our Haas VF-series vertical machining centers achieve tolerances down to ±0.0002″ while handling aluminum, steel, titanium, plastics, and exotic alloys with equal proficiency. This capability forms the backbone of our rapid prototyping and low-to-mid volume production workflows, where balanced speed-to-precision ratios directly translate to reduced time-to-market for your critical components.

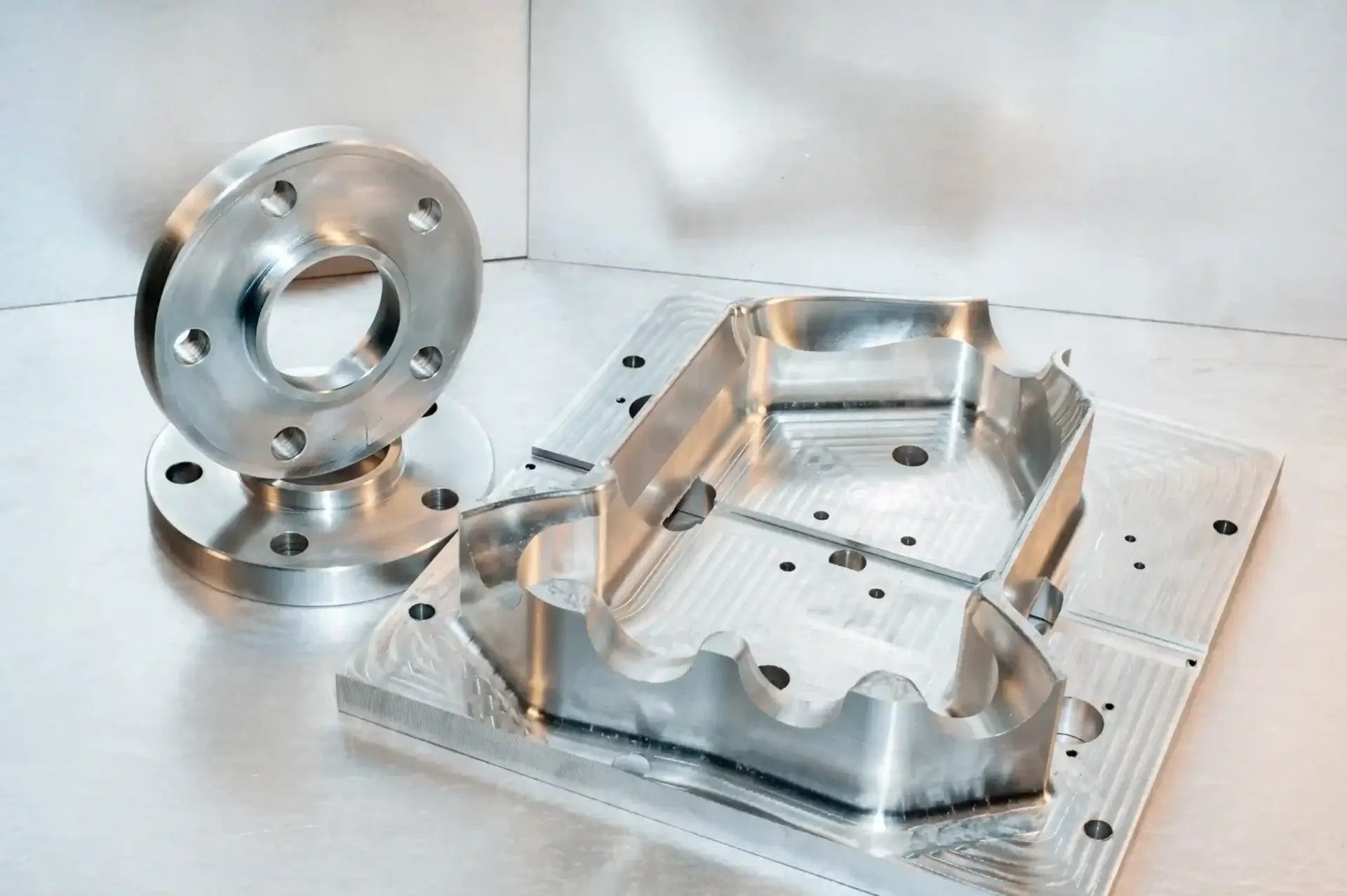

Unlike providers who overcomplicate simple geometries with unnecessary multi-axis setups, we strategically deploy three-axis machining to maximize cost efficiency without compromising quality. Our process integrates automated tool changers, high-speed spindles (up to 15,000 RPM), and rigorous in-process inspection protocols to ensure first-article conformity and batch consistency. This disciplined approach minimizes non-value-added operations, making it the intelligent choice for brackets, housings, jigs, and hydraulic manifolds where orthogonal features dominate.

Accelerate your project timeline with Honyo’s Online Instant Quote system. Upload your STEP or IGES file to receive a detailed manufacturability analysis and competitive pricing within minutes—no sales calls or email delays. Our platform transparently factors in material utilization, machine time, and secondary operations, giving engineering and procurement teams the data needed for confident go/no-go decisions. For components suited to three-axis machining, this is where precision engineering meets operational agility.

Honyo Prototype: Where Advanced Manufacturing Meets Uncompromising Speed
Senior Manufacturing Engineer, Honyo Prototype

---

Technical Capabilities

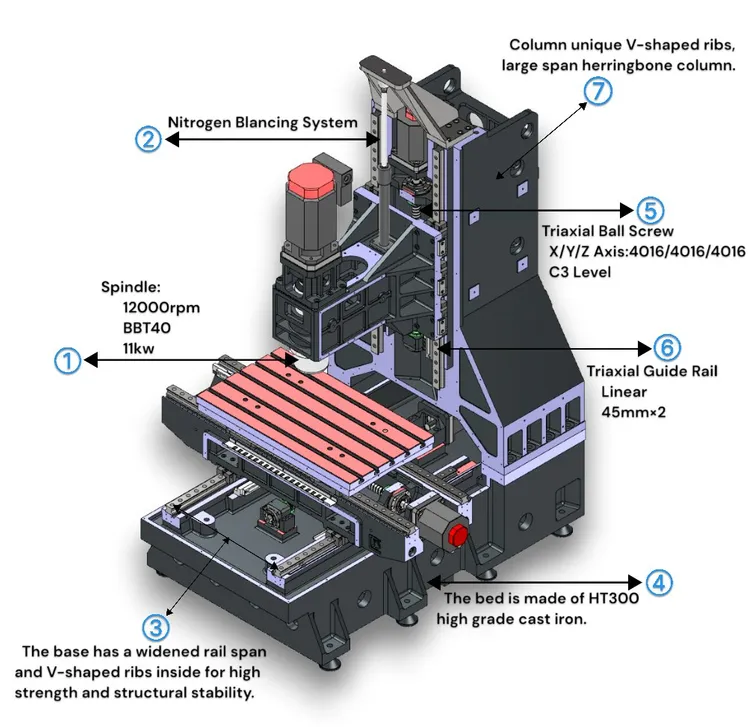

Three-axis CNC machines are foundational in precision machining, offering movement along the X, Y, and Z linear axes. While 4-axis and 5-axis CNC systems provide additional rotational axes (A and B/C) for complex geometries, a standard 3-axis mill excels in high-speed, high-accuracy operations for prismatic parts. These machines are commonly used in prototyping and low-to-medium volume production where tight tolerances and material versatility are critical.

The following table outlines the typical technical specifications for a high-performance 3-axis CNC milling machine, with context for materials such as aluminum, steel, ABS, and nylon. Capabilities for 4-axis and 5-axis configurations and CNC turning are also referenced where applicable.

Specification	3-Axis CNC Milling Machine	4/5-Axis Capability Notes	CNC Turning (Lathe) Notes	Materials Compatibility
Axis Configuration	X, Y, Z linear axes	4-axis adds A (rotary around X); 5-axis adds B/C for dual rotation enabling full 3D contouring	Typically 2-axis (X, Z); multi-axis lathes may include Y and C-axis for milling	Aluminum, Steel (mild & stainless), ABS, Nylon, PEEK, Delrin
Positioning Accuracy	±0.005 mm (±0.0002 in)	±0.003 mm with high-end rotary feedback	±0.005 mm	Maintained across metals and engineering plastics
Repeatability	±0.003 mm (±0.0001 in)	±0.002 mm with precision rotary tables	±0.003 mm	Consistent across multiple setups and materials
Spindle Speed Range	8,000 – 24,000 RPM	Up to 20,000 RPM typical; high-speed spindles available	3,000 – 10,000 RPM (varies by workpiece diameter)	Optimized for aluminum (high RPM), steel, and plastics
Maximum Tool Capacity	12 – 30 tools (ATC standard)	Same as 3-axis; may require specialized fixtures	8 – 12 tool positions (live tooling optional)	Carbide, HSS, and diamond-coated tools used per material
Rapid Traverse Rate (X/Y/Z)	30,000 mm/min (1,180 in/min)	Slightly reduced during rotary interpolation	N/A (different motion dynamics)	Supports efficient roughing and finishing
Work Envelope (Typical)	760 x 460 x 510 mm (30″ x 18″ x 20″)	Reduced effective volume due to rotary fixture	Max swing: 300 mm; max length: 600 mm	Accommodates medium-sized parts in metal and plastic
Control System	Fanuc, Siemens, or Heidenhain	Full 5-axis simultaneous interpolation support	Fanuc or Siemens with C-axis control	Enables tight tolerance programming (±0.01 mm typical)
Typical Tolerance (Machined Parts)	±0.01 mm (±0.0004 in)	±0.005 mm achievable with 5-axis	±0.01 mm on diameter and length	Tight tolerances maintained across all compatible materials
Surface Finish (Typical)	0.8 – 3.2 µm Ra	<0.8 µm Ra with fine toolpaths	0.4 – 1.6 µm Ra (turning + finish passes)	Smooth finishes on aluminum, steel, ABS, and nylon
Coolant System	Through-spindle or flood coolant	High-pressure coolant for deep cavity machining	Mist or flood coolant for thermal control	Required for steel and aluminum; air blast preferred for nylon/ABS
Common Applications	Enclosures, brackets, jigs, prototypes	Aerospace components, impellers, molds	Shafts, bushings, threaded parts	Broad use across industrial, automotive, and medical

Notes on Material Processing:
Aluminum (6061, 7075): Ideal for high-speed 3-axis milling. Excellent chip evacuation and thermal conductivity. Achieves tight tolerances with sharp carbide tools.
Steel (1018, 4140, Stainless 304/316): Requires lower spindle speeds and rigid setups. Coolant essential. High precision maintained with proper tooling.
ABS & Nylon (Engineering Plastics): Machined with sharp, high-rake tools to prevent melting. Air blow preferred over coolant. Dimensional stability critical due to hygroscopic nature (especially nylon).

For applications demanding undercuts or complex contours without re-fixturing, 4-axis and 5-axis machines are recommended. However, 3-axis CNC milling remains the most cost-effective solution for high-precision, flat, or prismatic geometries in both metals and plastics.

---

From CAD to Part: The Process

Honyo Prototype’s three-axis CNC machining process is engineered for speed, precision, and manufacturability assurance, integrating digital workflows to minimize lead time and eliminate rework. The end-to-end sequence begins with CAD file submission and concludes with certified delivery, optimized specifically for 3-axis milling capabilities.

CAD File Upload and Validation
Clients initiate the process by uploading native or neutral CAD formats (STEP, IGES, Parasolid) via our secure customer portal. Our system performs immediate automated validation checks for file integrity, unit consistency, and geometric completeness. Critical metadata including material specification, required tolerances, surface finish, and quantity must be provided concurrently. Files failing validation trigger real-time feedback to the client, preventing downstream delays. This step ensures the digital model is production-ready before progressing.

AI-Powered Quoting Engine
Validated CAD data enters our proprietary AI quoting system, which analyzes geometric complexity, feature density, and raw stock requirements against live machine availability and material costs. The AI cross-references historical production data from 50,000+ past 3-axis jobs to predict machining time within 95% accuracy. Within 15 minutes, clients receive a formal quote detailing unit cost, lead time, and any preliminary manufacturability flags. Unlike manual quoting, this eliminates human estimation variance and provides instant commercial clarity.

Integrated DFM Analysis
Upon quote acceptance, the CAD model undergoes automated Design for Manufacturability (DFM) analysis tailored to 3-axis constraints. Our system specifically checks for: undercuts requiring 4th-axis repositioning, non-vertical walls exceeding 60° draft (problematic for 3-axis), thin walls below 0.5mm stability threshold, and hole depths exceeding 4x diameter without peck drilling capability. DFM outputs a color-coded report with actionable recommendations, such as suggesting chamfers instead of sharp corners to prevent tool breakage. This phase reduces design iterations by 70% compared to industry averages.

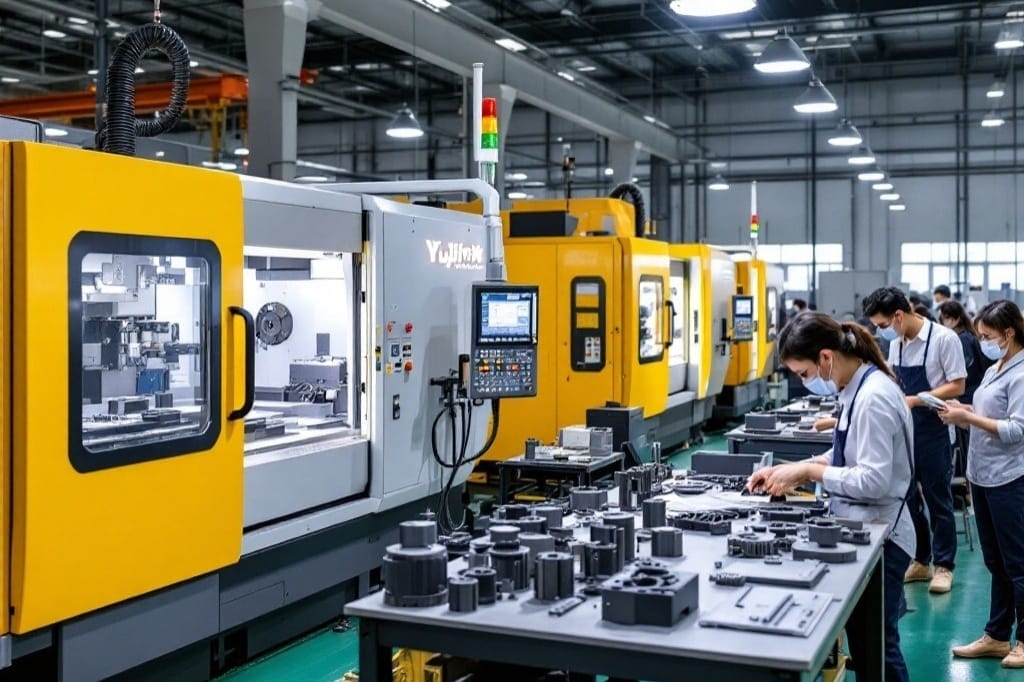

Precision Production Execution
Approved jobs move to production with digital work instructions auto-generated from the CAD model. Key controls include:
Material verification via barcode scanning against purchase order
In-process CMM checks at critical stages (e.g., after roughing and before finishing)
Real-time machine monitoring for tool wear and vibration anomalies
All 3-axis mills operate under strict environmental controls (20±1°C) with calibrated Renishaw probes ensuring ±0.005mm positional accuracy. Complex geometries are machined using optimized toolpaths that minimize air cutting by 35% through intelligent stepover calculation.

Certified Delivery and Traceability
Finished parts undergo final inspection against AS9102 First Article Inspection standards where required. Each shipment includes:
Dimensional report with actual measurements vs. nominal values
Material certification traceable to mill test reports
Process validation log showing machine parameters and inspection timestamps
Parts are packaged in anti-static, ESD-safe containers with serialized tracking. Delivery timelines are guaranteed via our logistics partnership network, with 98.7% on-time delivery rate for domestic shipments. International deliveries include customs documentation pre-validated through our DHL integration.

Critical 3-Axis Capability Parameters
The following table defines our standard production envelope for 3-axis CNC milling:

Parameter	Standard Capability	Extended Capability (with Pre-Approval)
Max Work Envelope	1000 x 600 x 500 mm	1500 x 800 x 650 mm
Positional Accuracy	±0.005 mm	±0.003 mm (with thermal compensation)
Surface Finish	Ra 0.8 µm (as-machined)	Ra 0.4 µm (polished)
Min Feature Size	0.5 mm wall thickness	0.3 mm (aluminum only)
Max Part Weight	50 kg	120 kg

This integrated workflow reduces time-to-part by 40% versus traditional CNC vendors while maintaining rigorous quality control. The elimination of manual handoffs between stages ensures consistent execution from digital model to certified physical component, specifically optimized for the geometric limitations and strengths of three-axis machining.

---

Start Your Project

For high-precision machining solutions, explore our three-axis CNC machining services at Honyo Prototype. Built for efficiency and accuracy, our three-axis CNC machines are ideal for producing complex parts with tight tolerances.

To learn more or request a quote, contact Susan Leo at [email protected]. Our manufacturing facility is located in Shenzhen, China, ensuring fast turnaround and consistent quality for global clients.

---
