Precision Redefined: Swiss Style Machining at Honyo Prototype

Swiss style machining represents the pinnacle of precision for complex, high-accuracy components, particularly small-diameter parts demanding micron-level tolerances and exceptional surface finishes. This specialized CNC turning process utilizes a sliding headstock and guide bushing to minimize deflection, enabling the production of intricate geometries—such as micro-features, tight-radius contours, and multi-axis profiles—that conventional lathes cannot achieve. Industries including medical device manufacturing, aerospace instrumentation, and semiconductor equipment rely on Swiss technology for mission-critical components where failure is not an option.

Honyo Prototype leverages state-of-the-art Swiss-type CNC machines from industry leaders like Tornos and Citizen, combined with decades of process optimization expertise, to deliver unmatched precision and repeatability. Our capabilities extend to challenging materials including titanium, stainless steel 316L, MP35N, and high-temperature alloys, supporting high-mix, low-volume production with stringent quality control. Every component undergoes rigorous in-process inspection using coordinate measuring machines (CMM) and optical comparators, ensuring compliance with AS9100 and ISO 13485 standards.

Honyo’s Swiss Machining Capabilities at a Glance

Parameter	Honyo’s Capability
Max Bar Diameter	20 mm (0.787″)
Typical Tolerances	±0.0002″ (5 µm)
Minimum Feature	<0.004″ (0.1 mm)
Secondary Ops	Milling, cross-drilling, thread whirling, laser welding
Lead Time	As fast as 5 business days

Accelerate your procurement cycle with Honyo’s Online Instant Quote platform. Upload your STEP or IGES file, specify material and quantity, and receive a detailed manufacturability analysis with competitive pricing in under 60 seconds—no sales calls required. This seamless integration of engineering insight and digital efficiency empowers design engineers and procurement teams to validate feasibility and cost early in the development phase. For complex Swiss-turned components where precision dictates performance, Honyo Prototype delivers the technical mastery and responsive service to transform your most demanding concepts into reality. Visit our portal today to experience rapid, transparent quoting for your next precision machining project.

---

Technical Capabilities

Swiss style machining, also known as Swiss turning or sliding headstock machining, is a specialized form of precision CNC turning ideal for high-accuracy machining of long, slender, and complex components. It is commonly used in the medical, aerospace, electronics, and automotive industries where tight tolerances and fine surface finishes are critical. The process supports multi-axis milling and turning operations simultaneously, typically integrating 3, 4, or 5-axis capabilities for complex geometries.

The following table outlines the key technical specifications associated with Swiss style machining, including axis configurations, turning and milling capabilities, achievable tolerances, and compatible materials such as Aluminum, Steel, ABS, and Nylon.

Feature	Specification
Machine Type	CNC Swiss-style lathe with live tooling and sub-spindle
Axis Configuration	3-axis (X, Z, C), 4-axis (adds Y-axis), 5-axis (adds B-axis for off-center milling)
Turning Capability	Primary and secondary spindles enable complete part processing (turn, mill, cut-off)
Milling Capability	Live tooling for radial and axial milling, drilling, tapping, and contouring
Typical Bar Stock Diameter	1 mm to 38 mm (0.040″ to 1.5″)
Max Length-to-Diameter Ratio	Up to 15:1 with guide bushing for enhanced rigidity
Positioning Accuracy	±0.001 mm (±0.00004″)
Repeatability	±0.0005 mm (±0.00002″)
Typical Tolerances	±0.005 mm (±0.0002″) for turning; ±0.01 mm (±0.0004″) for milling features
Surface Finish (Ra)	0.4 – 1.6 µm (16 – 63 µin), depending on material and tooling
Spindle Speed (Main)	Up to 10,000 RPM (higher for micromachining)
Sub-Spindle Speed	Up to 8,000 RPM
Tool Count (Live Tools)	8–20+ depending on machine model
Materials – Metals	Aluminum (6061, 7075), Stainless Steel (303, 304, 316), Tool Steel, Titanium
Materials – Plastics	ABS, Nylon (6/66), PEEK, PTFE, Delrin (Acetal), PC, PEI (Ultem)
Coolant System	High-pressure through-tool coolant for chip control and tool life
Automation Compatibility	Bar feeders and gantry loaders for high-volume production

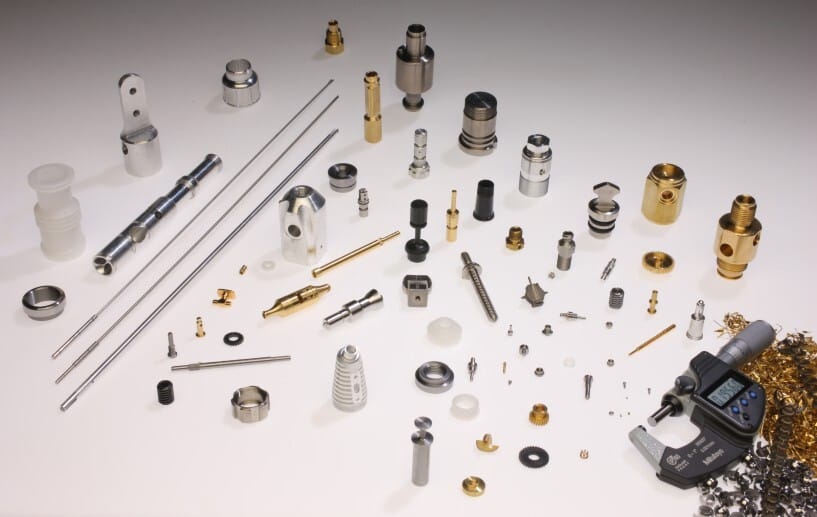

Swiss style machining excels in producing small, high-precision parts with complex features in a single setup. The integration of multi-axis milling and turning allows for complete machining of components such as shafts, connectors, and surgical instruments. Materials like Aluminum and Steel are commonly machined for structural and functional applications, while engineering plastics such as ABS and Nylon are used where lightweight, corrosion resistance, or electrical insulation is required. The combination of tight tolerance control and multi-tasking capability makes Swiss machining a preferred solution for prototyping and low-to-medium volume production at Honyo Prototype.

---

From CAD to Part: The Process

Honyo Prototype Swiss Style Machining Process Overview
Honyo Prototype executes Swiss style machining for high-precision, complex turned components through a rigorously defined workflow. This process leverages advanced automation while maintaining critical human engineering oversight to ensure dimensional accuracy, material integrity, and on-time delivery for demanding industries like medical, aerospace, and optics. Below is the end-to-end sequence:

CAD Upload and Validation
Customers initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid) via our secure customer portal. Our system performs automated validation checks for file integrity, unit consistency, and geometric completeness. Critical metadata—such as material specifications, tolerance callouts per ISO 2768 or ASME Y14.5, surface finish requirements, and critical-to-function features—must accompany the CAD model. Incomplete submissions trigger immediate feedback to prevent downstream delays, ensuring all design intent is captured before quoting.

AI-Powered Quoting with Engineering Oversight
Uploaded designs enter our proprietary AI quoting engine, which analyzes geometric complexity, feature density, and tolerance stringency against historical production data from our Swiss machining centers (including Tsugami, Citizen, and Star machines). The AI generates a preliminary cost and lead time estimate within 2 hours by cross-referencing material costs, machine hourly rates, and setup parameters. Crucially, this output undergoes mandatory review by a Senior Swiss Machining Engineer who validates feasibility, adjusts for non-standard requirements (e.g., exotic alloys like MP35N or tight concentricity tolerances <0.0002″), and incorporates secondary operation needs. Customers receive a transparent quote with engineering notes justifying pricing variables.

Collaborative DFM Analysis
Upon quote acceptance, our DFM phase begins with a dedicated engineer conducting a deep-dive analysis focused on Swiss machining constraints. Key considerations include bar stock utilization, guide bushing compatibility, tool access for multi-axis operations, and vibration mitigation for slender geometries. We provide actionable feedback through annotated CAD markups and a structured revision table:

DFM Consideration	Honyo Recommendation	Impact if Unaddressed
Undercuts requiring secondary ops	Integrate live tooling paths into first operation	30% cost increase, added handling risk
Non-standard bar diameters	Optimize to nearest stock size (e.g., 8mm → 8.5mm)	Material waste, extended lead time
Tight tolerances on non-critical features	Apply statistical tolerance stacking per ASME Y14.5	Unnecessary cycle time, scrap risk

This phase includes a virtual engineering review with the customer to resolve conflicts, ensuring manufacturability without compromising functional requirements.

Precision Production Execution
Approved designs move to production in our climate-controlled Swiss machining cell. Each job undergoes:
Rigorous first-article inspection using calibrated CMMs and optical comparators against the original CAD model.
Real-time in-process monitoring via machine-integrated probes for critical diameters and lengths, with SPC data logged for traceability.
Strict adherence to material certifications (e.g., AMS 4928 for titanium) and process documentation per ISO 9001:2015.
Complex geometries leverage sub-spindles and multi-turret configurations to minimize handling—critical for maintaining sub-micron repeatability on features like micro-bore IDs or thread pitches under 0.5mm.

Quality-Controlled Delivery
Final parts undergo 100% visual inspection for surface defects and functional testing per customer specifications. Comprehensive documentation—including CMM reports, material certs, and process validation data—is packaged with the shipment. We utilize serialized barcoding for full lot traceability from raw material to delivery, with standard lead times of 7–14 days for prototypes and 10–20 days for low-volume production. All shipments include digital access to inspection datasets via our customer portal, enabling seamless integration into the client’s quality management system.

This integrated approach ensures Honyo delivers Swiss-machined components that meet exacting performance standards while minimizing time-to-market through engineering rigor and process transparency.

---

Start Your Project

Discover precision-engineered components with our Swiss-style machining services, delivering tight tolerances and exceptional quality for complex, high-volume parts.

Manufactured in our Shenzhen facility using advanced CNC Swiss technology, we ensure consistency, speed, and dimensional accuracy for industries including medical, automotive, and electronics.

Contact Susan Leo to discuss your next project: [email protected].

Capability	Specification
Location	Shenzhen, China
Machining Type	CNC Swiss (Swiss-style)
Materials	Stainless steel, brass, aluminum, titanium, plastics
Tolerances	±0.005 mm typical
Lead Time	As fast as 7–10 days for prototypes

Partner with Honyo Prototype for reliable, high-precision Swiss turning that meets global standards.

---
