Manufacturing Insight: Swiss Machining Services
Precision Swiss Machining for Demanding Applications
Honyo Prototype delivers advanced Swiss machining services engineered to meet the stringent demands of medical, aerospace, and industrial sectors. Our state-of-the-art CNC Swiss turning centers achieve micron-level tolerances on complex geometries, producing high-integrity components from challenging materials including titanium, stainless steel, and engineered plastics. This capability ensures optimal part performance in critical applications where precision and repeatability are non-negotiable.
Integrated CNC Machining Excellence
Complementing our Swiss expertise, Honyo operates a comprehensive suite of multi-axis CNC milling and turning centers. This integrated approach allows seamless transition from prototype to low-volume production, maintaining design integrity across all stages. Our AS9100-certified processes incorporate rigorous in-process inspections and material traceability, guaranteeing conformance to ISO 2768 and customer-specific quality standards. Engineers benefit from reduced lead times through concurrent engineering support and optimized toolpath strategies.
Accelerate Your Development Cycle
Streamline procurement with Honyo’s Online Instant Quote platform, designed specifically for engineering teams requiring rapid feasibility assessment. Upload CAD files in STEP, IGES, or native formats to receive detailed manufacturability feedback and competitive pricing within hours—not days. This transparent workflow eliminates quotation bottlenecks, enabling faster design iteration and project launch.
Request your precision-machined components today through our digital portal and experience the Honyo advantage in accuracy, speed, and technical partnership.
Technical Capabilities
Swiss machining services are precision manufacturing processes ideal for producing complex, high-accuracy components, especially in high-mix, low-to-medium volume production environments. These services leverage advanced CNC Swiss-type lathes and multi-axis milling capabilities to achieve tight tolerances and superior surface finishes. Below are the technical specifications for Swiss machining services with emphasis on 3/4/5-axis milling, turning, and tight tolerance capabilities across common engineering materials.
| Feature | Specification Description |
|---|---|
| Primary Processes | CNC Swiss Turning with live tooling, 3-axis, 4-axis, and 5-axis milling integration for secondary operations |
| Machining Axes | 3-axis: X, Y, Z linear axes; 4-axis: Adds rotational A or B axis; 5-axis: Full simultaneous movement in X, Y, Z, and two rotational axes for complex geometries |
| Turning Capabilities | Diameter range: 0.020″ to 1.25″ (0.5 mm to 32 mm); Bar feed standard; Secondary operations via live tooling (drilling, tapping, milling) |
| Tolerance Capability | Typical: ±0.0002″ (±0.005 mm); Critical features: ±0.0001″ (±0.0025 mm) achievable with process control and inspection |
| Surface Finish | Typical: 16–32 μin (0.4–0.8 μm); Can achieve <8 μin (<0.2 μm) with fine finishing passes |
| Materials – Metals | Aluminum (6061, 7075, 2024), Stainless Steel (303, 304, 316, 17-4 PH), Alloy Steels (4140, 4340), Tool Steels, Titanium (limited) |
| Materials – Plastics | ABS, Nylon (6, 6/6), PEEK, Delrin (POM), Polycarbonate, PTFE; machined with low-heat toolpaths and non-marring fixturing |
| Tooling & Spindles | High-speed spindles up to 15,000 RPM; Multi-tool turrets (8–12 stations); Y-axis and sub-spindle for off-center and backworking operations |
| Coolant & Lubrication | Through-tool coolant; Oil mist or minimum quantity lubrication (MQL) available for sensitive materials |
| Inspection & Metrology | In-process probing; Post-process CMM, optical comparators, micrometers, bore gauges; First Article Inspection (FAI) reports available |

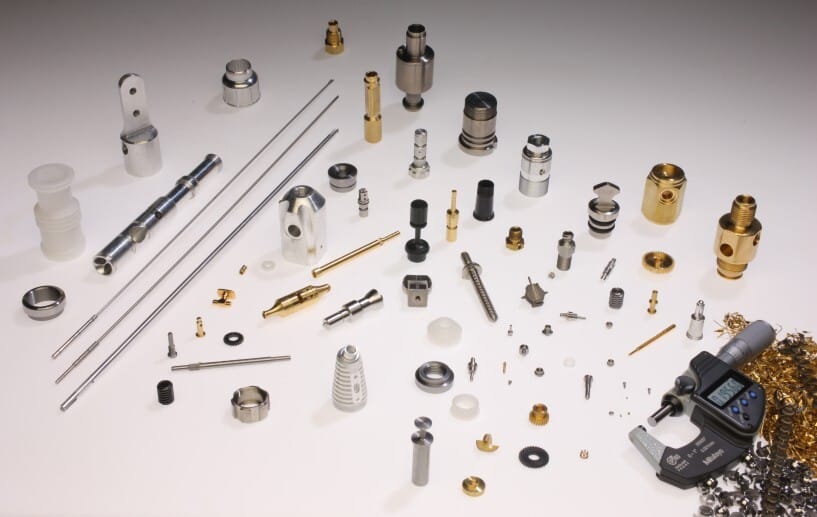

| Typical Applications | Medical components (catheter hubs, implants), aerospace fittings, automotive sensors, industrial nozzles, precision connectors |
These capabilities enable Honyo Prototype to support industries requiring high repeatability, miniaturization, and complex feature integration on a single machine platform—reducing handling and improving overall part accuracy.
From CAD to Part: The Process
Honyo Prototype delivers precision Swiss machining services through a rigorously defined workflow engineered for speed, accuracy, and manufacturability validation. Our process eliminates traditional quoting bottlenecks while ensuring technical feasibility before metal cutting begins.
Upload CAD
Clients initiate the process by uploading native or neutral format CAD files (STEP, IGES, Parasolid) via our secure customer portal. The system performs an initial validation check for file integrity and geometric completeness, rejecting corrupted submissions immediately to prevent downstream delays. Accepted files trigger automatic generation of a preliminary 3D model viewer within the portal for client verification prior to quoting.
AI-Powered Quote Generation
Our proprietary AI engine analyzes the validated CAD geometry, extracting critical parameters including part volume, feature complexity, tolerance density (GD&T callouts), and material requirements specified by the client. The system cross-references real-time data from our machine shop floor—current utilization rates of our Star, Citizen, and Tornos Swiss-type lathes, tooling availability, and material costs—to generate a technically grounded quote within 2 business hours. This output includes base machining cost, material surcharge, and a preliminary lead time estimate. Crucially, the AI flags potential high-risk geometries (e.g., sub-0.5mm wall thicknesses, deep blind holes exceeding 10:1 aspect ratio) for immediate engineering review.
Collaborative DFM Analysis
Quotes requiring technical validation enter our mandatory Design for Manufacturability phase led by senior Swiss machining engineers. We conduct a detailed feature-by-feature assessment against Swiss machining constraints:
Tool access limitations for mill/drill operations on complex geometries
Feasibility of achieving specified surface finishes (Ra 0.4μm minimum) on internal features
Bar stock utilization efficiency and scrap minimization strategies
Vibration mitigation for slender components during threading or parting-off
Clients receive a formal DFM report with actionable recommendations, including tolerance relaxation opportunities, feature consolidation suggestions, and alternative material options to reduce cost without compromising function. This phase concludes with joint sign-off on the final manufacturable design.
Precision Production Execution

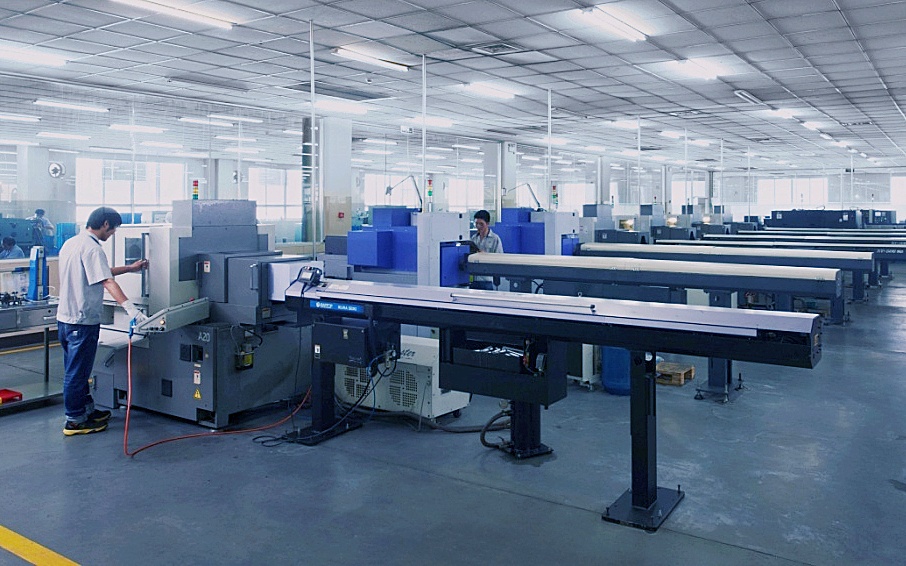

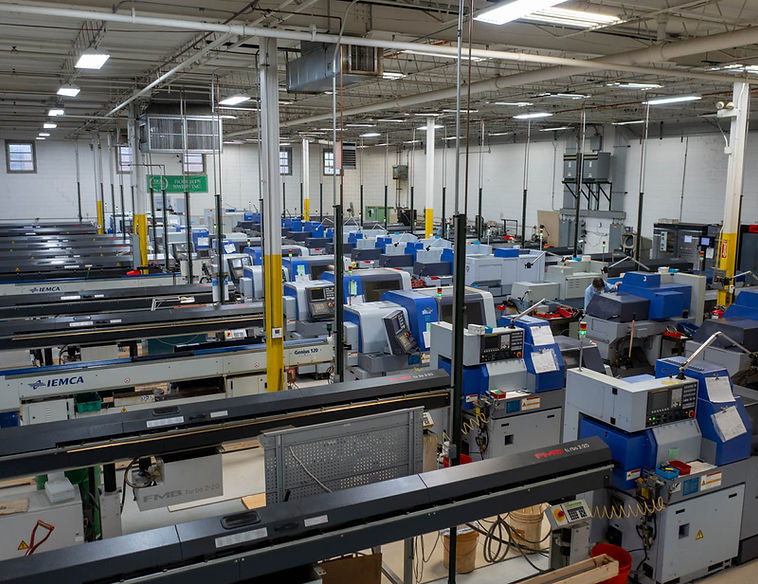

Approved designs move to production on our climate-controlled shop floor:
Material procurement from certified aerospace/medical suppliers with full material test reports
Machine setup using Renishaw probing systems for sub-micron tool offset validation
In-process inspection at critical stages via integrated Vision Engineering metrology systems
Final first-article inspection per AS9102 format with full CMM report (NIST-traceable)
All Swiss machining operations adhere to IATF 16949 protocols, with real-time SPC monitoring of critical dimensions. Complex multi-axis operations (e.g., Y-axis milling, live tooling cross-drilling) undergo additional validation cycles.
Quality-Certified Delivery
Completed parts undergo final packaging in ESD-safe containers with desiccant for moisture-sensitive applications. Each shipment includes:
Dimensional inspection report with actual vs. nominal values for all critical features
Material certification documentation
Process validation records (machine parameters, tool life logs)
Traceability data linking parts to specific bar stock heat numbers
We provide real-time shipment tracking via our portal with guaranteed on-time delivery metrics—99.8% fulfillment rate within committed timelines based on 2023 performance data.
The following table summarizes key phase durations and variables:
| Process Phase | Typical Duration | Key Duration Variables | Quality Gate Outcome |
|---|---|---|---|
| Upload CAD | < 15 minutes | File size, format compatibility | File validation pass/fail |
| AI Quote | ≤ 2 business hrs | Geometry complexity, material specification | Preliminary quote + risk flags |
| DFM Analysis | 1-3 business days | Required design iterations, client response time | Approved DFM report with sign-off |
| Production | 5-15 business days | Part complexity, material availability, batch size | FAI report + process validation |
| Delivery | 1-2 business days | Shipping destination, customs requirements | Complete documentation package |
This integrated workflow ensures clients receive technically validated, production-ready components with minimized time-to-part while maintaining the micron-level precision Swiss machining demands. All processes are documented under our ISO 9001:2015 certified quality management system.
Start Your Project
Looking for precision Swiss machining services? Partner with Honyo Prototype for high-accuracy, small-diameter component manufacturing. Our Shenzhen-based facility utilizes advanced Swiss CNC technology to deliver tight-tolerance parts for medical, aerospace, and industrial applications.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a fast, competitive quote.
