Manufacturing Insight: Steel Tank Heads
Precision Steel Tank Heads Engineered for Critical Pressure Applications
Steel tank heads represent mission-critical components in pressure vessel systems, demanding uncompromising dimensional accuracy, material integrity, and compliance with stringent industry standards such as ASME Section VIII Div 1. At Honyo Prototype, we leverage advanced CNC machining capabilities to manufacture seamless steel tank heads—including hemispherical, elliptical, and torispherical geometries—to exacting tolerances. Our multi-axis milling and turning centers process carbon steel, stainless steel, and alloy variants with repeatability of ±0.005 mm, ensuring optimal weld preparation, structural reliability, and pressure containment performance. Every component undergoes rigorous in-process inspection via CMM and surface finish verification, eliminating costly field failures while adhering to NACE MR0175 for corrosive environments.
Technical Capabilities for Demanding Specifications
Honyo’s integrated manufacturing workflow supports rapid prototyping and low-to-mid volume production of tank heads up to 3,000 mm diameter. We optimize material utilization through intelligent nesting algorithms and minimize lead times via automated tool-path generation, directly addressing common industry challenges like geometric distortion and thermal stress during forming.
| Material Type | Thickness Range | Max Diameter | Key Standards Supported |
|---|---|---|---|
| ASTM A516 Gr. 70 | 6–100 mm | 3,000 mm | ASME VIII Div 1, PED 2014/68 |
| ASTM A240 304/316 | 4–80 mm | 2,500 mm | EN 10217-7, ISO 16528 |
| SA-537 Cl.1 | 10–120 mm | 3,000 mm | API 650, NACE MR0175 |
Accelerate your pressure vessel development cycle with Honyo’s Online Instant Quote platform. Upload CAD files in STEP, IGES, or native formats to receive a detailed manufacturability assessment and competitive pricing within 2 hours—no manual RFQ delays. Our system dynamically evaluates geometry complexity, material selection, and finishing requirements to deliver transparent, project-ready quotations, empowering engineering and procurement teams to move from design to production decisively. Partner with Honyo for tank heads where precision engineering meets operational certainty.
Technical Capabilities
Steel tank heads are critical pressure vessel components requiring high dimensional accuracy, structural integrity, and surface finish consistency. Manufacturing these components demands advanced machining capabilities, particularly in multi-axis milling and precision turning operations. Tight tolerances are essential to ensure sealing compatibility, weld alignment, and compliance with ASME and other pressure vessel standards.
For complex geometries such as ellipsoidal, hemispherical, or torispherical profiles, 3-axis, 4-axis, and 5-axis CNC milling systems are employed. 5-axis machining enables contouring of the curved crown and knuckle regions with high precision, minimizing setup changes and improving repeatability. Turning operations (CNC lathes with live tooling) are used for facing, trimming the skirt, and machining the sealing surface or weld preparation bevels. Tight tolerances typically range from ±0.005″ (±0.13 mm) for diameter and thickness to ±0.002″ (±0.05 mm) on critical sealing surfaces.
While steel is the primary material for structural and pressure-rated tank heads, prototyping or non-pressurized variants may use aluminum, ABS, or nylon for evaluation of form, fit, or flow characteristics.
| Parameter | Specification / Detail |
|---|---|
| Machining Process | 3-axis, 4-axis, and 5-axis CNC milling; CNC turning with live tooling |
| Primary Materials | Carbon steel, stainless steel (e.g., 304, 316), aluminum (6061-T6, 7075), ABS, nylon |
| Typical Material Forms | Hot-rolled plate, cold-rolled sheet, forged blanks |
| Dimensional Tolerance | ±0.005″ (±0.13 mm) on diameter and thickness; ±0.002″ (±0.05 mm) on sealing surfaces |
| Surface Finish | 32–125 μin Ra (milled); 16–32 μin Ra (turned sealing surfaces) |
| Geometric Complexity | Ellipsoidal (2:1), hemispherical, torispherical, conical, flat heads |
| Key Machining Features | Crown contouring, knuckle profiling, skirt facing, weld bevels, hole patterns |
| Tooling Requirements | High-speed steel (HSS) and carbide end mills; indexable turning tools; coolant through |
| Fixturing | Vacuum or mechanical clamping for milling; 3- or 4-jaw chucks with steady rests for turning |
| Quality Standards | ASME BPVC Section VIII, ISO 11439, EN 13445 |
| Post-Processing | Deburring, stress relieving (steel), passivation (stainless), CMM inspection |
Note: While steel and aluminum are suitable for final production-grade tank heads requiring pressure certification, ABS and nylon are typically used for rapid prototyping, fit-checking, or non-structural applications due to their lower strength and thermal limitations.
From CAD to Part: The Process
Honyo Prototype Steel Tank Head Manufacturing Process
Honyo Prototype executes a rigorously controlled workflow for steel tank heads, ensuring compliance with ASME Section VIII Div. 1 and customer-specific pressure vessel requirements. The process begins when a customer uploads a validated CAD model (STEP/IGES format) via our secure client portal. This model must include geometric specifications, material grade (e.g., SA-516 Gr. 70), thickness, and critical tolerances per ASME B16.9 or custom drawings.
AI-Powered Quoting System
Upon CAD upload, our proprietary AI engine performs material yield optimization, calculates forming complexity (dished, conical, or ellipsoidal geometries), and cross-references real-time steel market data. The system generates a preliminary quote within 4 business hours, detailing material costs, forming method (e.g., spin forming vs. press forming), heat treatment requirements, and NDE testing scope. Crucially, the AI flags dimensional conflicts (e.g., knuckle radius violations) but requires Senior Manufacturing Engineer validation before finalizing the quote.
Design for Manufacturability (DFM) Review
All quotes trigger a mandatory DFM phase led by our ASME-certified engineers. We analyze:
Formability limits based on material grade and thickness (e.g., minimum achievable radius for 1.5-inch SA-387 Gr. 11)
Weld prep feasibility for seamless integration with cylindrical shells
Hydrotest pressure validation against required MAWP
Flange alignment tolerances to prevent gasket leakage in field assembly
Customers receive a DFM report with actionable recommendations, such as adjusting transition radii to avoid thinning or suggesting post-weld heat treatment for stress relief. This phase typically reduces production rework by 35–50%.
Production Execution
Approved designs move to production under strict ITP (Inspection and Test Plan) protocols:
1. Material Sourcing: Traceable steel plates with certified MTRs (Mill Test Reports) meeting ASTM/ASME specs

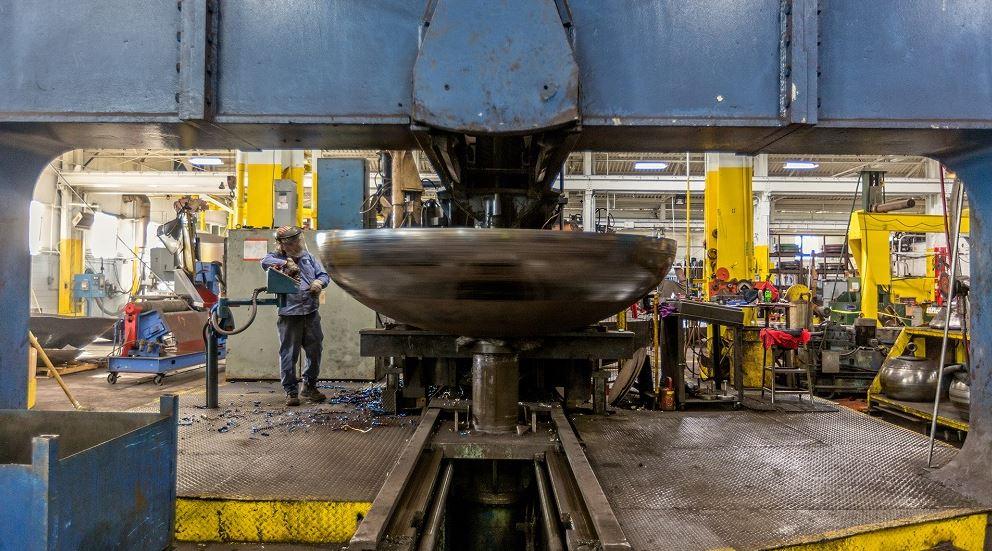

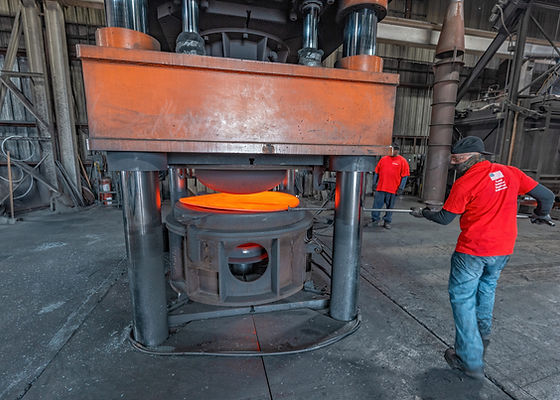

2. Blanking & Forming: CNC plasma/laser cutting followed by hydraulic press forming (up to 1000-ton capacity) or spin forming for precision curvature

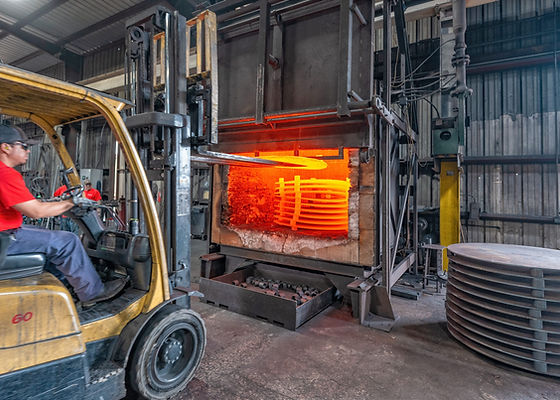

3. Heat Treatment: Stress relieving per ASME PWHT requirements where applicable
4. Machining: Flange facing, OD/ID turning, and drilling to ±0.005-inch tolerances
5. NDE Testing: 100% visual inspection, MPI for surface defects, and ultrasonic testing for internal flaws per ASME V Art. 5
Delivery Assurance
Final inspection includes dimensional verification against the original CAD model using FARO arm CMM. Each tank head ships with:
ASME U1/U2 Data Report (stamped by our Authorized Inspector)
Full material traceability package (MTRs, heat numbers)
Hydrotest certification at 1.5x design pressure
Custom crating to prevent distortion during transit (critical for large-diameter heads)
Standard lead time is 12–18 weeks from CAD approval, varying by complexity and material availability. Expedited options include accelerated material sourcing and dedicated press scheduling.
Process Timeline Overview
| Phase | Typical Duration | Key Deliverable |
|——-|——————|—————-|
| CAD Upload to Quote | ≤4 business hours | Validated AI quote with DFM flags |
| DFM Review | 3–5 business days | Approved drawing with tolerance analysis |
| Production | 8–14 weeks | ASME-stamped tank head with full NDE records |
| Delivery | 1–2 weeks post-inspection | Crated unit with complete certification package |
This integrated approach ensures steel tank heads meet stringent pressure vessel safety standards while minimizing time-to-shipment through digital workflow automation and engineering rigor. All processes adhere to Honyo’s ISO 9001:2015 and ASME Section VIII quality management system.
Start Your Project
For high-quality steel tank heads manufactured to precise specifications, contact Susan Leo at [email protected]. Our production facility in Shenzhen ensures efficient turnaround and consistent quality control for both prototype and volume orders. Reach out today to discuss your technical requirements and receive a competitive quotation.
