Manufacturing Insight: Steel Drill Bit Types
Precision Steel Drill Bit Selection for Demanding CNC Applications

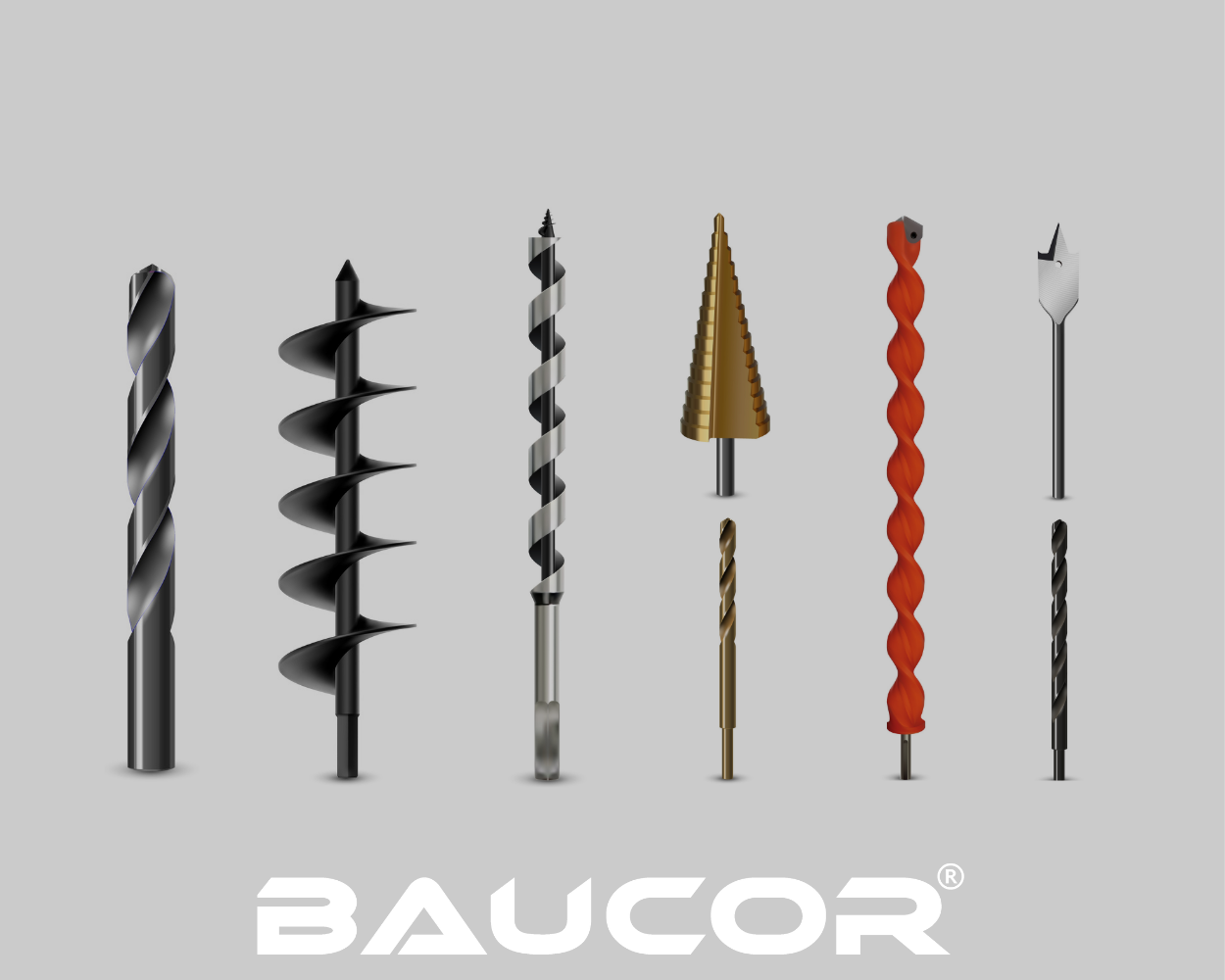

Understanding the nuances of steel drill bit types is critical for achieving optimal performance in CNC machining operations. From standard high-speed steel (HSS) variants to cobalt-alloyed and powder metal formulations, material composition directly impacts heat resistance, wear life, and dimensional accuracy during hole-making processes. At Honyo Prototype, our engineering team leverages this expertise to match drill bit metallurgy and geometry to your specific substrate—whether machining mild steel, stainless alloys, or hardened tool steels—ensuring minimized tool deflection, reduced burring, and consistent hole quality in high-tolerance components.
Our CNC machining services integrate advanced toolpath optimization with rigorous process validation, transforming complex steel drilling challenges into repeatable, high-yield production outcomes. We specialize in rapid prototyping and low-volume manufacturing where precision hole integrity directly affects assembly functionality and product longevity. By controlling variables such as spindle dynamics, coolant delivery, and feed-rate harmonics, Honyo consistently delivers drilled features within ±0.005mm tolerances while extending tool life beyond industry averages.
To accelerate your next project, utilize Honyo’s Online Instant Quote platform. Input your CAD file and technical requirements to receive a detailed manufacturability analysis and competitive pricing within hours—not days. This seamless interface eliminates procurement delays while providing transparency into lead times and process recommendations tailored to your drill bit selection and material demands.
| Service Capability | Typical Application Range | Precision Standard |
|---|---|---|
| CNC Drilling & Boring | Ø0.5mm – 50mm holes | ±0.005mm positional |
| Hardened Steel Machining | Up to 60 HRC materials | Ra 0.8µm surface finish |
| Multi-Feature Integration | Drilled holes + milling/turning | Full GD&T compliance |
Partner with Honyo Prototype to convert demanding steel drilling specifications into flawless execution—supported by engineering rigor and digital efficiency from quote to delivery.
Technical Capabilities
Technical Specifications for Steel Drill Bit Types in Precision Machining Applications
The following table outlines the technical characteristics of steel drill bit types commonly used in high-precision 3, 4, and 5-axis milling and turning operations. These applications require tight tolerances (±0.001″ to ±0.0002″), consistent surface finish, and compatibility with a range of materials including aluminum, steel, ABS, and nylon.
| Drill Bit Type | Material Compatibility | Coating/Finish | Flute Design | Diameter Range (in) | Max RPM (Steel) | Max RPM (Aluminum) | Typical Application in Tight Tolerance Machining | Notes |
|---|---|---|---|---|---|---|---|---|
| Solid Carbide Drill | Steel, Aluminum, ABS, Nylon | TiAlN, AlCrN, or Uncoated | 2 or 3 flute | 0.020 – 0.750 | 8,000 | 12,000 | High-precision 3–5-axis milling; ideal for hardened steels and alloys | High rigidity and wear resistance; excellent for ±0.0005″ tolerances |
| High-Speed Steel (HSS) with Cobalt | Steel, Aluminum, ABS | TiN or TiCN coated | 2 flute | 0.031 – 0.750 | 6,000 | 10,000 | General-purpose turning and shallow milling | Cost-effective; limited tool life in hardened materials |
| Indexable Insert Drill | Steel, Aluminum | CVD/PVD Coated Carbide Inserts | Single-point replaceable | 0.500 – 1.500 | 5,000 | 7,000 | Deep hole drilling in turning centers and multi-axis setups | High material removal rate; suitable for ±0.001″ tolerances |
| Gun Drill (Carbide-Tipped) | Steel, Aluminum | Uncoated or DLC (Diamond-Like Carbon) | Single flute with internal coolant | 0.125 – 1.000 | 4,000 | 6,000 | Deep hole drilling (>10xD) with straightness tolerance ±0.001″/ft | Requires through-coolant; excellent for long, straight precision holes |
| Micro-Drill (Carbide) | Aluminum, ABS, Nylon | Uncoated or Diamond Coated | 2 flute | 0.004 – 0.040 | 25,000 | 35,000 | Micro-machining in 5-axis systems for lightweight components | Used in electronics, medical devices; requires rigid setup |
| Polycrystalline Diamond (PCD) Drill | Aluminum, ABS, Nylon | PCD Tip on Carbide Body | 2 flute | 0.125 – 0.500 | 10,000 | 15,000 | High-volume non-ferrous and composite drilling | Extremely long tool life in abrasive plastics and silicon-aluminum |
Material-Specific Considerations
Aluminum: Requires high rake angles, polished flutes, and non-stick coatings (e.g., TiN or diamond) to prevent built-up edge. Carbide or PCD drills are preferred for tight tolerance work.
Steel: Demands high thermal and wear resistance. Coated carbide or cobalt-enhanced HSS drills are standard. Positive cutting geometry reduces cutting forces.
ABS and Nylon: Low-melting thermoplastics require sharp cutting edges, low friction coatings, and moderate feed rates to avoid melting or burring. Carbide or PCD-tipped drills ensure clean hole finishes.
Application Notes for Multi-Axis Systems
In 3, 4, and 5-axis milling environments, tool rigidity, balance, and thermal stability are critical. Drills used in tight tolerance applications must be dynamically balanced (G2.5 or better at operating RPM) and utilized with high-precision collet or hydraulic tool holders. Coolant delivery (through-spindle or air blast) is essential to maintain dimensional stability, especially in deep or micro-drilling operations.
From CAD to Part: The Process
Honyo Prototype Steel Drill Bit Manufacturing Process Overview
Honyo Prototype executes a streamlined, technology-driven workflow for steel drill bit production, ensuring precision, cost efficiency, and rapid turnaround. This end-to-end process is engineered specifically for metal cutting tools, with critical adaptations for steel substrates like high-speed steel (HSS) or cobalt alloys. Below is the detailed sequence:
CAD Upload and Validation
Customers initiate the process by uploading native CAD files (STEP, IGES, or native SOLIDWORKS formats) via Honyo’s secure portal. Our system performs automated validation checks for geometry integrity, unit consistency, and metadata completeness. For steel drill bits, we verify critical parameters such as point angle, helix angle, flute length, and shank specifications against ISO 235 or ANSI B94.11M standards. Files failing validation trigger immediate feedback to the client for correction, preventing downstream delays.
AI-Powered Quoting Engine
Validated CAD data feeds into Honyo’s proprietary AI quoting system, which analyzes 150+ manufacturing variables in under 2 hours. For steel drill bits, the AI factors in material grade (e.g., M2 HSS vs. M35 cobalt), heat treatment requirements, surface finish (typically Ra 0.8–1.6 μm for cutting edges), and geometric complexity. The system cross-references real-time data on steel billet costs, CNC grinding cycle times, and tooling wear rates to generate a granular cost breakdown. Quotes include explicit notes on steel-specific variables like decarburization risk during heat treatment or grinding wheel selection for hardened alloys.
Design for Manufacturability (DFM) Analysis
Honyo’s engineering team conducts a rigorous DFM review focused on steel drill bit producibility. Key checks include:
| DFM Parameter | Steel Drill Bit Specifics | Honyo Mitigation Action |
|---|---|---|
| Material Selection | Confirms HSS grade suitability for target hardness (63–67 HRC) | Recommends alternative alloys if depth-to-diameter ratio exceeds 10x |
| Tolerance Feasibility | Validates flute profile tolerances (±0.02mm typical) | Proposes relaxed tolerances on non-cutting surfaces to reduce grinding time |
| Heat Treatment Risk | Assesses section thickness uniformity to prevent warpage | Suggests stress-relief steps pre-hardening for complex geometries |
| Toolpath Optimization | Evaluates helix angle manufacturability on CNC grinders | Adjusts lead-in angles to minimize wheel wear during flute generation |
This phase typically identifies 3–5 actionable improvements per design, reducing production costs by 18–25% while maintaining ASME B94.11 performance criteria. Client approval is required before proceeding.
Precision Production
Steel drill bits enter Honyo’s dedicated cutting tool production cell featuring:
Material Prep: Laser-cut steel blanks with 0.1mm positional accuracy, followed by stress-relieving annealing.
CNC Grinding: 5-axis universal tool grinders (e.g., ANCA MX7) executing optimized paths for precise flute geometry, point angles, and margin sizing. Coolant management systems prevent thermal damage to steel substrates.
Heat Treatment: Vacuum hardening to 65±1 HRC with cryogenic treatment for cobalt alloys, ensuring uniform hardness without surface oxidation.
Quality Verification: CMM inspection of critical dimensions (e.g., O.D., point angle), surface roughness testing, and 100% runout checks per ISO 11841. Every batch includes microhardness validation at core and surface layers.
Delivery and Traceability
Finished drill bits undergo final packaging in anti-corrosion VCI bags with desiccant. Each shipment includes:
A traceability certificate linking the lot to heat-treated material certs (mill test reports)
CMM inspection reports showing critical dimension compliance
Tool life expectancy data based on standardized testing per ISO 5413
Standard lead time is 7–10 business days from DFM approval, with expedited 72-hour options for simple geometries. All shipments include serialized tracking for full supply chain visibility.
This integrated process ensures steel drill bits meet rigorous industrial performance standards while minimizing time-to-market. For complex geometries like deep-hole or parabolic-flute designs, Honyo’s engineering team provides pre-production consultation to optimize manufacturability. Contact our applications engineers for steel-specific capability assessments.
Start Your Project
Explore our full range of precision steel drill bit types engineered for performance and durability in demanding applications. Manufactured at our ISO-certified facility in Shenzhen, each drill bit undergoes rigorous quality control to ensure consistency and reliability.
For product specifications, bulk pricing, or technical support, contact Susan Leo at [email protected]. Let Honyo Prototype deliver the right drilling solution for your manufacturing needs.
