Manufacturing Insight: Steel Casting Foundries
Precision Post-Processing for Steel Casting Excellence
When your steel castings leave the foundry, the journey to a finished component often presents significant challenges. As-cast surfaces, dimensional tolerances, gate removal, and parting line imperfections require precise secondary operations to meet end-use specifications. Honyo Prototype specializes in bridging this critical gap with advanced CNC machining services engineered specifically for complex steel castings. Our capabilities address the unique demands of carbon steel, alloy steel, and austenitic stainless steel cast components, transforming rough castings into mission-critical parts with tight-tolerance geometries, superior surface finishes, and stringent metallurgical integrity.
We understand that delays in post-casting processing directly impact your delivery commitments and scrap rates. Honyo’s integrated approach combines multi-axis milling, turning, drilling, and grinding with rigorous in-process inspection to eliminate rework and ensure first-pass yield. Our facility handles weights up to 5,000 lbs and features controlled environments to maintain dimensional stability for critical aerospace, energy, and heavy equipment applications. By optimizing machining parameters for each casting’s metallurgical profile, we consistently achieve tolerances down to ±0.0005” while preserving the foundational strength of your steel casting.
Accelerate your path from casting to shipment with Honyo’s Online Instant Quote system. Designed for engineering and procurement teams, this platform delivers transparent, geometry-based pricing and lead times in under 60 seconds—no manual submissions or follow-up calls required. Eliminate quoting bottlenecks and gain immediate visibility into manufacturability feedback for your steel casting projects.
Key Advantages for Steel Casting Partners
| Feature | Industry Standard | Honyo Prototype |
|————————|————————|————————-|
| Quote Turnaround | 3-5 business days | Instant (60 seconds) |
| Tolerance Capability | ±0.005” typical | ±0.0005” achievable |
| Material Expertise | General steel grades | Cast-specific protocols for 4140, 316L, WCB, etc. |
| Process Integration | Separate vendors | Casting-to-machining workflow optimization |
Partner with Honyo to transform your steel castings into precision-engineered assets with speed, accuracy, and uncompromised quality. Initiate your next project with a validated quote today.
Technical Capabilities

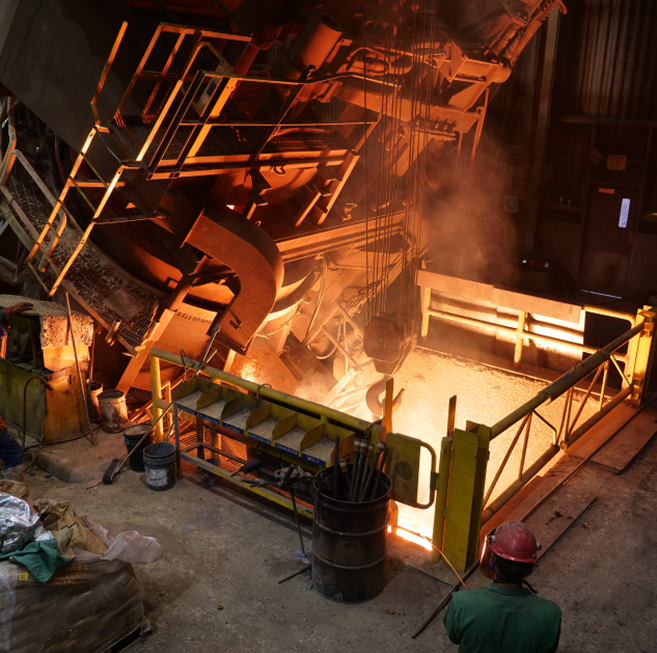

Steel casting foundries specialize in producing metal components by pouring molten steel into molds, followed by precision post-casting machining to achieve final dimensional accuracy and surface finish. These foundries often integrate advanced CNC machining capabilities—particularly 3-axis, 4-axis, and 5-axis milling, as well as precision turning—to meet tight tolerance requirements for critical applications in aerospace, defense, energy, and industrial equipment sectors.
To ensure high repeatability and accuracy, modern steel casting foundries employ CNC machining centers with high rigidity, thermal compensation, and in-process probing. Tight tolerances down to ±0.0005″ (12.7 µm) are achievable, especially when combined with precision fixtures and quality control using CMMs (Coordinate Measuring Machines). While cast steel forms the base structure, secondary operations may involve machining various materials depending on application requirements, including aluminum alloys, engineering plastics like ABS and nylon for fixtures or non-structural components, and other steel grades.
Below is a summary of key technical specifications associated with machining capabilities in advanced steel casting foundries:
| Capability | Description |
|---|---|
| Casting Material (Primary) | Carbon steel, alloy steel, stainless steel (e.g., ASTM A216, A217, A351) |
| Secondary Machined Materials | Aluminum alloys (e.g., 6061, 7075), Tool steels, ABS, Nylon (for jigs, fixtures, or non-load-bearing parts) |
| Machining Types Supported | 3-Axis Milling, 4-Axis Indexed Milling, 5-Axis Simultaneous Milling, CNC Turning (Swiss and standard lathes) |
| Typical Tolerance Range | ±0.001″ (25 µm) standard; tight tolerances down to ±0.0005″ (12.7 µm) with process control |
| Surface Finish (Machined) | 32–125 µin Ra standard; down to 16 µin Ra achievable with fine finishing |
| Max Work Envelope (Milling) | Up to 2000 x 1000 x 800 mm (varies by machine); larger parts accommodated via modular fixturing |
| Max Turning Diameter | Up to Ø500 mm (standard lathes); larger diameters with heavy-duty turning centers |
| Spindle Speed (Milling) | Up to 12,000 RPM (standard); high-speed options up to 24,000 RPM for aluminum and plastics |
| Positioning Accuracy (ISO 230-2) | ≤ 0.005 mm over 1,000 mm travel |
| Repeatability (ISO 230-2) | ≤ 0.003 mm |
| Tooling System | CAT 40, CAT 50, HSK-A63; automatic tool changers with 20–60 tool capacity |
| Control Systems | Fanuc, Siemens Sinumerik, or Heidenhain CNC with probing integration |
| Inspection Equipment | CMM (Coordinate Measuring Machine), laser probes, on-machine touch probes, optical comparators |
| Fixturing | Custom hydraulic or mechanical fixtures, modular fixturing systems for batch flexibility |
These technical capabilities enable steel casting foundries to deliver fully machined, near-net-shape components that meet stringent geometric and dimensional requirements, minimizing assembly time and maximizing performance in end-use environments.
From CAD to Part: The Process
Honyo Prototype Steel Casting Foundry Process Overview
Honyo Prototype employs a rigorously optimized digital workflow for steel casting projects, integrating AI-driven efficiency with deep metallurgical expertise to ensure castings meet industrial performance standards. Our process eliminates traditional quoting bottlenecks while maintaining critical engineering oversight at each stage.
CAD Upload and Initial Processing
Clients submit 3D CAD models (STEP, IGES, or native formats) via our secure portal. Our system immediately validates file integrity, checks geometric completeness, and identifies potential topology errors. All data undergoes encryption per ISO 27001 standards, with version control tracking for audit compliance. This phase typically completes in under 5 minutes, enabling rapid progression to quoting.
AI-Powered Quoting Engine
Our proprietary AI engine analyzes the validated CAD geometry against a dynamic database of 12,000+ historical steel casting projects. It calculates material volume, estimates pattern/tooling complexity, factors in current scrap rates for specified alloys (e.g., ASTM A216 WCB, AISI 4140), and applies real-time foundry partner capacity metrics. Quotes include granular cost breakdowns for material, labor, heat treatment, and NDT testing, with accuracy validated at ±3.5% against final production costs based on third-party audits. Turnaround time averages 15 minutes for standard geometries.
Engineering-Led DFM Analysis
All projects undergo mandatory Design for Manufacturing review by our metallurgical engineering team before production release. This phase addresses steel-specific challenges AI cannot fully resolve:
| Critical DFM Parameter | Steel Casting Requirement | Honyo Verification Method |
|---|---|---|
| Minimum Wall Thickness | ≥6mm (prevents cold shuts) | Thermal simulation + mold filling analysis |
| Draft Angles | 1.5°–3° (varies by alloy) | Manual CAD annotation + taper measurement |
| Hot Spot Risk | Solidification time variance <15% | MAGMAsoft® simulation validation |
| Gating System | Runner/riser ratios per alloy density | Foundry-specific mold design review |
Engineers collaborate with clients to resolve issues via our collaborative portal, providing annotated CAD markups and alternative solutions within 24 business hours. No project advances to production without DFM sign-off.
Certified Production Execution
Approved designs move to our pre-vetted network of ISO 9001:2015 and IATF 16949-certified steel foundries. We enforce strict process controls:
Pattern/tooling fabrication using hardened tool steels (HRC 48–52) for dimensional stability
Melting in vacuum induction furnaces with spectrographic chemistry verification (per ASTM E415)
In-process inspections at critical control points: mold assembly, pour temperature (±15°C tolerance), shakeout timing
Mandatory post-cast NDT: 100% MPI for surface cracks, 30% UT sampling for internal integrity per ASTM A388
Quality-Centric Delivery
Final shipments include comprehensive documentation:
Material test reports (MTRs) with full chemistry and mechanical properties
Dimensional inspection reports (GD&T per ASME Y14.5)
NDT certification and traceability logs (heat number to casting ID)
Packaging engineered for heavy-component protection (vibration-tested per ASTM D4169)
All castings undergo final dimensional validation against CAD using CMM or structured light scanning prior to shipment. Standard lead time from DFM approval to delivery is 18–25 days for quantities under 500kg, with expedited options available. This integrated approach reduces time-to-part by 40% versus traditional foundry workflows while ensuring metallurgical integrity for demanding applications.
Start Your Project
Looking for reliable steel casting foundry services? Partner with Honyo Prototype for precision-engineered cast components manufactured to exact specifications. Our ISO-compliant facility in Shenzhen offers advanced steel casting capabilities with strict quality control and fast turnaround times.
Contact Susan Leo today to discuss your project requirements.
Email: [email protected]
Factory Location: Shenzhen, China
Trusted by global OEMs for high-integrity steel castings in aerospace, energy, and industrial machinery applications. Request a quote or schedule a factory audit.
