Steel Bending And Fabrication Manufacturing Service

Manufacturing Insight: Steel Bending And Fabrication

Precision Steel Bending and Fabrication: Engineered for Demanding Applications

At Honyo Prototype, we transform complex steel components from concept to reality through advanced CNC machining and precision metal fabrication. Our integrated approach to steel bending leverages state-of-the-art CNC press brakes and tube bending systems, ensuring consistent accuracy for both simple brackets and intricate structural assemblies. We specialize in producing parts that meet tight tolerances—down to ±0.005 inches—across diverse steel grades including stainless, carbon, and alloy variants, critical for aerospace, medical, and industrial equipment sectors.

Our CNC machining capabilities extend beyond bending to encompass comprehensive fabrication solutions: laser cutting, welding, finishing, and assembly. This vertical integration eliminates supply chain fragmentation, reducing lead times while maintaining rigorous quality control. Every process adheres to ISO 9001 standards, with in-house metrology validating dimensional integrity through CMM and optical inspection. Whether prototyping low-volume runs or scaling to medium production, we deliver repeatability and structural integrity for mission-critical applications.

Accelerate your project timeline with Honyo’s Online Instant Quote platform. Upload your STEP or DWG files to receive a detailed, no-obligation quote within hours—not days—including material recommendations, lead time estimates, and manufacturability feedback. This seamless digital workflow empowers engineers to iterate faster and move from design to fabrication with unprecedented efficiency.

Service Category	Key Capabilities	Tolerance Range
CNC Steel Bending	Press brake forming, tube bending, hemming	±0.005″ to ±0.020″
Integrated Fabrication	Laser cutting, MIG/TIG welding, surface finishing	±0.002″ (machined)
Material Expertise	Stainless (304/316), Carbon Steel (A36/1018), Alloys	ASTM/AMS Compliant

Partner with Honyo Prototype to convert engineering specifications into precision steel components, backed by technical expertise and a commitment to on-time delivery. Initiate your project today through our instant quoting system and experience streamlined manufacturing execution.

---

Technical Capabilities

Technical Specifications for Steel Bending and Fabrication Services

Honyo Prototype offers advanced steel bending and fabrication capabilities, specializing in high-precision machining processes including 3, 4, and 5-axis milling, CNC turning, and tight-tolerance manufacturing. Our expertise spans a wide range of materials such as aluminum, steel, ABS, and nylon, ensuring accurate and repeatable results for complex components used in aerospace, medical, automotive, and industrial applications.

Parameter	Specification Details
Machining Processes	3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning; Steel Bending; Precision Fabrication
Tolerance Capability	±0.0002″ (5 µm) typical; tight tolerances maintained across complex geometries
Surface Finish	As-machined: 32–125 µin Ra; post-processing options available (e.g., polishing, anodizing)
Maximum Work Envelope	Milling: 2000 mm × 1000 mm × 800 mm (78.7″ × 39.4″ × 31.5″) Turning: Ø400 mm × 1000 mm (15.7″ × 39.4″) Bending: Up to 3 mm thickness, variable bend radii
Materials Supported	Aluminum (6061, 7075, 2024), Steel (Mild, Stainless 303/304/316), ABS (Thermoplastic), Nylon (PA6, PA66)
Aluminum Machinability	High-speed machining with optimized feeds/speeds; excellent dimensional stability
Steel Machinability	Hardened and non-hardened steels; capable of deep pocketing and threaded features
ABS & Nylon Handling	Low-force cutting strategies; controlled clamping to prevent deformation
Tooling & Fixturing	Custom modular fixturing; automated tool changers; in-process probing for accuracy
Quality Assurance	CMM inspection, first-article reporting (FAI), GD&T compliance, material certification
Secondary Operations	Deburring, tapping, heat treatment, surface coating, assembly, laser marking

Our multi-axis capabilities enable single-setup machining of intricate 3D contours, minimizing human error and ensuring superior part consistency. Tight-tolerance machining is supported by thermally compensated machines and a climate-controlled environment. Material-specific cutting parameters and toolpath strategies ensure optimal performance across aluminum, steel, ABS, and nylon substrates.

---

From CAD to Part: The Process

Honyo Prototype employs a rigorously defined, technology-integrated workflow for steel bending and fabrication services, ensuring precision, efficiency, and adherence to client specifications from initial concept to final delivery. Our standardized process eliminates common supply chain friction points inherent in traditional metalworking.

CAD File Upload and Validation
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, DWG, DXF, SLDPRT) via our secure customer portal. Our system automatically validates file integrity, geometric complexity, and unit consistency. Unsupported formats trigger immediate client notification for resubmission, preventing downstream delays. This stage establishes the foundational digital twin for the physical part.

AI-Assisted Quotation
Validated CAD geometry feeds into our proprietary AI quotation engine. The system analyzes material requirements (grade, thickness), geometric complexity (bend counts, features), secondary operations (welding, finishing), and historical production data to generate a preliminary cost and lead time estimate within minutes. Crucially, this is not a fully automated quote; Honyo’s manufacturing engineers review AI outputs, applying domain expertise to validate feasibility, identify potential cost drivers, and adjust for material market volatility before finalizing the commercial offer. This hybrid approach ensures accuracy unattainable with pure automation.

Comprehensive DFM Analysis
Upon client approval of the quote, our engineering team conducts a formal Design for Manufacturability (DFM) review. This critical phase examines bend radii against material ductility, tooling accessibility, minimum flange lengths, hole-to-bend proximity, and overall manufacturability. We proactively identify potential issues such as:
Geometrically impossible bends requiring design modification
Suboptimal material grain direction affecting formability
Features requiring costly secondary operations
Tolerance stack-up risks
The DFM report, including specific recommendations and potential cost/time implications of suggested changes, is shared with the client for collaborative resolution prior to tooling or material commitment.

Precision Production Execution

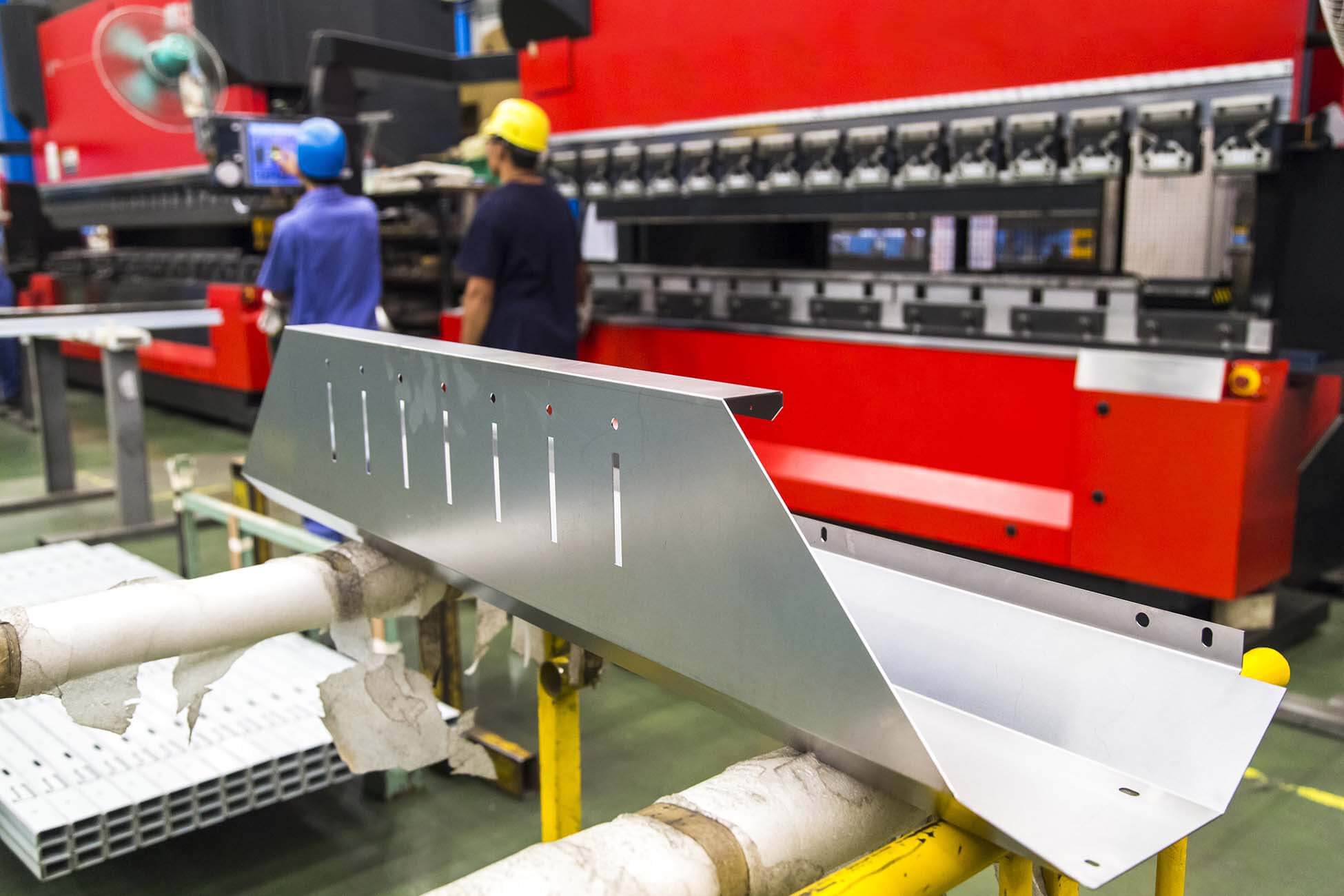

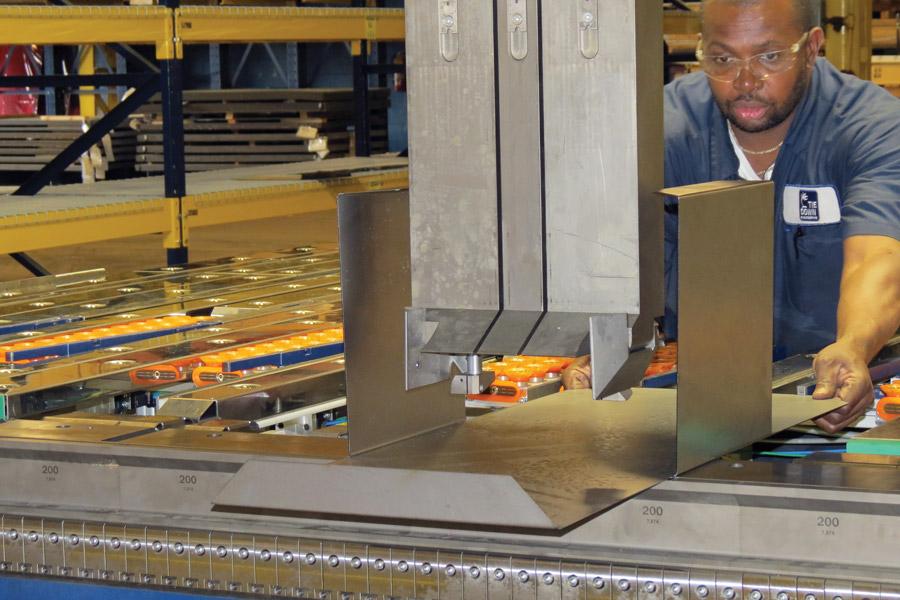

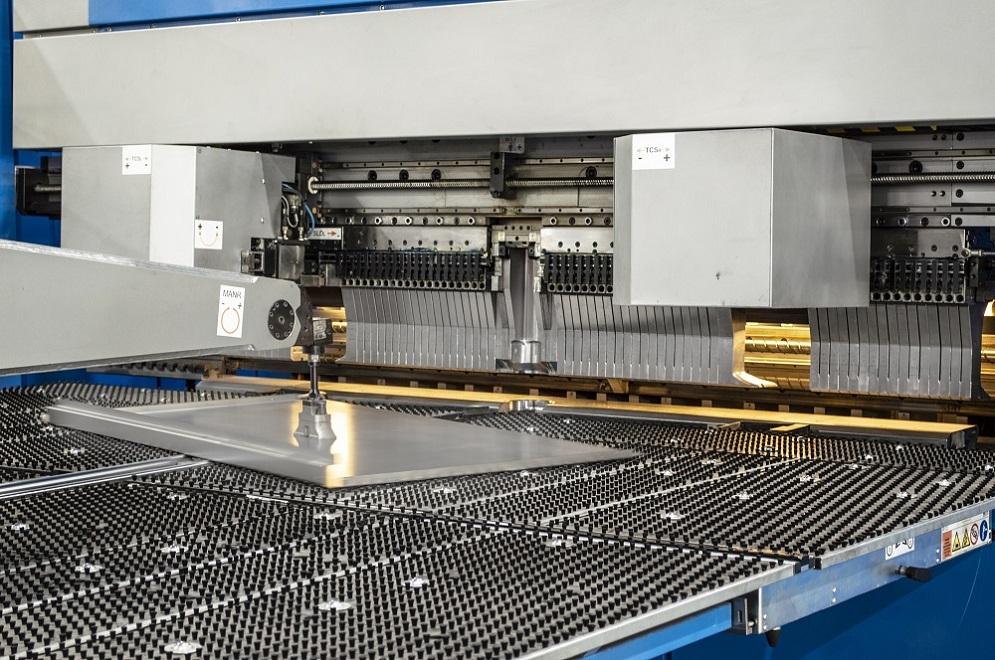

Approved designs move to production using CNC-controlled press brakes (ranging from 35 to 300 tons capacity) equipped with laser bend angle verification systems. Key production protocols include:
Material certification traceability for all steel stock (A36, 1018, 4140, etc.)
Real-time in-process inspection using calibrated CMMs and optical comparators
Welding performed by certified personnel per AWS D1.1 standards where applicable
Strict adherence to documented work instructions derived from the DFM analysis
First-article inspection reports provided for all new part numbers
Bend tolerances consistently achieve ±0.5° on angles and ±0.005″ on linear dimensions for critical features, verified through our quality management system.

Controlled Delivery and Logistics
Completed parts undergo final dimensional and visual inspection against the original CAD model and purchase order requirements. Parts are packaged per Honyo’s standard protocol—using VCI paper, edge protectors, and custom dunnage for fragile or high-precision components—to prevent transit damage. Real-time shipment tracking is provided via the client portal. All deliveries include comprehensive documentation:
Certified material test reports (MTRs)
First-article inspection report (FAIR)
Final inspection report (FIR)
Packing list with serialized part tracking

The following table summarizes key metrics across our process stages:

Process Stage	Key Inputs	Typical Duration	Primary Output	Quality Gate Criteria
CAD Upload & Validation	Native/Neutral CAD File	< 15 minutes	Validated CAD Model	File integrity, Unit consistency
AI-Assisted Quotation	Validated CAD, Material Spec	< 2 business hrs	Commercial Quote + DFM Prelim Notes	Cost accuracy, Feasibility flagging
DFM Analysis	Approved Quote, CAD Model	1-3 business days	DFM Report with Recommendations	Manufacturability score ≥ 85%
Precision Production	Approved DFM, Raw Material	Varies by complexity	Finished Fabricated Parts	FAIR conformance to spec
Controlled Delivery	Inspected Parts, Client PO	1-2 business days	Shipment with Full Documentation	Zero transit damage incidents

This integrated methodology ensures steel fabrication projects meet stringent quality, timeline, and cost targets while providing clients with unprecedented transparency and engineering collaboration throughout the manufacturing lifecycle. Honyo’s commitment to process rigor directly translates to reduced time-to-market and minimized risk for our partners.

---

Start Your Project

Discover precision steel bending and fabrication services from Honyo Prototype. Our Shenzhen-based factory delivers high-quality, custom metal solutions tailored to your engineering and production needs. From prototyping to full-scale manufacturing, we ensure accuracy, durability, and on-time delivery.

For project inquiries and quotes, contact Susan Leo at [email protected]. Let’s build your next innovation together.

---
