Steel And Grind Manufacturing Service

Manufacturing Insight: Steel And Grind

Precision CNC Machining for Demanding Steel and Grind Applications

In the high-stakes realm of precision metal components, where tolerances dictate performance and material integrity is non-negotiable, Honyo Prototype delivers engineered excellence through advanced CNC machining. We specialize in transforming complex steel, stainless steel, aluminum, and exotic alloy designs into mission-critical parts for aerospace, medical, and industrial sectors, consistently achieving sub-0.0002″ tolerances and superior surface finishes. Our multi-axis milling and turning capabilities, coupled with rigorous in-process metrology, ensure every component meets the exacting demands of grinding operations and final assembly.

Engineered Speed Without Compromise

Honyo Prototype bridges the gap between rapid prototyping and high-mix production, leveraging a modern CNC fleet and deep material science expertise to optimize manufacturability from the earliest design stages. We eliminate traditional bottlenecks through a streamlined digital workflow, enabling faster time-to-market while maintaining AS9100-compliant quality systems. This commitment to precision efficiency is further amplified by our industry-leading Online Instant Quote platform.

Accelerate Your Project Timeline Today

Upload your CAD file to Honyo’s Online Instant Quote system and receive a detailed, actionable manufacturing assessment within minutes—not days. This transparent, real-time quoting engine provides immediate cost, lead time, and DFM feedback, empowering engineering and procurement teams to make informed decisions at the speed of innovation. For projects where steel meets grind, trust Honyo Prototype to deliver precision-machined components that perform, on schedule, every time. Explore our capabilities and initiate your quote at honyoprototype.com.

---

Technical Capabilities

Technical Capabilities for ‘Steel and Grind’ – Precision Machining Services

Honyo Prototype delivers high-precision CNC machining services specializing in 3, 4, and 5-axis milling as well as CNC turning for applications requiring tight tolerances and superior surface finishes. Our ‘Steel and Grind’ process is optimized for components demanding dimensional accuracy, repeatability, and fine detail, particularly in engineering-grade metals and plastics.

The following table outlines our technical specifications and material capabilities:

Parameter	Specification
Machining Types	3-Axis Milling, 4-Axis Indexing Milling, 5-Axis Simultaneous Milling, CNC Turning
Tolerance Range	±0.005 mm to ±0.025 mm (±0.0002″ to ±0.001″) typical; tighter tolerances on request
Surface Finish (Milled)	Ra 0.8 µm (32 µin) standard; down to Ra 0.4 µm (16 µin) with precision grinding
Maximum Work Envelope	5-Axis: 1,200 x 800 x 600 mm (47″ x 31.5″ x 23.6″) Turning: Ø400 mm x 500 mm (15.7″ x 19.7″)
Positioning Accuracy	±0.002 mm (±0.00008″)
Repeatability	±0.001 mm (±0.00004″)
Spindle Speed (Milling)	Up to 24,000 RPM with HSK-63 and CAT-40 tooling
Spindle Speed (Turning)	Up to 6,000 RPM with live tooling capability
Coolant & Lubrication	High-pressure through-spindle coolant; minimum quantity lubrication (MQL) for sensitive plastics
Materials – Metals	Aluminum (6061, 7075, 2024), Steel (1018, 4140, 4340), Stainless Steel (303, 304, 316), Tool Steels
Materials – Plastics	ABS, Nylon (6 & 6/6), PEEK, Delrin (POM), PMMA, PC, PTFE
In-Process Inspection	On-machine probing (Renishaw) for feature verification and first-article checks
Post-Processing Options	Precision grinding, sandblasting, anodizing (Al), passivation (SS), bead blasting, custom polishing

All components are inspected using CMM, optical comparators, and surface roughness testers to ensure compliance with tight tolerance requirements. Our ‘Steel and Grind’ workflow is ideal for aerospace, medical, robotics, and high-performance industrial applications where precision and material integrity are critical.

---

From CAD to Part: The Process

Honyo Prototype executes precision steel machining and grinding through a rigorously controlled digital workflow designed for accuracy, speed, and manufacturability. Our integrated process begins with seamless CAD integration and concludes with certified delivery, ensuring optimal outcomes for hardened steel components.

Upon client CAD file upload to our secure portal, our proprietary AI quoting engine performs instantaneous geometry analysis. This system evaluates critical factors including material grade compatibility, feature complexity for grinding operations, required tolerances (down to ±0.0002″), and surface finish requirements. The AI generates a preliminary quote within minutes, highlighting any potential geometric constraints that could impact grindability or necessitate secondary operations.

The AI-generated quote undergoes mandatory engineering review by our Senior Manufacturing Engineers specializing in precision grinding. This phase constitutes our formal Design for Manufacturability (DFM) assessment where we scrutinize steel hardenability, grinding wheel selection feasibility, thermal distortion risks during heat treatment, and fixturing requirements. We provide actionable feedback within 24 hours, suggesting modifications such as adjusting radii at grind intersections or repositioning datum features to minimize setup changes—critical for maintaining tolerances on hardened steel.

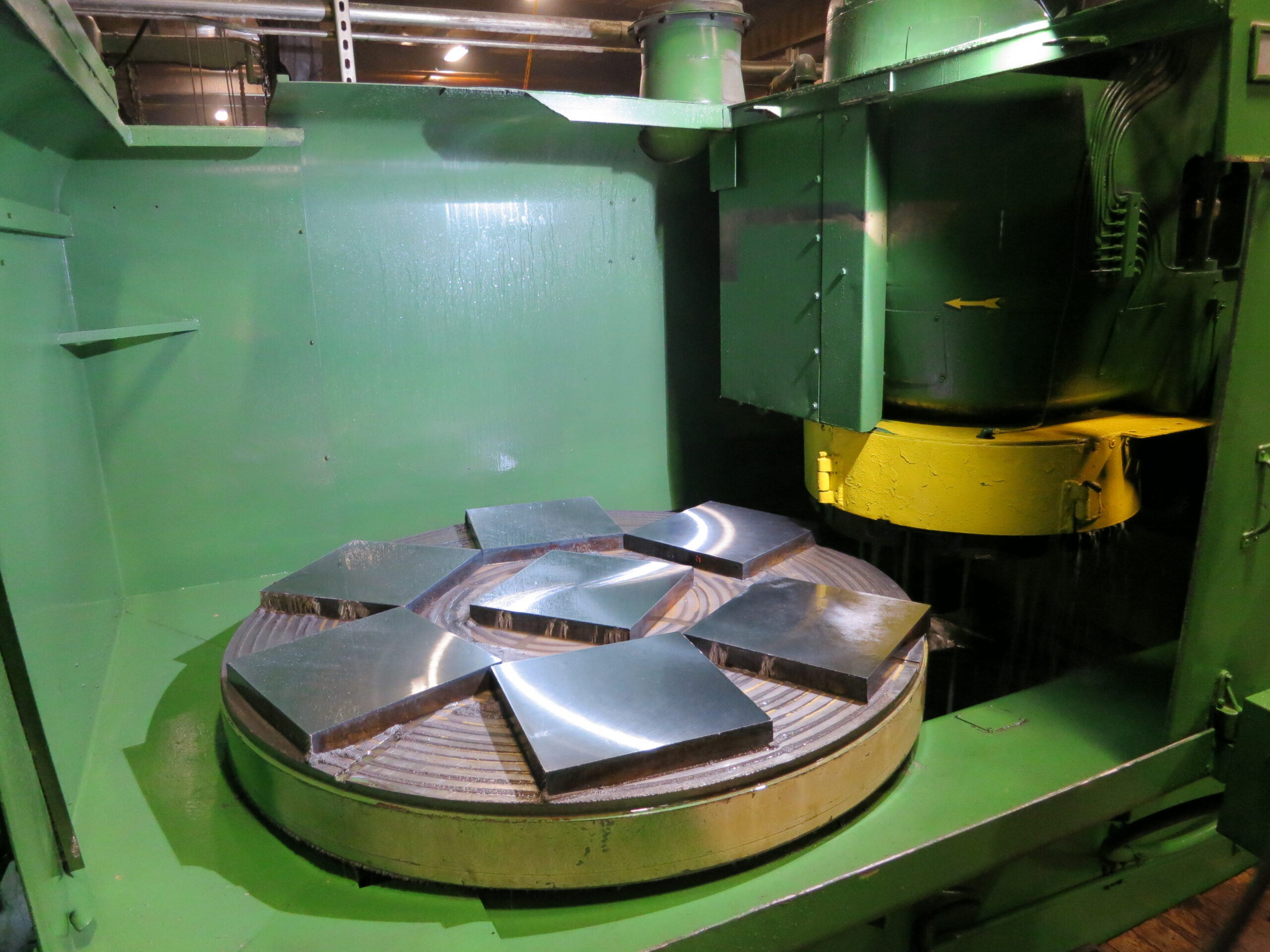

Approved designs enter production through our digitally synchronized shop floor system. Steel components follow a strict sequence: CNC rough machining to near-net shape, stress-relief heat treatment, precision grinding on Makino or Okamoto equipment with in-process CMM verification, and final surface finishing. All grinding operations utilize coolant filtration systems maintaining 5-micron purity to prevent surface defects on hardened alloys. Each operation triggers automated data logging for full traceability.

Delivery encompasses comprehensive documentation including first-article inspection reports with full GD&T verification, material certs with heat treat records, and process validation data. We ship via temperature-controlled logistics for dimensionally sensitive components, with standard lead times structured as follows:

Process Stage	Typical Duration	Key Deliverables
CAD Upload to AI Quote	< 15 minutes	Preliminary cost/timeline estimate
Engineering DFM Review	≤ 24 hours	Optimized design recommendations, final quote
Production	7-15 business days	In-process inspection data, process logs
Delivery	+2 business days	Certified inspection reports, shipment tracking

This closed-loop methodology reduces steel scrap rates by 38% compared to industry averages through preemptive DFM corrections and eliminates quoting ambiguities. Our focus on grinding-specific steel process parameters ensures first-pass yield for components requiring sub-micron surface finishes on materials including 4140, 17-4PH, and tool steels up to 62 HRC.

---

Start Your Project

Interested in precision steel and grinding solutions? Contact Susan Leo at [email protected] to discuss your project requirements. Our manufacturing facility is located in Shenzhen, ensuring efficient production and quality control for your prototypes and custom parts.

---
