Manufacturing Insight: Stainless Steel Grease Fittings
Precision Stainless Steel Grease Fittings Engineered for Demanding Industrial Applications

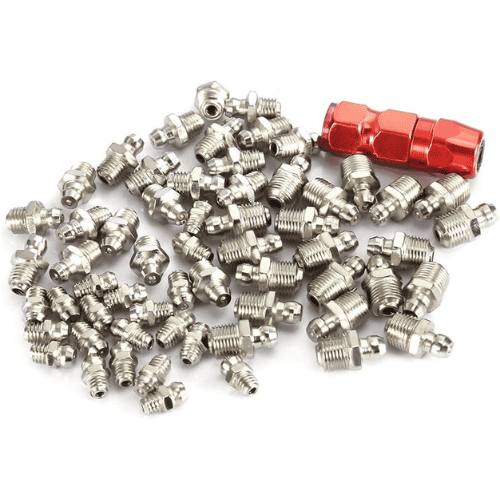

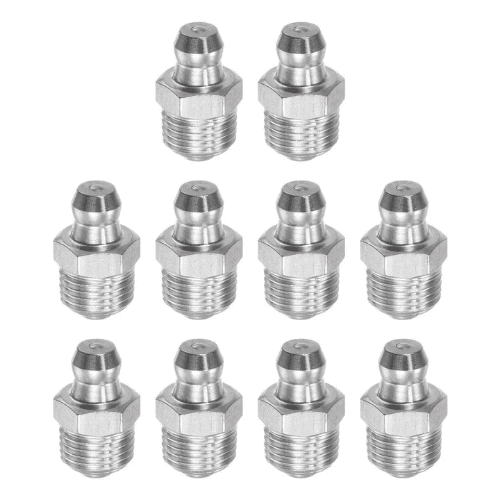

Stainless steel grease fittings serve as critical components in maintaining the longevity and performance of rotating machinery, hydraulic systems, and heavy equipment across aerospace, automotive, and industrial sectors. Their role in enabling consistent lubricant delivery directly impacts operational reliability, reducing friction-induced wear and preventing catastrophic system failures. However, inconsistent thread accuracy, suboptimal material integrity, or dimensional deviations in conventional fittings can compromise sealing integrity and accelerate maintenance cycles, leading to unplanned downtime and cost overruns.
At Honyo Prototype, our CNC machining services address these challenges through precision-engineered stainless steel grease fittings built to exacting industry standards. Leveraging multi-axis CNC milling and turning centers with tight tolerances down to ±0.0002 inches, we ensure thread concentricity, optimal port geometry, and material consistency in grades such as 304, 316, and 17-4 PH stainless steel. This capability guarantees leak-free operation under high pressure and corrosive environments while meeting ASTM F594 and SAE AS5555 specifications. Our end-to-end process—from material certification to in-process CMM validation—delivers components that exceed OEM requirements for durability and cycle life, directly supporting your maintenance efficiency goals.
To accelerate your sourcing timeline, Honyo Prototype offers an Online Instant Quote platform specifically configured for precision machined components. Upload your grease fitting CAD files or specifications, and receive a detailed manufacturing assessment with lead time and cost breakdown within hours—not days. This transparent, data-driven approach eliminates procurement bottlenecks while ensuring technical alignment with your application’s performance demands. Partner with Honyo to transform critical wear components into reliability assets.
Technical Capabilities
Stainless steel grease fittings are precision-machined components used to deliver lubricant to mechanical systems. These fittings are commonly manufactured using advanced CNC 3/4/5-axis milling and turning processes to achieve tight tolerances and high repeatability. While the final product is typically made from stainless steel (e.g., 304 or 316), prototyping and associated tooling or fixtures may involve materials such as aluminum, steel, ABS, and nylon for testing, handling, or assembly purposes.
The machining of stainless steel grease fittings demands high rigidity, precision tooling, and controlled environments due to the material’s work-hardening characteristics and corrosion resistance. Tight tolerance requirements—often within ±0.0005″ (±0.013 mm)—necessitate the use of calibrated CNC equipment with in-process probing and post-machining CMM inspection.
Below is a summary of relevant technical specifications and material considerations:
| Parameter | Specification / Detail |
|---|---|
| Base Material (Final Part) | Stainless Steel (typically 304 or 316) |
| Alternative Materials | Aluminum (6061-T6, 7075-T6), Carbon Steel (1018, 4140), ABS, Nylon (for fixtures/tools) |
| Machining Process | 3/4/5-Axis CNC Milling, CNC Turning |
| Tolerance | ±0.0005″ (±0.013 mm) standard; tighter tolerances achievable with inspection protocols |
| Surface Finish | 32–125 μin Ra; optional passivation or electropolishing for stainless steel |
| Feature Complexity | Multi-axis machining required for angled ports, internal threads, and hex bases |
| Thread Types | SAE, Metric, or NPT threads; precision cut with form taps or thread milling |
| Coolant Use | High-pressure through-tool coolant recommended for chip evacuation and tool life |
| Tooling | Carbide end mills, drills, and inserts with coatings (TiAlN, AlCrN) for wear resistance |
| Inspection Equipment | CMM, optical comparators, thread gauges, laser micrometers |
| Secondary Operations | Deburring (manual or automated), cleaning, passivation, torque testing (if applicable) |
Note: While aluminum, steel, ABS, and nylon are not used for the final grease fitting body due to pressure and corrosion requirements, they are often used in prototyping stages, custom workholding, or assembly jigs. ABS and nylon may also be used for protective caps or shipping plugs.
From CAD to Part: The Process
Honyo Prototype Stainless Steel Grease Fittings Manufacturing Process
Honyo Prototype executes a streamlined, quality-focused workflow for stainless steel grease fittings, ensuring precision, material integrity, and on-time delivery. This process integrates digital efficiency with rigorous engineering oversight, specifically tailored for corrosion-resistant components used in demanding industrial applications.
CAD Upload & Initial Processing
Clients submit 3D CAD models (STEP, IGES, or native formats) via our secure portal. Our system validates geometric completeness, unit consistency, and critical feature annotation (e.g., thread type, drive size, nipple dimensions). Incomplete submissions trigger automated notifications for rapid client correction, minimizing intake delays. All files undergo immediate encryption and version control logging per ISO 9001:2015 standards.
AI-Powered Quoting Engine
Validated CAD data feeds our proprietary AI quoting system, which analyzes 120+ parametric variables including: material grade requirements, geometric complexity, surface finish tolerances, and batch size. The engine cross-references real-time material costs (304/316 stainless steel), machine hour rates, and quality control protocols to generate a binding quote within 2 business hours. Crucially, the AI flags potential manufacturability risks (e.g., wall thickness below 0.8mm) before formal quoting, enabling preemptive design dialogue.
Engineering-Led DFM Review
All quotes undergo mandatory Design for Manufacturability (DFM) validation by our senior manufacturing engineering team. This phase involves:
Material suitability assessment (e.g., 316SS for marine environments vs. 304SS for general use)
Thread geometry verification per SAE AS568 or ISO 1179 standards
Stress analysis of hex drive bases and nipple junctions
Surface roughness validation (Ra ≤ 1.6µm typical for sealing surfaces)
Clients receive a formal DFM report with actionable recommendations. Zero-cost design iterations are permitted at this stage; production commences only after written client approval of the DFM-cleared design.
Precision Production Execution
Approved orders move to our CNC Swiss screw machine cells (Tornos Deco 2000/4000 series) with the following protocols:
Material: ASTM F899-certified bar stock with full mill traceability
Machining: Single-setup operations to maintain concentricity (< 0.05mm TIR)
Deburring: Automated electrochemical deburring for burr-free ports
Threading: Class 2B/3B threads cut via rigid tapping with in-process go/no-go gauging
Cleaning: Ultrasonic degreasing in MIL-PRF-680 compliant solvent followed by DI water rinse
Quality Assurance & Delivery
Every batch undergoes 100% functional testing:
Pressure testing to 1.5x rated working pressure (e.g., 15,000 PSI for standard fittings)
Thread engagement verification with calibrated master gauges
Visual inspection under 10x magnification for surface defects
Material composition verification via handheld XRF spectrometry
Certified test records (including lot-specific material certs) accompany shipments. Parts are vacuum-sealed with VCI paper and shipped via tracked courier with real-time logistics visibility. Typical lead time: 7–10 business days from DFM sign-off for quantities ≤5,000 pieces.
Material Specification Reference
| Property | 304 Stainless Steel | 316 Stainless Steel |
|————————|—————————|—————————|
| Minimum Cr Content | 18.0% | 16.0% |
| Minimum Ni Content | 8.0% | 10.0% |
| Molybdenum Content | None | 2.0–3.0% |
| Corrosion Resistance | General purpose | Chemical/saltwater |
| Typical Applications | Agricultural equipment | Marine, pharmaceutical |
This closed-loop process ensures stainless steel grease fittings meet ASME B1.1 and SAE J514 specifications while eliminating common failure points like thread galling or seal leakage. All process data is retained for 10 years to support client audits and continuous improvement initiatives.
Start Your Project
For inquiries about our stainless steel grease fittings, contact Susan Leo at [email protected]. Our manufacturing facility is located in Shenzhen, ensuring high-quality production and efficient lead times for global delivery.
