Manufacturing Insight: Stainless Steel Files
Precision Stainless Steel Components Demand Advanced CNC Capabilities
Stainless steel remains a critical material choice for demanding applications requiring corrosion resistance, high strength, and biocompatibility across aerospace, medical, and industrial sectors. However, achieving tight tolerances and superior surface finishes in stainless alloys presents significant machining challenges due to work hardening, thermal conductivity limitations, and stringent quality requirements. Honyo Prototype addresses these complexities through dedicated CNC machining expertise optimized specifically for stainless steel grades including 304, 316, 17-4PH, and custom formulations.
Our multi-axis CNC milling and turning centers operate under strict process controls to maintain dimensional accuracy down to ±0.005mm while mitigating thermal distortion and tool wear inherent in stainless steel processing. Advanced toolpath strategies, cryogenic cooling options, and in-process metrology ensure consistent part integrity and surface finishes meeting Ra 0.8μm standards. Every component undergoes rigorous first-article inspection against AS9102 or custom quality plans, with material traceability and certified testing available for mission-critical applications.
Accelerate Your Stainless Steel Prototyping and Production
Honyo Prototype eliminates traditional quoting delays for stainless steel CNC projects. Upload your STEP or IGES file to our Online Instant Quote platform to receive a detailed manufacturability analysis and competitive pricing within hours—not days. This integrated system provides real-time feedback on design optimization opportunities while guaranteeing seamless transition from RFQ to certified production.
Material Performance Data for Key Stainless Alloys
| Grade | Tensile Strength (MPa) | Corrosion Resistance | Typical Applications |
|——-|————————|———————-|———————-|
| 304 | 515 min | Excellent (general) | Fluid systems, enclosures |
| 316 | 515 min | Superior (chlorides) | Marine, medical implants |
| 17-4PH | 1000 min | Good (precipitation) | Aerospace actuators, valve parts |
| 440C | 1725 min | Moderate (high hard) | Cutting tools, bearings |
Leverage Honyo Prototype’s stainless steel machining specialization to transform complex designs into certified components without compromising on speed or precision. Initiate your project today through our Online Instant Quote system for engineering-grade stainless solutions delivered on schedule.
Technical Capabilities
Technical Specifications for Stainless Steel Files – Precision Machining Focus

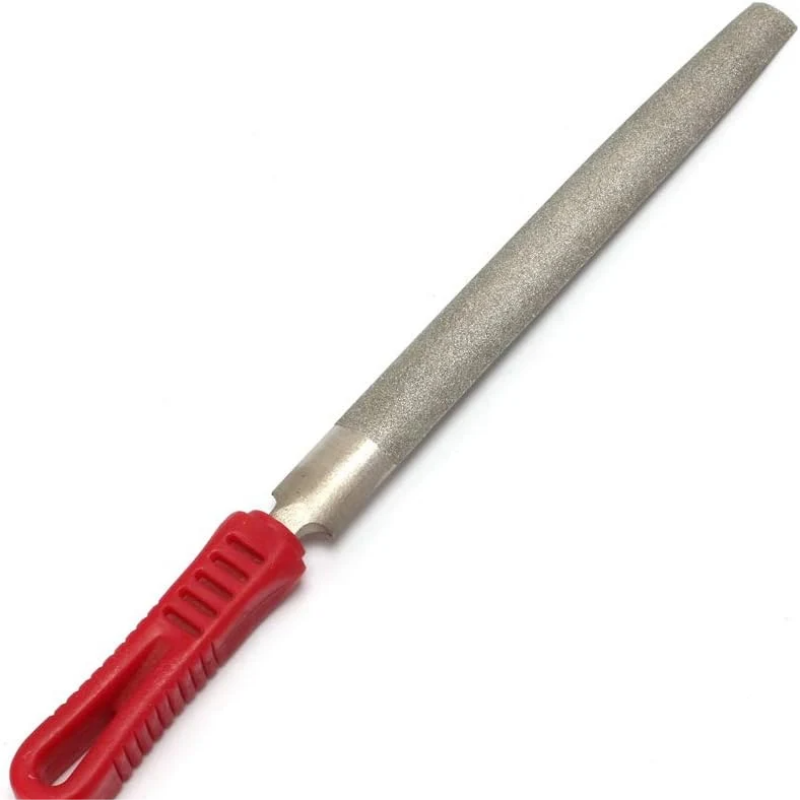

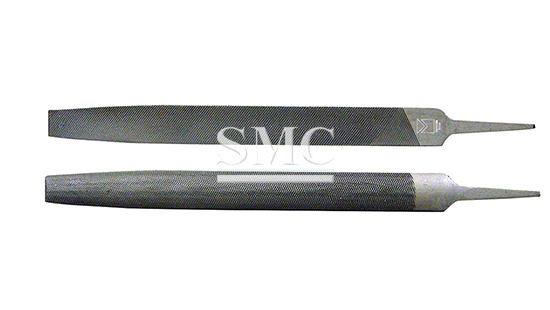

Stainless steel files used in precision manufacturing environments are critical tooling components for deburring, blending, and fine surface finishing after primary machining operations. When working with parts produced via 3/4/5-axis milling and turning—especially those requiring tight tolerances—file material, grain structure, cut pattern, and geometry directly influence surface integrity and dimensional accuracy.
Below are the key technical specifications for high-performance stainless steel files, particularly relevant in post-processing stages for components made from Aluminum, Steel, ABS, and Nylon.
| Parameter | Specification |
|---|---|
| File Material | High-carbon stainless steel (e.g., AISI 440C or equivalent) with corrosion resistance and high wear resistance |
| Cut Type | Single-cut, second-cut, or bastard-cut patterns; precision-ground for uniform tooth geometry |
| Tooth Grit Range | 60–200 teeth per inch (tpi); fine to extra-fine grades for tight tolerance work |
| File Geometry | Available in flat, half-round, round, square, and triangular profiles; tapered and parallel options |
| Handle Type | Ergonomic, insulated polymer or seamless tang for secure fit and ESD safety |
| Coating/Finish | Optional diamond or ceramic coating for enhanced material-specific performance |
| Tolerance Compatibility | Designed for use on parts with ±0.005 mm to ±0.025 mm tolerances; non-abrasive variants prevent over-removal |
| Compatible Materials | |
| Aluminum | Fine-cut files with anti-loading treatment to prevent clogging |
| Steel (Mild & Alloy) | Coarse to medium cut (60–120 tpi) for efficient material removal |
| ABS | Fine-cut or polished-edge files to avoid gouging and achieve smooth finishes |
| Nylon | Extra-fine cut or smooth edge files; low abrasion to maintain dimensional stability |
| Application Context | Post 3/4/5-axis milling and turning; used for edge blending, burr removal, and finishing in hard-to-reach areas |
| Quality Standard | Conforms to ISO 523, ANSI B94.3M, or equivalent; individually inspected for tooth consistency |
| Recommended Use | Manual or fixture-assisted filing; not intended for use with power tools unless specified |
These files support high-precision workflows by enabling controlled material removal without compromising tight tolerances or surface finish requirements typical in aerospace, medical, and industrial prototyping applications. Selection should be based on workpiece material, accessibility, and required surface quality.
From CAD to Part: The Process
Honyo Prototype Stainless Steel File Manufacturing Process
Honyo Prototype executes a streamlined, quality-driven workflow for stainless steel file production, integrating digital efficiency with precision engineering. The process begins with CAD Upload, where clients submit native 3D model files (STEP, IGES, Parasolid) via our secure portal. We prioritize native formats to ensure geometric accuracy and avoid translation errors critical for stainless steel’s tight-tolerance applications. All submissions undergo automated metadata validation for unit consistency, scale, and completeness before advancing.
AI-Powered Quoting follows within 2 business hours. Our proprietary AI engine analyzes the CAD geometry, material specifications (e.g., 304, 316, 17-4PH), and surface finish requirements to generate a preliminary quote. The AI cross-references real-time data on stainless steel market pricing, machine utilization rates, and historical production metrics. Crucially, this stage includes human oversight: a Senior Manufacturing Engineer validates the AI output, adjusting for stainless-specific factors like work hardening tendencies, thermal conductivity challenges, and secondary operation needs. Clients receive a detailed cost breakdown with lead time estimates, including material certification costs.
DFM Analysis is where stainless steel expertise becomes critical. Our engineers conduct a rigorous Design for Manufacturability review focusing on stainless steel’s unique properties:
| DFM Consideration | Standard Steel Handling | Stainless Steel Specific Action at Honyo |
|---|---|---|
| Toolpath Strategy | Conventional speeds | Optimized for reduced heat buildup; slower feed rates to prevent work hardening |
| Fixture Design | Standard clamping | Enhanced vibration damping; non-marring fixtures to avoid surface contamination |
| Coolant/Application | Flood coolant | High-pressure through-spindle coolant with stainless-specific inhibitors |
| Tool Selection | Carbide standard | Sub-micron grain carbide tools with TiAlN coating; reduced flute count |
This phase identifies risks like galling during threading or distortion in thin sections, with actionable recommendations returned to the client within 24 hours. No stainless steel part proceeds to production without DFM sign-off.

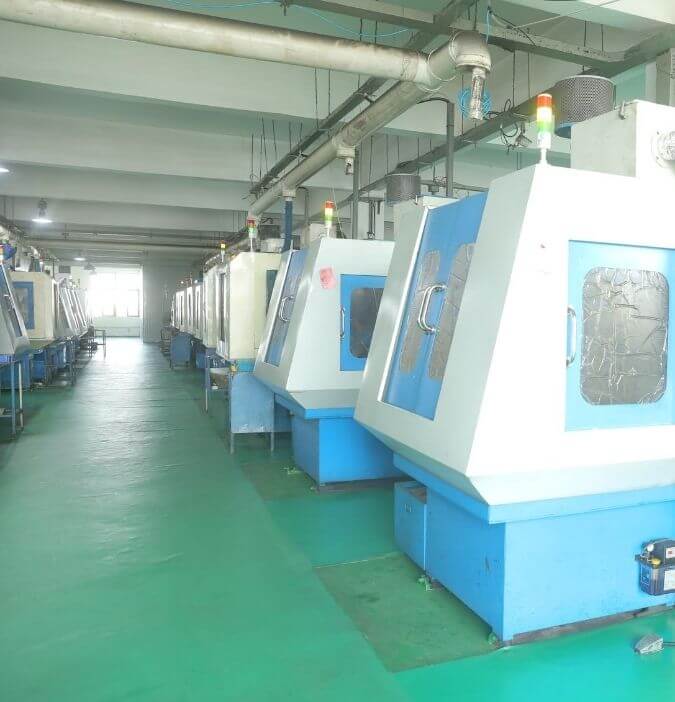

Production Execution occurs in our ISO 9001-certified facility using dedicated stainless steel workflows. Key protocols include:
Material verification via PMI (Positive Material Identification) upon receipt to confirm alloy grade.
Machining on hardened steel beds with thermal compensation systems to counteract stainless steel’s low thermal conductivity.
In-process inspections at critical stages using CMMs with probe calibration for stainless surfaces.
Strict chip evacuation protocols to prevent re-cutting, which causes surface defects in stainless alloys.
All operators follow stainless-specific work instructions, including mandatory coolant concentration checks every 4 hours.
Delivery and Traceability concludes the process. Every stainless steel file ships with full material traceability documentation (mill test reports, heat numbers), first-article inspection reports, and a certificate of conformance. Parts undergo final passivation per ASTM A967 and ultrasonic cleaning to remove iron contamination. We provide digital delivery tracking with real-time updates, and all shipments include humidity-controlled packaging to prevent flash rusting during transit. Typical lead time from approved DFM to delivery is 7–12 business days for standard files, with expedited options available.
This integrated approach ensures stainless steel files meet exacting industry standards for medical, aerospace, and industrial applications, where material integrity and dimensional precision are non-negotiable. Honyo’s process minimizes client rework risks by embedding material science expertise at every phase.
Start Your Project
Looking for high-quality stainless steel files for your next project? Contact Susan Leo at [email protected] to discuss your requirements.
Honyo Prototype operates a dedicated manufacturing facility in Shenzhen, ensuring precision, reliability, and fast turnaround times for all stainless steel file solutions.
Let us support your prototyping or production needs with expert craftsmanship and consistent quality. Reach out today to request samples or a quote.
