Manufacturing Insight: Sheet Metal Fabrication China
Precision Sheet Metal Fabrication Sourcing from China with Honyo Prototype
China remains a global epicenter for advanced manufacturing, offering unparalleled scale, technical expertise, and cost efficiency for sheet metal fabrication. At Honyo Prototype, we leverage this strategic advantage while prioritizing engineering rigor and process control to deliver components that meet exacting international standards. Our dedicated facility in Dongguan operates under stringent ISO 9001:2015 protocols, ensuring every stage—from material procurement to final inspection—is optimized for repeatability and quality.
We specialize in low-to-medium volume production and rapid prototyping across diverse industries, including medical devices, aerospace subsystems, and industrial automation. Our capabilities encompass precision laser and CNC punching (up to 4mm mild steel, 3mm stainless), multi-axis press brake forming with tolerances to ±0.1mm, robotic and manual welding (TIG, MIG, spot), and comprehensive finishing—including powder coating, anodizing, and plating. Material expertise spans aluminum alloys (5052, 6061, 7075), stainless steels (304, 316), cold-rolled steel, and specialty alloys, with full traceability documentation provided.
Quality is embedded through in-process CMM verification, first-article inspection reports (FAIR), and rigorous dimensional validation against GD&T callouts. To accelerate your project timeline, Honyo Prototype offers an Online Instant Quote System that provides transparent, detailed pricing within minutes. Simply upload your STEP or DXF file, specify materials, finishes, and quantities, and receive a technically validated cost estimate without sales delays—enabling faster design iteration and procurement decisions for global engineering teams. Partner with us for sheet metal solutions where Chinese manufacturing scale meets German-grade process discipline.
Technical Capabilities
Honyo Prototype provides precision sheet metal fabrication services in China, specializing in laser cutting, bending, and welding processes for industrial and commercial applications. Our capabilities support a range of materials including aluminum, steel, and select non-metallic substrates such as ABS and nylon for compatible secondary operations. Below are the technical specifications for our core fabrication processes.
| Process | Material Compatibility | Thickness Range | Tolerance | Equipment Type | Notes |
|---|---|---|---|---|---|
| Laser Cutting | Aluminum, Steel, ABS, Nylon | 0.5 mm – 25 mm | ±0.1 mm | Fiber Laser (up to 4 kW) | ABS and nylon limited to cutting only; not suitable for bending or welding |
| Bending | Aluminum, Steel | 0.8 mm – 12 mm | ±0.2° angular, ±0.1 mm linear | CNC Press Brakes (up to 1000 tons) | Not applicable for ABS or nylon due to material limitations |
| Welding | Aluminum, Steel | 1.0 mm – 20 mm | ±0.5 mm fit-up | TIG, MIG, Spot Welding | ABS and nylon not weldable; alternative joining methods recommended |
All processes are supported by in-house engineering review, DFM analysis, and quality control per ISO 9001 standards. Secondary operations including deburring, tapping, and surface finishing are available upon request.
From CAD to Part: The Process
Honyo Prototype Sheet Metal Fabrication Process: China-Based Workflow
Honyo Prototype executes a streamlined, technology-driven sheet metal fabrication process from initial design to final delivery, leveraging our China-based manufacturing ecosystem for cost efficiency and scalability. The workflow begins with secure CAD file submission via our encrypted client portal, which accepts industry-standard formats including STEP, IGES, DXF, and native SolidWorks files. Upon upload, our proprietary AI quoting engine analyzes geometric complexity, material requirements, tolerances, and secondary operations to generate a preliminary cost estimate within 2 business hours. This AI system cross-references real-time data on material costs, machine utilization rates, and labor variables across our certified partner network in Dongguan and Kunshan, ensuring accuracy while flagging ambiguous design elements for engineering review.
Following AI quote generation, all projects undergo mandatory Design for Manufacturability (DFM) analysis conducted by our in-house engineering team. This phase identifies potential production bottlenecks such as suboptimal bend radii, excessive tooling changes, or tolerance stack-ups that could impact yield. Engineers collaborate directly with clients to resolve conflicts—recommending material substitutions, simplifying features, or adjusting fabrication sequences—without compromising functional requirements. Critical to this stage is our material selection matrix, which optimizes cost-performance balance:
| Material Type | Common Grades | Thickness Range | Key Applications | Lead Time Factor |
|---|---|---|---|---|
| Cold Rolled Steel | SPCC, SECC | 0.5–3.0 mm | Enclosures, brackets | Baseline |
| Aluminum | 5052, 6061-T6 | 0.8–4.0 mm | Aerospace, heat sinks | +15% |
| Stainless Steel | SUS304, SUS316 | 0.6–2.5 mm | Medical, food processing | +25% |
| Galvanized Steel | SGCC | 0.8–2.0 mm | Outdoor cabinets | +10% |

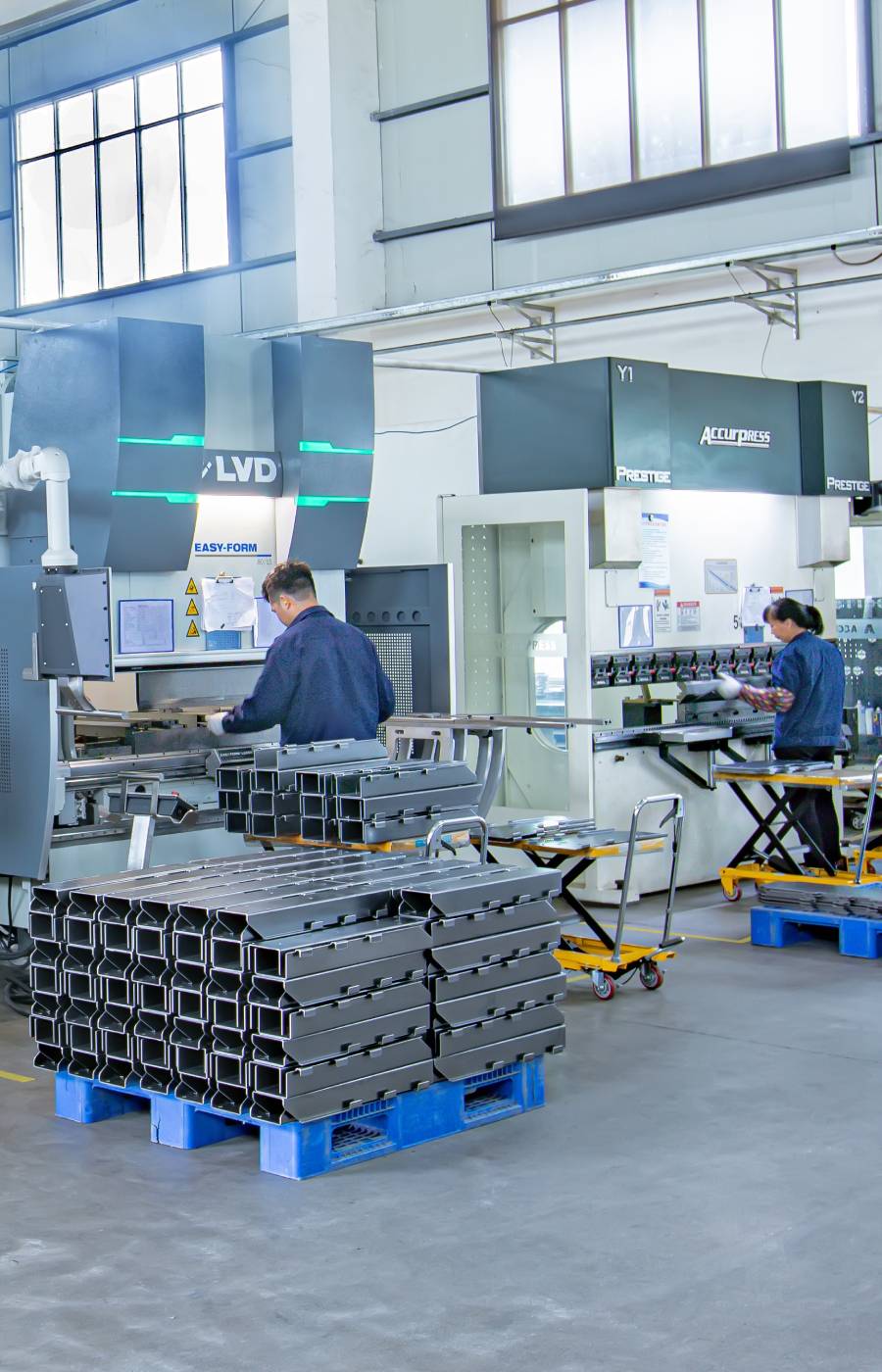

Approved designs then advance to production at our ISO 9001-certified partner facilities in the Pearl River Delta. Laser cutting utilizes Bystronic or Trumpf systems with ±0.1 mm positional accuracy, followed by CNC turret/punch operations for high-volume runs or AMADA press brakes for complex bends. All secondary processes—including welding (TIG/MIG), surface finishing (powder coating, anodizing), and assembly—occur under integrated quality checkpoints. First-article inspection reports (FAIRs) with GD&T validation are provided before full production release, and in-process audits verify conformance to IPC-A-620 standards for structural integrity.
Final delivery incorporates consolidated logistics management through Honyo’s Shenzhen hub, offering air or sea freight options with customs documentation handled in-house. Every shipment includes serialized traceability tags linked to digital quality records, enabling real-time tracking via our client portal. Typical end-to-end cycle time from CAD approval to EXW delivery ranges from 7–12 business days for low-volume prototypes and 15–20 days for production batches, with expedited services available for time-critical projects. This closed-loop process ensures design intent is preserved while minimizing waste and accelerating time-to-market for global clients.
Start Your Project
Looking for reliable sheet metal fabrication in China? Partner with Honyo Prototype for precision manufacturing, fast turnaround, and competitive pricing. Our state-of-the-art facility in Shenzhen ensures strict quality control and on-time delivery for low to medium volume production.
Contact Susan Leo today to discuss your project requirements.
Email: [email protected]
Factory located in Shenzhen, China.
