Manufacturing Insight: Sheet Metal Design Services

Precision Sheet Metal Design and Fabrication Services from Honyo Prototype

Honyo Prototype delivers comprehensive, high-precision sheet metal fabrication services engineered to transform your complex designs into flawless production-ready components. Our integrated approach spans the entire product lifecycle, from initial concept and design optimization through to volume manufacturing, leveraging state-of-the-art CNC punching, laser cutting, bending, and welding technologies. We specialize in handling demanding materials including stainless steel, aluminum, cold-rolled steel, and specialty alloys across thickness ranges from 0.5mm to 6.0mm, consistently achieving tight tolerances of ±0.1mm and superior surface finishes critical for aerospace, medical, and industrial applications.

Our engineering team actively partners with clients during the design phase to ensure manufacturability, cost efficiency, and performance integrity through rigorous Design for Manufacturability (DFM) analysis. This collaborative process identifies potential fabrication challenges early, optimizes material utilization, and validates structural requirements, significantly reducing time-to-market and eliminating costly prototyping iterations. We provide actionable feedback on bend radii, hole placement, feature spacing, and material selection to enhance both functionality and producibility.

Key service attributes distinguishing Honyo’s sheet metal capabilities include:

Service Attribute	Honyo Capability	Client Benefit
Material Expertise	Stainless Steel, Aluminum, CRCA, Galvanized Steel	Optimal material selection for performance & cost
Tolerance Capability	±0.1mm precision across complex geometries	Ensures seamless assembly and end-product reliability
Process Integration	Full in-house punching, laser, bending, welding	Single-source accountability, reduced lead times
Prototyping to Volume	Agile transition from 1-off to high-volume runs	Scalable solution without requalification delays
Quality Compliance	ISO 9001:2015 certified processes	Guaranteed consistency and traceability

Accelerate your development cycle with Honyo’s Online Instant Quote system. Upload your STEP or DWG files to receive a detailed, transparent manufacturing assessment and competitive pricing within minutes—no waiting for manual quotes. This proprietary platform provides immediate insight into production feasibility, lead time estimates, and cost drivers, empowering informed decision-making from the earliest design stages. Partner with Honyo Prototype for sheet metal solutions where engineering excellence meets operational agility.

---

Technical Capabilities

Sheet metal design services encompass a range of precision manufacturing processes tailored to produce complex and durable components for industrial, commercial, and prototyping applications. The core processes—laser cutting, bending, and welding—are optimized for materials such as aluminum, steel, ABS, and nylon, each selected based on mechanical, thermal, and environmental requirements.

Laser cutting provides high-accuracy contour cutting with minimal kerf width and excellent edge quality. Bending is performed using CNC press brakes to achieve precise angles and repeatable geometries. Welding techniques such as MIG, TIG, and spot welding are applied depending on material type and joint requirements.

Below is a summary of technical specifications for sheet metal design services across key parameters:

Parameter	Laser Cutting	Bending	Welding	Compatible Materials
Process Type	Fiber or CO₂ Laser	CNC Press Brake Forming	MIG, TIG, Spot Welding	Aluminum, Steel, ABS, Nylon
Material Thickness Range	0.5 mm – 25 mm	0.8 mm – 12 mm	0.8 mm – 20 mm	Varies by material
Tolerance	±0.1 mm	±0.2° angular, ±0.1 mm linear	±0.5 mm positional	Material-dependent
Minimum Feature Size	1.0 mm (hole/piercing), 2x material thickness (slots)	Inner radius ≥ 0.5x material thickness	Weld bead width ≥ 2 mm	Design-dependent
Edge Quality	Burr-free, smooth cut surface	Clean bends with minimal deformation	Smooth, spatter-controlled weld seams	Varies by process settings
Supported Materials	Aluminum (5052, 6061), Mild Steel, Stainless Steel	Aluminum, Cold Rolled Steel, Galvanized	Aluminum, Carbon Steel, Stainless Steel	ABS and nylon limited to non-structural brackets or enclosures (laser cutting only)
Max Work Envelope	1500 mm × 3000 mm (standard bed size)	Up to 4000 mm bed length	Part size dependent on fixturing	Based on machine capacity
Surface Finish Options	As-cut, deburred, anodized (Al), powder coated	Bead blasted, powder coated, painted	Ground welds, passivated (stainless)	Material and application-based

Note: ABS and nylon are not traditional sheet metals and are generally processed using laser cutting only for non-load-bearing components such as enclosures or insulating brackets. These thermoplastics cannot be bent via press brake or welded using standard metal welding methods. Specialized joining (adhesives, fasteners) is required.

---

From CAD to Part: The Process

Sheet Metal Design Services Process at Honyo Prototype

Clients initiate the process by uploading native or neutral-format CAD files (STEP, IGES, DXF, DWG) to our secure web portal. Our system performs immediate geometric validation, checking for missing features, unit inconsistencies, and manufacturability red flags. Validated files trigger the next phase, while flagged submissions receive automated notifications for client correction within 4 business hours.

AI-Powered Quoting Engine
Uploaded geometry feeds into our proprietary AI quoting system, which analyzes 150+ parametric variables including material grade, thickness tolerance, bend complexity, and secondary operations. The algorithm cross-references real-time global material pricing, machine utilization rates, and labor costs from our ERP database. Clients receive a detailed quote within 24 hours, specifying cost drivers like material waste percentages and secondary operation time estimates. Historical data shows 92% quote accuracy against final production costs for validated designs.

Engineering-Driven DFM Analysis
All approved quotes undergo mandatory Design for Manufacturability review by our ASME-certified engineers. This phase focuses on optimizing cost and yield through:
Bend sequence validation using SigmaNEST simulation
Material grain orientation recommendations for critical bends
Tolerance stack-up analysis per ASME Y14.5
Alternative material suggestions (e.g., substituting 5052 for 6061 where strength allows)
Tooling conflict resolution for complex geometries
DFM reports include annotated CAD markups and cost-impact comparisons, typically reducing production costs by 18-35% through actionable revisions. Clients approve final DFM recommendations before work release.

Precision Production Execution
Approved designs move to our climate-controlled production floor featuring:
Amada turret punches with ±0.05mm positional accuracy

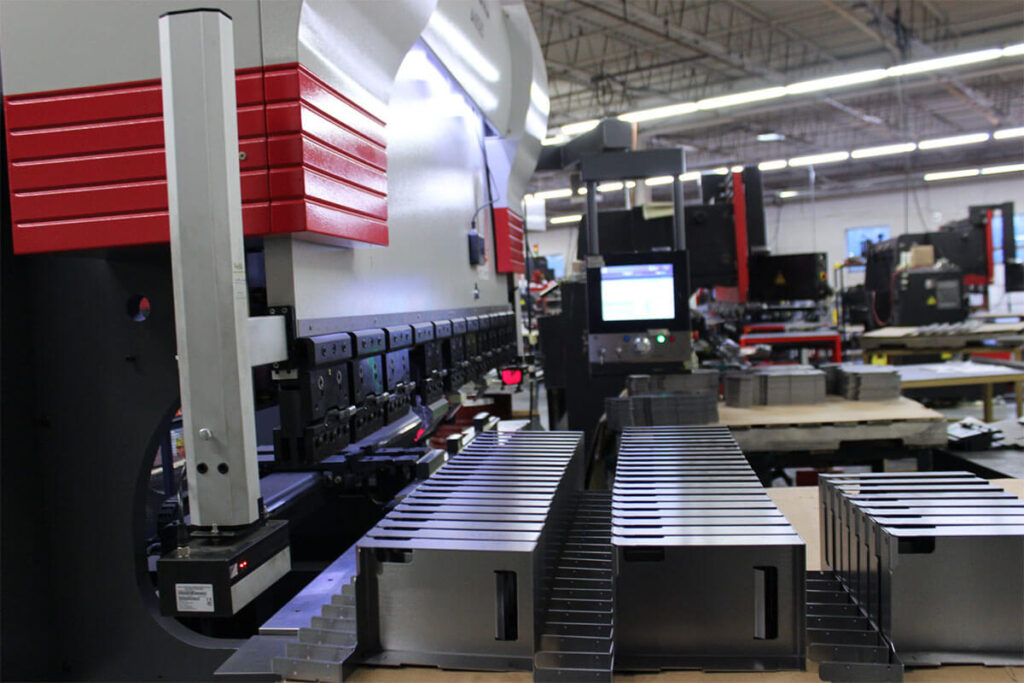

CNC press brakes with automatic crowning compensation
Fiber laser cutters (up to 6kW) for materials ≤25mm
In-process CMM verification at critical stages
Each batch includes first-article inspection reports per ISO 9001:2015 standards, with real-time production tracking accessible via client portal. Complex assemblies undergo weld fixture validation prior to full production.

Quality-Controlled Delivery
Final inspection includes comprehensive dimensional verification against original CAD, surface finish validation per ASTM B449, and deburring verification. All parts ship with:
Material test reports (MTRs) traceable to mill certificates
FAIR documentation package
Packaging certified for ISTA 3A vibration testing

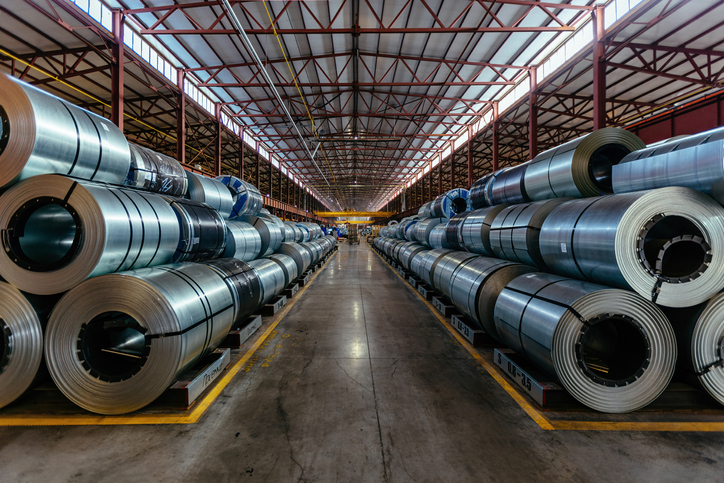

Standard lead times range from 5-12 business days depending on complexity, with global logistics partners ensuring door-to-door tracking. Our 99.2% on-time delivery rate is maintained through buffer stock of common alloys (304SS, 5052-Al, SPCC) and dedicated shipping lanes to NA/EU/APAC hubs. This integrated workflow reduces time-to-market by 40% compared to traditional vendor handoffs while maintaining 0.8% defect rates industry benchmark.

---

Start Your Project

For expert sheet metal design services tailored to your prototyping and low-volume production needs, contact Susan Leo at [email protected]. Leverage our precision manufacturing capabilities from our Shenzhen factory, where engineering excellence meets efficient, scalable production. Partner with Honyo Prototype for end-to-end support—from design optimization to finished components.

Contact:
Susan Leo
Email: [email protected]
Factory Location: Shenzhen, China

---
