Manufacturing Insight: Rapid Prototyping Machining Services
Accelerate Your Product Development Cycle with Precision CNC Machining
At Honyo Prototype, we engineer rapid prototyping solutions that transform conceptual designs into high-fidelity, functional prototypes with exceptional speed and accuracy. Our core expertise in CNC machining—encompassing 3-axis, 4-axis, and 5-axis milling, precision turning, and multi-spindle operations—ensures your complex geometries and tight-tolerance components meet rigorous engineering standards. We specialize in rapid iteration, leveraging advanced HAAS and DMG MORI equipment to machine critical materials including aerospace-grade aluminum alloys, titanium, stainless steel, PEEK, and engineering-grade polymers with tolerances held to ±0.005mm. This capability directly addresses the critical need for accelerated design validation and performance testing in today’s competitive markets.
Rapid prototyping through CNC machining eliminates traditional tooling lead times, enabling same-week turnaround for most projects without compromising on dimensional integrity or surface finish. Whether validating form, fit, or function for end-use applications or preparing for low-volume production, our process delivers prototypes that accurately reflect final part behavior under real-world conditions. This reduces risk, minimizes costly redesign cycles, and accelerates time-to-market for your next innovation.
Seamlessly integrate prototyping into your workflow with Honyo’s Online Instant Quote system. Upload your CAD file, specify materials and quantities, and receive a detailed, transparent cost analysis within minutes—no manual RFQ delays. This digital efficiency empowers engineering teams to make rapid go/no-go decisions and maintain momentum from ideation to validation. Partner with Honyo Prototype to leverage CNC machining as a strategic advantage in your development pipeline. Visit our portal to experience precision prototyping, streamlined.
Technical Capabilities
Rapid prototyping machining services leverage advanced CNC technologies to deliver high-precision components with fast turnaround times. These services are ideal for functional prototypes, bridge production, and low-volume manufacturing. Key capabilities include multi-axis milling and turning operations, enabling complex geometries and superior surface finishes. Tight tolerances down to ±0.0002″ (±0.005 mm) are routinely maintained, ensuring dimensional accuracy and part interchangeability.
The following table outlines the technical specifications for rapid prototyping machining services focusing on 3, 4, and 5-axis milling, CNC turning, and tight tolerance capabilities across common engineering materials.
| Specification Category | Details |
|---|---|
| Machining Processes | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (including Mill-Turn with live tooling) |
| Positioning Accuracy | ±0.0001″ (±0.0025 mm) |
| Repeatability | ±0.0001″ (±0.0025 mm) |
| Standard Tolerances | ±0.001″ (±0.025 mm) |
| Tight Tolerance Capability | Up to ±0.0002″ (±0.005 mm) on critical features with proper GD&T control |
| Surface Finish (Typical) | 32–125 μin (Ra); down to 16 μin (Ra) with polishing or special tooling |
| Maximum Work Envelope (Milling) | 32″ × 18″ × 16″ (813 × 457 × 406 mm) for 3/4-axis; 18″ × 16″ × 14″ (457 × 406 × 355 mm) for 5-axis |
| Maximum Work Envelope (Turning) | Diameter up to 6″ (152 mm), Length up to 20″ (508 mm) |
| Spindle Speed (Milling) | Up to 20,000 RPM |
| Tool Changer Capacity | 24–30 tools (automatic tool changer) |
| Control System | Fanuc, Siemens, or Heidenhain CNC with full tool compensation and probing |
| In-Process Probing | Available for setup verification, tool wear compensation, and first-article inspection |
| Materials – Metals | Aluminum (6061, 7075, 2024), Steel (1018, 4140, 4340), Stainless Steel (303, 304, 316), Brass, Titanium (Grade 2, 5) |
| Materials – Plastics | ABS, Nylon (6, 6/6), Delrin (POM), PEEK, Polycarbonate, PVC |
| Secondary Operations | Deburring, anodizing (Type II & III), powder coating, passivation, heat treating, custom packaging |
| Lead Time (Typical) | 3–7 days for standard prototypes; expedited options available |
| File Formats Accepted | STEP (.stp), IGES (.igs), Parasolid (.x_t), SolidWorks (.sldprt), PDF with dimensions |
These technical capabilities enable Honyo Prototype to support demanding applications in aerospace, medical, robotics, and industrial equipment sectors, where precision, material integrity, and fast iteration are critical.
From CAD to Part: The Process
Honyo Prototype executes rapid prototyping machining services through a streamlined, technology-driven workflow designed to minimize lead times while ensuring manufacturability and quality. Our process begins when a client uploads a CAD model to our secure portal. This initiates an automated analysis where our proprietary AI quoting engine evaluates geometric complexity, material requirements, tolerances, and surface finish specifications against real-time shop floor data including machine availability, tooling constraints, and material stock levels. The AI generates a detailed quote within minutes, providing transparent pricing, estimated lead time, and preliminary feasibility assessment without requiring manual engineering intervention for standard parts.
Following quote acceptance, the CAD model enters our Digital Manufacturing Feedback (DFM) phase. Here, our engineering team conducts a rigorous manufacturability review focused on eliminating downstream production risks. This is not a simple checklist but a value engineering step where we identify opportunities to optimize part geometry for CNC machining, sheet metal fabrication, or urethane casting—reducing cost and lead time without compromising functional intent. Critical DFM insights include:
| DFM Focus Area | Typical Optimization Actions | Client Benefit |
|---|---|---|
| Geometric Complexity | Recommending increased internal radii, reducing thin walls | Fewer tool breaks, faster machining cycles |
| Tolerance Stack-Ups | Proposing GD&T adjustments for critical interfaces | Higher first-pass yield, reduced scrap |
| Material Utilization | Suggesting stock size alignment or alternative alloys | Lower material cost, faster material sourcing |
| Secondary Operations | Integrating features to minimize setup changes | Reduced handling, tighter feature alignment |

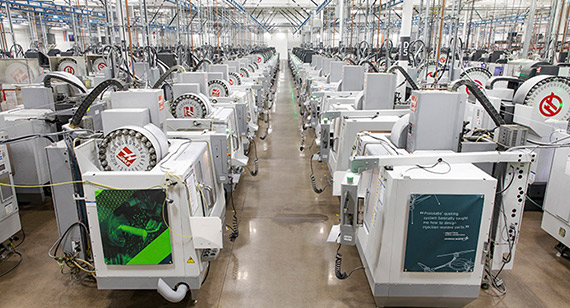

Upon client approval of DFM recommendations, the job advances to production. Our network of 50+ CNC machining centers—including 3-axis vertical mills, 5-axis indexed machines, and precision lathes—executes the program using rigorously validated toolpaths. All critical dimensions undergo in-process CMM verification per AS9100 protocols, with first-article inspection reports provided upon request. Material certifications and process documentation are maintained in our digital quality ledger for full traceability.
Final parts undergo post-machining finishing per client specifications (e.g., bead blasting, anodizing, or passivation) before packaging in custom anti-static, damage-resistant containers. We manage global logistics through pre-negotiated carrier partnerships, providing DHL/FedEx tracking with guaranteed delivery windows. Typical delivery timelines range from 3-5 business days for milled aluminum prototypes to 7-10 days for complex multi-operation builds, with expedited options available. This closed-loop process ensures clients receive functional, production-intent prototypes with the speed required for agile product development cycles while maintaining aerospace-grade quality standards.
Start Your Project
Looking to accelerate your product development cycle? Our rapid prototyping machining services deliver high-precision parts fast, using advanced CNC technology and efficient workflows—ideal for functional testing, design validation, and low-volume production.
Based in Shenzhen, our state-of-the-art factory supports quick turnaround times without compromising quality, giving you a competitive edge in bringing innovations to market.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a fast, tailored quote.
