Rapid Prototype Machining Manufacturing Service

Manufacturing Insight: Rapid Prototype Machining

Accelerate Your Product Development with Precision Rapid Prototype Machining

At Honyo Prototype, we understand that speed and accuracy in the prototyping phase directly impact your time-to-market and design validation success. Our rapid prototype machining services leverage advanced CNC milling and turning capabilities to transform CAD models into high-fidelity functional prototypes within days, not weeks. Engineered for demanding industries including medical, aerospace, and industrial automation, our processes consistently achieve tight tolerances down to ±0.005 mm while supporting a broad material portfolio—from engineering plastics to hardened metals. This precision ensures your prototypes perform under real-world conditions, enabling actionable testing and iteration early in the development cycle.

Eliminate quoting delays with our Online Instant Quote platform, which provides transparent pricing and manufacturability feedback in under 60 seconds. Simply upload your STEP or IGES file to receive a detailed cost breakdown and lead time estimate, empowering engineering teams to make faster, data-driven decisions without supply chain friction. Honyo’s integrated approach—from instant quoting to certified machining—delivers the agility your innovation pipeline requires.

---

Technical Capabilities

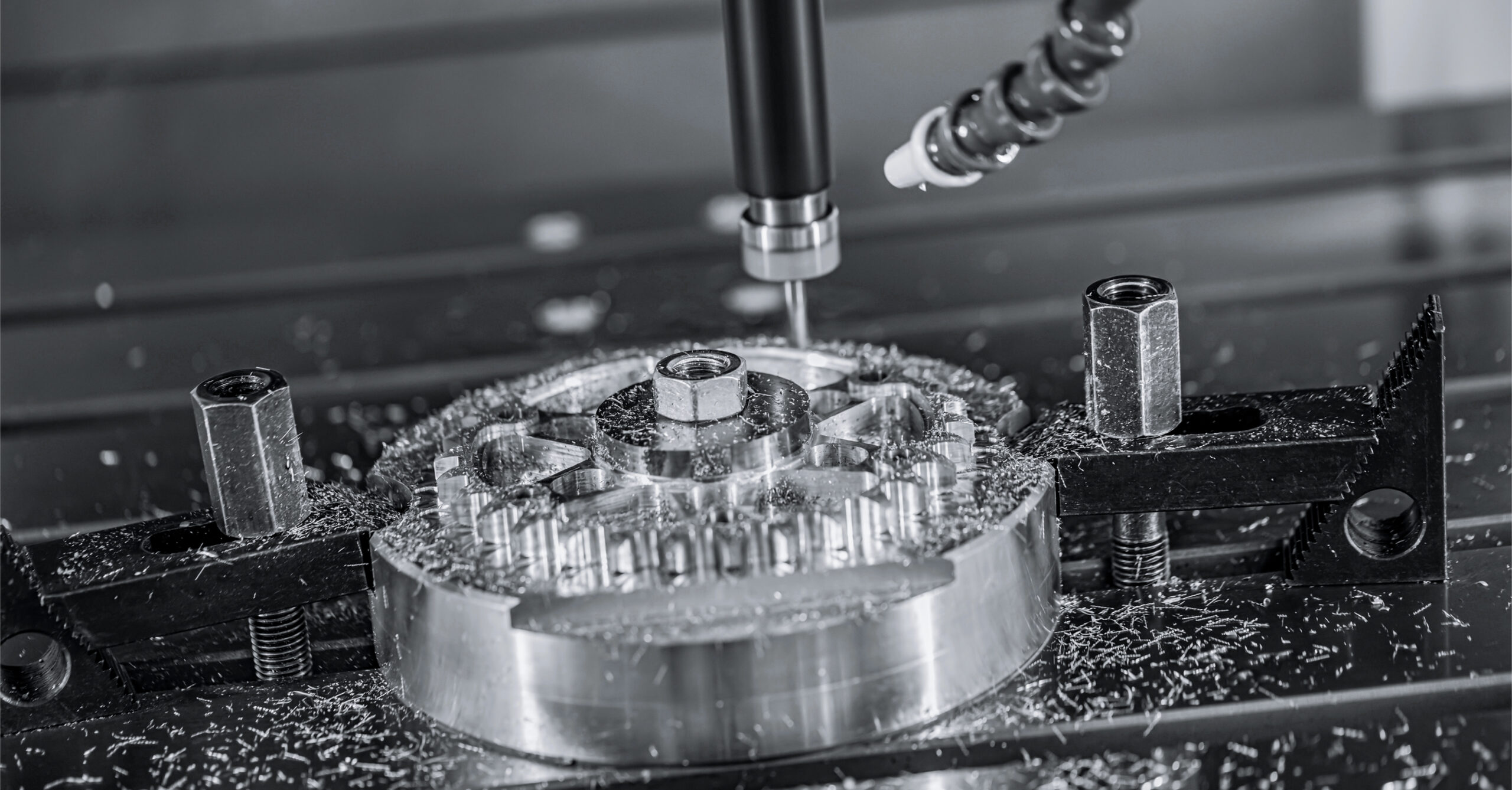

Rapid prototype machining is a high-precision subtractive manufacturing process used to produce functional prototypes with tight tolerances, complex geometries, and material properties representative of final production parts. Honyo Prototype leverages advanced 3-axis, 4-axis, and 5-axis CNC milling along with CNC turning to deliver rapid prototypes in a variety of engineering-grade materials including aluminum, steel, ABS, and nylon. These processes support tight tolerance requirements, surface finish control, and fast turnaround times for design validation and pre-production testing.

The following table outlines the technical specifications for rapid prototype machining services:

Parameter	3-Axis Milling	4-Axis Milling	5-Axis Milling	CNC Turning
Axis Configuration	X, Y, Z linear axes	X, Y, Z + rotary A-axis	X, Y, Z + rotary A & B/C	X, Z + C-axis (optional)
Max Work Envelope	600 x 400 x 300 mm	500 x 400 x 250 mm	400 x 300 x 200 mm	Ø200 x 300 mm length
Positioning Accuracy	±0.01 mm	±0.01 mm	±0.005 mm	±0.01 mm
Typical Tolerance	±0.025 mm	±0.025 mm	±0.01 mm	±0.025 mm
Tight Tolerance Option	±0.005 mm (feature-to-feature)	±0.005 mm	±0.005 mm	±0.005 mm (diametrical)
Surface Finish (Ra)	1.6 – 3.2 µm (standard)	1.6 – 3.2 µm	0.8 – 1.6 µm	1.6 – 3.2 µm
Spindle Speed	Up to 24,000 rpm	Up to 20,000 rpm	Up to 20,000 rpm	Up to 6,000 rpm
Materials Supported	Aluminum (6061, 7075), Steel (1018, 4140), ABS, Nylon	Same as 3-axis	Same as 3-axis	Same as 3-axis
Lead Time	3–5 days	4–6 days	5–7 days	3–5 days
Coolant Use	Flood or mist cooling	Flood cooling	High-precision mist	Flood cooling
Applications	Flat, prismatic parts	Indexed angular features	Complex contours, aerospace components	Cylindrical parts, shafts, bushings

Materials commonly used in rapid prototype machining include:
Aluminum (6061-T6, 7075-T6): Lightweight, excellent strength-to-weight ratio, easily machinable, and anodizable. Ideal for structural and functional prototypes.
Steel (1018, 4140, A2, 303): High strength, wear resistance, and durability. Used for tooling, fixtures, and stress-testing prototypes.
ABS (Acrylonitrile Butadiene Styrene): Thermoplastic with good impact resistance and machinability. Suitable for housings, enclosures, and consumer product prototypes.
Nylon (PA6, PA66): High toughness, chemical resistance, and low friction. Used for gears, bushings, and wear-prone components.

All machined prototypes are inspected using calibrated CMMs, optical comparators, and micrometers to ensure conformance to GD&T specifications and tight tolerance requirements. Honyo Prototype supports full documentation, first article inspection (FAI) reports, and material certifications upon request.

---

From CAD to Part: The Process

Honyo Prototype executes rapid prototype machining through a streamlined five-stage workflow designed for speed, accuracy, and engineering collaboration. This process eliminates traditional quoting bottlenecks while ensuring manufacturability from the outset.

CAD File Upload
Clients initiate the process by uploading native or neutral CAD formats (STEP, IGES, Parasolid, SLDPRT) via our secure customer portal. The system performs an immediate validation check for file integrity and geometry completeness, notifying users of any critical issues such as non-manifold edges or missing datums before proceeding.

AI-Powered Instant Quoting
Our proprietary AI engine analyzes the validated CAD geometry in real-time, calculating material volume, machine time, and process complexity. It cross-references current machine utilization, material costs, and secondary operation requirements to generate a binding quote with delivery timeline within 90 seconds. The quote explicitly lists assumptions including material grade, surface finish requirements, and critical tolerances to prevent downstream misunderstandings.

Engineer-Led DFM Review
Every project undergoes mandatory Design for Manufacturability analysis by our in-house manufacturing engineers. This is not an automated check but a collaborative review where engineers identify potential issues such as inadequate draft angles, thin walls below milling capabilities, or non-optimal feature geometries. We provide specific, actionable recommendations via marked-up PDF reports within 4 business hours, including alternative design suggestions to maintain functionality while reducing cost or lead time. Client approval of DFM feedback is required before production begins.

Precision Production Execution

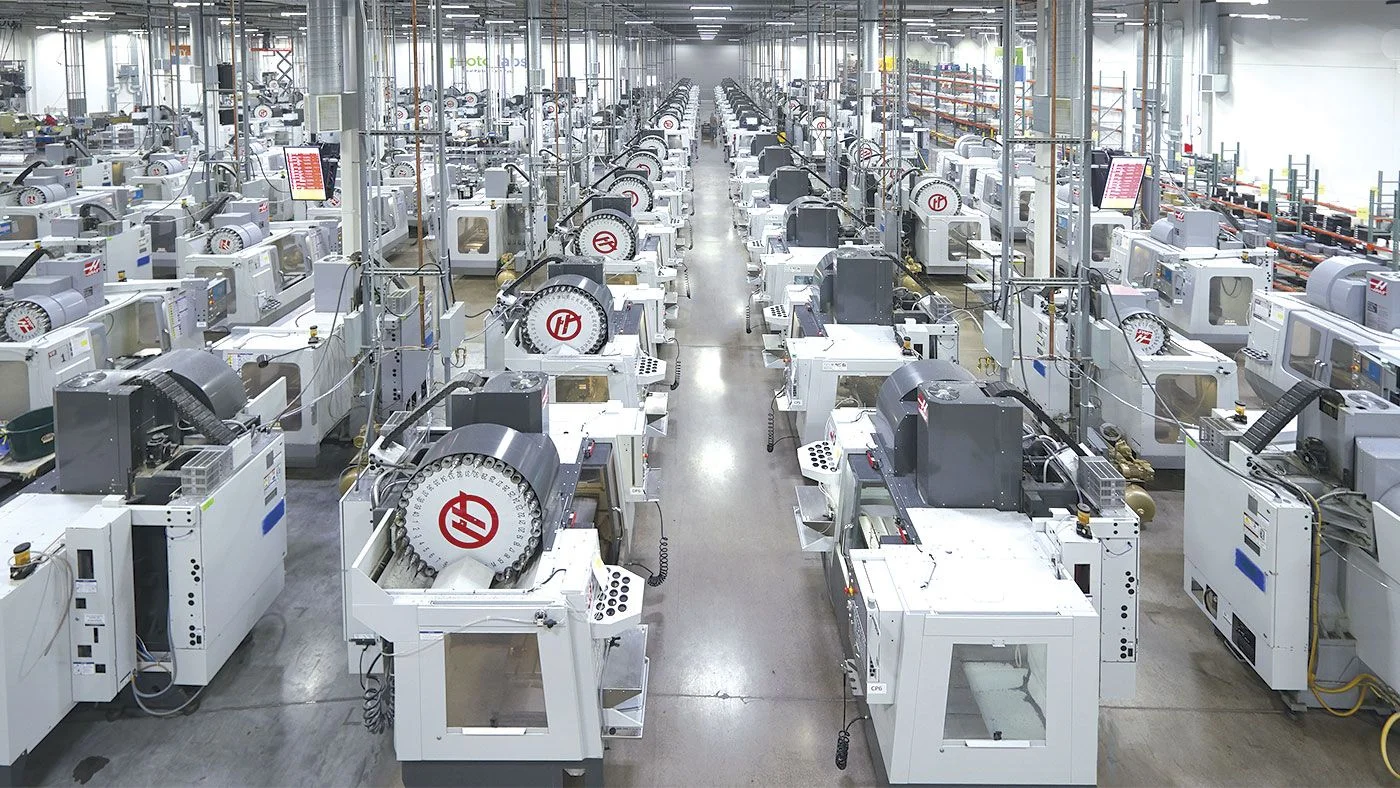

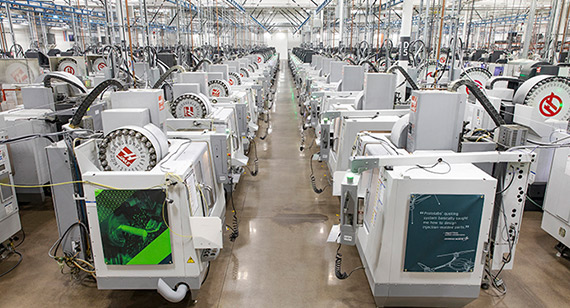

Approved designs move directly to our climate-controlled machine shop utilizing HAAS, DMG MORI, and Makino equipment. All operations follow documented work instructions with first-article inspection protocols. Key production capabilities include:

Process	Materials Supported	Tolerance Range	Max Work Envelope	Typical Lead Time
3/4/5-Axis Milling	Aluminum 6061/7075, Steel 1018/4140, Titanium, Plastics	±0.005mm to ±0.025mm	1000 x 600 x 500mm	3-5 business days
Precision Turning	Brass, Stainless Steel, POM, Nylon	±0.01mm to ±0.05mm	Ø300mm x 500mm	2-4 business days
Secondary Ops	Anodizing (Type II/III), Powder Coating, Laser Etching	As per spec	N/A	+1-2 days

All parts receive first-article inspection reports with critical dimensions verified against the original CAD model using Zeiss CMM systems before shipment.

Tracked Global Delivery
Completed prototypes undergo final packaging with ESD protection where required and ship via client-preferred carriers (DHL, FedEx, UPS). Real-time shipment tracking is accessible through the client portal with automated notifications at each logistics milestone. We maintain 98.7% on-time delivery performance for prototype orders globally, with expedited air freight options available for time-critical projects. All shipments include comprehensive documentation: Certificate of Conformance, inspection reports, and material certifications.

---

Start Your Project

Looking to accelerate your product development with precision rapid prototype machining? Contact Susan Leo today at [email protected] to discuss your project requirements.

Our advanced manufacturing facility in Shenzhen delivers high-quality prototypes with fast turnaround times, supporting design validation, functional testing, and early-stage production.

Leverage our expertise in CNC machining, material selection, and tight-tolerance fabrication to bring your concepts to life efficiently and cost-effectively.

Reach out now to request a quote or technical consultation.

Contact:
Susan Leo
Email: [email protected]
Factory Location: Shenzhen, China

---
