Manufacturing Insight: Rapid Prototype Cnc
Accelerate Your Product Development Cycle with Honyo Prototype’s Rapid CNC Machining
In today’s competitive hardware landscape, the speed and accuracy of your prototyping phase directly impact time-to-market and overall product success. Honyo Prototype delivers engineered solutions through our core Rapid Prototype CNC Machining services, specifically designed to transform your 3D CAD models into precise, functional prototypes within days, not weeks. We leverage advanced 3-, 4-, and 5-axis CNC milling and turning centers, operated by experienced manufacturing engineers, to achieve tight tolerances and superior surface finishes on a wide range of engineering-grade materials including metals, engineering plastics, and composites. This capability ensures your prototypes accurately reflect final production intent, enabling rigorous functional testing, design validation, and investor presentations with confidence.
Our commitment to streamlining your workflow extends beyond machining excellence to the critical initial step of project initiation. Honyo Prototype eliminates traditional quoting delays with our proprietary Online Instant Quote system. Simply upload your STEP or IGES file directly to our platform, specify your material and quantity requirements, and receive a detailed, accurate cost estimate and lead time within minutes – 24 hours a day, 7 days a week. This immediate transparency allows engineering teams to iterate designs rapidly, make informed sourcing decisions faster, and move from concept to physical validation without unnecessary administrative bottlenecks. Experience the Honyo advantage where precision CNC machining meets unparalleled quoting agility to accelerate your entire development cycle.
Technical Capabilities
Rapid Prototype CNC Technical Specifications
Rapid prototype CNC machining at Honyo Prototype supports high-precision 3-axis, 4-axis, and 5-axis milling along with CNC turning for complex geometry and functional prototyping. Our systems are optimized for tight tolerances, surface finish control, and fast turnaround, serving industries requiring engineering-grade validation. Below are the technical specifications for our rapid prototyping CNC capabilities.
| Feature | Specification |
|---|---|
| Machining Types | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (2-axis and live-tooling) |
| Positioning Accuracy | ±0.005 mm (±0.0002″) |
| Repeatability | ±0.002 mm (±0.0001″) |
| Standard Tolerance | ±0.025 mm (±0.001″) |
| Tight Tolerance Capability | ±0.012 mm (±0.0005″) for critical features, with geometric tolerancing (GD&T) support |
| Surface Finish (Typical) | Ra 0.8–3.2 µm (32–125 µin), with optional polishing or bead blasting |
| Maximum Work Envelope (Milling) | 750 mm × 500 mm × 400 mm (29.5″ × 19.7″ × 15.7″) |
| Maximum Work Envelope (Turning) | Ø300 mm × 500 mm (Ø11.8″ × 19.7″) |
| Spindle Speed (Milling) | Up to 24,000 RPM |
| Tool Changer Capacity | 24–30 tools (automatic tool changer) |
| Control System | Fanuc, Siemens, or Heidenhain CNC controls |
| Materials Supported | Aluminum (6061, 7075, 2024), Steel (1018, 4140, Stainless 303/316), ABS, Nylon (6 & 6/6), POM (Delrin), PC, PEEK, PMMA |
| Aluminum Machining | High-speed cutting with optimized feeds and speeds; burr-free edges; anodizing-ready surface |
| Steel Machining | Hard turning and milling up to 45 HRC; post-heat treatment finishing available |
| Plastic Machining (ABS, Nylon, etc.) | Low-heat toolpaths to prevent melting; vacuum hold-down or soft-jaw fixturing |
| Fixturing & Setup | Modular fixturing, tombstones for 4/5-axis, zero-point systems for rapid changeover |
| Lead Time (Typical) | 3–7 days, depending on complexity and finishing requirements |
| Inspection & QA | CMM, optical comparators, and micrometer-based verification; first article inspection (FAIR) available |
Our 5-axis simultaneous milling enables undercuts, organic contours, and aerospace-grade components without re-fixturing. CNC turning supports shafts, fittings, and rotational parts with secondary milling operations via live tooling. All prototypes are manufactured to match production-intent geometry and material behavior, supporting functional testing and design validation.
From CAD to Part: The Process
Honyo Prototype Rapid CNC Prototyping Process Overview
Honyo Prototype executes rapid CNC prototyping through a streamlined, technology-integrated workflow designed for speed, accuracy, and manufacturability assurance. The process begins with CAD file submission and concludes with certified part delivery, minimizing iteration cycles while maintaining engineering rigor.
CAD Upload and Validation
Clients initiate the process by uploading native or neutral-format CAD files (STEP, IGES, Parasolid) via our secure customer portal. Our system performs immediate geometric validation, checking for surface continuity, unit consistency, and minimum feature integrity. Files failing validation trigger automated feedback specifying exact errors (e.g., “Non-manifold edges detected in Body_12”), enabling rapid client correction without engineering team intervention.
AI-Powered Quoting Engine
Validated CAD data feeds into our proprietary AI quoting system, which analyzes 17+ technical parameters including material stock utilization, feature complexity density, tolerance stringency, and toolpath accessibility. The algorithm cross-references real-time machine availability, material costs, and historical production data to generate a binding quote within 90 minutes. Critical inputs driving cost determination include: material grade (e.g., 6061-T6 aluminum vs. PEEK), geometric dimensioning requirements (±0.025mm vs. ±0.127mm), and secondary operation needs (deburring, anodizing).
Engineer-Led DFM Analysis
Upon quote acceptance, Honyo’s manufacturing engineers conduct mandatory Design for Manufacturability review. This phase identifies high-risk features requiring modification to prevent production failure or extended lead times. Common interventions include: increasing thin-wall sections below 0.5mm, adjusting internal radii to match standard tool geometries, and reorienting undercuts to eliminate secondary setups. Clients receive marked-up 3D models with specific change recommendations and time/cost impact analysis before proceeding.
High-Mix CNC Production

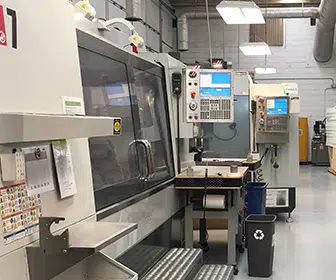

Approved designs move to our climate-controlled machine floor housing 28 CNC centers (12 3-axis, 10 5-axis, 6 mill-turn). Production employs:
Toolpath simulation via Mastercam Verify to eliminate collisions
In-process probing for first-article dimensional validation
Real-time SPC monitoring of critical dimensions
Material certifications and process documentation are maintained per AS9100 standards, with optional first-article inspection reports (FAIR) available.
Certified Delivery and Traceability
Completed prototypes undergo final dimensional verification against original CAD using calibrated CMMs or optical comparators. Each shipment includes:
Material test reports (MTRs)
Dimensional conformance documentation
Traceable production log with machine/operator IDs
Parts ship via DHL/FedEx with temperature-controlled options for sensitive materials, supported by real-time logistics tracking in the client portal.
Typical Lead Time Benchmarks
| Complexity Tier | Material Example | Standard Lead Time | Rush Option |
|—————-|——————|——————–|————-|
| Low | ABS Plastic | 3-4 business days | 48 hours |
| Medium | 6061-T6 Aluminum | 5-7 business days | 72 hours |
| High | Inconel 718 | 8-10 business days | 96 hours |
This integrated workflow reduces traditional prototype lead times by 40-60% while ensuring first-pass success through embedded manufacturability validation at each stage. All processes are documented under Honyo’s ISO 9001:2015-certified quality management system.
Start Your Project
Looking for rapid prototype CNC services? Partner with Honyo Prototype for fast, high-precision manufacturing. Our Shenzhen-based factory delivers quality prototypes with quick turnaround times, ideal for product development and low-volume production.
Contact Susan Leo at [email protected] to request a quote or discuss your project requirements. Let us support your innovation with reliable, cost-effective CNC prototyping solutions.
