Manufacturing Insight: R Cnc
Precision CNC Machining Solutions Engineered for Your Prototyping and Production Demands
At Honyo Prototype, we deliver industry-leading CNC machining services designed to transform complex engineering concepts into high-precision physical realities. With decades of expertise in multi-axis milling, turning, and grinding, our facility supports tight-tolerance requirements down to ±0.005mm across aerospace-grade aluminum, medical stainless steel, titanium, and engineered plastics. Our ISO 9001-certified processes integrate advanced 5-axis capabilities, rigorous in-process inspection, and material traceability to ensure every component meets stringent functional and regulatory standards. Whether you require rapid prototyping iterations or low-volume production runs, Honyo provides scalable solutions without compromising on repeatability or surface finish quality.
Accelerate your development timeline with our Online Instant Quote platform. Simply upload your 3D CAD file in STEP, IGES, or native formats, specify material and quantity requirements, and receive a detailed manufacturability analysis alongside a binding price within minutes—no manual submission delays. This seamless integration of engineering insight and digital efficiency empowers design teams to iterate faster while maintaining full cost transparency from concept to delivery. Partner with Honyo to leverage CNC machining precision that consistently exceeds expectations.
Technical Capabilities
Technical Specifications for R CNC Series – Precision Machining Platform
The R CNC series is engineered for high-precision 3, 4, and 5-axis milling as well as multi-axis turning operations. Designed for tight tolerance applications in prototyping and low-to-medium volume production, this platform delivers consistent accuracy and surface finish across a range of engineering materials including aluminum, steel, ABS, and nylon.
| Specification | Detail |
|---|---|
| Machining Capabilities | 3-axis, 4-axis (indexed and continuous), 5-axis simultaneous milling; Multi-axis turning with live tooling |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.002 mm |
| Tolerance Range | Typical: ±0.025 mm; Tight tolerance achievable: ±0.005 mm (depending on geometry and material) |
| Spindle Speed | Up to 24,000 RPM (HSK-E40 interface) |
| Spindle Power | 15 kW (continuous), 22 kW (peak) |
| Table Size (Max Work Envelope) | 800 mm × 600 mm × 500 mm (X-Y-Z) |
| Rotary Axis (4th Axis) | ±360° indexing, 0.001° resolution |
| Tilt Axis (5th Axis) | -120° to +120°, 0.001° resolution |
| Control System | Siemens SINUMERIK 840D sl or Heidenhain TNC7 |
| Coolant System | High-pressure through-spindle coolant (up to 70 bar) |
| Tool Capacity (Automatic Tool Changer) | 30-tool standard (expandable to 60) |
| Minimum Tool Diameter | 0.5 mm (milling), 1.0 mm (drilling) |
| Surface Finish (Typical Achievable) | Ra 0.8 µm (machined), down to Ra 0.4 µm with finishing passes |
| Materials Supported | Aluminum (6061, 7075), Steel (1018, 4140, Stainless 303/316), Engineering Plastics (ABS, Nylon 6, Nylon 6/6, POM) |
| Fixturing Options | Modular vices, vacuum tables, custom soft jaws, zero-point systems |
| Metrology Integration | Optional on-machine probing (Renishaw RMP60) for in-process inspection |
The R CNC platform supports complex geometries and tight tolerance requirements common in aerospace, medical, and automotive industries. With optimized toolpaths and adaptive machining strategies, it maintains dimensional stability across both metallic and polymeric substrates. Material-specific cutting parameters are stored in the CNC library to ensure optimal surface integrity and burr control, particularly critical when machining nylon and ABS to avoid melting or deformation.
From CAD to Part: The Process
Honyo Prototype executes CNC machining projects through a structured, technology-enhanced workflow designed to balance speed with engineering rigor. This process ensures manufacturability, cost efficiency, and on-time delivery for rapid prototyping and low-volume production. Below is a detailed explanation of each phase.
CAD Upload
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid preferred) via our secure online portal. We explicitly avoid accepting native CAD formats (e.g., .SLDPRT, .PRT) to prevent version compatibility issues and intellectual property concerns. Our system validates file integrity, geometry completeness, and unit consistency immediately upon upload. Incomplete or corrupted files trigger an automated notification requesting resubmission, preventing downstream delays. This stage establishes the digital foundation for all subsequent steps and typically completes within minutes.
AI-Powered Quoting
Uploaded geometry undergoes automated feature recognition and manufacturability assessment using our proprietary AI engine. The system analyzes part complexity, material selection, required tolerances, surface finishes, and fixture requirements against real-time machine availability and shop floor data. Crucially, this is not a fully autonomous process; Honyo’s manufacturing engineers review and validate every AI-generated quote. Human oversight ensures contextual adjustments for non-geometric factors like material supply chain constraints or secondary operations. Clients receive a detailed quotation—including breakdowns for machining time, material costs, and finishing—within 2 business hours for standard parts. Complex geometries may require up to 24 hours for engineering validation.
DFM Analysis
Before proceeding to production, all designs undergo mandatory Design for Manufacturability (DFM) review by Honyo’s engineering team. This phase identifies potential production risks and collaboratively optimizes the design. Common issues we address include:
| DFM Issue Category | Typical Examples | Honyo’s Resolution Approach |
|---|---|---|
| Geometric Feasibility | Thin walls (<0.5mm), deep cavities (>4x diameter), undercuts | Recommend wall thickness adjustments or alternative machining strategies (e.g., EDM for complex undercuts) |
| Tolerance Conflicts | Over-specified GD&T, inconsistent datum references | Propose achievable tolerances per ISO 2768-mK standards or highlight cost implications of tight tolerances |
| Material Constraints | Non-standard alloys, poor machinability grades | Suggest equivalent materials with better cost/production profiles (e.g., 6061-T651 vs. 7075 for non-critical parts) |
| Setup Efficiency | Features requiring >3 repositionings | Redesign for single-setup machining or propose modular fixtures |
The DFM report includes annotated CAD visuals and specific modification recommendations. Clients approve revisions via our portal before production begins, eliminating costly change orders mid-process.
Production Execution

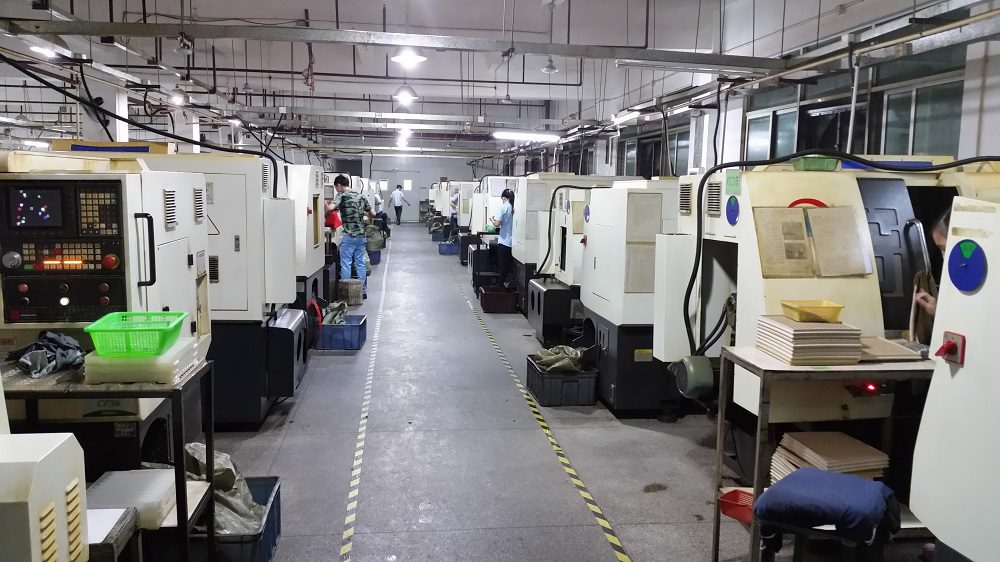

Approved designs move to our climate-controlled machining facility. Each part receives a unique job ID tracked through our MES (Manufacturing Execution System). CNC operations follow a standardized sequence: material procurement with certified mill certificates, precision fixturing on HAAS or DMG MORI 5-axis centers, in-process CMM verification at critical stages, and final inspection against AS9102 first-article requirements. All machining parameters (spindle load, feed rates, tool wear) are logged in real-time. Secondary operations like anodizing, bead blasting, or tapping occur in dedicated stations with controlled environmental conditions. Quality data is accessible to clients via the production dashboard.
Delivery & Documentation
Upon passing final inspection, parts undergo meticulous cleaning, protective packaging (ESD-safe where applicable), and serialization. Each shipment includes a comprehensive quality dossier: CMM inspection reports (with deviation heatmaps), material certifications, process validation records, and DFM compliance documentation. Logistics utilize tracked courier services with temperature/humidity monitoring for sensitive materials. Standard lead time from DFM approval to delivery is 5–7 business days for single-part prototypes; multi-part assemblies may require 10–12 days. Clients receive proactive shipment notifications with real-time tracking and digital access to all quality records post-delivery.
This integrated workflow—combining AI efficiency with engineering expertise—ensures Honyo delivers CNC-machined components with 99.2% first-pass yield rate while maintaining rapid turnaround essential for product development cycles. We prioritize transparency at every phase, empowering clients to make informed decisions without compromising on quality.
Start Your Project
Request a quote for R CNC services by contacting Susan Leo at [email protected]. Our precision manufacturing facility is located in Shenzhen, ensuring fast turnaround and high-quality production for your prototyping and low-volume manufacturing needs.
