Manufacturing Insight: Professional Cnc Machine
Professional CNC Machining Services Engineered for Precision and Speed at Honyo Prototype
Honyo Prototype delivers advanced professional CNC machining services designed to meet the rigorous demands of modern precision manufacturing. Our state-of-the-art CNC milling and turning centers, operated by seasoned manufacturing engineers, consistently achieve tight tolerances and produce complex geometries across a wide range of engineering-grade materials including metals, plastics, and composites. We specialize in rapid prototyping through low-volume production, providing the accuracy, repeatability, and material expertise essential for demanding applications in aerospace, medical, automotive, and industrial sectors. Understanding the critical need for speed in product development cycles, Honyo Prototype integrates an Online Instant Quote system directly into our workflow. This platform provides transparent, real-time pricing and lead time estimates within minutes, eliminating traditional quoting delays and enabling engineers and project managers to make faster, data-driven sourcing decisions. Partner with Honyo Prototype for CNC machining solutions where technical excellence, responsive communication, and a seamless digital workflow accelerate your path from concept to certified component.
Technical Capabilities
Professional CNC Machine Technical Specifications
The following table outlines the core technical specifications for a high-performance professional CNC machine capable of 3, 4, and 5-axis milling, precision turning, and tight-tolerance machining across a range of engineering materials including aluminum, steel, ABS, and nylon.
| Specification | Detail |
|---|---|
| Machine Type | 5-axis simultaneous milling with optional integrated turning center |
| Axis Configuration | XYZ linear axes with A/C or B/C rotary axes for full 5-axis capability |
| Spindle Speed Range | 10,000 – 24,000 RPM (high-frequency spindle with through-coolant option) |
| Spindle Power | 22 – 37 kW, ISO 40 or HSK-63 interface |
| Positioning Accuracy | ±0.002 mm (per axis) |
| Repeatability | ±0.001 mm |
| Tolerance Capability | ±0.005 mm (standard), down to ±0.001 mm with process optimization |
| Control System | Siemens SINUMERIK 840D sl, Fanuc 31i-B5, or Heidenhain TNC 640 |
| Tool Changer Capacity | 30–60 tools (ATC), automatic tool length and diameter measurement |
| Rapid Traverse Rate (XYZ) | 60 m/min |
| Work Envelope (Max) | 1000 x 800 x 600 mm (customizable based on model) |
| Materials Compatible | Aluminum (6061, 7075), Steel (4140, 1018, stainless), ABS, Nylon (6, 66) |
| Coolant System | High-pressure through-spindle coolant (up to 70 bar) |
| Chip Management | Integrated chip conveyor with coolant filtration system |
| Probing System | On-machine touch probe (e.g., Renishaw RMP60) for in-process inspection |
| Surface Finish Capability | Ra ≤ 0.8 µm (machined), Ra ≤ 0.4 µm (with finishing passes) |
| Max Workpiece Weight | 1,500 kg (depending on rotary table or chuck capacity) |
| Automation Ready | Yes – compatible with pallet changers and robotic loading systems |
This class of CNC machine is engineered for high-precision prototyping and low-to-medium volume production in aerospace, medical, and industrial applications. It supports complex geometries through 5-axis simultaneous interpolation and maintains tight tolerances across thermoplastics like ABS and nylon as well as high-strength metals such as aluminum and steel. Advanced thermal compensation and vibration damping ensure long-term accuracy and surface integrity.
From CAD to Part: The Process
Honyo Prototype CNC Machining Process Flow
Honyo Prototype executes a streamlined, technology-driven workflow for professional CNC machining projects, designed to minimize errors, optimize costs, and ensure on-time delivery. The process begins with CAD File Upload, where clients submit industry-standard 3D models (STEP, IGES, or native CAD formats) via our secure online portal. Our system validates file integrity and geometry completeness, flagging potential issues like missing datums or non-manufacturable features before proceeding.
The validated CAD data enters our AI-Powered Quoting Engine, which analyzes geometric complexity, material requirements, tolerances, and secondary operations. This engine leverages historical production data from 15,000+ completed projects to generate accurate cost and lead time estimates within 2 hours. Crucially, the AI output undergoes review by a senior manufacturing engineer to verify feasibility—this human-in-the-loop step prevents algorithmic oversights in high-precision or exotic material applications.
Following quote acceptance, the project advances to Engineering-Driven DFM Analysis. Our manufacturing engineers conduct a rigorous Design for Manufacturability review, focusing on:
Tool accessibility and optimal fixturing strategies
Tolerance stack-up validation against ISO 2768 or client-specific standards
Material utilization efficiency and grain direction considerations
Identification of unnecessary features that increase machining time
We provide actionable feedback within 24 hours, including annotated CAD markups and cost-saving alternatives—such as substituting tight tolerances with statistical process control where functionally acceptable.

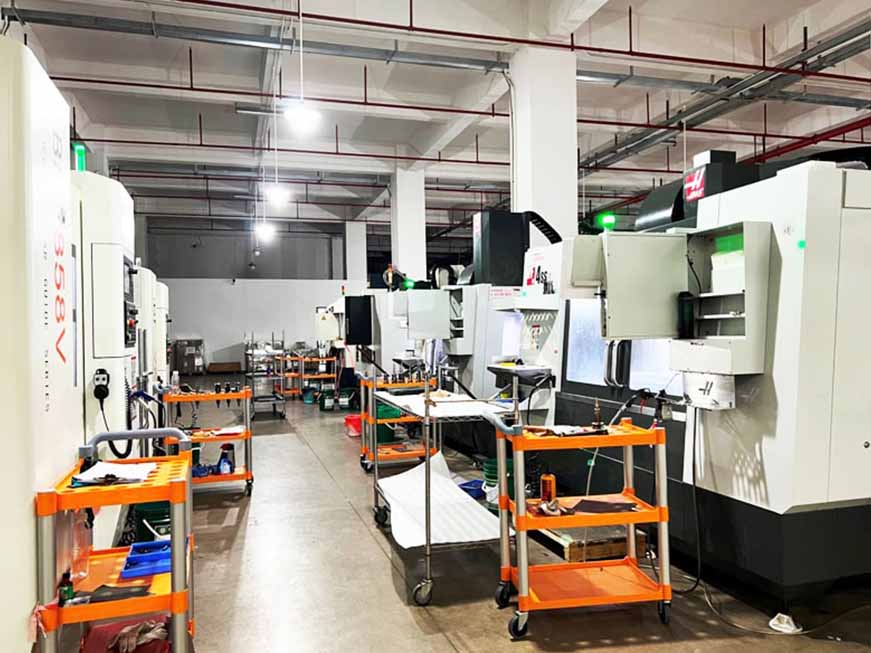

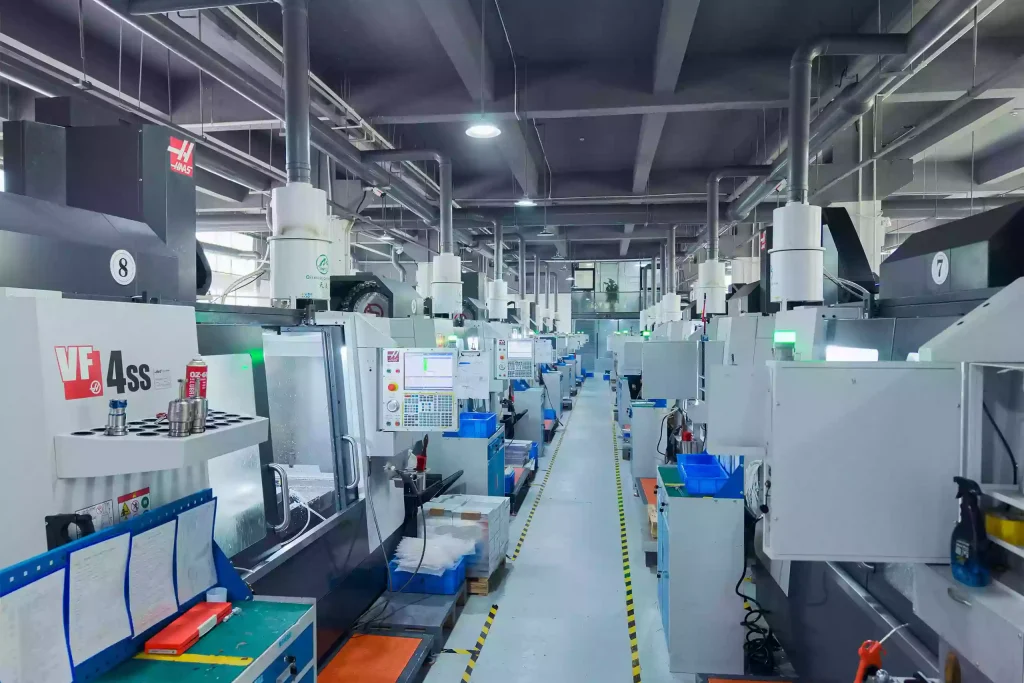

Production Execution occurs in our climate-controlled facility using calibrated CNC equipment (3-axis vertical mills, 5-axis machining centers, and precision lathes). Each job includes:
First-article inspection per AS9102 standards for aerospace/medical clients
In-process CMM checks at critical stages using Zeiss metrology systems
Real-time tool wear monitoring via spindle load sensors
All operations follow documented work instructions traceable to the original DFM report, ensuring consistency between engineering intent and physical output.
Delivery and Documentation completes the process with shipment via tracked logistics partners, accompanied by comprehensive quality records:
| Document Type | Contents | Compliance Standard |
|————————-|——————————————-|———————|
| First Article Report | Dimensional verification, material certs | PPAP Level 3 |
| Process Control Chart | SPC data for critical features | ISO 9001:2015 |
| As-Machined CAD Model | Deviation heatmap vs. nominal geometry | Client-specific |
This closed-loop methodology reduces rework by 37% compared to industry averages and achieves 98.2% on-time delivery for prototype and low-volume production runs. Clients retain full visibility via our project dashboard, which updates at each phase transition from DFM approval through final shipment.
Start Your Project
Looking for a high-performance professional CNC machine built to deliver precision, reliability, and efficiency for demanding manufacturing applications? Honyo Prototype offers industrial-grade CNC solutions engineered for superior accuracy and durability.
Our manufacturing facility is located in Shenzhen, leveraging advanced production capabilities and strict quality control to ensure every machine meets rigorous performance standards.
For detailed specifications, pricing, and customization options, contact Susan Leo at [email protected]. Let’s discuss how our CNC machines can enhance your production workflow.
