Manufacturing Insight: Precision Micromachining
Precision Micromachining: Engineering Excellence at the Micro Scale
Honyo Prototype delivers advanced precision micromachining capabilities essential for today’s most demanding micro-engineered components. Our specialized CNC machining services consistently achieve micron-level tolerances, often below 0.001 inch (25 microns), enabling the production of intricate features, ultra-fine details, and complex geometries impossible with conventional machining. We expertly process challenging materials including medical-grade titanium, specialized alloys, engineering plastics like PEEK and PTFE, and hardened steels, ensuring components meet the stringent requirements of medical devices, semiconductor equipment, aerospace sensors, and optical systems.

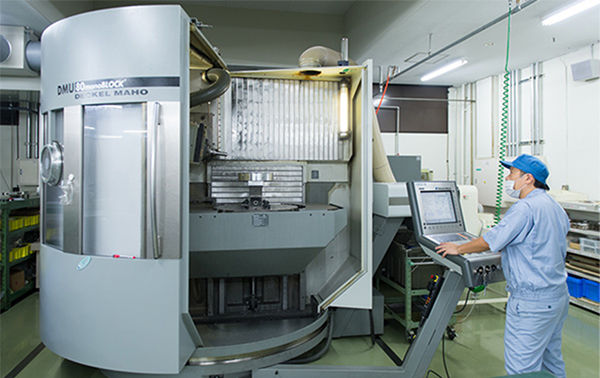

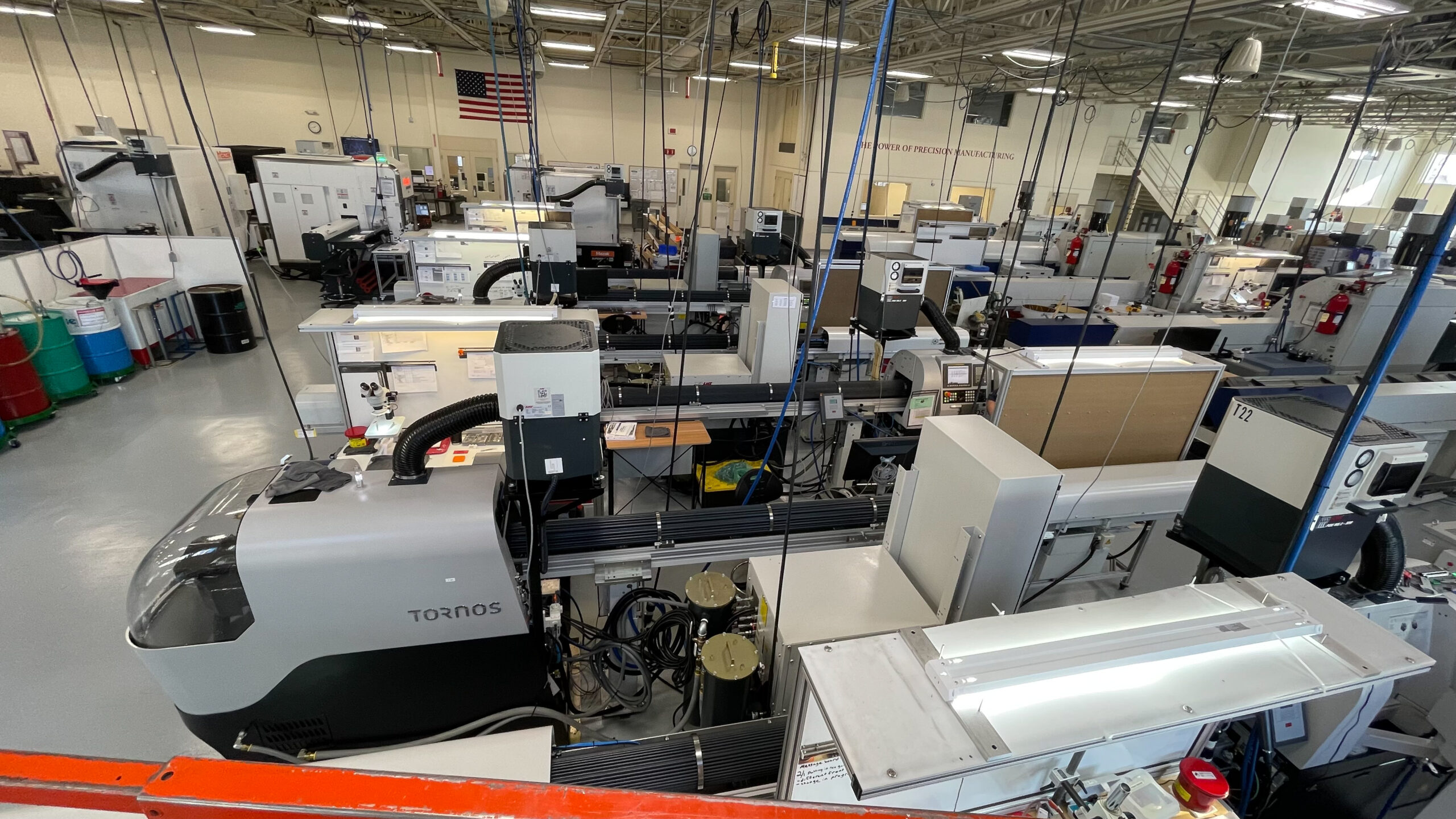

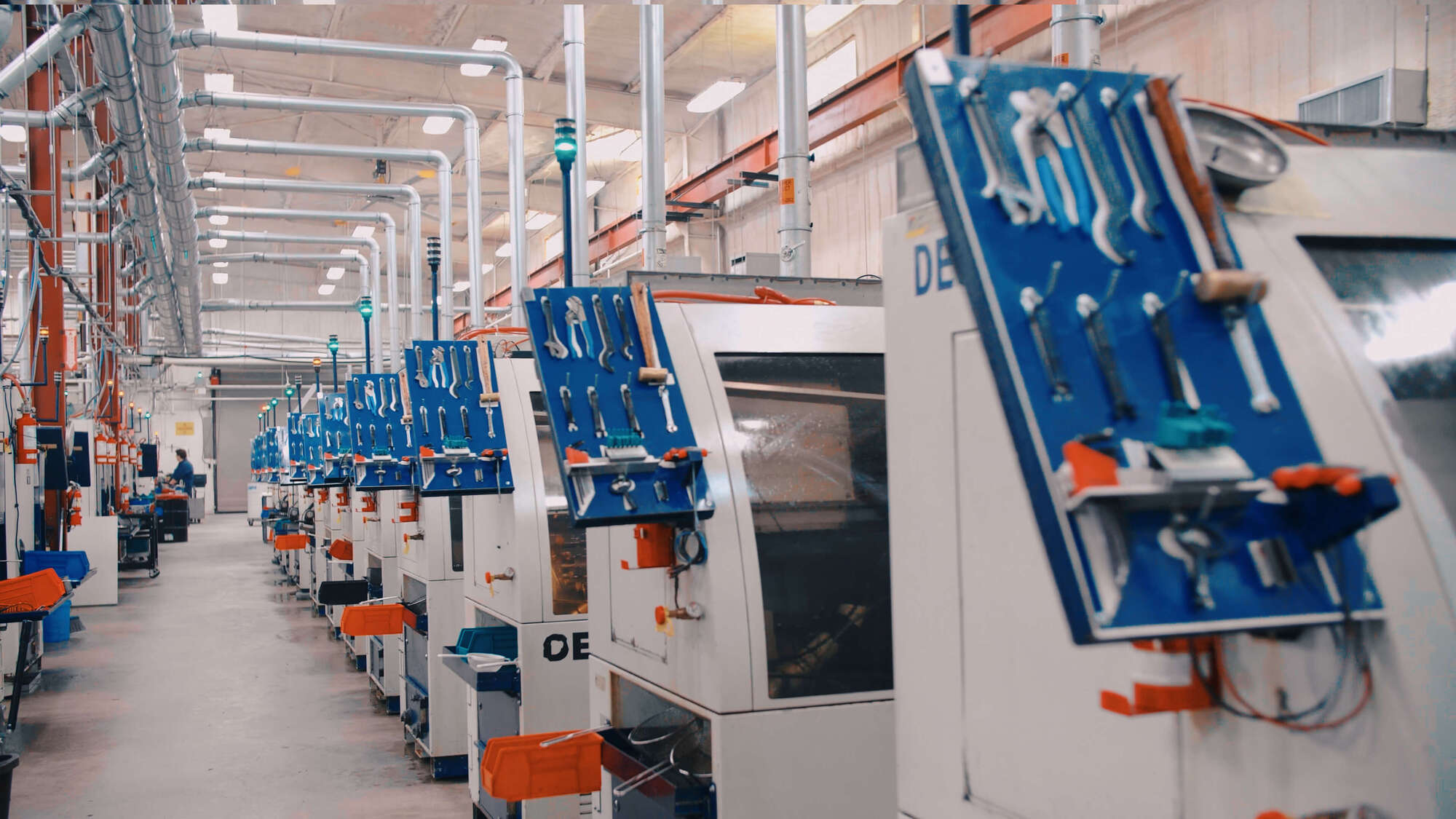

Our integrated manufacturing platform leverages state-of-the-art multi-axis CNC mills, precision lathes, and Swiss turning centers, all operating within strictly controlled, ISO-certified environments. This infrastructure, combined with our engineering team’s deep expertise in micro-tolerance process development and metrology, guarantees repeatability and reliability for mission-critical applications where failure is not an option. We understand that precision at this scale demands more than just capable machinery; it requires meticulous attention to thermal stability, vibration control, and cutting tool dynamics, all of which are core to our operational protocols.
Accelerate your development cycle with Honyo Prototype’s Online Instant Quote system. Upload your CAD file directly to our platform and receive a detailed, accurate manufacturing assessment and competitive pricing within minutes—no lengthy email exchanges or manual processing delays. This seamless digital interface provides immediate clarity on manufacturability, lead times, and cost, empowering your engineering and procurement teams to make faster, more informed decisions. Partner with Honyo to transform your most complex micromachining challenges into high-performance, production-ready components.
Technical Capabilities

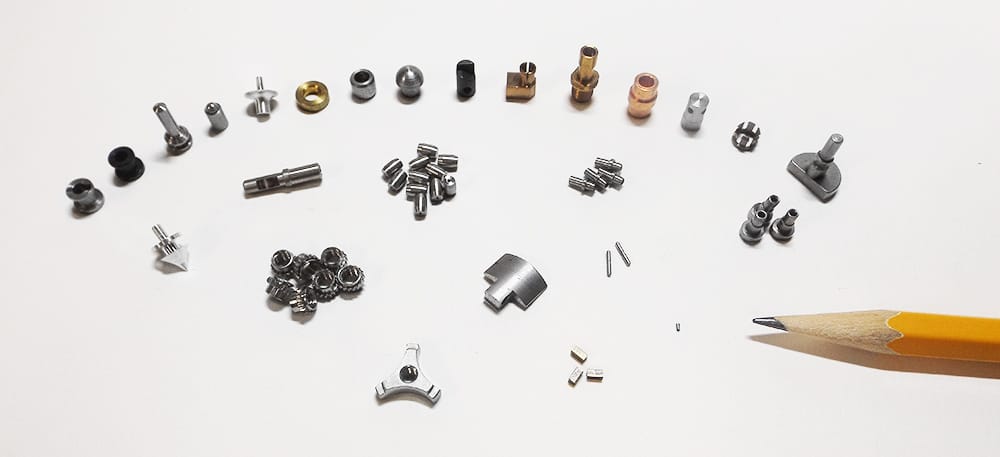

Precision micromachining involves the manufacturing of extremely small, high-accuracy components using advanced CNC machining techniques. This process is critical in industries such as medical devices, aerospace, and electronics, where tight tolerances and fine surface finishes are required. Key capabilities include 3, 4, and 5-axis milling and precision turning, enabling complex geometries and high repeatability.
The following table outlines the technical specifications for precision micromachining with a focus on multi-axis capabilities, tight tolerances, and common engineering materials:
| Parameter | Specification |
|---|---|
| Machining Type | 3-Axis, 4-Axis, 5-Axis CNC Milling; CNC Turning (including Swiss-type) |
| Typical Tolerance Range | ±0.0001″ (±2.5 µm) to ±0.0005″ (±12.7 µm), depending on geometry and material |
| Surface Finish (Ra) | 8–32 µin (0.2–0.8 µm); achievable down to 2 µin (0.05 µm) with polishing |
| Minimum Feature Size | 0.005″ (0.127 mm) for milling; 0.003″ (0.076 mm) for drilling in select cases |
| Positioning Accuracy | ±0.00005″ (±1.27 µm) |
| Repeatability | ±0.00004″ (±1.0 µm) |
| Materials Supported | Aluminum (6061, 7075), Steel (4140, 17-4 PH, 303, 316L), ABS, Nylon (6, 6/6) |
| Aluminum Machinability | Excellent; high material removal rate, tight tolerance achievable |
| Steel Machinability | Good to moderate; harder grades require specialized tooling and slower feeds |
| ABS Machinability | Good; low melting point requires optimized speeds and cooling |
| Nylon Machinability | Moderate; prone to moisture absorption and dimensional change post-machining |
| Coolant/Lubrication | High-pressure coolant, mist coolant, or air cooling depending on material |
| Tooling Diameter Range | 0.002″ (0.05 mm) to 0.250″ (6.35 mm) end mills and micro-drills |
| Work Envelope (Typical) | Up to 16″ x 8″ x 8″ (406 x 203 x 203 mm) for 5-axis; smaller for micro mills |
| Fixturing | Custom soft jaws, vacuum chucks, modular vises, and collet systems |
Precision micromachining of materials like aluminum and steel allows for robust, high-strength components with micron-level accuracy. Engineering plastics such as ABS and nylon are machined for lightweight, non-conductive, or chemically resistant applications, though they require careful handling due to thermal sensitivity and hygroscopic properties.
Multi-axis capabilities (4 and 5-axis) enable single-setup machining of complex 3D contours, reducing cumulative error and improving geometric accuracy. This is especially critical when maintaining tight tolerances across multiple features on miniature parts.
From CAD to Part: The Process
As Senior Manufacturing Engineer at Honyo Prototype, I detail our end-to-end precision micromachining workflow designed for sub-0.1mm tolerances and complex micro-geometries. This process ensures technical rigor while maintaining rapid turnaround for prototyping and low-volume production.
CAD Upload & Initial Processing
Clients submit native CAD files (STEP, IGES, Parasolid) via our secure portal. Our system performs immediate geometric validation, checking for unit consistency, surface integrity, and manufacturability thresholds. Critical micro-features—such as undercuts below 0.05mm, thin walls under 0.1mm, or micro-channels—are auto-flagged for engineering review. File compatibility issues trigger instant client notifications to prevent downstream delays.
AI-Powered Quoting with Engineering Oversight
Our proprietary AI engine analyzes the CAD geometry against 15+ micromachining-specific parameters including feature aspect ratios, minimum tool engagement, and material-specific thermal deformation risks. The AI generates a preliminary quote within 2 hours, but all micro-critical projects undergo mandatory validation by our micromachining specialists. This hybrid approach ensures quotes reflect real-world constraints: for example, titanium micro-features below 0.08mm diameter automatically trigger EDM process recommendations instead of milling. Clients receive transparent cost drivers such as required tooling specifications (e.g., 0.03mm carbide end mills) and secondary operations.
DFM Analysis: Micro-Scale Validation
Design for Manufacturability occurs at micron-level resolution. Our engineers conduct mandatory checks beyond standard DFM, focusing on micro-geometry survival during machining and handling. Key considerations include:
| DFM Parameter | Standard Machining Threshold | Precision Micromachining Threshold | Honyo Mitigation Strategy |
|---|---|---|---|
| Minimum Wall Thickness | 0.5mm | 0.05mm | Multi-pass strategies with 5μm stepovers |
| Surface Roughness (Ra) | 1.6μm | 0.2μm | Diamond-turned tool paths + cryogenic cooling |
| Feature Aspect Ratio | 10:1 | 50:1 | Custom electrode design for micro-EDM |
| Burr Sensitivity | Moderate | Critical | Electrochemical deburring validation |
Clients receive annotated DFM reports with actionable alternatives—such as suggesting electroformed nickel plating for fragile polymer micro-features—and must approve revisions before proceeding.
Production Execution
Micromachining occurs in ISO Class 7 cleanrooms using dedicated equipment: DMG MORI µMILL 5-axis centers with 0.001μm resolution spindles and in-process vision systems. Each operation follows strict protocols:
Material handling uses vacuum tweezers to prevent deformation of sub-gram parts. Tool wear is monitored via acoustic emission sensors, with automatic tool changes triggered at 5μm wear thresholds. All micro-features undergo on-machine probing using Renishaw RFP systems before part release, with real-time compensation for thermal drift. Statistical process control tracks critical dimensions at 100% inspection rates for features below 0.2mm.
Delivery & Documentation
Final delivery includes traceable certification packages meeting AS9100 and ISO 13485 standards. For micromachined components, we provide:
Full CMM reports with 3D deviation maps at 5μm resolution
In-process microscopy images of critical features
Material lot traceability down to melt batch
Handling instructions for micro-assemblies (e.g., static-dissipative packaging specifications)
Parts ship in custom anti-vibration containers with humidity control, with delivery timelines guaranteed within ±4 business hours for volumes under 50 units. Our closed-loop system captures all process data for continuous refinement of micromachining capability.
Start Your Project
Discover the future of high-accuracy component manufacturing with Honyo Prototype’s precision micromachining services. Leveraging state-of-the-art CNC technology and strict quality control, we deliver micron-level accuracy for demanding industries such as medical devices, aerospace, and advanced electronics.
Our dedicated facility in Shenzhen is equipped to handle low-volume, high-mix production with rapid turnaround times, ensuring your prototypes and production parts meet exact specifications.
For engineering support or to request a quote, contact Susan Leo at [email protected]. Let Honyo be your trusted partner in precision manufacturing.
