Manufacturing Insight: Plastic Welding Services
Honyo Prototype Precision Manufacturing
When complex plastic assemblies demand structural integrity, hermetic seals, or seamless integration in prototyping and low-volume production, Honyo Prototype delivers advanced plastic welding services engineered for precision and reliability. Our expertise spans ultrasonic, vibration, laser, and hot plate welding techniques, meticulously calibrated for diverse thermoplastic materials including ABS, polycarbonate, PVC, and engineered composites. What distinguishes Honyo’s approach is the foundational integration of our industry-leading CNC machining capabilities. Every welding fixture, alignment jig, and custom tooling is fabricated in-house using multi-axis CNC mills and lathes, ensuring micron-level tolerances that directly translate to consistent weld quality, reduced part stress, and accelerated assembly cycles. This synergy between precision machining and welding eliminates third-party dependencies, maintains strict geometric control, and guarantees repeatability critical for aerospace, medical, and industrial applications.
Clients benefit from a unified workflow where CNC-machined components are seamlessly transitioned into the welding phase without dimensional compromise. Our engineers leverage material science insights and GD&T expertise to optimize joint design, thermal profiles, and fixturing—turning intricate multi-part assemblies into monolithic performance solutions. To streamline project initiation, Honyo Prototype offers an Online Instant Quote platform providing real-time cost and lead time estimates for both CNC machining and plastic welding services. Upload your 3D CAD files, specify materials and quantities, and receive a detailed quotation within minutes—enabling faster decision-making and project acceleration without compromising on technical rigor. Partner with Honyo to transform complex plastic fabrication challenges into validated, production-ready outcomes.
Technical Capabilities
Honyo Prototype provides precision plastic welding services integrated with advanced CNC machining capabilities, including 3-axis, 4-axis, and 5-axis milling, as well as precision turning. These services are engineered to support tight-tolerance applications across a range of materials, including both metals and engineering-grade plastics. The combination of multi-axis machining and plastic welding ensures high structural integrity, dimensional accuracy, and repeatability for complex assemblies.
When performing plastic welding in conjunction with machined components, material compatibility, thermal stability, and joint strength are critical. Our processes are optimized to maintain tolerances down to ±0.005 mm, ensuring seamless integration between welded plastic elements and machined metal or plastic parts.
Below is a summary of the technical specifications relevant to our plastic welding services and associated CNC machining capabilities:
| Parameter | Specification |
|---|---|
| Machining Capabilities | 3-axis, 4-axis, and 5-axis CNC milling; CNC turning |
| Tolerance Range | ±0.005 mm to ±0.025 mm (depending on material and geometry) |
| Surface Finish (Typical) | Ra 0.8 µm to 3.2 µm (machined); welded joints smoothed and machined to spec |
| Welding Processes | Hot gas welding, ultrasonic welding, vibration welding, laser welding (selective) |
| Compatible Plastics | ABS, Nylon (PA6, PA66), PC, PP, PE, POM, PMMA |
| Compatible Metals | Aluminum (6061, 7075), Steel (1018, 4140, Stainless 304/316) |
| Joint Strength (Welded) | Up to 80–95% of base material strength (depending on process and material) |
| Fixturing & Alignment | Precision CNC-machined fixtures used to ensure alignment during welding |
| Inspection & QA | CMM, optical comparators, dye penetrant testing (for weld integrity) |
| Applications | Enclosures, fluid manifolds, robotic housings, medical devices, prototypes |
Our integrated approach allows for hybrid assemblies—such as aluminum chassis with welded ABS enclosures or nylon fluid connectors on steel manifolds—to be manufactured with high precision and reliability. All welding procedures are validated for material compatibility and mechanical performance, particularly in environments requiring thermal and chemical resistance.
From CAD to Part: The Process
Honyo Prototype delivers precision plastic welding services through a streamlined, technology-driven workflow designed for rapid prototyping and low-volume production. Our process ensures technical feasibility, cost efficiency, and adherence to engineering specifications from initial concept to final shipment. Below is a detailed explanation of each phase.
Upload CAD
Clients initiate the process by uploading 3D CAD models via our secure web portal. We accept industry-standard formats including STEP, IGES, Parasolid, and native files from SolidWorks, Creo, and Fusion 360. Upon submission, our system performs automated geometry validation to check for common issues such as non-manifold edges, unit inconsistencies, or missing features. This immediate validation reduces downstream delays and ensures the model is production-ready before proceeding.
AI Quote
The validated CAD model enters our proprietary AI quoting engine, which analyzes geometric complexity, material requirements, and weld joint specifications. Within 2–4 hours, clients receive a detailed quotation covering manufacturing cost, lead time, and preliminary feasibility assessment. The AI evaluates weld accessibility, material compatibility (e.g., confirming amorphous vs. semi-crystalline polymers for specific welding methods), and potential thermal stress points. Critical constraints such as minimum wall thickness for ultrasonic welding or laser transmission requirements are flagged here to prevent design oversights.
DFM Analysis
Following quote acceptance, our engineering team conducts an in-depth Design for Manufacturability review focused exclusively on weld integrity and process optimization. This phase addresses joint geometry (e.g., energy directors, shear joints), material selection compatibility, and fixturing requirements. We provide actionable feedback via annotated reports, recommending modifications to enhance weld strength, reduce cycle time, or eliminate air traps. Typical DFM adjustments include optimizing weld bead width for vibration welding or adjusting clamp pressure zones for laser welding. Client approval of revised specifications is required before production release.
Production

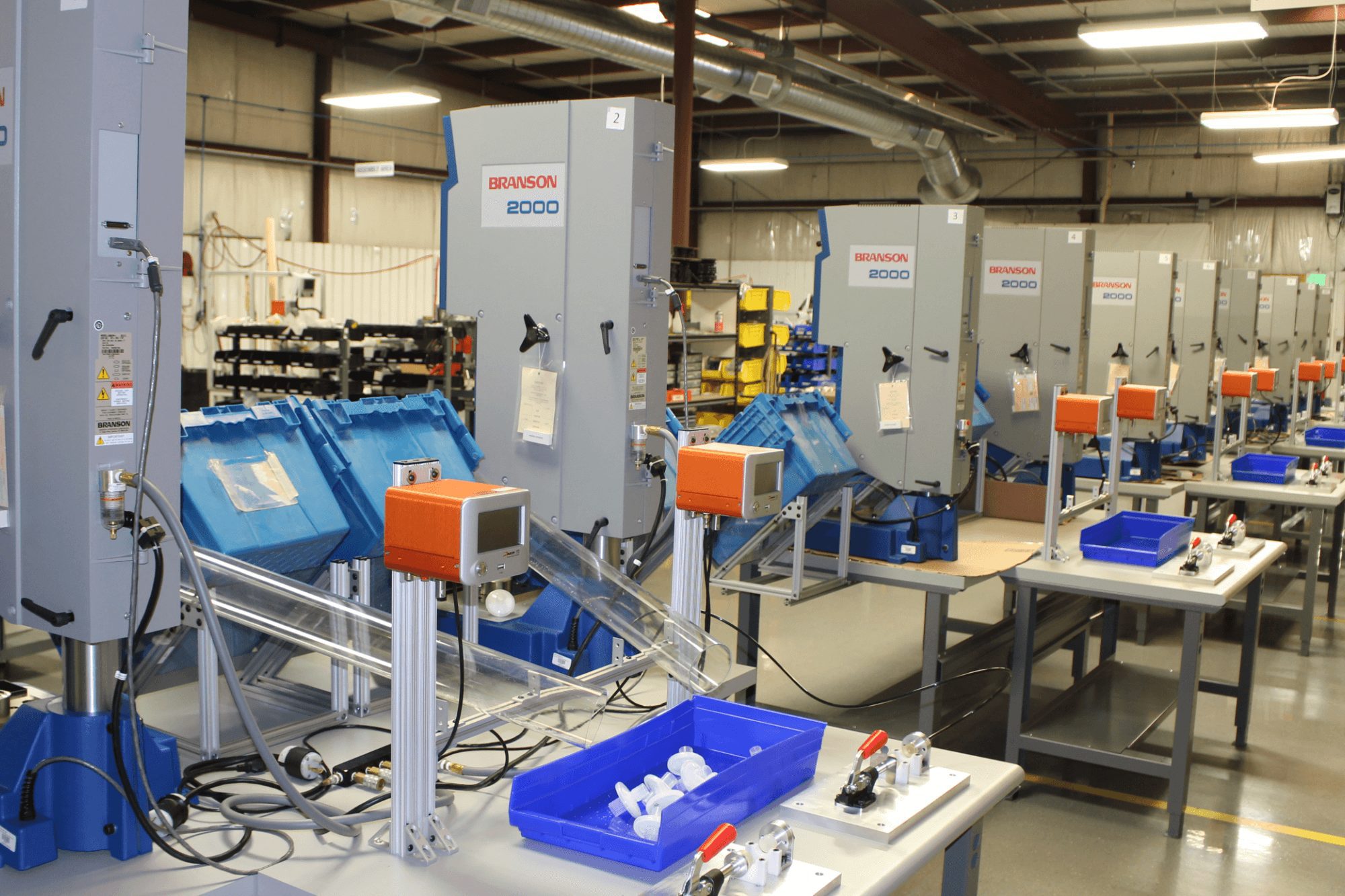

Approved designs move to our climate-controlled production floor, where certified technicians execute welding using method-specific protocols. We deploy five primary welding technologies based on material properties and part geometry, as summarized below. All processes adhere to ISO 13076 standards for plastic welding quality assurance.
| Process | Compatible Materials | Typical Joint Types | Key Applications |
|---|---|---|---|
| Vibration Welding | ABS, PC, PP, PE | Scissor, Tongue & Groove | Automotive ducts, fluid reservoirs |
| Laser Transmission | ABS, PMMA, PC, PP (with absorbers) | Butt, T-Joints | Medical fluidic devices, sensors |
| Ultrasonic | ABS, PS, PP (amorphous/semi-crystalline) | Energy Director, Shear | Consumer electronics housings |
| Hot Plate | PE, PP, PVDF | Flat, Tongue & Groove | Large tanks, piping systems |
| Spin Welding | PP, PE, PA | Circular butt joints | Caps, nozzles, circular assemblies |
Each welded assembly undergoes first-article inspection (FAI) per AS9102 standards, including destructive testing (tensile/shear strength validation) and non-destructive checks (dye penetrant for leaks, CMM for dimensional accuracy). Statistical process control (SPC) monitors critical parameters like melt displacement and cooling rates in real time.
Delivery
Completed orders ship with full traceability documentation, including material certificates (e.g., UL 94 flammability ratings), weld parameter logs, and FAI reports. Parts are packaged in ESD-safe or anti-static materials per client specifications, with climate-controlled shipping options for temperature-sensitive polymers. Standard lead time from CAD upload to delivery is 7–10 business days for quantities under 500 units, with expedited 72-hour options available for qualified projects. All shipments include serialized tracking and digital access to quality records via our client portal.
This integrated workflow minimizes time-to-part while ensuring weld integrity meets aerospace, medical, and industrial performance requirements. For complex assemblies requiring multi-axis welding or dissimilar material bonds, we recommend engaging our engineering team during the DFM phase to optimize joint design. Contact Honyo’s applications engineering group to discuss material-specific welding feasibility for your next project.
Start Your Project
Looking for reliable plastic welding services for your next project? Honyo Prototype offers precision plastic welding with fast turnaround times, supporting both prototyping and low-volume production. Our manufacturing facility is located in Shenzhen, leveraging advanced techniques to ensure strong, clean, and consistent welds across a variety of thermoplastics.
Contact Susan Leo today to discuss your requirements or request a quote.
Email: [email protected]
Partner with a trusted provider for high-quality plastic assembly solutions—engineered to meet your exact specifications.
