Manufacturing Insight: Molding Silicone Parts

Precision Silicone Molding Solutions: Accelerate Your Product Development Cycle

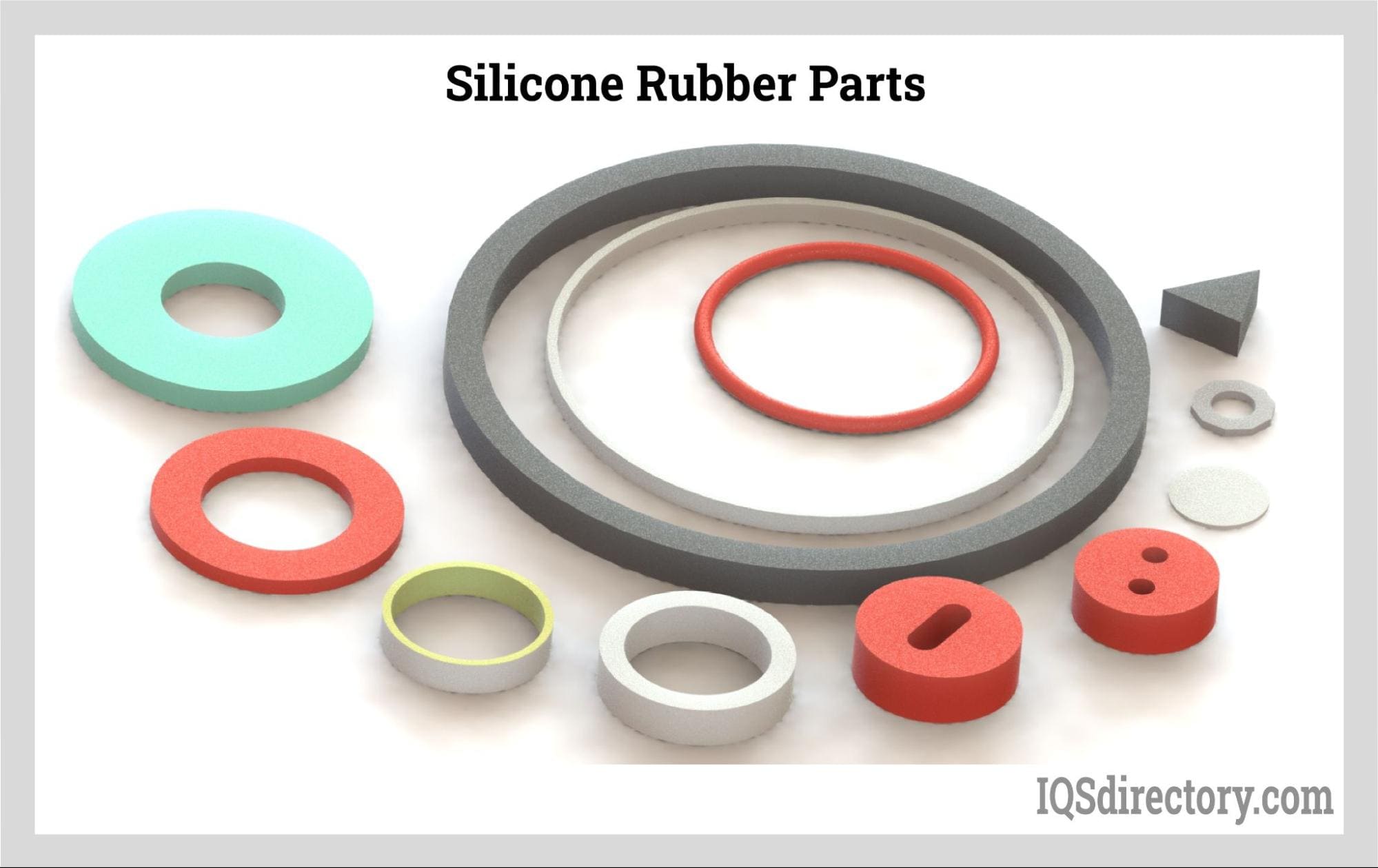

Honyo Prototype delivers high-integrity silicone components through advanced Rapid Tooling and Injection Molding processes, engineered specifically for demanding prototyping and low-to-mid volume production requirements. Our technical expertise in liquid silicone rubber (LSR) and high-consistency rubber (HCR) molding addresses critical challenges inherent in silicone processing, including material viscosity control, precise cure management, and dimensional stability to meet stringent tolerances. We utilize CNC-machined aluminum tooling fabricated in-house, significantly reducing lead times compared to traditional steel molds while maintaining the repeatability and surface finish essential for functional validation and pre-production runs. This rapid tooling approach, coupled with our ISO 13485-certified molding environment, ensures consistent part quality for applications spanning medical devices, automotive seals, consumer electronics, and industrial components.

Engineers and product developers leverage our integrated service to transition seamlessly from CAD design to physical part within days, not weeks. Our process incorporates rigorous material characterization and in-process quality verification, including first-article inspection reports and critical dimension validation against your specifications. The ability to rapidly iterate tooling based on initial molding results accelerates design validation and reduces time-to-market risk. For immediate project assessment and cost transparency, Honyo Prototype provides an Online Instant Quote platform. Simply upload your 3D model and requirements to receive a detailed technical and commercial evaluation within hours, enabling faster decision-making and project initiation without compromising on the precision your silicone application demands.

---

Technical Capabilities

Technical Specifications for Molding Silicone Parts – Rapid Tooling with Steel and Aluminum Molds

Honyo Prototype offers rapid silicone molding services utilizing precision-machined aluminum and steel molds, enabling T1 sample delivery within 7 days from approved design and material confirmation. Our process supports both low-volume prototyping and bridge-to-production applications, ensuring high fidelity to final product specifications.

Key capabilities include:

Mold Material Options
Aluminum (typically 7075-T6 or 6061-T6) is used for prototypes and low-volume runs (up to 10,000 cycles), offering fast machining and excellent thermal conductivity.
Steel (P20, H13, or 420 stainless) is selected for high durability and extended production life (up to 100,000+ cycles), with superior wear and temperature resistance.

Silicone Material Compatibility
We process high-consistency rubber (HCR) and liquid silicone rubber (LSR) with Shore hardness ranging from 10 to 80A. Materials meet biocompatibility (ISO 10993), FDA, and UL94 V-0 standards upon request.

Secondary Material Integration
Overmolding with engineering thermoplastics such as ABS and Nylon (PA6, PA66) is supported for multi-material components. These substrates are injection molded first, then overmolded with silicone for soft-touch, sealing, or insulation functions.

T1 Sample Turnaround
From finalized 3D CAD, toolpath generation, mold fabrication, and first-article molding are completed within 7 calendar days. Dimensional inspection reports (FAIR) and material certifications are provided with samples.

Parameter	Specification
Mold Material	Aluminum (6061, 7075), Steel (P20, H13, 420 Stainless)
Mold Life	Aluminum: 5,000–10,000 cycles; Steel: 50,000–100,000+ cycles
Tooling Lead Time (T1)	7 days from design freeze
Part Size Range	Min: 10 mm x 10 mm; Max: 300 mm x 300 mm x 150 mm
Silicone Types	HCR and LSR (Shore 10A–80A), medical, food-grade, flame-retardant options
Overmolding Compatibility	ABS, Nylon (PA6, PA66), and other thermoplastics via insert or 2K molding
Surface Finishes	As-machined, polished (SPI A2/A3), texture (MT-11000 series), coating options
Tolerances	±0.1 mm (standard), ±0.05 mm (tight tolerance on critical features)
Secondary Operations	Deflashing, UV cleaning, bonding, packaging, and inspection (CMM, optical)

All molds are designed with conformal cooling channels where applicable and undergo vacuum-assisted degating to ensure part consistency. This rapid tooling approach enables fast design validation and accelerates time-to-market for silicone-integrated components.

---

From CAD to Part: The Process

Honyo Prototype executes silicone part molding through a rigorously defined workflow designed for precision, speed, and manufacturability assurance. This process integrates digital tools with deep materials expertise to minimize risk and accelerate time-to-part.

CAD Upload and Validation
Clients initiate the process by uploading 3D CAD models (STEP, IGES, or native formats) via our secure customer portal. Our system performs immediate validation checks for file integrity, unit consistency, and basic geometric feasibility. Critical parameters like wall thickness uniformity, draft angles, and undercuts are flagged for preliminary review. This step ensures the digital foundation aligns with silicone molding physics before proceeding.

AI-Powered Quoting Engine
Validated CAD data feeds directly into our proprietary AI quoting system. This engine analyzes over 200 part-specific variables—including geometry complexity, material grade (e.g., medical platinum-cure silicone), required tolerances (per ISO 3302), and secondary operations. It cross-references real-time material cost databases, historical cycle time data from 15,000+ prior silicone runs, and machine utilization rates to generate a technically grounded quote within 2 business hours. The output includes granular cost breakdowns and actionable insights like recommended material durometers.

Engineering-Driven DFM Analysis
Following quote acceptance, our manufacturing engineers conduct an intensive Design for Manufacturability (DFM) review. This phase focuses exclusively on silicone-specific challenges such as flow dynamics, shrinkage compensation (typically 2.5–3.5% for LIMS), gate vestige management, and demolding forces. Key focus areas include:

Critical DFM Factor	Honyo’s Mitigation Approach
Weld line formation	Gate placement optimization via Moldflow simulation; avoidance in sealing surfaces
Air entrapment	Strategic venting design; vacuum-assisted molding protocol specification
Dimensional stability	Shrinkage compensation algorithms applied to CAD; post-cure dimensional validation plan
Parting line definition	3D surface analysis for flash prevention; tolerance stack-up verification

Engineers collaborate with the client to resolve conflicts, providing annotated CAD markups and simulation snapshots. This phase typically reduces production iterations by 70% compared to industry baselines.

Precision Production Execution

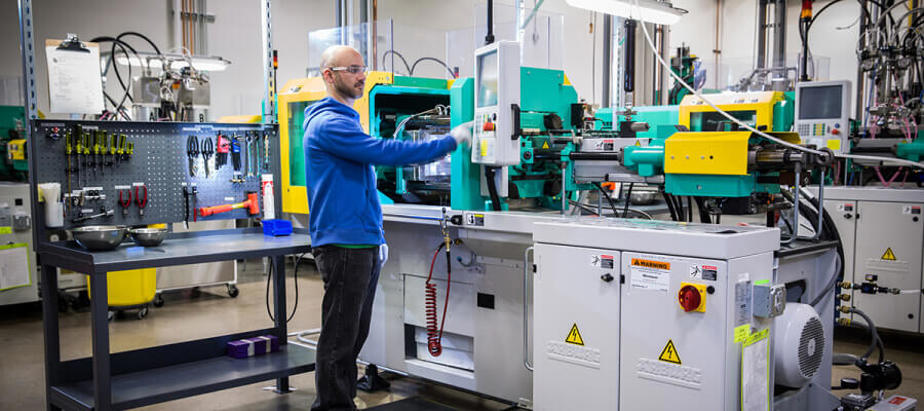

Approved designs move to our dedicated silicone molding facility. We utilize liquid injection molding (LIM) systems with Class 10,000 cleanroom environments for medical-grade parts. Each stage undergoes strict controls:
Material batches are verified via FTIR spectroscopy before loading. Molding parameters (temperature profiles, injection speed, cure time) are dynamically adjusted using cavity pressure sensors. In-process checks include shot-to-shot weight verification and automated visual inspection for surface defects. All tooling incorporates thermal isolation to prevent premature curing. Secondary operations like laser trimming or plasma bonding occur in climate-controlled stations with full traceability.

Certified Delivery and Documentation
Completed parts undergo final inspection against AS9102 First Article requirements, including CMM reports for critical features and material certification (per ASTM D2240/D395). Delivery includes serialized packaging with humidity indicators for moisture-sensitive grades. For regulated industries, we provide full PPAP documentation, process capability data (Cp/Cpk ≥1.33 standard), and non-conformance reports if applicable. Standard lead time from DFM sign-off to shipment is 10–15 business days, with real-time logistics tracking accessible via the client portal. Every shipment includes a digital quality dossier archiving all process parameters for audit readiness.

---

Start Your Project

Looking for high-quality silicone molding services? Honyo Prototype offers precision manufacturing of silicone parts with fast turnaround times. Our factory in Shenzhen is equipped with advanced production capabilities to support prototyping and low-to-mid volume production runs.

For quotes and project inquiries, contact Susan Leo at [email protected]. We provide expert guidance from design to delivery, ensuring your silicone components meet strict quality and performance standards.

---
