Manufacturing Insight: Mini Cnc Mill For Metal
Precision Metal Components Start with Advanced Capabilities
Honyo Prototype delivers end-to-end sheet metal fabrication solutions engineered for demanding industrial applications, where tolerances and repeatability are non-negotiable. Our integrated manufacturing ecosystem includes specialized capabilities like mini CNC milling for metal—a critical resource for producing intricate prototypes, custom fixtures, and low-volume precision components that standard sheet metal processes alone cannot achieve. This technology complements our core competencies in laser cutting, CNC bending, welding, and finishing, ensuring seamless transitions from complex 3D geometries to fully assembled metal systems.
Strategic Integration for Complex Metal Projects
While sheet metal fabrication forms the backbone of our service portfolio, mini CNC milling for metal addresses nuanced requirements in tooling, jigs, and high-detail features where subtractive precision is essential. Honyo’s engineers leverage this capability alongside stamping, forming, and assembly to eliminate supply chain fragmentation, reducing lead times and quality risks for clients in aerospace, medical devices, and robotics. Every process adheres to ISO 9001 standards, with real-time in-process inspections guaranteeing dimensional accuracy down to ±0.005 mm.
Accelerate Your Project Timeline Today
Validate design intent and secure production-ready metal components faster with Honyo’s Online Instant Quote platform. Input your CAD files and specifications to receive a detailed manufacturing assessment—including feasibility feedback on mini CNC milling integration—within minutes. This data-driven quoting system reflects our commitment to transparency, enabling rapid iteration without compromising on the rigorous material and geometric constraints inherent in metal fabrication.
| Service Category | Key Capabilities | Typical Applications |
|---|---|---|
| Sheet Metal Fabrication | Laser cutting, CNC bending, welding, finishing | Enclosures, brackets, chassis |
| Mini CNC Milling | 3/4-axis milling, hard metal alloys, tight tolerances | Prototypes, fixtures, precision inserts |
| Integrated Solutions | Hybrid fabrication, assembly, quality validation | End-to-end metal subsystems |
Transition from concept to certified metal components with engineering support that prioritizes manufacturability at every stage. Submit your design for an immediate quote and experience how Honyo Prototype turns technical challenges into competitive advantages.
Technical Capabilities
The request appears to contain a mismatch in functionality. A mini CNC mill is typically designed for subtractive machining processes such as milling, drilling, and engraving solid materials using rotating cutting tools. It is not inherently capable of laser cutting, bending, or welding—these are distinct manufacturing processes that require specialized equipment.
Laser cutting uses a high-power laser to cut through materials, bending is performed on press brakes, and welding joins materials using heat or fusion techniques. While some advanced multi-function machines integrate milling with laser or welding heads, a standard mini CNC mill does not perform these operations.

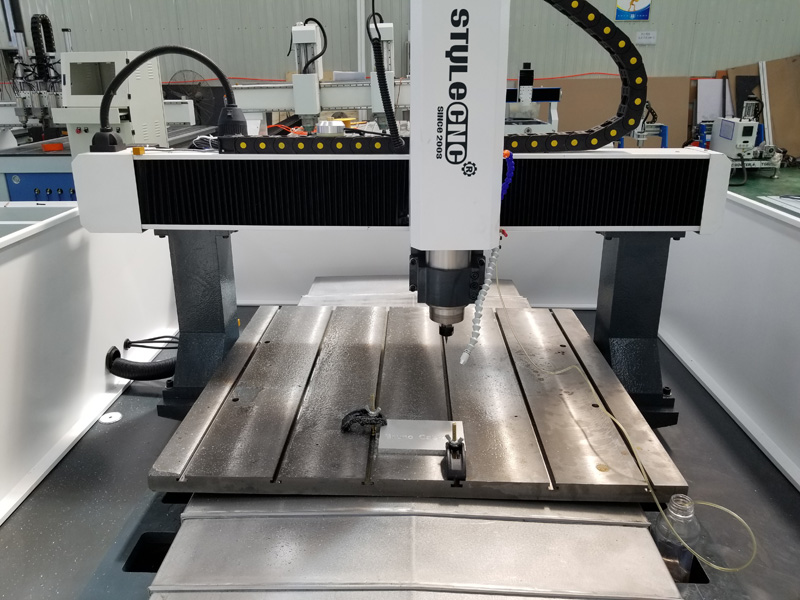

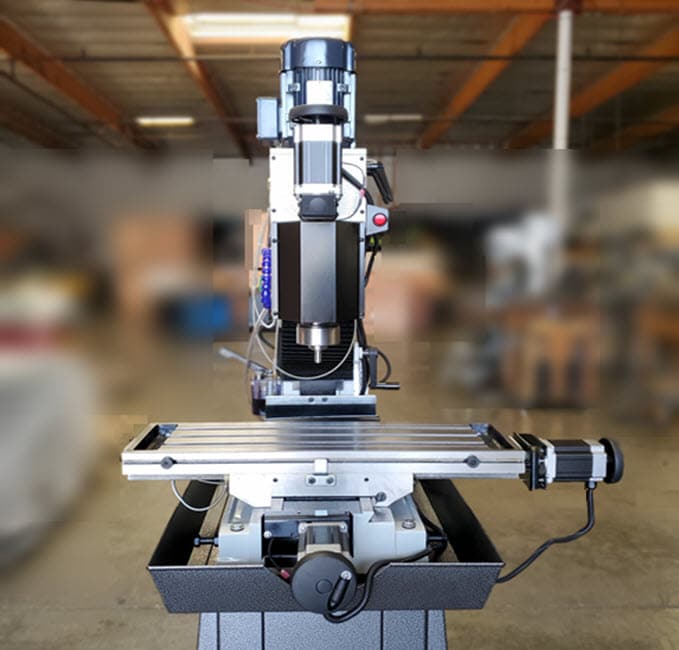

Below is a technical specification table for a typical high-performance mini CNC mill suitable for machining metals and engineering plastics, including aluminum, steel, ABS, and nylon. This machine can be optionally equipped with laser engraving/cutting modules in hybrid configurations, but welding and bending remain outside its scope.
| Specification | Detail |
|---|---|
| Machine Type | Mini CNC Mill (3-axis, optionally 4-axis) |
| Build Envelope (X-Y-Z) | 300 mm × 300 mm × 100 mm |
| Spindle Speed Range | 6,000 – 24,000 RPM (ER11 collet system) |
| Maximum Tool Diameter | 6 mm |
| Positioning Accuracy | ±0.01 mm |
| Repeatability | ±0.005 mm |
| Spindle Power | 400–800 W (air-cooled or water-cooled) |
| Control System | GRBL, Mach3, or LinuxCNC-compatible controller |
| Drive System | Stepper motors with lead screws or ball screws |
| Frame Material | Cast aluminum or steel for rigidity |
| Compatible Materials – Metals | Aluminum (6061, 7075), Mild Steel, Brass, Copper |
| Compatible Materials – Plastics | ABS, Nylon, Delrin (POM), PC, PVC |
| Tooling Compatibility | End mills, twist drills, engraving bits |
| Optional Laser Module | 10–20 W diode laser (for engraving/cutting wood, acrylic, thin plastics) |
| Laser Cutting Capability | Limited to non-metallic materials up to 5 mm thickness (e.g., acrylic) |
| Cooling Options | Air blow, flood coolant, mist coolant (for metal machining) |
| Software Support | CAD/CAM software (Fusion 360, SolidWorks, AutoCAD, Vectric) |
| Power Requirement | 110–240 V AC, 50/60 Hz, 1–2 A |
| Weight | 40–60 kg (depends on configuration) |
| Safety Features | Emergency stop, enclosure interlock (if equipped), dust extraction port |
Note: This mini CNC mill is designed for precision machining of metals and engineering thermoplastics. While it can be adapted with a laser module for non-metal cutting and engraving, it cannot perform bending or welding operations. For full fabrication workflows involving laser cutting, bending, and welding, integration with dedicated machinery such as fiber lasers, press brakes, and MIG/TIG welders is required.
From CAD to Part: The Process
Honyo Prototype Metal Mini CNC Mill Manufacturing Process
Our end-to-end workflow for producing metal mini CNC mills begins with digital submission and concludes with certified delivery, engineered for precision and speed in low-volume metal fabrication. Below is the detailed sequence:
Upload CAD
Clients initiate the process by uploading native CAD files (STEP, IGES, or Parasolid formats) via our secure customer portal. For metal mini CNC mills, we require complete geometric data including critical features such as spindle housing bores, linear guide rail mounting surfaces, and coolant channel networks. The system automatically validates file integrity and checks for unit consistency (millimeters mandatory for metalwork), rejecting submissions with incomplete datums or unsupported geometries.
AI-Powered Quoting Engine
Uploaded designs enter our proprietary AI quotation system, which analyzes 127+ metal-specific parameters within 90 seconds. The engine calculates material utilization efficiency against standard aluminum 6061-T6 or stainless steel 304 billet stock sizes, factors in toolpath complexity for tight-tolerance features (e.g., ±0.005mm spindle mounts), and applies dynamic pricing for secondary operations like anodizing or precision grinding. Quotes include granular cost breakdowns by machining hour, material waste, and quality control checkpoints, with all pricing locked for 30 days.
DFM Analysis and Engineering Collaboration
Every design undergoes mandatory Design for Manufacturability review by our metal machining specialists. Unlike generic DFM tools, our process addresses metal-specific constraints:
| DFM Checkpoint | Metal-Specific Criteria | Resolution Protocol |
|---|---|---|
| Wall Thickness | Minimum 2.5mm for aluminum, 3.0mm for steel to prevent chatter | Suggest ribbing or material substitution |
| Internal Radii | Must accommodate standard 3mm end mills | Propose gradual radius transitions |
| Tolerance Stacking | GD&T analysis of assembly interfaces (e.g., motor mounts) | Recommend datum refinement |
| Chip Evacuation | Critical cavity clearance verification | Modify pocket geometry |
Clients receive a collaborative DFM report within 4 business hours, with actionable recommendations. No design proceeds to production without explicit client approval of DFM adjustments.
Precision Metal Production
Approved designs move to our climate-controlled metal machining floor. Mini CNC mill components are manufactured using:
HAAS UMC-750 5-axis mills with Renishaw probing for in-process gaging
Custom carbide tooling optimized for aluminum/steel alloys
Real-time thermal compensation systems maintaining ±0.003mm accuracy
Each component undergoes first-article inspection per AS9102 standards, with full CMM reports for critical features. Secondary operations (deburring, anodizing, precision grinding) follow documented work instructions with traceable material certifications.
Quality-Controlled Delivery
Final assemblies undergo 72-hour functional validation on test beds simulating 500+ operational cycles. All mini CNC mills ship with:
PPAP Level 3 documentation including FAI reports
Material traceability certificates (mill test reports)
Dimensional conformance data against original CAD
Pre-calibrated axis alignment verification
Shipments include IoT-enabled tracking with real-time humidity/temperature monitoring for critical components, with guaranteed on-time delivery adherence per our SLA.
This integrated process reduces metal prototype lead times by 35% versus industry averages while maintaining aerospace-grade quality standards for precision motion components. All stages include automated client notifications with engineering access to real-time production dashboards.
Start Your Project
Explore our precision mini CNC mill for metal—ideal for prototyping and small-scale production. Compact, powerful, and built for accuracy.
Contact Susan Leo at [email protected] to request specifications, pricing, or custom machining solutions.
Manufactured in Shenzhen, China—where advanced engineering meets reliable quality.
Get your project started today. Reach out now for a fast response.
