Manufacturing Insight: Machined Casting

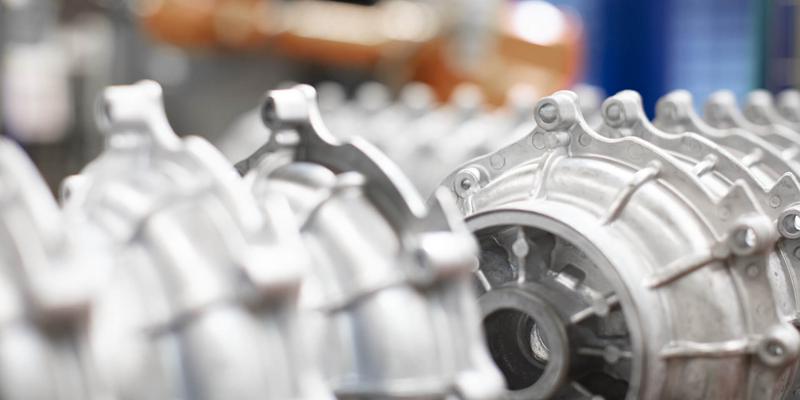

Precision Machined Casting Solutions from Honyo Prototype

Raw castings rarely meet the stringent dimensional tolerances and surface finishes required for critical end-use applications. At Honyo Prototype, we bridge this gap through integrated CNC machining services specifically engineered for cast components. Our expertise transforms near-net-shape castings—whether aluminum, iron, or specialty alloys—into fully functional, high-precision parts that adhere to ISO 2768-mK or custom geometric dimensioning and tolerancing (GD&T) standards. By combining advanced multi-axis milling, turning, and grinding capabilities with deep metallurgical process knowledge, we eliminate secondary operations, reduce lead times by up to 40%, and ensure cast parts achieve aerospace, medical, or industrial-grade specifications without compromising structural integrity.

Honyo’s end-to-end workflow begins with strategic fixture design to address casting inconsistencies, followed by adaptive CNC programming that compensates for material variance while maintaining ±0.005 mm tolerances. This approach mitigates common challenges like porosity exposure during machining and thermal distortion, delivering components ready for immediate assembly. Our facility supports volumes from rapid prototyping to low-volume production, with rigorous in-process CMM validation at critical stages.

To accelerate your project timeline, leverage our Online Instant Quote platform. Upload CAD files (STEP, IGES, or native formats), specify materials, quantities, and tolerances, and receive a detailed machining cost estimate within hours—not days. This transparency empowers engineering teams to iterate designs confidently while maintaining budgetary control. Partner with Honyo Prototype to convert castings into mission-critical components with uncompromised precision and speed.

Typical Machined Casting Capabilities

Parameter	Range	Supported Standards
Tolerance	±0.005 mm to ±0.05 mm	ISO 2768, ASME Y14.5
Materials	Aluminum, Cast Iron, Bronze, Ni-alloys	AMS, ASTM, EN
Max Work Envelope	1,200 x 800 x 650 mm	–
Surface Finish	Ra 0.8 µm to Ra 3.2 µm	ISO 1302
Lead Time	7–15 days (T1 prototyping)	–

---

Technical Capabilities

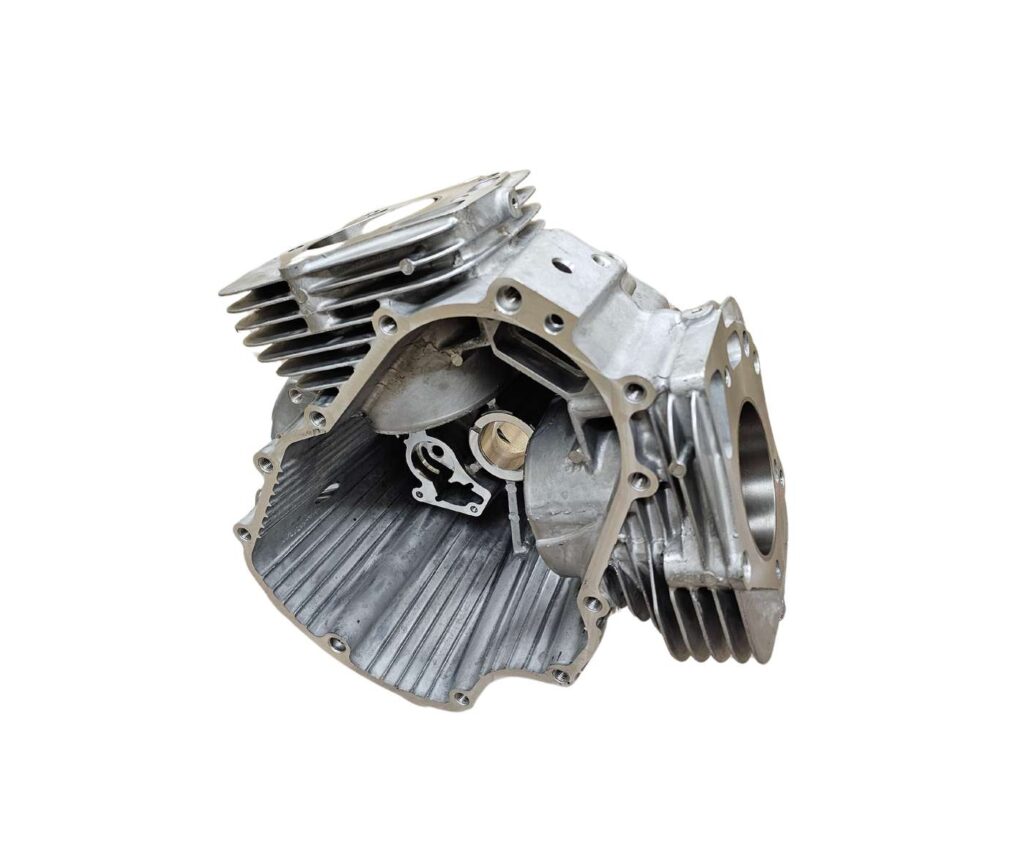

Machined casting refers to a manufacturing process where a near-net-shape casting is produced first, followed by precision CNC machining to achieve tight tolerances, refined surface finishes, and complex geometries. This hybrid approach combines the cost-efficiency of casting for material pre-forming with the accuracy of multi-axis milling and turning operations. Honyo Prototype specializes in post-casting machining using advanced 3, 4, and 5-axis CNC milling centers and CNC turning equipment to meet demanding engineering specifications.

Key capabilities include high-precision machining of metallic and engineering plastic castings, with tight tolerances down to ±0.0002″ (±0.005 mm) depending on part geometry and material. Complex contours, undercuts, and deep cavities are efficiently machined using 4-axis (rotary indexing) and 5-axis (simultaneous multi-axis motion) systems, minimizing setup changes and maintaining dimensional consistency. Turning operations are employed for cylindrical features and symmetric components, often in combination with milling for fully finished parts in a single setup.

The following table outlines the technical specifications for machined casting services at Honyo Prototype:

Parameter	Specification Details
Machining Processes	3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning; Mill-Turn (Live Tooling)
Typical Tolerance	±0.0002″ (±0.005 mm) for critical features; ±0.001″ (±0.025 mm) for non-critical areas
Surface Finish (Ra)	32–125 μin (0.8–3.2 μm) standard; down to 16 μin (0.4 μm) with polishing or grinding
Max Work Envelope (Milling)	5-axis: 1200 x 1000 x 800 mm; 3/4-axis: up to 2000 x 1000 x 1000 mm
Max Turning Diameter	500 mm; Max Length: 1000 mm
Materials – Metals	Aluminum (6061, 7075, A380), Steel (4140, 1045, Stainless 304/316)
Materials – Plastics	ABS, Nylon (6, 66), Acetal (POM), PEEK, Polycarbonate
Secondary Operations	Deburring, Heat Treatment (T6, Annealing), Anodizing (Type II/III), Passivation, Plating
Quality Control	CMM, Optical Comparator, Surface Roughness Tester, First Article Inspection (FAI)
Lead Time (Typical)	7–15 days, depending on complexity and finishing requirements

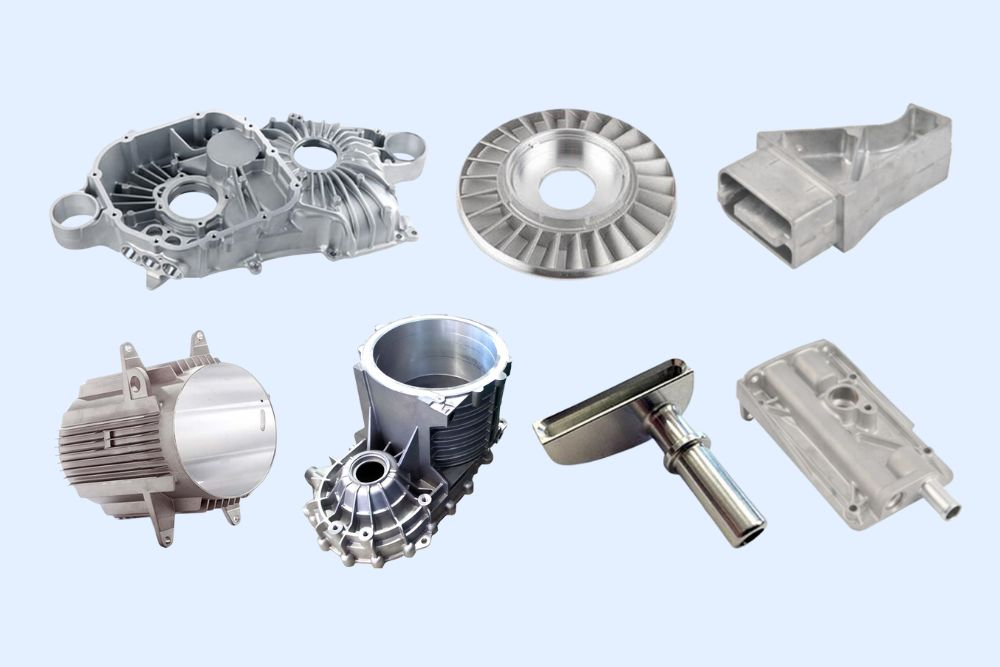

Machined castings in aluminum and steel are commonly used in aerospace, defense, and industrial applications where strength-to-weight ratio and durability are critical. ABS and nylon castings are typically used for functional prototypes, jigs, and fixtures where chemical resistance and electrical insulation are required. Honyo Prototype ensures tight process control throughout machining to maintain casting integrity while achieving precision features unattainable through casting alone.

---

From CAD to Part: The Process

Honyo Prototype Machined Casting Process Overview
Honyo Prototype defines “machined casting” as a hybrid manufacturing solution where a near-net-shape casting undergoes precision CNC machining to achieve final critical dimensions, surface finishes, and geometric tolerances. This integrated process eliminates secondary vendor dependencies and ensures dimensional continuity between casting and machining stages. Our streamlined workflow is executed as follows:

CAD Upload and Geometry Validation
Customers initiate the process by uploading native or neutral CAD files (STEP, IGES, X_T) via Honyo’s secure customer portal. Our system performs automated geometry validation to detect non-manufacturable features, missing datums, or inconsistencies that could impede casting or machining. Files failing validation trigger immediate feedback specifying required corrections, reducing iterative delays.

AI-Powered Initial Quotation
Validated CAD data feeds into our proprietary AI quoting engine, which analyzes part volume, material selection (e.g., A356 aluminum, ductile iron), required machined surfaces, tolerance stringency (per ASME Y14.5), and surface roughness (Ra values). The AI cross-references real-time foundry capacity, material costs, and machine utilization rates to generate a preliminary quote within 2 business hours. This quote includes estimated lead times and flags high-risk features requiring engineering review.

Engineering-Driven DFM Analysis
All machined casting projects undergo mandatory Design for Manufacturing (DFM) review by Honyo’s senior manufacturing engineers. The DFM focuses specifically on:
Casting feasibility (draft angles, parting lines, gating design relative to machined surfaces)
Machining strategy optimization (fixture points avoiding casting risers, tool access to critical features)
Tolerance stack-up analysis between as-cast and machined datums
Material yield assessment to minimize CNC stock removal
The DFM report details actionable recommendations, such as relocating machined holes away from casting porosity-prone zones or adjusting fillet radii to prevent tool chatter. Customer approval of the DFM is required before proceeding.

Integrated Production Execution
Upon DFM sign-off, Honyo coordinates end-to-end production:
Casting Phase: Parts are produced at our ISO 9001:2015-certified partner foundries using specified processes (e.g., investment, sand, or die casting). As-cast components undergo dimensional verification per the casting drawing.

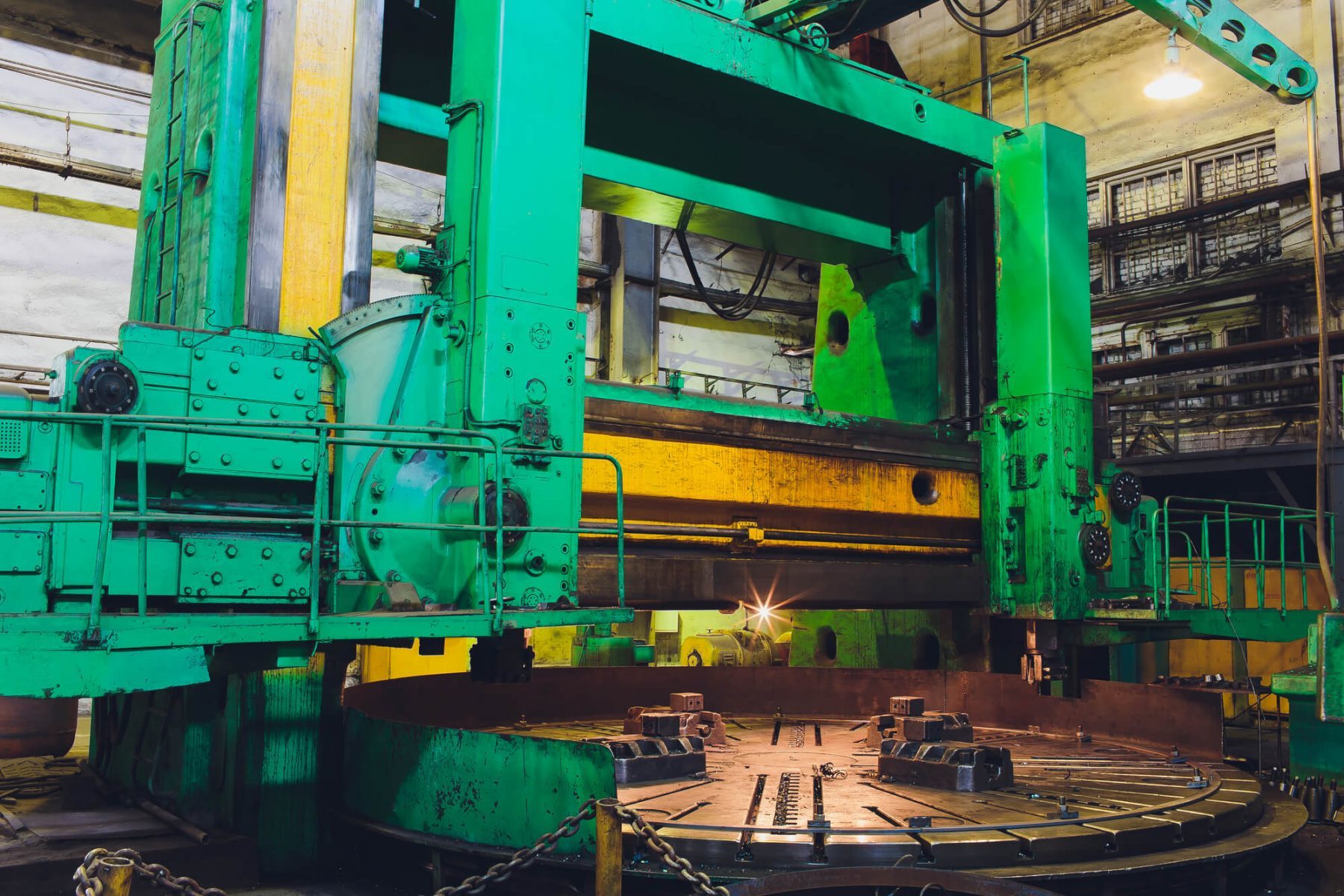

Machining Phase: Verified castings move directly to Honyo’s in-house CNC facility (5-axis mills, turning centers). Machining operations are performed in a single setup where possible to maintain datum consistency. In-process CMM checks validate critical features after roughing and before final finishing.
Quality Assurance: Final parts receive full FAI per AS9102 (if aerospace) or PPAP Level 3 documentation. Reports include CMM data for both as-cast baseline and machined surfaces, surface roughness validation, and material certs.

Delivery and Logistics
Completed machined castings are packaged per customer-specified requirements (e.g., VCI paper for corrosion-sensitive alloys, custom foam cradles for thin-walled features). Honyo provides real-time shipment tracking through our logistics portal, with standard delivery including:
Dimensional inspection reports (PDF and XML)
Material test certificates
Traceability documentation (heat/lot numbers from casting through machining)
Packaging certification (ISTA 3A compliance if requested)
Expedited shipping options (air freight, bonded customs) are available for time-critical projects, with typical lead times ranging from 15–25 days depending on complexity.

This closed-loop process ensures cast-to-machine dimensional integrity while reducing total production time by 30–40% compared to fragmented vendor approaches. Honyo maintains ownership of quality accountability across both casting and machining phases, eliminating interface risks inherent in multi-supplier models.

---

Start Your Project

For high-precision machined casting solutions, contact Susan Leo at [email protected]. Our advanced manufacturing facility in Shenzhen delivers consistent quality and fast turnaround for prototyping and low-volume production. Partner with Honyo Prototype for end-to-end casting and CNC machining services tailored to your engineering requirements.

---
