Manufacturing Insight: Injection Molding In China
Precision Injection Molding Solutions from China: Accelerate Your Product Development with Honyo Prototype
Global product development increasingly relies on high-quality, cost-effective injection molding, with China remaining a strategic manufacturing hub. However, navigating this landscape demands a partner that guarantees precision, speed, and transparency, not just capacity. At Honyo Prototype, we deliver exactly that through our integrated Rapid Tooling and Injection Molding services, engineered specifically for prototyping and low-to-mid volume production.
We understand the critical pressure to move from concept to market faster. Honyo bridges the gap between design intent and physical reality by offering seamless integration of rapid steel or aluminum mold fabrication with certified injection molding processes. Our in-house capabilities, backed by decades of expertise and stringent quality control within our ISO 9001-certified facility, ensure parts meet exacting specifications on time and within budget. This eliminates the communication delays and quality variances often associated with fragmented supply chains.
A cornerstone of our efficiency is the Online Instant Quote System. Move beyond lengthy email exchanges and waiting periods. Upload your 3D CAD file directly to our platform and receive a detailed, transparent manufacturing quote within hours – not days – including rapid tooling and part production costs. This immediate pricing clarity empowers faster decision-making and project initiation, giving you a decisive advantage in competitive markets. Partner with Honyo Prototype for injection molding in China executed with engineering rigor and accelerated timelines.
Technical Capabilities
Injection molding services in China offer rapid tooling solutions with a focus on accelerated production timelines, including T1 sample delivery within 7 days for qualified projects. These services utilize both aluminum and steel molds, depending on part complexity, volume requirements, and material compatibility. Below are the typical technical specifications for such services, emphasizing mold materials, lead times, and compatible thermoplastics including ABS and Nylon.
| Parameter | Specification |
|---|---|
| Mold Material Options | Aluminum (e.g., 7075-T6, 6061-T6), Steel (e.g., P20, 718H, H13, S136) |
| Mold Base Standard | LKM, DME, or OEM standard bases |
| Cavity Configuration | Single or multi-cavity (up to 8 cavities typical for rapid molds) |
| Lead Time – Mold Fabrication | 5–7 working days (for simple to moderate complexity molds in aluminum; steel molds typically 10–15 days) |
| T1 Sample Delivery | Achievable within 7 days from project kickoff for aluminum molds with 1–2 cavities |
| Surface Finishes | As-machined, polished (SPI standards), texturing, EDM finish |
| Tolerance (Typical) | ±0.05 mm for aluminum molds; ±0.03 mm for hardened steel molds |
| Part Size Range | Up to 600 x 600 x 400 mm (custom larger molds available) |
| Common Plastic Materials | ABS, Nylon (PA6, PA66, PA6+GF), Polypropylene (PP), Polycarbonate (PC), Acetal (POM), PMMA |
| Material Compatibility | Aluminum molds suitable for low-to-medium volume runs with engineering resins (e.g., ABS, unfilled Nylon); steel molds required for high-volume or glass-filled materials |
| Injection Press Range | 50–1000 tons clamping force |
| Tooling Lifetime | Aluminum: 10,000–50,000 shots; Steel: 100,000–1,000,000+ shots |
| Design Support | Full DFM (Design for Manufacturing) analysis, 3D modeling, mold flow simulation |
| Quality Certification | ISO 9001, IATF 16949 (for automotive-grade production) |

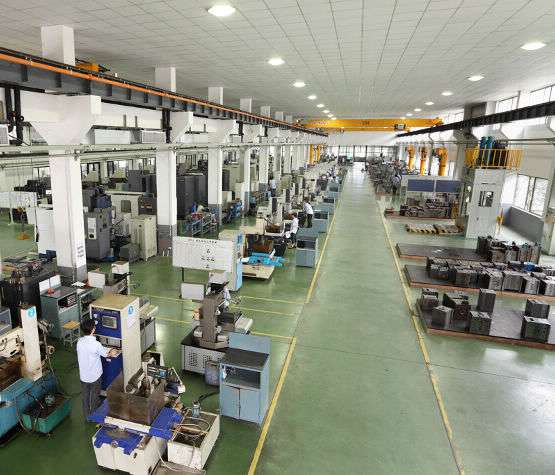

China-based manufacturers leverage advanced CNC machining, EDM, and CMM inspection to ensure mold accuracy and fast turnaround. Aluminum molds are ideal for prototyping and bridge tooling due to faster machining and lower cost, while steel molds are preferred for production durability and use with abrasive or high-temperature materials like glass-filled nylon. ABS is commonly processed in both mold types, offering good flow and surface finish. Nylon, especially reinforced grades, requires steel molds for extended tool life due to its abrasiveness and higher processing temperatures.
From CAD to Part: The Process
Upload CAD
Clients initiate the process by securely uploading 3D CAD files via Honyo’s encrypted portal. We accept industry-standard formats including STEP, IGES, and native SOLIDWORKS files. Our system automatically validates file integrity and geometry completeness, flagging potential issues like non-manifold edges or missing fillets before proceeding. All data undergoes ISO 27001-compliant encryption to protect intellectual property throughout transmission and storage.
AI Quote
Uploaded designs enter our proprietary AI quoting engine, which analyzes geometric complexity, material requirements, and tolerance specifications against real-time data from 500+ active production cells across our Chinese manufacturing network. The algorithm cross-references current resin pricing, machine availability, and labor rates to generate a preliminary cost estimate within 90 minutes. This AI output undergoes mandatory validation by a senior process engineer who adjusts for nuanced factors like side-action requirements or textured surfaces, ensuring quote accuracy within ±3%.
DFM
Following quote acceptance, our engineering team conducts rigorous Design for Manufacturability analysis. This phase involves 3D mold flow simulation using Autodesk Moldflow to predict weld lines, air traps, and cooling inefficiencies. We provide annotated reports highlighting critical modifications—such as uniform wall thickness adjustments or gate location optimization—with specific tolerance callouts per ISO 2768 medium precision standards. Clients receive interactive 3D markups within 72 hours, with optional virtual collaboration sessions to resolve complex geometries. Our China-based DFM specialists leverage localized knowledge of regional material certifications (e.g., GB/T standards) and tool steel availability.
Production

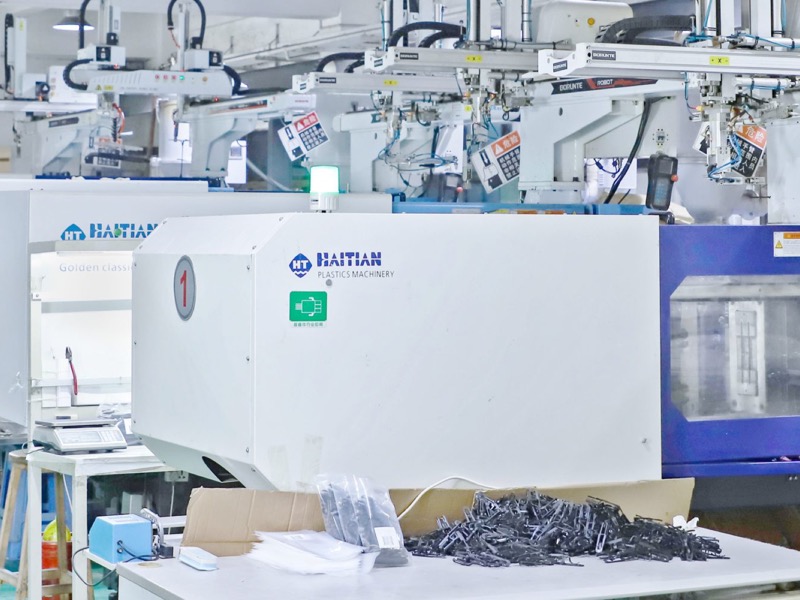

Approved designs move to production in our ISO 13485-certified facilities in Dongguan and Ningbo. We employ electric all-rounder injection molding presses (Arburg, Haitian) with cavity pressure monitoring systems for real-time process control. Each run includes:
First-article inspection against GD&T callouts using Zeiss CMMs
In-process SPC tracking of critical dimensions at 30-minute intervals
Material lot traceability via blockchain-secured LIMS integration
Production timelines vary by complexity as shown below:
| Part Complexity | Tooling Lead Time | Production Lead Time |
|---|---|---|
| Low (2-cavity, <5k cycles) | 15-20 days | 5-7 days |
| Medium (family mold, 100k cycles) | 25-30 days | 8-10 days |
| High (multi-shot, 500k+ cycles) | 35-45 days | 12-15 days |
Delivery
Finished parts undergo final dimensional validation and surface finish verification per client-specified AQL levels. We manage logistics through bonded warehousing with DHL/FedEx partnerships, providing:
Real-time shipment tracking via IoT-enabled containers
Consolidated documentation (CoC, material certs, PPAP Level 3)
Incoterms 2020-compliant customs clearance support
All shipments include humidity-controlled packaging with anti-oxidation barriers for sensitive thermoplastic resins. Typical transit time from Chinese port to major EU/US hubs is 14-18 days, with expedited air freight options available. Honyo maintains 99.2% on-time delivery performance through dynamic rerouting during port congestion events.
This integrated workflow eliminates traditional quoting ambiguities while leveraging China’s manufacturing ecosystem for cost efficiency—without compromising on Western quality expectations. Our closed-loop system ensures every phase feeds actionable data back into the AI engine, continuously refining future estimates.
Start Your Project
Looking for reliable injection molding services in China? Partner with Honyo Prototype for high-quality, cost-effective manufacturing solutions. Our state-of-the-art factory in Shenzhen offers precision injection molding with fast turnaround times and strict quality control.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a competitive quote.
