Precision Five-Axis CNC Machining for Complex Manufacturing Challenges

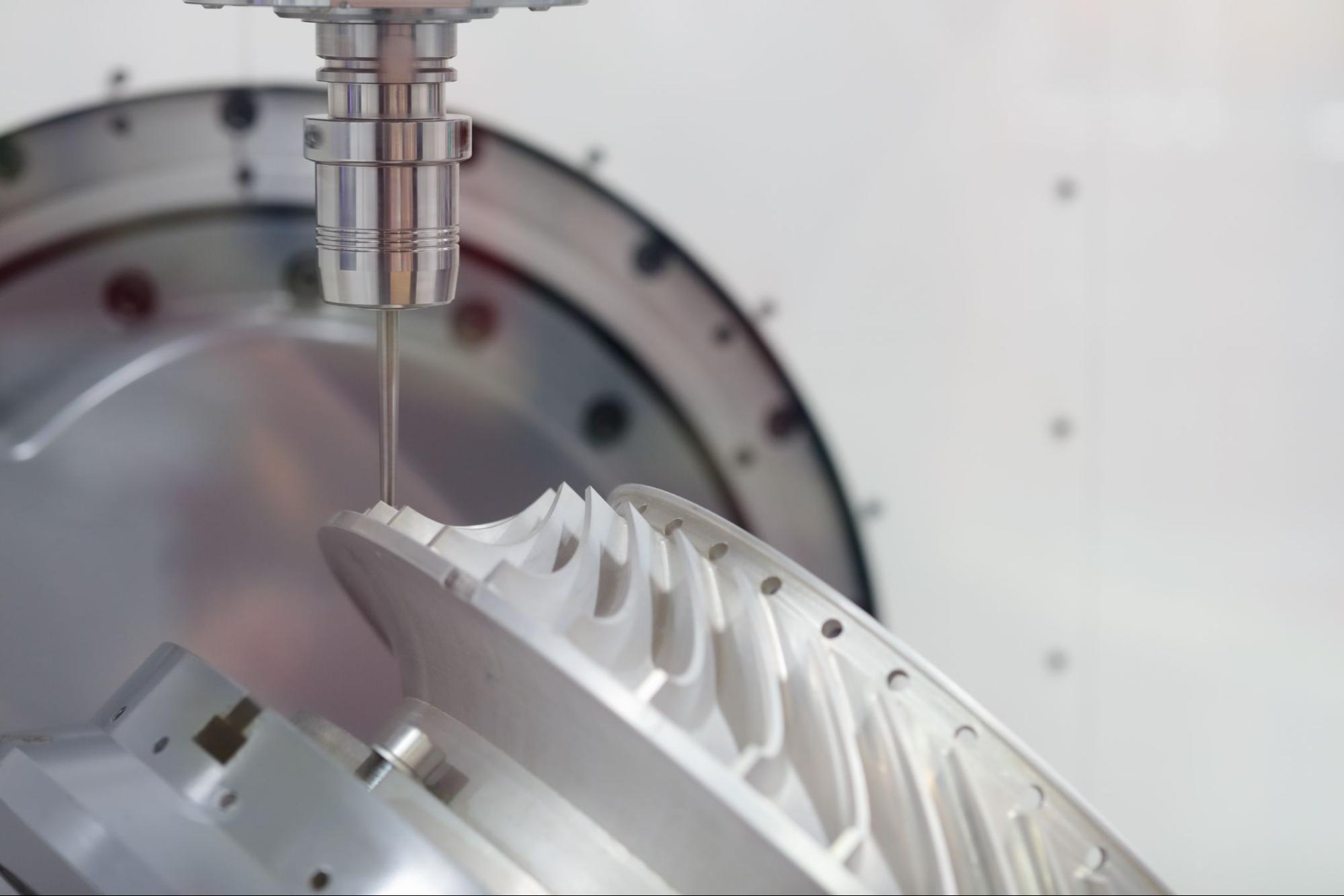

Complex geometries and tight tolerance requirements demand advanced manufacturing solutions that standard three-axis systems cannot achieve. Honyo Prototype delivers industry-leading five-axis CNC machining capabilities, enabling the production of highly intricate components in a single setup. Our simultaneous five-axis technology eliminates costly secondary operations, reduces lead times by up to 40%, and ensures micron-level accuracy across aerospace turbine blades, medical implants, and precision automotive assemblies.

Leveraging state-of-the-art DMG MORI and Hermle machining centers with integrated high-speed spindles and dynamic toolpath optimization, Honyo maintains repeatability within ±0.0002 inches. This capability is critical for clients requiring monolithic structures with undercuts, organic contours, or multi-faceted surfaces where traditional methods introduce alignment errors and extended cycle times.

Accelerate your production timeline with Honyo’s Online Instant Quote system. Upload CAD files in STEP, IGES, or native formats to receive a detailed, geometry-aware cost analysis and lead time estimate within 90 seconds—no manual RFQ submission required. Our platform automatically evaluates material utilization, machine time, and fixture complexity, providing transparent pricing for both prototypes and low-volume production runs.

Engineered for reliability and scalability, Honyo Prototype’s five-axis services transform design intent into high-integrity components, ensuring your most demanding projects meet specification without compromise.

---

Technical Capabilities

Five-axis CNC machining enables complex geometry fabrication with high precision by allowing the cutting tool to move across five axes simultaneously (X, Y, Z, and two rotational axes—typically A and B). This capability supports advanced 3/4/5-axis milling and turning operations, ideal for tight-tolerance components used in aerospace, medical, and automotive industries. Honyo Prototype utilizes high-rigidity five-axis platforms to maintain micron-level accuracy across a range of engineering materials.

Technical Specifications for Five-Axis CNC Machining at Honyo Prototype

Parameter	Specification
Machine Type	5-axis simultaneous CNC milling and turning centers
Axis Configuration	X, Y, Z linear axes; A (rotary about X), B (rotary about Y)
Positioning Accuracy	±0.005 mm
Repeatability	±0.002 mm
Maximum Work Envelope	800 mm × 600 mm × 500 mm (X×Y×Z)
Spindle Speed Range	20,000 RPM (high-speed alloy spindles)
Tool Changer Capacity	30-tool automatic tool changer (ATC)
Minimum Feature Size	0.5 mm (internal corners, thin walls)
Surface Finish (as machined)	Ra 0.8–3.2 µm (adjustable with post-processing)
Typical Tolerance Range	±0.010 mm (standard), down to ±0.005 mm (tight-tolerance critical features)
Supported Operations	3-axis, 4-axis (indexing), 5-axis simultaneous milling, live tooling turning
Compatible Materials	Aluminum (6061, 7075), Steel (4140, 17-4 PH, Stainless 316), ABS, Nylon (6 & 66), PEEK, Delrin
Material Suitability – Aluminum	Excellent for high-speed precision milling; minimal thermal deformation
Material Suitability – Steel	Optimized with carbide tooling and coolant-through spindles for hardened steels up to 60 HRC
Material Suitability – ABS	Suitable for low-force machining; requires chip evacuation control
Material Suitability – Nylon	Machinable with sharp tools and reduced feed rates to prevent melting or burring
Coolant System	High-pressure through-spindle coolant with mist filtration
Control System	Fanuc 31i-B5 or Siemens 840D, supporting complex toolpath interpolation
In-Process Metrology	Optional laser probing for tool length and workpiece alignment

This configuration ensures repeatable, high-accuracy manufacturing of complex parts with tight geometric tolerances, meeting GD&T requirements per ASME Y14.5. Honyo Prototype applies adaptive toolpath strategies and thermal compensation algorithms to maintain dimensional stability across production runs in both metallic and engineering polymer substrates.

---

From CAD to Part: The Process

Honyo Prototype Five-Axis CNC Machining Process Overview
Honyo Prototype leverages advanced five-axis CNC capabilities to deliver complex, high-precision components with reduced lead times and minimal handling. Our integrated workflow ensures manufacturability, cost efficiency, and strict adherence to technical specifications from initial inquiry through final delivery. Below is a detailed explanation of each phase.

CAD File Upload and Initial Assessment
The process begins when a client uploads a native or neutral CAD file (e.g., STEP, IGES, Parasolid) via our secure customer portal. Our system performs an automated integrity check to verify file completeness, unit consistency, and geometric validity. Critical parameters such as material type, tolerances, surface finishes, and non-standard features are extracted for the quoting phase. This step ensures no downstream delays due to incomplete or corrupted data.

AI-Powered Quoting with Engineering Validation
Uploaded files enter our proprietary AI quoting engine, which analyzes geometric complexity, feature density, and machine time requirements using a trained database of historical five-axis production data. The AI generates a preliminary cost and lead time estimate within 2 hours. Crucially, this output is reviewed by a dedicated manufacturing engineer who validates the AI’s assessment against real-world constraints like tooling availability, material sourcing, and fixturing requirements. Clients receive a formal quote with transparent cost breakdowns and actionable feedback on potential optimizations.

Engineering-Led DFM Analysis
Upon quote acceptance, our DFM (Design for Manufacturability) team conducts a rigorous technical review. Engineers assess the design for five-axis-specific opportunities and risks, including:
Elimination of secondary operations through simultaneous five-axis interpolation
Verification of undercuts, deep cavities, and thin-wall features against machine reach and stability
Material waste reduction via optimized stock sizing and nesting
Identification of non-value-added tolerances or finishes
A formal DFM report is shared within 24–48 hours, detailing actionable recommendations to enhance producibility without compromising function. Client approval of the DFM report is required before production initiation.

Precision Five-Axis Production Execution
Approved designs move to our production floor equipped with DMG MORI, Makino, and Hermle five-axis vertical machining centers featuring 30,000 RPM spindles and ±0.001mm repeatability. Key production protocols include:
Custom fixture design using modular systems to minimize setup time
In-process probing with Renishaw systems for real-time feature validation
Coolant-through-tool strategies for thermal stability in hardened materials
100% first-article inspection against critical dimensions prior to batch run
All machining adheres to ISO 9001:2015 standards, with environmental controls maintaining ±1°C temperature stability in the machining area.

Quality-Controlled Delivery and Traceability
Final inspection occurs using calibrated CMMs and optical comparators, with full inspection reports (including GD&T verification) provided digitally. Components undergo ultrasonic cleaning and non-destructive testing per client specifications. Every shipment includes:
Batch-specific material certificates
First-article and final inspection documentation
Digital traceability logs linking serial numbers to machine parameters and operators
Standard lead time from DFM approval to delivery is 5–12 business days, depending on complexity and material. Expedited options are available for critical-path components.

Lead Time Determinants for Five-Axis Projects
The following factors directly influence production timelines:

Factor	Standard Impact	Mitigation Strategy at Honyo Prototype
Material Availability	+2–5 days	Pre-stocked aerospace/medical alloys (Inconel 718, Ti-6Al-4V, 17-4PH)
Feature Complexity	+1–7 days	AI-driven toolpath optimization reducing air cutting
Tolerance Requirements	+0–3 days	In-process probing eliminating post-machining rework
Fixturing Needs	+1–4 days	Standardized modular fixture library (50+ configurations)

This structured workflow ensures that Honyo Prototype transforms complex five-axis designs into certified, production-ready components with maximum efficiency and zero-surprise outcomes. Our integration of AI-driven quoting with hands-on engineering oversight delivers predictable quality for mission-critical applications in aerospace, medical, and energy sectors.

---

Start Your Project

Explore precision five-axis CNC machining services engineered for complex, high-tolerance components.

Our advanced manufacturing capabilities deliver superior accuracy and efficiency for aerospace, medical, and industrial applications.

All production is based in our Shenzhen factory, ensuring strict quality control and streamlined logistics.
