Manufacturing Insight: Dlc Gun Coating Service
Precision DLC Gun Coating Services Integrated with Honyo Prototype CNC Machining Excellence
Honyo Prototype delivers mission-critical Diamond-Like Carbon (DLC) coating solutions engineered specifically for demanding firearm components, leveraging our core competency in high-precision CNC machining to ensure superior substrate preparation and final part performance. Our DLC process is not applied in isolation; it is intrinsically linked to the dimensional accuracy and surface integrity achieved during the preceding CNC machining phase. We understand that optimal coating adhesion, uniform thickness, and the resulting wear resistance and reduced friction properties are fundamentally dependent on a meticulously machined substrate meeting exacting tolerances and surface finish specifications.
Our vertically integrated manufacturing process begins with advanced CNC milling and turning operations performed on state-of-the-art multi-axis equipment. This ensures components are fabricated to precise geometries with controlled surface profiles essential for DLC metallurgical bonding. By managing both the machining and coating stages in-house under stringent quality controls, Honyo Prototype eliminates supply chain variables, guarantees consistent surface preparation, and achieves the tightest possible tolerances required for high-performance firearm applications. This integrated approach minimizes part handling, reduces lead times, and delivers components where the DLC coating performs as an engineered extension of the base material.
For engineering teams seeking rapid validation of this integrated machining and coating capability, Honyo Prototype offers an Online Instant Quote system. Simply upload your CAD file specifying both the CNC machining requirements and the desired DLC coating parameters to receive immediate, detailed pricing and lead time estimates. This streamlined digital workflow accelerates your prototyping and low-volume production cycles, providing the transparency and speed essential for modern defense and firearms manufacturing development. Partner with Honyo Prototype for DLC gun coatings where precision machining is the undeniable foundation of coating performance.
Technical Capabilities
DLC (Diamond-Like Carbon) gun coating is a high-performance surface treatment applied to precision-machined components to enhance wear resistance, reduce friction, and improve durability. This service is particularly beneficial for parts produced via 3, 4, and 5-axis milling and turning operations, especially when tight tolerance and high surface integrity are required. The coating is applied using PVD (Physical Vapor Deposition) or PACVD (Plasma-Assisted Chemical Vapor Deposition) techniques, ensuring uniform thickness and strong adhesion even on complex geometries.
The DLC coating process is compatible with a range of substrates including Aluminum, Steel, ABS, and Nylon, though surface preparation (such as polishing, cleaning, or base layer deposition) may vary depending on material type to ensure optimal coating adhesion and performance. Typical coating thickness ranges from 1 to 5 µm, preserving dimensional accuracy critical in tight-tolerance applications (±0.005 mm or better).
Below is a summary of technical specifications for the DLC gun coating service in the context of precision machining:
| Parameter | Specification |
|---|---|
| Coating Type | Diamond-Like Carbon (DLC), amorphous carbon-based coating |
| Deposition Method | PVD or PACVD |
| Coating Thickness | 1–5 µm (customizable within range to maintain tight tolerances) |
| Hardness | 1500–3000 HV (depending on DLC variant and substrate) |
| Coefficient of Friction | 0.05–0.15 (dry conditions, against steel) |
| Adhesion Strength | >50 N (Rockwell C indentation test, depends on substrate preparation) |
| Surface Roughness Impact | Adds <0.1 µm Ra if applied on polished substrate |
| Max. Substrate Temperature | 180–250°C (low-temperature process suitable for plastics and heat-sensitive alloys) |
| Compatible Materials | Aluminum (6061, 7075), Steel (4140, 17-4 PH, tool steels), ABS, Nylon (PA6, PA66) |
| Typical Applications | Precision-machined components from 3/4/5-axis milling and turning operations |
| Tolerance Compatibility | Suitable for parts with ±0.005 mm or tighter tolerances |
| Post-Coating Machining | Not required; coating applied as final finish |
| Lead Time | 3–7 days (depending on part complexity and volume) |
Note: For polymer substrates such as ABS and Nylon, a plasma pre-treatment and optional interlayer (e.g., Si) are used to enhance adhesion. Steel and aluminum parts typically undergo precision polishing and cleaning before coating to ensure surface integrity and dimensional stability.
From CAD to Part: The Process
Honyo Prototype DLC Gun Coating Service Process Overview
Honyo Prototype delivers precision Diamond-Like Carbon (DLC) coating services specifically engineered for firearm components, emphasizing wear resistance, corrosion protection, and dimensional stability under extreme operational conditions. Our streamlined workflow ensures technical rigor while accelerating time-to-market for defense and commercial firearm manufacturers. Below is a detailed technical breakdown of the end-to-end process.
Upload CAD
Clients initiate the process by uploading detailed CAD models (STEP, IGES, or native formats) via our secure customer portal. For firearm applications, we require explicit annotations of critical surfaces (e.g., bolt lugs, barrel throats, trigger interfaces), material specifications (e.g., 4140 steel, 17-4PH stainless), and functional tolerances. Geometric complexity—such as rifling contours, sharp edges, or internal channels—must be clearly defined, as these directly impact coating adhesion and uniformity. Our system performs an initial validation check for file integrity and unit consistency before proceeding.
AI Quote Generation

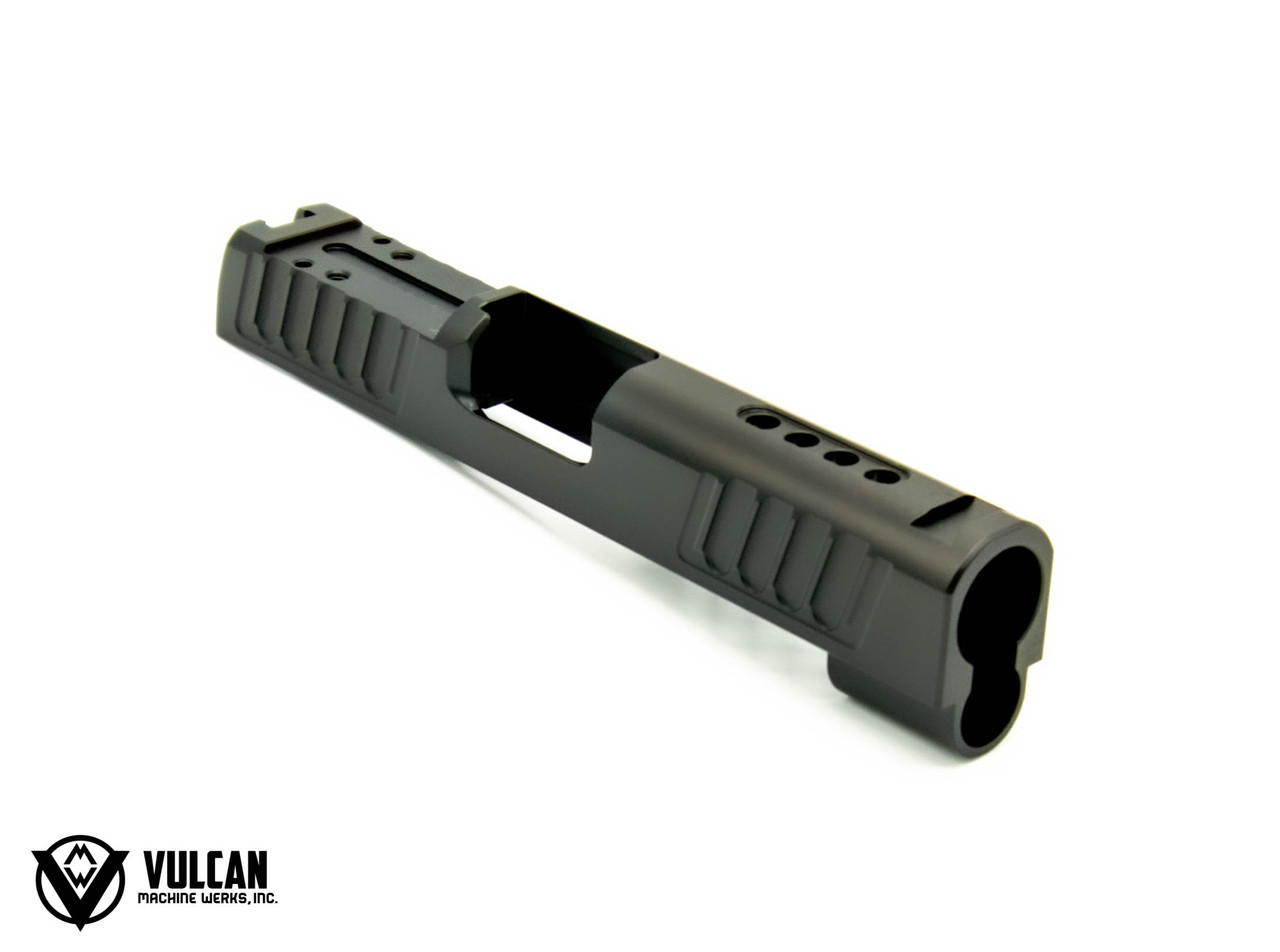

Our proprietary AI quoting engine analyzes the CAD geometry, material data, and client annotations to generate a technical-commercial proposal within 4 business hours. The algorithm calculates surface area, edge density, and feature criticality to determine process parameters (e.g., coating thickness targets of 1–3 μm for slide components). It cross-references historical data from firearm-specific builds to estimate chamber loading efficiency, cycle times, and secondary operations (e.g., masking of non-coated zones like muzzle devices). The quote includes technical assumptions, a preliminary coating thickness map, and compliance notes for MIL-STD-810 or ISO 9227 standards where applicable.
DFM Analysis

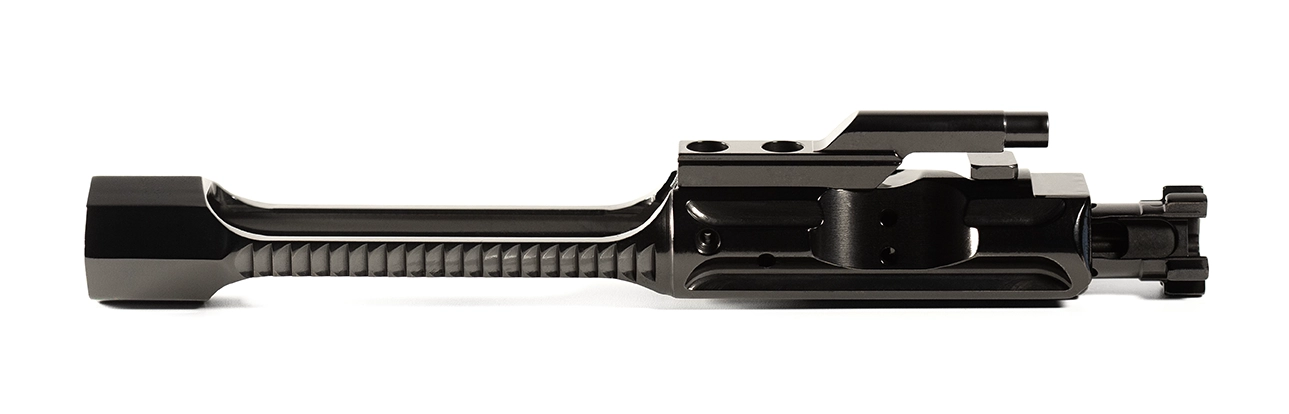

Honyo’s engineering team conducts a rigorous Design for Manufacturing review focused on firearm component functionality. We validate coating feasibility for high-stress zones, identifying risks such as inadequate edge coverage on sharp corners (a common failure point in bolt carriers) or hydrogen embrittlement in high-strength alloys. Recommendations may include minor geometry adjustments (e.g., adding micro-chamfers) or process modifications (e.g., plasma pre-treatment for porous sintered metals). All DFM feedback is provided with annotated CAD markups and metallurgical justifications, ensuring compliance with firearm safety and performance requirements.
Production Execution
Coating occurs in our ISO 9001-certified facility using pulsed DC plasma-enhanced chemical vapor deposition (PECVD) systems calibrated for firearm-grade DLC. Key production stages include:
Pre-treatment: Vapor degreasing followed by argon sputter cleaning to remove contaminants from complex geometries.
Coating: Multi-layer DLC deposition with in-situ thickness monitoring via optical emission spectroscopy; critical zones (e.g., chamber walls) receive targeted thickness verification.
Post-processing: Precision masking removal and non-contact cleaning to avoid surface damage.
Throughout production, we maintain batch traceability via RFID tags, with real-time data logging of vacuum levels, temperature gradients, and gas ratios. Firearms-specific quality checks include 100% visual inspection for pinholes and adhesion testing per ASTM D3359.
Delivery and Documentation
Completed components undergo final metrology against the original CAD, with certified reports detailing coating thickness (via XRF at 5+ critical locations per part), surface roughness (Ra ≤ 0.1 μm), and salt spray results (e.g., 500+ hours per ASTM B117). All deliverables include a traceable certificate of conformance, batch-specific process logs, and a digital twin report correlating measured coating properties to functional performance. Parts ship in anti-static, humidity-controlled packaging with serialized labels for integration into client assembly lines.
This integrated process ensures DLC-coated firearm components meet stringent durability and reliability benchmarks while minimizing lead times through AI-driven efficiency and domain-specific engineering oversight.
Start Your Project
Discover superior durability and performance with Honyo Prototype’s DLC (Diamond-Like Carbon) gun coating service. Engineered for precision and built to withstand extreme conditions, our DLC coatings enhance wear resistance, reduce friction, and extend the life of firearm components.
Trusted by professionals, applied with expertise. Our state-of-the-art facility in Shenzhen ensures consistent quality and fast turnaround for both prototypes and production runs.
Contact Susan Leo today to discuss your project requirements or request a quote.
Email: [email protected]
Elevate your firearm performance—partner with Honyo Prototype for advanced DLC coating solutions.
