Manufacturing Insight: Custom Sheet Metal Services

Precision Sheet Metal Fabrication Engineered for Your Success

At Honyo Prototype, we transform complex design challenges into high-integrity sheet metal components through advanced fabrication expertise. Our end-to-end custom sheet metal services cater to demanding industries including aerospace, medical devices, and industrial automation, where precision, repeatability, and material integrity are non-negotiable. Leveraging state-of-the-art laser cutting, CNC punching, precision bending, and robotic welding capabilities, we consistently achieve tolerances down to ±0.005 inches across materials ranging from aluminum alloys and stainless steels to specialty composites and copper. Every project integrates rigorous in-process inspection and ISO 9001-certified quality control, ensuring components meet exact functional and regulatory requirements without costly rework.

Accelerate your prototyping and production timelines with Honyo’s Online Instant Quote platform. This engineering-focused tool allows you to upload CAD files, specify materials, quantities, and critical tolerances, and receive a detailed, transparent cost analysis within minutes—not days. Unlike generic quoting systems, ours factors in manufacturability feedback during pricing, highlighting potential design optimizations to reduce lead times and part costs before production begins. This seamless integration of engineering insight and real-time pricing eliminates traditional procurement bottlenecks while maintaining the technical rigor your projects demand.

Beyond fabrication, our senior engineering team collaborates closely with your designers to resolve manufacturability constraints, suggest material substitutions for cost or performance gains, and validate secondary operations such as finishing, assembly, or precision machining. When your success hinges on flawless metal components delivered on schedule, Honyo Prototype delivers the technical partnership, process excellence, and responsive service that turns specifications into reliable, field-ready solutions. Partner with us to transform your sheet metal requirements from concept to certified reality—efficiently and without compromise.

---

Technical Capabilities

Custom sheet metal services at Honyo Prototype encompass precision fabrication processes including laser cutting, bending, and welding. These services are designed for high accuracy, repeatability, and scalability, supporting a range of industrial applications. Below are the technical specifications for each process, including compatible materials such as aluminum, steel, ABS, and nylon.

Process	Material Compatibility	Thickness Range	Tolerance	Equipment Type	Notes
Laser Cutting	Aluminum, Steel, ABS, Nylon	0.5 mm – 25 mm	±0.1 mm	Fiber Laser / CO₂ Laser	High-precision edge quality; suitable for complex geometries
Bending	Aluminum, Steel	0.8 mm – 12 mm	±0.2° angular tolerance	CNC Press Brake (up to 100 tons)	Capable of hem, channel, and V-bending; minimum bend radius varies by material
MIG/TIG Welding	Aluminum, Steel	1.0 mm – 20 mm	±0.5 mm linear	MIG, TIG, Spot Welding Systems	Full weld inspection available; certified welders per AWS D1.1
Plastic Fabrication	ABS, Nylon	1.0 mm – 10 mm	±0.15 mm	CNC Routing, Solvent Bonding	Non-metallic processing; limited to structural enclosures and brackets

Note: While ABS and nylon are not sheet metals, they are processed using adapted laser and forming techniques for hybrid assemblies. Material selection is based on mechanical requirements, environmental exposure, and finish specifications. All processes are supported by in-house engineering for DFM optimization and first-article inspection.

---

From CAD to Part: The Process

Honyo Prototype Custom Sheet Metal Services Process Overview

Honyo Prototype delivers end-to-end custom sheet metal fabrication through a streamlined digital workflow designed for speed, precision, and manufacturability. Our process begins with client CAD submission and concludes with certified delivery, integrating AI-driven efficiency with rigorous engineering validation. Below is a technical breakdown of each phase.

CAD Upload and Initial Processing
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, DWG, DXF, or native SOLIDWORKS formats) via our secure customer portal. The system performs automated file validation to confirm geometric integrity, unit consistency, and layer organization. Unsupported formats or corrupted files trigger immediate client notification for resubmission, ensuring downstream process reliability. This phase typically completes within 15 minutes of upload.

AI-Powered Quoting Engine
Validated CAD data enters Honyo’s proprietary AI quoting system, which analyzes over 50 geometric and material parameters including sheet thickness, bend counts, hole density, surface area, and material grade. The AI cross-references real-time shop floor data on machine availability, material costs, and labor rates to generate a preliminary quote within 2 business hours. Crucially, this is not a black-box estimate; all AI outputs undergo mandatory review by a senior manufacturing engineer to validate cost drivers and flag potential ambiguities requiring client clarification.

Engineering-Driven DFM Analysis
Following quote acceptance, the project enters our core DFM (Design for Manufacturability) phase led by certified sheet metal engineers. Unlike automated-only DFM checks, Honyo employs a dual-path validation:

DFM Analysis Component	Standard Industry Approach	Honyo Prototype Implementation
Geometric Feasibility	Rule-based software checks only	AI pre-screen + engineer validation of bend radii, flange lengths, and minimum hole spacing per ISO 2768-mK
Process Optimization	Generic machine assignment	Dynamic routing considering turret vs. laser cutting efficiency, brake press tonnage requirements, and secondary operation sequencing
Cost-Saving Recommendations	Limited to critical errors	Actionable redesign proposals (e.g., consolidated features, material substitution) with quantified lead time/cost impact

The DFM report includes annotated 3D visuals highlighting manufacturability risks and collaborative suggestions, typically delivered within 24–48 hours. Client approval of the DFM package is required prior to production release.

Precision Production Execution
Approved designs move to our climate-controlled production floor utilizing:
Cutting: Amada LC Series fiber lasers (0.5–6mm mild/stainless steel) and turret punches for high-volume repeats

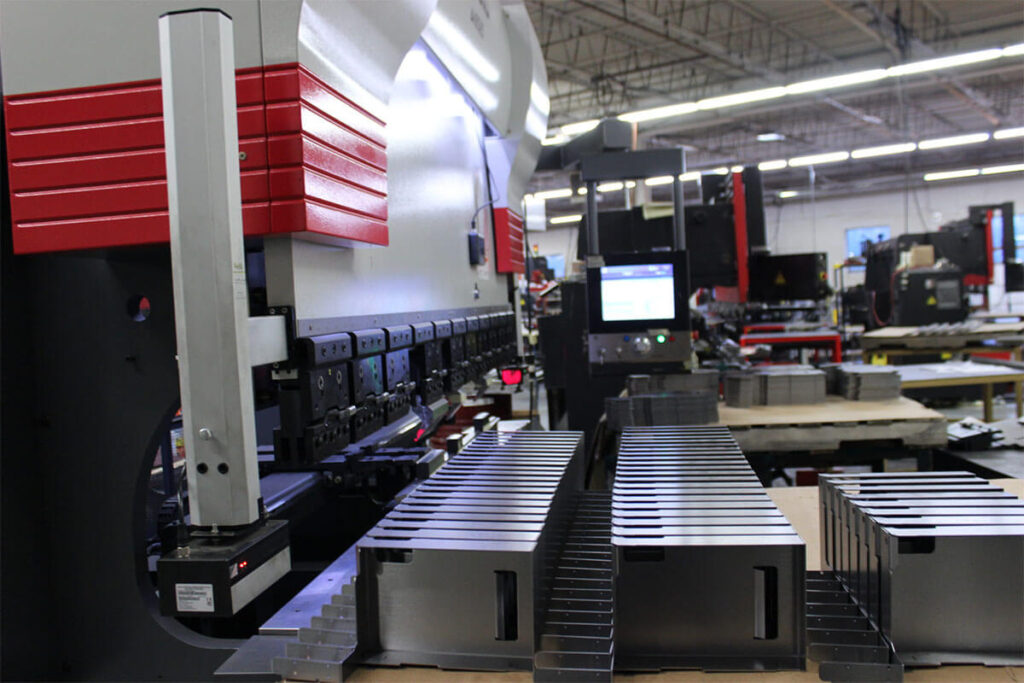

Forming: CNC press brakes with coining capabilities (±0.1° angular tolerance) and automated k-factor compensation
Finishing: In-house deburring, welding (TIG/MIG per AWS D1.1), and optional powder coating/anodizing

All critical dimensions undergo first-article inspection via FARO Arm CMM, with full production lots monitored through SPC-controlled checkpoints. Material traceability is maintained via serialized batch tags compliant with AS9100 requirements.

Certified Delivery and Documentation
Shipments include:
Dimensional conformance report with FAI data
Material test certificates (MTRs)
Process validation records
Packing list with serialized part tracking
Standard delivery is 7–10 business days after DFM sign-off, with expedited options available. All shipments are palletized per ISTA 3A standards with humidity indicators for moisture-sensitive components.

This integrated workflow reduces traditional quoting-to-shipment timelines by 40% while maintaining first-pass yield rates above 98.5% through embedded engineering oversight at every transition point. Clients retain full visibility via our real-time production dashboard from CAD upload through final delivery.

---

Start Your Project

Looking for precision custom sheet metal services? Partner with Honyo Prototype for high-quality fabrication tailored to your specifications. Our Shenzhen-based factory offers advanced manufacturing capabilities, fast turnaround, and strict quality control for prototyping and low-volume production.

Contact Susan Leo today at [email protected] to discuss your project and get a competitive quote.

---
