Manufacturing Insight: Custom Precision Metal Machining

Precision Metal Solutions Engineered for Your Prototyping Demands

When microns matter and complex geometries define success, Honyo Prototype delivers custom precision metal machining with uncompromising accuracy. Our Sheet Metal Fabrication services form a critical pillar of this capability, enabling rapid transformation of designs into functional prototypes and low-volume production parts. We specialize in laser cutting, CNC punching, precision bending, welding, and finishing for materials including aluminum, stainless steel, and mild steel, consistently achieving tight tolerances down to ±0.005 inches.

Engineers and product developers trust Honyo for accelerated development cycles without sacrificing quality. Our integrated workflow—from digital file to finished component—leverages advanced multi-axis CNC machinery and proprietary process controls to eliminate common fabrication pitfalls like burring, warping, or dimensional drift. This ensures your sheet metal assemblies integrate seamlessly into larger systems, whether for aerospace housings, medical enclosures, or industrial equipment.

Accelerate your project timeline with our Online Instant Quote platform. Upload your STEP or DWG file, specify material and quantity, and receive a detailed manufacturing assessment and price within minutes—not days. This transparency empowers data-driven decisions early in the design phase, reducing iterations and getting prototypes into testing faster.

Honyo Prototype: Where precision engineering meets prototyping agility.

Key Sheet Metal Capabilities	Tolerance Range	Lead Time Advantage
Fiber Laser Cutting	±0.003″	3-5 days standard
CNC Press Brake Forming	±0.5° angular	24-hour rush option
Robotic MIG/TIG Welding	±0.010″ linear	Integrated finishing
Material Range	0.020″ – 0.250″	Anodizing/powder coat

---

Technical Capabilities

Custom precision metal machining at Honyo Prototype encompasses advanced fabrication processes including laser cutting, bending, and welding, tailored for high-accuracy components in industrial and commercial applications. These processes are optimized for materials such as aluminum, steel, ABS, and nylon, with specific technical capabilities detailed below.

Process	Material Compatibility	Thickness Range	Tolerance	Power/Tooling Specification	Additional Notes
Laser Cutting	Aluminum, Steel, ABS, Nylon	0.5 mm – 25 mm	±0.1 mm	Fiber laser up to 6 kW	Suitable for intricate geometries; nitrogen or oxygen assist available
Bending	Aluminum, Steel	0.8 mm – 20 mm	±0.2° angular, ±0.1 mm linear	CNC press brakes with tooling up to 200 tons	Max bend length: 3000 mm; radius optimized per material
MIG/TIG Welding	Aluminum, Steel	1 mm – 20 mm	±0.5 mm	Pulsed MIG and DC TIG up to 350 A	Full penetration welds; post-weld machining available
Notes on Plastics	ABS, Nylon (limited)	1 mm – 10 mm	±0.15 mm	Laser parameters adjusted for low thermal conductivity	No bending or welding; machining via laser or CNC only

All processes are supported by CAD/CAM integration and in-process inspection to ensure repeatability and conformance to ISO 2768-mK or customer-specific standards. Material certifications and first-article inspection reports are available upon request.

---

From CAD to Part: The Process

Honyo Prototype Custom Precision Metal Machining Process Overview

Honyo Prototype delivers end-to-end custom precision metal machining through a structured, technology-driven workflow designed for speed, accuracy, and manufacturability. Our process begins with CAD upload and concludes with certified delivery, integrating AI and engineering expertise at critical stages to minimize risk and optimize outcomes. Below is a detailed technical breakdown of each phase.

Upload CAD
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid, or native formats from SolidWorks, Fusion 360, etc.) via our secure customer portal. Our system validates file integrity, checks for geometric completeness, and flags potential issues such as missing tolerances, non-manufacturable features, or unit inconsistencies. This step ensures the design foundation meets baseline requirements for precision machining, reducing downstream delays. All data is encrypted and handled under strict NDA protocols.

AI Quote Generation
Uploaded CAD data is processed through our proprietary SmartQuote AI engine, which performs rapid geometric analysis, material utilization forecasting, and machine time estimation. The AI cross-references real-time factors including material availability, shop floor capacity, and historical process data to generate a preliminary quote within 2–4 hours. This quote includes upfront cost breakdowns, lead time estimates, and preliminary feasibility flags. Crucially, the AI output is reviewed and validated by a dedicated manufacturing engineer to ensure accuracy—particularly for complex geometries or tight tolerances (±0.0005″ achievable)—before client submission.

DFM Analysis and Engineering Collaboration
Upon quote acceptance, our engineering team conducts a formal Design for Manufacturability (DFM) review. This is not a passive check but an iterative collaboration where our engineers provide actionable feedback to optimize the design for precision metal machining. Common DFM recommendations include adjusting wall thicknesses to prevent chatter, modifying internal radii for tool access, or suggesting alternative materials to reduce cost without compromising performance. Critical DFM considerations are summarized below.

DFM Focus Area	Common Issue Identified	Honyo Resolution Strategy
Geometric Complexity	Undercuts requiring 5-axis	Propose simplified features or justify 5-axis use
Tolerance Stack-Ups	Over-specified GD&T	Recommend relaxed tolerances on non-critical surfaces
Material Selection	Exotic alloys with long lead	Suggest equivalent domestic alternatives
Feature Accessibility	Deep cavities < 10:1 aspect	Redesign for progressive roughing/finishing

Clients receive a detailed DFM report with annotated CAD markups and cost-impact analysis. Revisions are incorporated via version-controlled portal updates, ensuring full traceability.

Production Execution

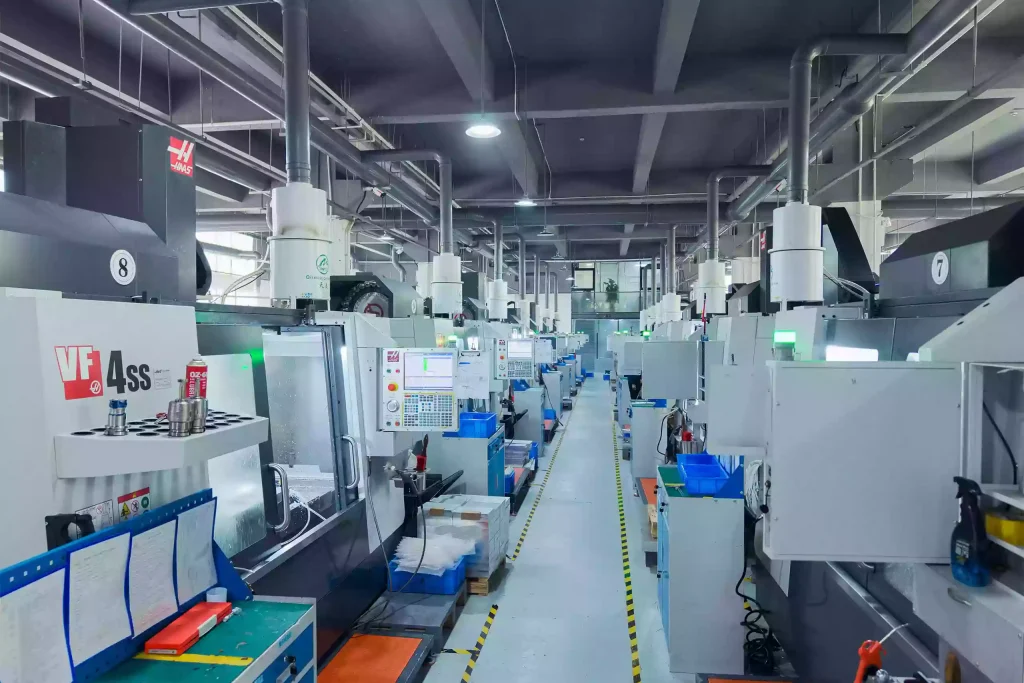

Approved designs move to our climate-controlled machining facility equipped with multi-axis CNC mills (3-axis to 5-axis), Swiss-type lathes, and wire EDM systems. All operations adhere to ISO 9001:2015 and AS9100 standards. Key production controls include:
First Article Inspection: Full CMM validation against CAD model before batch runs.
In-Process Gauging: Statistical process control (SPC) with real-time tool wear compensation.
Material Certification: Mill test reports and traceable material certs (e.g., AMS 4928 for Ti-6Al-4V).
Complex assemblies undergo in-house secondary operations including precision grinding, honing, and non-destructive testing (NDT) as required.

Delivery and Documentation
Final inspection generates a comprehensive quality package including CMM reports, surface roughness data, and material certifications. Parts are packaged in anti-corrosive VCI bags with custom foam cradling for transit-sensitive components. Delivery includes digital and physical documentation:
FAI reports per AS9102
Dimensional inspection certificates
RoHS/REACH compliance statements (if applicable)
Standard lead time from DFM sign-off to delivery is 10–15 business days for prototypes and 15–25 days for low-volume production. Expedited options (5–7 days) are available for critical-path projects.

This integrated workflow ensures Honyo Prototype achieves >95% first-pass yield on precision metal components while maintaining full transparency from design intent to certified delivery. Clients retain full visibility via our cloud-based project dashboard, which provides real-time updates on production milestones and quality metrics.

---

Start Your Project

Looking for custom precision metal machining solutions? Partner with Honyo Prototype for high-accuracy CNC machining, turning, milling, and fabrication services tailored to your specifications. Our Shenzhen-based factory combines advanced technology with strict quality control to deliver precision components on time and to exacting standards.

Contact Susan Leo today at [email protected] to discuss your project requirements and receive a personalized quote.

---
