Manufacturing Insight: Custom Metal Plate Fabrication

Custom Metal Plate Fabrication: Precision Engineering for Demanding Applications

Honyo Prototype delivers advanced custom metal plate fabrication services engineered to meet rigorous industrial standards. Our end-to-end sheet metal capabilities span laser cutting, precision bending, CNC punching, welding, and finishing for materials including stainless steel, aluminum, carbon steel, and specialty alloys. With thicknesses ranging from 0.5mm to 25mm and tolerances held to ±0.1mm, we transform complex designs into mission-critical components for aerospace, medical, and industrial equipment sectors. Our ISO 9001-certified processes ensure repeatability and structural integrity, whether producing single prototypes or low-volume production runs.

Accelerate your development timeline with Honyo’s Online Instant Quote system. Upload your STEP, DWG, or DXF files to receive a detailed technical assessment and competitive pricing within minutes—no manual RFQ delays. This digital workflow eliminates procurement bottlenecks while providing transparent cost breakdowns for material, machining, and secondary operations. Engineers gain immediate clarity on manufacturability feedback and lead times, enabling faster iteration cycles without compromising quality.

For projects demanding uncompromising dimensional accuracy and rapid turnaround, Honyo Prototype integrates engineering expertise with scalable fabrication capacity. Begin your next metal plate project with real-time pricing intelligence and dedicated technical support from quoting through delivery.

---

Technical Capabilities

Custom metal plate fabrication at Honyo Prototype involves precision manufacturing processes including laser cutting, bending, and welding to produce high-tolerance components for industrial, automotive, and consumer applications. While laser cutting and bending are primarily applicable to metallic materials, welding is exclusive to metals. Non-metallic materials such as ABS and Nylon are not suitable for laser cutting in the same processing line due to material composition and thermal behavior, though they may be machined using alternative methods like CNC routing.

Below is a technical specification summary for custom plate fabrication across key processes and materials:

Process	Material	Thickness Range	Tolerance	Max Part Size	Notes

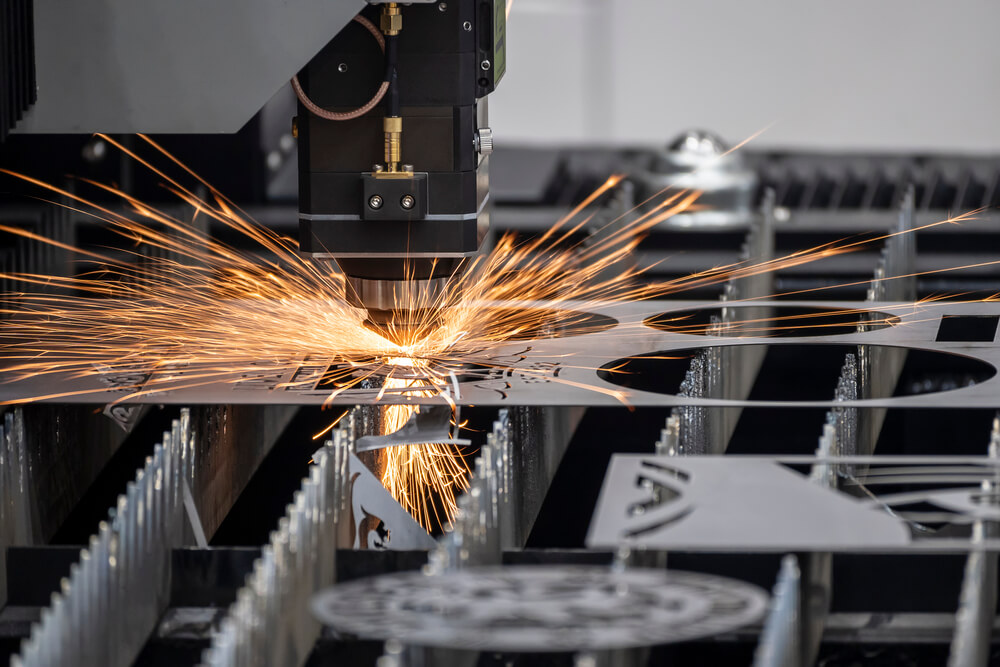

Laser Cutting	Aluminum	0.5 mm – 12 mm	±0.1 mm	1500 mm × 3000 mm	High precision cutting; minimal burr; reflective metal handling
Laser Cutting	Steel (Mild & Stainless)	0.5 mm – 20 mm	±0.1 mm	1500 mm × 3000 mm	Supports both CO₂ and fiber laser; clean edge finish
Laser Cutting	ABS	Not Recommended	N/A	N/A	Thermal degradation risk; better suited for CNC machining
Laser Cutting	Nylon	Not Recommended	N/A	N/A	Poor edge quality; high melt tendency; not advised for laser process
Bending	Aluminum	0.8 mm – 6 mm	±0.2° angular	1200 mm × 2500 mm	Tooling optimized for soft materials; minimum bend radius 1× thickness
Bending	Steel (Mild & Stainless)	0.8 mm – 10 mm	±0.2° angular	1200 mm × 2500 mm	High tonnage press brakes; tooling selection based on yield strength
Bending	ABS	Not Compatible	N/A	N/A	Cannot be bent using standard press brake methods
Bending	Nylon	Not Compatible	N/A	N/A	Lacks structural rigidity for cold forming; prone to cracking
Welding	Aluminum	1.0 mm – 10 mm	±0.5 mm fit-up	Unlimited (panel limits apply)	TIG and MIG welding available; argon shielding; post-weld deburring
Welding	Steel (Mild & Stainless)	1.0 mm – 20 mm	±0.5 mm fit-up	Unlimited (panel limits apply)	MIG, TIG, and spot welding; post-weld grinding and finishing options
Welding	ABS	Not Applicable	N/A	N/A	Joined via solvent bonding or ultrasonic welding; not structural
Welding	Nylon	Not Applicable	N/A	N/A	Limited to thermal or ultrasonic joining; not compatible with arc welding

Note: ABS and Nylon are included for completeness but are not processed using standard metal fabrication equipment. These polymers require dedicated plastic fabrication workflows. All metallic parts undergo deburring and edge finishing post-processing. First-article inspection and GD&T compliance available upon request.

---

From CAD to Part: The Process

Honyo Prototype Custom Metal Plate Fabrication Process Overview

Honyo Prototype delivers precision custom metal plate fabrication through a streamlined, technology-driven workflow designed for speed, accuracy, and manufacturability. Our process integrates AI-powered quoting with rigorous engineering validation to minimize delays and ensure first-time-right production. Below is a detailed explanation of each stage.

Upload CAD
Customers initiate the process by uploading native CAD files (STEP, IGES, Parasolid, or native SOLIDWORKS formats) via our secure online portal. Our system performs immediate automated validation checks for file integrity, unit consistency, and geometric completeness. Unsupported formats or corrupted files trigger an instant notification with specific error details, enabling rapid correction. All uploaded data is encrypted and stored in a dedicated project folder with version control, ensuring traceability throughout the workflow.

AI Quote Generation
Within 2 hours of validated CAD upload, our proprietary AI quoting engine analyzes the geometry, material requirements, and technical specifications to generate a comprehensive preliminary quote. The AI evaluates material utilization efficiency, identifies potential high-cost features (e.g., tight tolerances, complex contours), and calculates machine time across our CNC milling, laser cutting, and waterjet platforms. Quotes include line-item cost breakdowns for material, processing, finishing, and estimated lead time. Crucially, the AI flags ambiguities requiring engineering clarification (e.g., missing tolerances, ambiguous surface finishes), ensuring quotes reflect manufacturable intent. Human engineers review all AI outputs before finalization.

DFM Analysis and Engineering Collaboration
Every project undergoes mandatory Design for Manufacturability (DFM) review by our senior manufacturing engineering team. We analyze the CAD model against real-world production constraints, including machine capabilities, tooling limitations, material behavior, and secondary operations. Our DFM report provides actionable feedback: suggesting geometric modifications to reduce costs (e.g., standardizing hole sizes, increasing radii), optimizing sheet nesting to minimize waste, and proposing alternative materials or finishes where applicable. Customers receive a collaborative markup with engineering rationale, and we require formal sign-off on all DFM recommendations before proceeding. This stage typically resolves 85% of potential production issues upfront.

Production Execution
Approved designs move to production with full material traceability and documented process controls. Key production parameters are governed by our quality management system:

Parameter	Standard Capability	Tight-Tolerance Option
Material	Aluminum 6061-T6, 5052; SS 304, 316L; Mild Steel A36	Tool Steel, Titanium Grade 2
Thickness Range	0.5 mm – 25 mm	0.2 mm – 50 mm (specialized)
Tolerance	±0.1 mm	±0.025 mm (CNC milling)
Max Plate Size	1500 x 3000 mm	2000 x 4000 mm (waterjet)
Lead Time	5–7 business days (standard)	3–5 days (expedited)

Production includes first-article inspection per AS9102 standards, in-process checks at critical stages (e.g., post-machining, pre-finishing), and final validation against the original CAD model using CMM or optical scanning. All material certifications and process records are digitally archived.

Delivery and Documentation
Completed orders undergo final cleaning, protective coating (if specified), and custom kitting per customer requirements. Each shipment includes a comprehensive documentation package: material test reports (MTRs), first-article inspection reports, dimensional certification, and a digital quality passport linking all production data to the delivered parts. We provide real-time shipment tracking and guarantee on-time delivery through our integrated logistics network. Post-delivery, customers receive a structured feedback request to continuously refine our process for future iterations.

This closed-loop methodology ensures Honyo delivers custom metal plates with industrial-grade precision while maintaining the agility expected in rapid prototyping and low-volume production environments.

---

Start Your Project

Looking for precision custom metal plate fabrication? Partner with Honyo Prototype for high-quality, on-demand manufacturing solutions tailored to your specifications. Our advanced fabrication capabilities include laser cutting, CNC bending, welding, and surface finishing—all produced in our Shenzhen-based factory with strict quality control and fast turnaround times.

Contact Susan Leo today at [email protected] to discuss your project requirements and receive a competitive quote.

---
