Manufacturing Insight: Custom Fabrication And Machine
Precision CNC Machining for Demanding Prototyping and Production
Honyo Prototype delivers engineered solutions for complex custom fabrication challenges through advanced CNC machining capabilities. Our vertically integrated facility leverages state-of-the-art 3-, 4-, and 5-axis milling and turning centers to produce high-tolerance components from aluminum, stainless steel, titanium, and engineering plastics. With tight tolerances consistently held to ±0.0002″ and rigorous in-process quality verification, we ensure dimensional accuracy critical for aerospace, medical, and industrial applications where failure is not an option.
Engineers and procurement teams accelerate development cycles by utilizing our Online Instant Quote system—a technical portal designed for manufacturing professionals. Input CAD files, material specifications, and volume requirements to receive a detailed, accurate cost and lead time analysis within minutes, not days. This transparency eliminates traditional quoting bottlenecks while maintaining the engineering rigor expected in precision manufacturing partnerships.
Partner with Honyo to transform complex designs into mission-critical hardware with speed, precision, and uncompromised quality control.
Technical Capabilities
Custom fabrication and machining services at Honyo Prototype are engineered to deliver high-precision components using advanced 3-axis, 4-axis, and 5-axis CNC milling systems, as well as multi-axis turning centers. These platforms are optimized for tight-tolerance production, typically holding tolerances down to ±0.005 mm (±0.0002″) for critical features, with selective capabilities reaching ±0.001 mm (±0.00004″) under controlled conditions. Machines are equipped with high-resolution probing systems, tool length compensation, and thermal stability controls to ensure repeatability across production runs.
The process supports a wide range of engineering-grade materials, including Aluminum (6061, 7075), Steel (1018, 4140, Stainless 303, 316), ABS, and Nylon (6 & 6/6). Each material is machined using optimized toolpaths, spindle speeds, and coolant strategies to maintain dimensional accuracy and surface finish integrity.
| Parameter | Specification Detail |
|---|---|
| Machining Capabilities | 3-axis, 4-axis, and 5-axis CNC milling; CNC turning (2-axis and live-tooling) |
| Positional Accuracy | ±0.005 mm (±0.0002″) typical; up to ±0.001 mm (±0.00004″) with metrology-grade setup |
| Repeatability | ±0.003 mm (±0.0001″) across production batches |
| Maximum Work Envelope (Milling) | 1000 mm × 700 mm × 600 mm (X×Y×Z) |
| Maximum Turning Diameter | 300 mm with bar feed capability up to 52 mm |
| Spindle Speed (Milling) | Up to 24,000 RPM with HSK-63 or BT-30 interface |
| Tool Changer Capacity | 24–30 tools (automatic tool changer) |
| Surface Finish (Typical) | Ra 0.8 µm (32 µin) standard; down to Ra 0.2 µm (8 µin) with fine finishing |
| Supported Materials | Aluminum (6061-T6, 7075-T6), Carbon Steel (1018, 4140), Stainless Steel (303, 316), ABS, Nylon 6, Nylon 6/6 |
| Fixturing Solutions | Vacuum, mechanical clamping, tombstone fixtures for 4th/5th axis, custom soft jaws |
| In-Process Metrology | On-machine probing (touch-trigger and scanning), tool presetters, thermal compensation |
| CNC Control Systems | Fanuc 31i, Siemens 840D, or Heidenhain TNC640 depending on machine platform |
All components are inspected using CMM, optical comparators, and surface roughness testers to validate conformance to GD&T callouts and tight-tolerance requirements. This technical foundation enables Honyo Prototype to support aerospace, medical, and industrial clients requiring high-integrity machined parts from both metallic and engineering thermoplastic materials.
From CAD to Part: The Process
Honyo Prototype Custom Fabrication and Machining Process Overview
Honyo Prototype executes a streamlined, technology-driven workflow for custom fabrication and machining projects, designed to minimize lead times while ensuring precision and cost efficiency. The end-to-end process integrates digital tools with engineering expertise, structured into five critical phases.
CAD Upload and System Integration
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid, or native formats from SolidWorks, Creo, NX, etc.) via our secure online portal. Our system performs an immediate file validation check, confirming geometric integrity, unit consistency, and manufacturability flags. All data is protected under ISO 27001-certified security protocols, with client IP encrypted and isolated per project.
AI-Powered Preliminary Quoting
Within minutes of CAD validation, Honyo’s proprietary AI engine generates a preliminary quote. This system analyzes 3D geometry, material selection, tolerance requirements, and surface finish specifications against real-time machine capacity, material costs, and labor rates. The output includes a base cost estimate, preliminary lead time, and initial process recommendations (e.g., CNC milling vs. 3D printing). Crucially, this AI quote serves as a starting point for engineering review—not a final commitment—and is explicitly labeled as such to manage client expectations.
Engineering-Led DFM Analysis
All projects undergo mandatory Design for Manufacturability (DFM) review by Honyo’s senior manufacturing engineering team. This phase identifies cost drivers, geometric constraints, and potential production risks. Engineers collaborate directly with clients to propose actionable optimizations—such as adjusting tolerances, simplifying features, or selecting alternative materials—without compromising functional requirements. Typical DFM outcomes include a 15–30% reduction in part cost and a validated production timeline. Clients receive a formal DFM report with annotated CAD markups and a revised quotation incorporating agreed-upon changes.
Precision Production Execution
Upon client approval of the DFM report and quotation, parts move to production. Honyo leverages a hybrid manufacturing ecosystem:
CNC Machining: 3–5-axis milling and turning (tolerances to ±0.005 mm) on Haas, DMG MORI, and Makino equipment.
Additive Fabrication: Metal (DMLS/SLM) and polymer (SLS, MJF) systems for complex geometries.

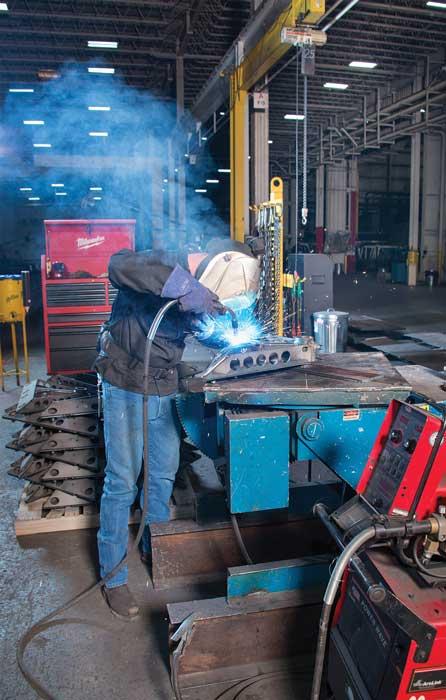

Secondary Operations: Deburring, anodizing, plating, welding, and assembly conducted in-house.
Real-time production tracking is enabled via IoT-connected machinery, with automated in-process inspections (CMM, vision systems) at critical stages. All processes adhere to ISO 9001:2015 and IATF 16949 quality standards.
Quality-Controlled Delivery
Final inspection includes first-article reporting (FAI) per AS9102 or client-specific requirements, with full dimensional reports and material certifications. Parts are packaged using anti-static, shock-absorbent materials compliant with IPC-1601 standards for ESD-sensitive components. Logistics coordination offers air or ground shipping with real-time GPS tracking, and delivery timelines are strictly governed by our service-level agreements. Expedited shipping options (24–72 hours post-approval) are available for critical-path components.
Process Timeline Benchmarks
The table below summarizes typical phase durations for standard complexity projects. Note that timelines scale with part complexity, material availability, and client response speed during DFM.
| Phase | Standard Timeline | Expedited Timeline | Key Dependencies |
|---|---|---|---|
| CAD Upload to AI Quote | < 15 minutes | < 15 minutes | File format validity |
| DFM Analysis | 1–2 business days | 4–8 business hours | Client feedback cycle |
| Production | 3–10 business days | 24–72 hours | Part complexity, material stock |
| Delivery | 2–5 business days | Next-day shipping | Destination, customs clearance |
This integrated workflow ensures Honyo delivers production-ready prototypes and low-volume production parts with engineering rigor, transparent communication, and predictable outcomes. Our focus remains on transforming client designs into functional realities while mitigating cost and schedule risks inherent in custom manufacturing. Clients consistently note the elimination of traditional quoting ambiguities and redesign loops as key differentiators in our service model. For complex projects, we recommend initiating a pre-CAD engineering consultation to further optimize outcomes.
Start Your Project
Looking for custom fabrication and machining solutions tailored to your specifications? Partner with Honyo Prototype for precision manufacturing and rapid turnaround. Our Shenzhen-based factory is equipped to handle prototyping and low-volume production with strict quality control and advanced CNC capabilities.
Contact Susan Leo at [email protected] to discuss your project requirements and receive a personalized quote.
