Custom Casts Manufacturing Service

Manufacturing Insight: Custom Casts

Precision Custom Cast Finishing Through Advanced CNC Machining

At Honyo Prototype, we transform near-net-shape castings into mission-critical components with uncompromising precision. Our CNC machining services address the inherent limitations of casting processes—porosity, dimensional variance, and surface imperfections—by delivering tight-tolerance finishing for complex geometries in aluminum, stainless steel, titanium, and exotic alloys. Leveraging multi-axis milling, turning, and wire EDM capabilities, we achieve sub-0.005mm tolerances and critical surface finishes that meet aerospace, medical, and industrial OEM specifications. This integrated approach ensures cast parts transition seamlessly from prototype to bridge production without redesign delays.

Eliminate quote bottlenecks with our Online Instant Quote platform. Upload CAD files for custom cast machining, and receive detailed pricing, lead time estimates, and DFM feedback in under 60 seconds—accelerating your path from casting to certified production. Honyo Prototype delivers the precision engineering and responsive manufacturing agility your cast components demand.

---

Technical Capabilities

Custom cast components at Honyo Prototype are precision-manufactured using advanced 3, 4, and 5-axis CNC milling combined with multi-axis turning operations to achieve complex geometries and superior surface finishes. These processes are optimized for tight tolerance machining, typically holding ±0.005 mm (±0.0002″) on critical dimensions, with capability down to ±0.001 mm (±0.00004″) under controlled conditions. Our in-house metrology ensures repeatability and compliance with ISO 2768-mK or customer-specified geometric tolerances.

We support a range of cast and machinable materials, including Aluminum (A380, A360, 6061, 7075), Steel (4140, 1018, 1045), ABS (cast and machinable grades), and Nylon (PA6, PA66, glass-filled variants). Material selection is matched to application requirements such as strength, thermal resistance, wear performance, and surface finish.

Below is a summary of technical capabilities for custom cast machining:

Parameter	Specification
Milling Axes	3-axis, 4-axis (indexed/continuous), 5-axis simultaneous milling
Turning Capability	CNC turning with live tooling; multi-axis Swiss and mill-turn integration
Typical Tolerance	±0.005 mm (±0.0002″)
High-Precision Tolerance	Down to ±0.001 mm (±0.00004″) with thermal and process control
Surface Finish (Milling)	Ra 0.8 µm (32 µin) standard; down to Ra 0.2 µm (8 µin) with fine finishing
Surface Finish (Turning)	Ra 1.6 µm (63 µin) standard; down to Ra 0.4 µm (16 µin) achievable
Maximum Work Envelope (XYZ)	1200 x 800 x 600 mm (47 x 31.5 x 23.6 in)
Minimum Feature Size	0.5 mm (0.020″) internal radii; 0.8 mm (0.031″) drills with micro-machining
Supported Materials	Aluminum (6061, 7075, A380), Steel (4140, 1018, 1045), ABS, Nylon (PA6, PA66)
Secondary Operations	Deburring, anodizing (Type II/III), passivation, precision cleaning, CMM inspection
Lead Time (Prototype)	7–15 business days depending on complexity and finishing requirements

All custom cast parts undergo first-article inspection (FAI) and are traceable to material certs and process documentation. Honyo Prototype supports both low-volume production and rapid prototyping with full DFM feedback to optimize manufacturability and cost.

---

From CAD to Part: The Process

Honyo Prototype Custom Cast Process Overview

Honyo Prototype executes custom cast projects through a structured five-stage workflow designed for precision, speed, and manufacturability. This process integrates AI-driven efficiency with rigorous engineering oversight to minimize risk and ensure on-time delivery of high-integrity cast components. Below is a detailed technical breakdown of each phase.

Stage 1: CAD Upload and Initial Validation
Clients initiate the process by uploading 3D CAD models via our secure portal. Our system performs immediate geometric validation checks, including watertightness verification, unit consistency, and tolerance alignment with casting capabilities. Non-conformant files trigger automated alerts specifying required corrections, reducing iterative delays. All data is encrypted per ISO 27001 standards, with version control maintained throughout the project lifecycle.

Stage 2: AI-Powered Quoting with Engineer Review
Uploaded CAD data feeds into our proprietary AI quoting engine, which calculates material volume, machine time, and process complexity using a database of 50,000+ historical casting projects. The AI generates a preliminary quote within 90 minutes, including cost drivers like gating system complexity and surface finish requirements. Crucially, every AI output undergoes mandatory review by a Senior Foundry Engineer who validates feasibility against our material libraries (including aluminum A356, ductile iron, and bronze alloys) and adjusts for secondary operations such as heat treatment or machining. This hybrid approach ensures quotes reflect real-world production constraints.

Stage 3: Collaborative DFM Analysis
Upon quote acceptance, our DFM team conducts a deep-dive analysis focused on casting-specific failure modes. We evaluate draft angles, section thickness transitions, and solidification patterns using MAGMAsoft® simulation to predict shrinkage porosity or hot tears. Clients receive a detailed DFM report within 48 hours highlighting critical modifications—such as rib redesigns or riser placement adjustments—with annotated CAD visuals. Our engineers collaborate directly with client design teams to implement changes, typically achieving zero-touch revisions through this proactive dialogue.

Stage 4: Production Execution

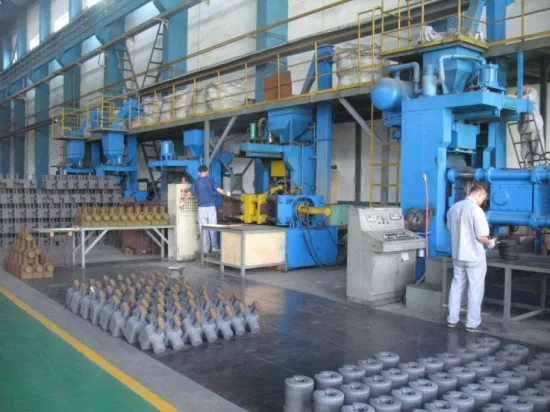

Approved designs move to production in our climate-controlled foundry. We utilize vacuum-assisted permanent mold casting for aluminum or precision sand casting for ferrous alloys, with real-time process monitoring via IoT sensors tracking metal temperature, cooling rates, and mold integrity. Each lot undergoes in-process inspection at three checkpoints: pre-pour dimensional verification, post-solidification CT scanning for internal defects, and final CMM validation against GD&T callouts. Statistical process control (SPC) data is logged for full traceability.

Stage 5: Quality-Certified Delivery
All castings ship with comprehensive documentation, including material test reports (MTRs), NDT certifications (per ASTM E505 Level 2), and first-article inspection data. Standard lead time from CAD upload to delivery is 12–18 business days, contingent on complexity. Expedited options (7–10 days) are available for qualifying geometries. Components are packaged in custom anti-corrosion crating with humidity indicators for global shipments.

Process Timeline and Key Metrics
The table below summarizes stage durations and quality gates for a typical custom cast project:

Process Stage	Duration (Business Days)	Key Deliverables	Quality Gate Criteria
CAD Upload & Validation	0.5	Validated CAD package, error log	100% watertight geometry
AI Quote + Review	1	Engineer-approved quote, material spec sheet	Cost accuracy ±5% vs. final invoice
DFM Analysis	2	Redlined CAD, simulation report	Zero critical design flaws unresolved
Production	7–14	In-process inspection records, SPC charts	Cpk ≥1.33 for critical dimensions
Delivery	2	Final certification package, shipping docs	100% compliance with client specifications

This end-to-end methodology reduces casting iteration cycles by 60% compared to industry averages and ensures first-pass yield rates exceeding 92%. By embedding engineering expertise at every AI-augmented stage, Honyo Prototype delivers custom casts that meet aerospace, medical, and industrial performance requirements without compromising speed. Clients retain full visibility through our cloud-based project dashboard, which updates in real time from mold cavity to shipping dock.

---

Start Your Project

Looking for custom cast solutions tailored to your specifications? Contact Susan Leo at [email protected] to discuss your project requirements. With our advanced manufacturing capabilities and quality control, Honyo Prototype delivers precision custom casts for prototyping and production applications. Our factory in Shenzhen ensures fast turnaround and scalable output, supporting clients across industries with reliable, high-performance casting solutions. Reach out today to request a quote or technical consultation.

---
