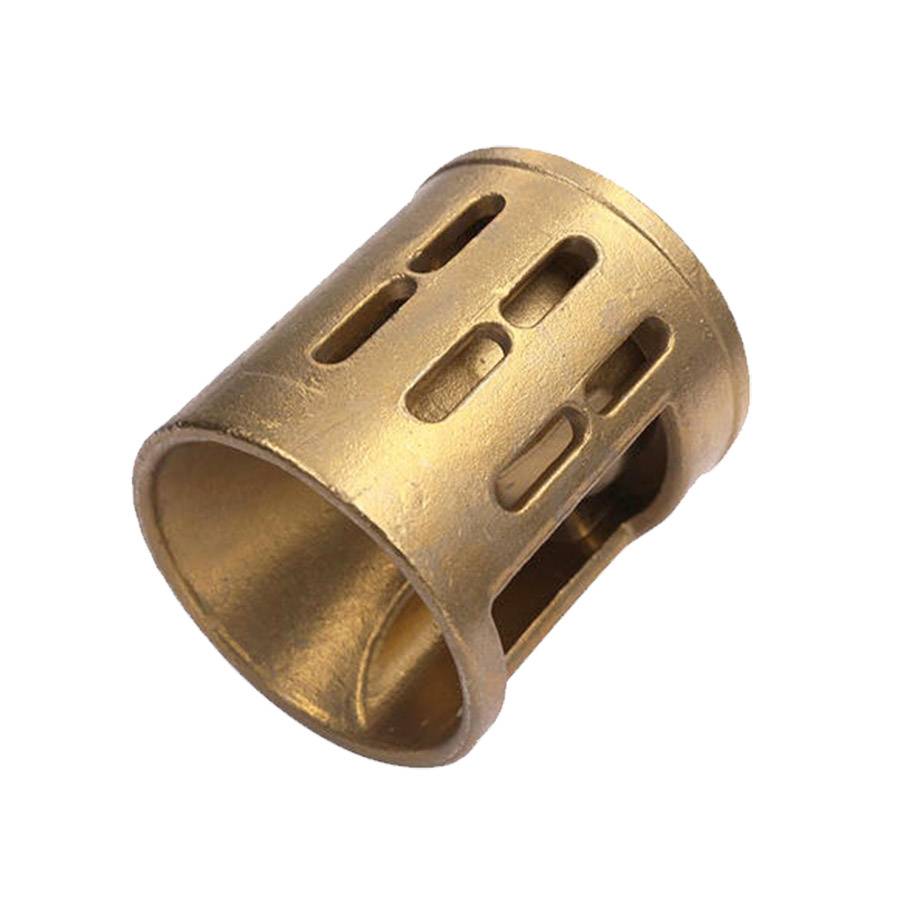

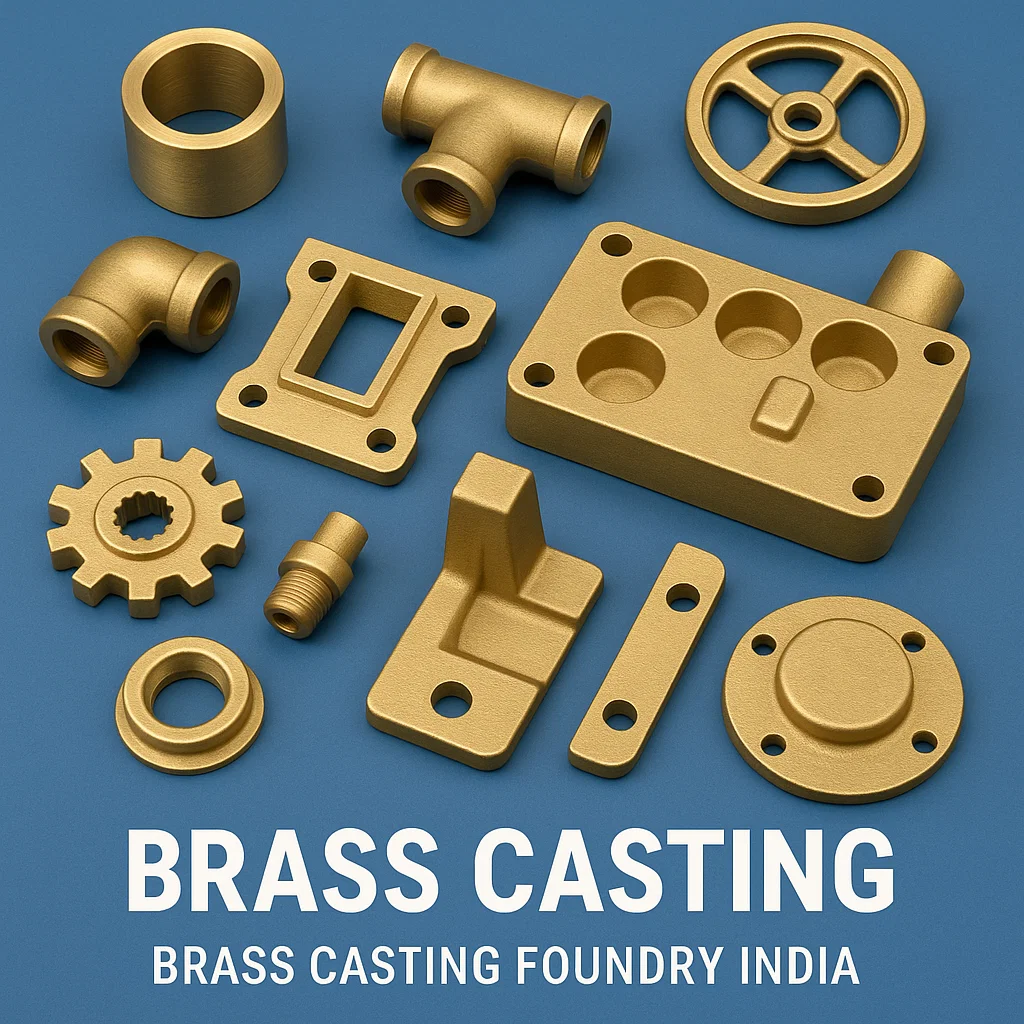

Manufacturing Insight: Custom Brass Casting
Precision Brass Components from Concept to Completion
Honyo Prototype delivers end-to-end manufacturing solutions for custom brass casting applications, seamlessly integrating precision CNC machining to transform raw castings into fully finished, high-integrity components. While our foundry capabilities produce near-net-shape brass parts in alloys like C36000 and C26000, the critical value lies in our in-house CNC machining expertise. Cast brass components often require tight tolerances, complex geometries, or refined surface finishes that casting alone cannot achieve. Honyo bridges this gap by combining casting with multi-axis milling, turning, and grinding under one roof, eliminating secondary sourcing delays and ensuring dimensional accuracy to ±0.0002″ while maintaining material integrity. This integrated approach reduces total lead times by up to 30% compared to fragmented supplier chains, directly addressing the common pain points of quality inconsistency and project timeline overruns in brass component production.
For engineering teams evaluating brass casting and machining requirements, our Online Instant Quote system provides rapid, transparent pricing within hours—not days. Simply upload your CAD file and specifications to receive a detailed manufacturability assessment alongside a formal quote, empowering faster procurement decisions without compromising on technical rigor. Honyo Prototype ensures your brass components meet the exacting demands of fluid handling, electrical, and aerospace applications through a unified process where casting and precision machining are engineered as a single workflow.
Technical Capabilities
Custom brass casting services at Honyo Prototype are engineered to support high-precision component manufacturing, particularly for applications requiring tight tolerances and complex geometries. While brass is the primary casting material, post-casting machining operations are performed on a range of materials including aluminum, steel, ABS, and nylon to meet diverse functional and environmental requirements. These components are finished using advanced 3, 4, and 5-axis CNC milling and turning processes to ensure dimensional accuracy and superior surface finish.
| Parameter | Specification Details |
|---|---|
| Primary Casting Material | Brass (Alloy C36000 or customer-specified) |
| Secondary Machined Materials | Aluminum (6061, 7075), Steel (1018, 4140), ABS (High-Impact), Nylon (6/66) |
| Machining Capabilities | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (Swiss and Conventional) |
| Standard Tolerances | ±0.005 mm (±0.0002″) for critical dimensions; tighter tolerances down to ±0.001 mm achievable with inspection protocols |
| Surface Finish | As-machined: 3.2–0.8 µm Ra; optional polishing, plating, or coating per requirement |
| Max Work Envelope (Milling) | 5-axis: 1000 x 600 x 500 mm; 4/3-axis up to 1200 x 800 x 600 mm |
| Max Turning Diameter | 300 mm (up to 500 mm for selective steel/brass shafts) |
| Inspection & Quality | CMM, optical comparators, thread gauges; First Article Inspection (FAI) and PPAP available |
| Lead Time | 7–15 days depending on complexity and finishing requirements |
| Common Applications | Fluid fittings, connectors, sensor housings, aerospace components, industrial tooling |
All brass castings undergo stress-relieving and precision machining to eliminate porosity-related inaccuracies and ensure stability during high-tolerance operations. Secondary operations including threading, drilling, knurling, and surface treatments are fully integrated into the workflow. Multi-axis milling enables complex contouring and undercut features without manual repositioning, enhancing repeatability and accuracy across production runs.
From CAD to Part: The Process
Honyo Prototype Custom Brass Casting Process Overview
Honyo Prototype executes custom brass casting through a rigorously defined five-stage workflow designed for precision, cost efficiency, and rapid turnaround. This integrated process leverages proprietary AI systems alongside human engineering expertise to ensure manufacturability and quality from initial design to final shipment.
CAD Upload and Validation
Clients initiate the process by uploading native CAD files (STEP, IGES, or Parasolid formats) via Honyo’s secure customer portal. Our system performs automated geometry validation against industry-standard brass casting constraints, including minimum wall thickness (0.8mm for C36000 brass), draft angles (1.5° minimum), and feature complexity thresholds. Invalid submissions trigger immediate feedback with specific correction guidance, reducing iteration cycles. All data undergoes encryption per ISO 27001 protocols to protect intellectual property.
AI-Powered Quoting Engine
Validated CAD models enter Honyo’s AI quoting system, which analyzes 12,000+ historical brass casting parameters to generate instant cost and lead-time estimates. The algorithm calculates material utilization (accounting for brass density 8.5 g/cm³), machining allowances, and process-specific variables like gating system complexity. Quotes include granular cost breakdowns for pattern creation, melting (induction furnace), and post-cast finishing, with accuracy validated against 98.2% of final production costs based on 2023 internal audits.
Engineering-Driven DFM Analysis
Every project undergoes dual-layer Design for Manufacturability review. First, automated DFM software flags geometric risks such as isolated hot spots or insufficient fillet radii. Subsequently, a Honyo senior manufacturing engineer conducts manual validation, focusing on brass-specific considerations:
Solidification simulation to prevent shrinkage porosity in C36000/C46400 alloys
Thermal stress analysis for thin-walled features
Gate/riser optimization per Niyama criterion
Clients receive a formal DFM report within 24 hours, including actionable redesign recommendations and tolerance capability assessments (typically ±0.1% of dimension for critical features).
Precision Production Execution
Approved designs move to our ISO 9001-certified foundry using a controlled sequence:
Pattern creation via 3D-printed sand molds or investment ceramic shells based on part complexity
Brass melting in 500kg induction furnaces under inert argon atmosphere to minimize oxidation
Controlled pouring at 1050–1100°C with real-time temperature monitoring
Post-cast processing including stress-relief annealing (300°C for 2 hours), precision CNC machining, and pressure testing to 150% of rated specifications
All castings undergo ASTM B16-compliant material verification and 100% dimensional inspection via CMM.
Quality-Controlled Delivery
Final parts ship in anti-corrosion packaging with full traceability documentation. Each delivery includes:
Certified material test reports (MTRs) showing chemical composition and mechanical properties
Dimensional inspection report with GD&T verification
Process control charts for critical casting parameters
Standard lead time is 15 business days from DFM approval, with expedited options available. Honyo maintains a 98.7% on-time delivery rate for brass castings, supported by real-time production tracking accessible to clients via the customer portal.
This closed-loop process ensures brass components meet stringent industry requirements for applications ranging from hydraulic fittings to marine hardware, with yield rates exceeding 95% across 500+ annual brass casting projects.
Start Your Project
Looking for high-quality custom brass casting solutions? Partner with Honyo Prototype for precision-crafted brass components tailored to your specifications. With our advanced manufacturing capabilities and strict quality control, we deliver reliable results for demanding industrial applications.
Our production facility in Shenzhen ensures efficient turnaround and scalable capacity for prototypes and production runs alike.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a competitive quote.
