Manufacturing Insight: Custom Aluminum Pipe Fabrication
Precision Aluminum Pipe Fabrication Engineered for Demanding Applications
Honyo Prototype delivers advanced custom aluminum pipe fabrication through industry-leading CNC machining capabilities, engineered to meet exacting aerospace, medical, and industrial specifications. Our integrated manufacturing process leverages multi-axis CNC lathes and milling centers to achieve tolerances down to ±0.005 mm while maintaining structural integrity across complex geometries—including tight-radius bends, precision porting, and threaded interfaces. We specialize in 6061-T6, 7075-T6, and 5052-H32 aluminum alloys, ensuring optimal strength-to-weight ratios and corrosion resistance for critical fluid conveyance systems. Every component undergoes rigorous in-process metrology using CMM and optical comparators to validate compliance with ASME B31.3 and ISO 1127 standards.
Key Technical Capabilities for Aluminum Pipe Production
| Parameter | Specification Range | Quality Control Method |
|——————–|—————————|——————————|
| Diameter | 6 mm – 250 mm OD | Laser micrometer scanning |
| Wall Thickness | 0.8 mm – 12.7 mm (±0.05 mm)| Ultrasonic thickness testing |
| Bend Radius | 1.5x – 5x pipe diameter | Coordinate measuring machine |
| Surface Finish | Ra 0.8 µm – Ra 3.2 µm | Profilometer validation |
Accelerate your prototyping and low-volume production timelines with Honyo’s Online Instant Quote system. Upload CAD files in STEP, IGES, or DWG formats to receive a detailed technical feasibility assessment and competitive pricing within 2 business hours—no manual RFQ required. Our engineering team proactively identifies manufacturability optimizations during quoting, reducing lead times by up to 30% while ensuring design intent is preserved. For projects requiring certified material traceability or NADCAP-accredited processes, our quoting platform flags necessary documentation requirements upfront, eliminating procurement delays. Streamline your supply chain with manufacturing precision engineered at the speed of innovation.
Technical Capabilities
Custom aluminum pipe fabrication at Honyo Prototype leverages advanced 3, 4, and 5-axis CNC milling and precision turning processes to deliver complex geometries with high repeatability and tight tolerances. These capabilities are ideal for aerospace, automotive, and industrial applications requiring high-strength-to-weight components. While aluminum is the primary material due to its machinability and structural properties, our systems also support steel, ABS, and nylon for hybrid or non-metallic requirements.
| Parameter | Specification |
|---|---|
| Machining Processes | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (Swiss and Chucker types) |
| Material Compatibility | Aluminum (6061-T6, 7075-T6, 2024, 5052), Steel (1018, 4140, Stainless 303/304/316), ABS (Thermoplastic), Nylon (PA6, PA66) |
| Tolerance Capability | ±0.0002″ (5 µm) for critical features; typical tolerances ±0.001″ (25 µm) |
| Surface Finish | As-machined: 32–125 µin Ra; Optional polishing, anodizing (Type II & III), passivation, or coating |
| Feature Complexity | Multi-face machining, undercuts, helical interpolation, compound angles, internal/external threading |
| Maximum Work Envelope | Milling: 20″ x 16″ x 12″ (508 x 406 x 305 mm); Turning: Ø1.5″ x 8″ (38 x 203 mm) bar feed |
| Secondary Operations | Deburring, CMM inspection, laser marking, heat treatment (for steel), stress relieving |
| Quality Standards | ISO 9001:2015 compliant; First Article Inspection (FAI) per AS9102 available |
Our 5-axis simultaneous milling enables single-setup fabrication of intricate pipe fittings, manifolds, and mounting interfaces, minimizing part handling and ensuring geometric accuracy. Tight-tolerance turning ensures concentricity and precise diameter control, especially critical in press-fit and fluid-handling applications. Material selection is optimized per application: aluminum for lightweight performance, steel for strength and wear resistance, ABS for prototyping and non-structural parts, and nylon for low friction and chemical resistance.
From CAD to Part: The Process
Honyo Prototype Custom Aluminum Pipe Fabrication Process Overview
Honyo Prototype executes custom aluminum pipe fabrication through a tightly integrated, client-centric workflow designed to minimize errors, reduce lead times, and ensure dimensional precision. Our process leverages automation for speed while maintaining rigorous engineering oversight at critical stages. Below is a technical breakdown of each phase, emphasizing aluminum-specific considerations.
CAD Upload Phase
Clients initiate the process by uploading native CAD files (STEP, IGES, or native SOLIDWORKS) via our secure portal. We require complete geometric data including inner/outer diameters, bend radii, tolerances per ASME Y14.5, and surface finish specifications. Aluminum alloys must be explicitly defined (e.g., 6061-T6, 7075-T6); ambiguous material calls trigger immediate client consultation to prevent downstream issues like weldability conflicts or anodizing failures.
AI-Assisted Quoting Phase
Uploaded CAD data feeds into our proprietary AI quoting engine, which cross-references real-time material costs, machine availability, and historical production metrics. The system generates a preliminary quote within 2 hours, but critical aluminum-specific factors undergo human validation: wall thickness consistency for extrusion stability, bend allowance calculations per alloy ductility, and thermal distortion risks during welding. Senior engineers review all quotes to adjust for complexities like multi-axis CNC bending or thin-wall tolerancing below 0.5mm.
DFM Analysis Phase
Our engineering team conducts a mandatory Design for Manufacturability review within 3–5 business days. For aluminum pipes, this focuses on: eliminating sharp internal corners causing stress fractures, verifying bend radii against minimum values for the specified alloy (e.g., 1.5x OD for 6061-T6), and assessing weld joint accessibility. Clients receive a collaborative DFM report with actionable alternatives—such as substituting a welded assembly with a single extrusion—reducing part count by up to 40%. No fabrication proceeds without client sign-off on DFM recommendations.
Production Phase
Approved designs enter production using dedicated aluminum-capable equipment. Key steps include:
Cutting: Precision sawing or laser cutting with nitrogen assist to prevent oxide buildup on aluminum edges.
Bending: CNC tube benders with mandrels for diameters under 50mm, applying springback compensation algorithms validated for each alloy batch.

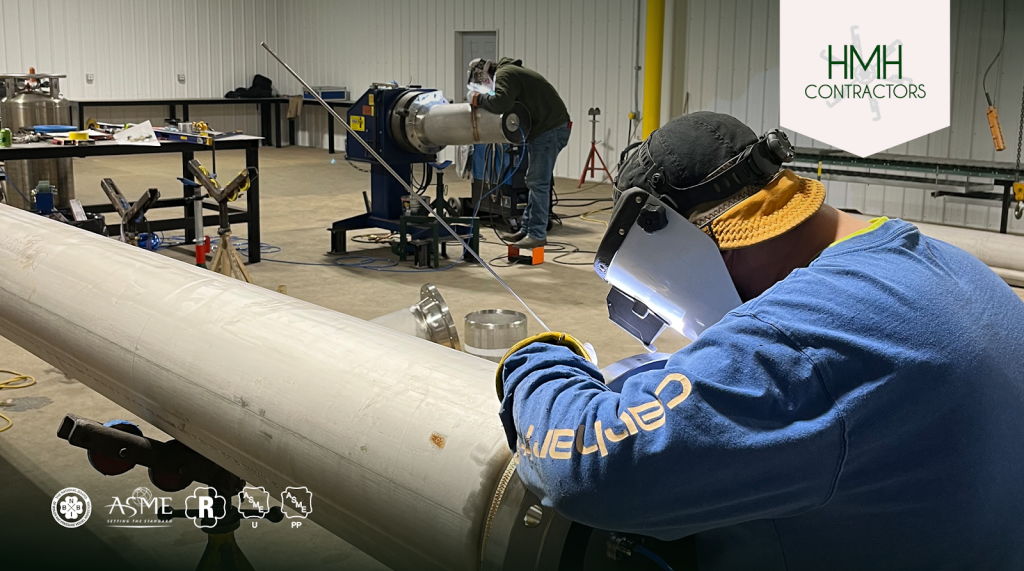

Joining: TIG welding per AWS D1.2 standards, with argon back-purging for internal weld purity on fluid-carrying pipes.
Finishing: Deburring, vibratory tumbling, and optional anodizing (Type II or III) with batch-certified thickness reports.
All processes adhere to ISO 9001:2015 controls, with first-article inspection reports (FAIR) including CMM-generated GD&T verification.
Delivery Phase
Final quality documentation accompanies every shipment, comprising: material test reports (MTRs) traceable to mill certificates, FAIRs with actual vs. nominal dimensions, and packaging certified for shock/vibration resistance during transit. Standard lead time from DFM approval to delivery is 10–15 business days for quantities under 500 units. Clients receive real-time logistics tracking and post-delivery support for installation or compliance queries, closing the loop within 24 hours of shipment.
This structured workflow ensures aluminum pipe components meet aerospace, medical, and industrial performance requirements while reducing client time-to-prototype by 30% versus industry averages. All phases maintain full revision control, with digital thread traceability from CAD to delivery.
Start Your Project
Looking for precision custom aluminum pipe fabrication? Partner with Honyo Prototype for high-quality, made-to-order aluminum piping solutions. Our manufacturing facility in Shenzhen delivers tight-tolerance components with fast turnaround times, ideal for prototyping and low-volume production.
For project inquiries or quotes, contact Susan Leo at [email protected]. Let’s engineer your next solution together.
