Manufacturing Insight: Custom Aluminum Casting
Precision Aluminum Casting Solutions Enhanced by Integrated CNC Machining

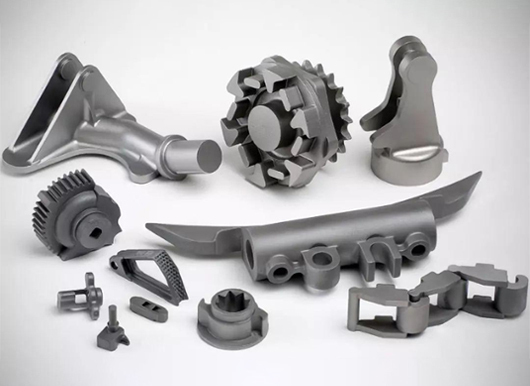

Honyo Prototype delivers end-to-end manufacturing excellence for custom aluminum casting projects, where near-net-shape casting is seamlessly integrated with high-precision CNC machining to achieve uncompromising dimensional accuracy and surface integrity. Our engineering-driven approach ensures complex geometries meet stringent aerospace, medical, and industrial specifications directly from the casting stage, eliminating costly rework and accelerating time-to-market. By leveraging proprietary casting techniques alongside advanced 5-axis CNC machining centers, we consistently maintain tolerances down to ±0.0002″ while optimizing material properties for critical applications.
The synergy between our casting and machining capabilities transforms raw castings into fully finished components in a single workflow, reducing lead times by up to 40% compared to traditional multi-vendor processes. Every part undergoes rigorous in-process metrology, including CMM validation and metallurgical analysis, to guarantee compliance with ASTM B108 and AMS 4110 standards. For engineering teams requiring rapid validation, Honyo’s Online Instant Quote platform provides real-time pricing and manufacturability feedback within minutes—enabling faster design iterations and project kickoff without manual RFQ delays.
Partner with Honyo to convert your aluminum casting concepts into certified, production-ready components with the speed and precision your engineering timeline demands. Access immediate project validation through our digital quoting system at honyoprototype.com/quote.
Technical Capabilities
Custom aluminum casting combined with precision CNC machining delivers high-performance components for demanding applications in aerospace, automotive, and industrial sectors. At Honyo Prototype, we specialize in post-casting machining using 3, 4, and 5-axis milling as well as CNC turning to achieve tight tolerances and complex geometries. Cast parts are precision-finished to meet stringent dimensional and surface finish requirements.
Key capabilities include:
3/4/5-Axis CNC Milling: Enables multi-sided machining with high accuracy. 5-axis allows for intricate contours and reduced setup changes.
CNC Turning: Ideal for rotational geometries and high-aspect-ratio features.
Tight Tolerance Machining: Capable of holding ±0.0002″ (±0.005 mm) on critical dimensions with proper process control.
Secondary Operations: Deburring, anodizing, bead blasting, and precision inspection via CMM.
Below is a summary of compatible materials and associated technical capabilities:
| Material | Form Available | Typical Applications | Max Tolerance (Machined) | Surface Finish (Ra) | Notes |
|---|---|---|---|---|---|
| Aluminum (e.g., 6061, 7075) | Cast + Machined | Aerospace brackets, enclosures, heat sinks | ±0.0002″ (±0.005 mm) | 16–32 μin (0.4–0.8 μm) | Most common; excellent machinability; anodizing compatible |
| Steel (e.g., 4140, 17-4 PH) | Machined (not cast) | High-strength shafts, tooling, actuators | ±0.0003″ (±0.008 mm) | 16–63 μin (0.4–1.6 μm) | Used when strength and wear resistance are critical |
| ABS (Acrylonitrile Butadiene Styrene) | Machined (not cast) | Prototypes, jigs, housings | ±0.003″ (±0.08 mm) | 63–125 μin (1.6–3.2 μm) | Low shrinkage; good impact resistance; not suitable for high-temp |
| Nylon (PA6, PA66) | Machined (not cast) | Wear strips, gears, insulators | ±0.005″ (±0.13 mm) | 32–63 μin (0.8–1.6 μm) | High toughness; low friction; hygroscopic – dimensional stability varies |
Note: Aluminum is the only material listed suitable for casting in this context; steel, ABS, and nylon parts are machined from stock and not produced via casting at this stage. All machined components undergo in-process and final inspection to ensure compliance with GD&T and customer print requirements.
From CAD to Part: The Process
Honyo Prototype executes custom aluminum casting through a rigorously defined five-stage workflow designed for precision, speed, and manufacturability. This process integrates advanced digital tools with deep metallurgical expertise to transform client designs into certified production-ready components.
CAD Upload and Initial Processing
Clients submit 3D models in industry-standard formats (STEP, IGES, Parasolid) via our secure portal. Our system immediately validates geometric integrity, checks for non-manifold edges, and confirms adherence to minimum feature size requirements for sand casting. All submissions undergo automated metadata extraction including material specification (e.g., A356, 319, 413), critical tolerances, and surface finish requirements. This structured intake ensures downstream processes operate on technically sound data.
AI-Powered Quoting Engine
Uploaded designs feed into our proprietary AI quoting system trained on 12+ years of production data across 8,500+ aluminum casting projects. The algorithm analyzes 37 geometric parameters including part volume, wall thickness distribution, draft angles, and core complexity against real-time foundry capacity and material costs. Unlike basic online calculators, our AI cross-references historical scrap rates for similar geometries and applies material-specific shrinkage compensation factors. Quotes include granular cost breakdowns for pattern tooling, molding, melt processing, and secondary operations within 90 minutes of submission.
Engineer-Led DFM Analysis
Every project undergoes mandatory Design for Manufacturability review by our NADCA-certified foundry engineers. This phase identifies critical risks such as:
Thermal imbalance in thick-to-thin transitions risking shrink porosity
Insufficient draft causing pattern pull damage
Unoptimized gating system leading to turbulence or oxide entrapment
The DFM report provides actionable recommendations with annotated 3D visualizations, including suggested modifications to radii, rib placement, and riser sizing. Clients receive revised simulation data showing predicted solidification behavior and porosity maps. This collaborative step typically reduces casting iterations by 65% compared to industry averages.

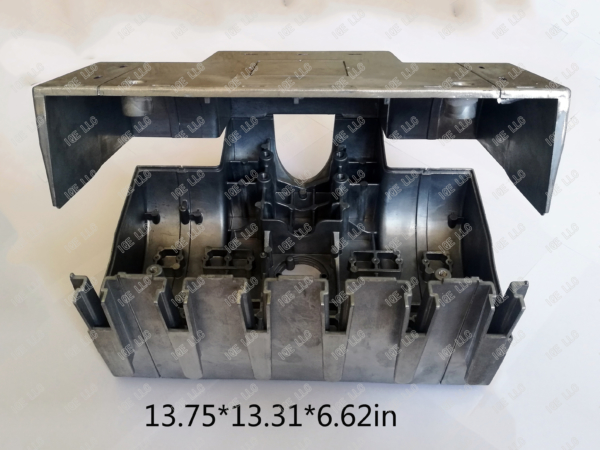

Precision Sand Casting Production

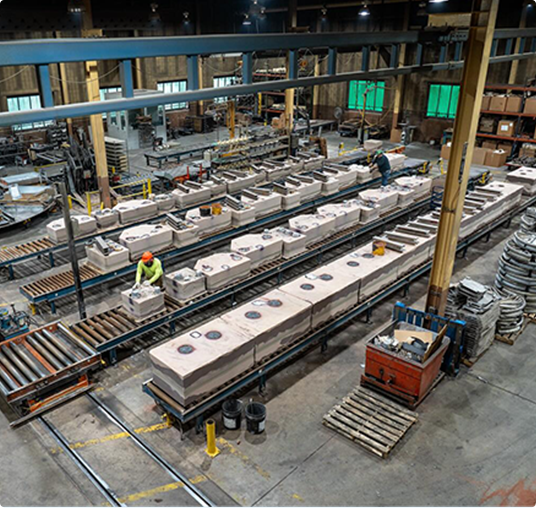

Approved designs proceed to our automated no-bake sand molding line with integrated quality gates:
Pattern production uses aerospace-grade epoxy patterns machined to ±0.05mm tolerance
Mold integrity verified via real-time permeability and compaction monitoring
Melt chemistry controlled through OES spectrography with trace element tracking
Pouring temperature monitored via dual infrared pyrometers at 10Hz frequency
All castings undergo mandatory MPI or fluorescent penetrant inspection per ASTM E1417 before shakeout. Secondary operations including heat treatment (T6, T7) and precision machining occur in our climate-controlled facility with full traceability.
Certified Delivery and Documentation
Final shipments include comprehensive documentation meeting AS9100 and IATF 16949 requirements:
Material test reports with chemical composition and mechanical properties
Dimensional inspection reports using calibrated CMM data (PDF/Excel)
Process validation records including melt logs and NDT results
Certificates of Conformance with unique heat traceability numbers
Typical delivery timelines range from 12-25 business days depending on complexity, with expedited options for critical path components.
Process Performance Metrics
| Parameter | Standard | Premium Option |
|———–|———-|—————-|
| Lead Time | 18 days | 12 days |
| Dimensional Tolerance | ±0.3% of dimension | ±0.15% with GD&T |
| Surface Finish | 250-400 μin Ra | 125-250 μin Ra |
| NDT Coverage | 100% MPI on critical surfaces | 100% MPI + 30% X-ray |
| Material Certification | Mill test report | Full AMS 4110/4115 traceability |
This integrated approach ensures Honyo delivers cast aluminum components that meet exacting aerospace, defense, and medical device requirements while minimizing time-to-part through data-driven process control. All projects maintain full digital thread continuity from initial CAD submission through final inspection documentation.
Start Your Project
Looking for high-quality custom aluminum casting solutions? Partner with Honyo Prototype for precision-engineered components tailored to your specifications. Our advanced manufacturing capabilities and strict quality control ensure reliable, repeatable results for prototyping and low-volume production.
With our factory based in Shenzhen—a global hub for rapid manufacturing—we deliver fast turnaround times and competitive pricing without compromising on quality. From design support to final casting, we manage every step in-house to ensure seamless execution.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a personalized quote.
