Manufacturing Insight: Custom Aluminum Brackets

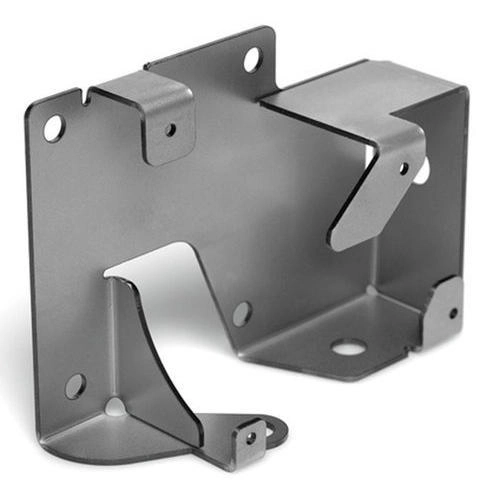

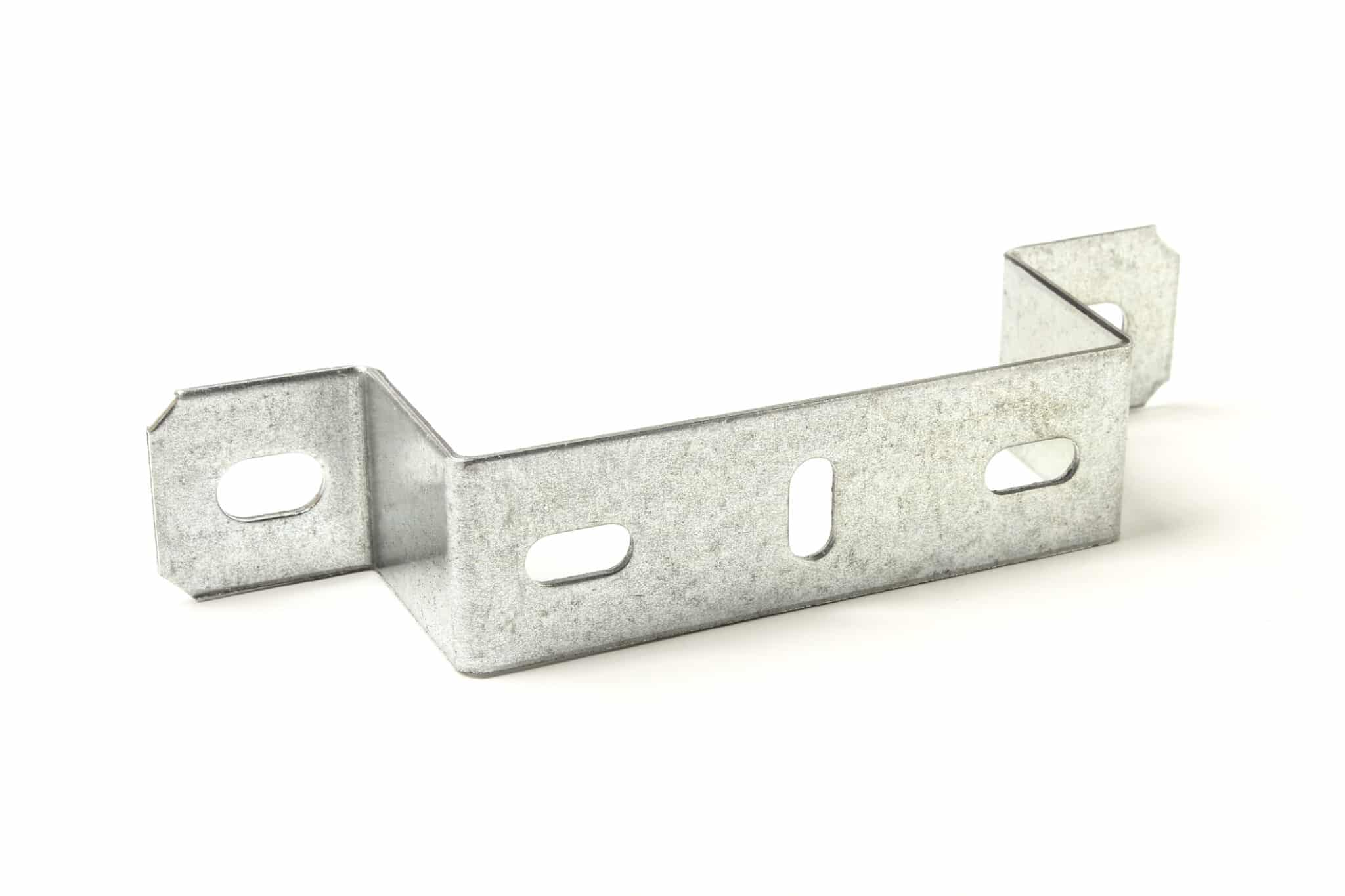

Custom Aluminum Brackets: Precision Engineered for Demanding Applications
At Honyo Prototype, we specialize in the high-precision CNC machining of custom aluminum brackets designed to meet the exacting requirements of aerospace, medical, robotics, and industrial automation sectors. Aluminum’s optimal strength-to-weight ratio, corrosion resistance, and thermal conductivity make it ideal for structural and mounting solutions where reliability is non-negotiable. Our 5-axis CNC machining capabilities ensure complex geometries, tight tolerances down to ±0.005mm, and superior surface finishes are consistently achieved—eliminating fitment issues and reducing assembly time for your end product.
Leveraging state-of-the-art HAAS and DMG MORI equipment alongside rigorous in-process quality control, we transform your CAD models into mission-critical components with repeatable precision. Whether you require low-volume prototypes or scalable production runs, our engineering team collaborates closely to optimize designs for manufacturability, minimizing material waste and accelerating time-to-market.
Accelerate your prototyping cycle with Honyo’s Online Instant Quote platform. Upload your STEP or IGES file, specify material and volume requirements, and receive a detailed, transparent cost estimate within minutes—no waiting for manual RFQ processing. This seamless integration of advanced manufacturing expertise and digital efficiency ensures your custom aluminum bracket project moves from concept to certified hardware faster than industry standards demand. Partner with us to solve dimensional challenges while maintaining uncompromised structural integrity.
Technical Capabilities
Custom aluminum brackets are precision-engineered components typically manufactured using advanced 3-axis, 4-axis, and 5-axis CNC milling processes, often combined with CNC turning for complex geometries. These brackets are designed to meet tight tolerance requirements, commonly in the range of ±0.001″ to ±0.005″, depending on part complexity and application. Multi-axis machining enables high accuracy, superior surface finish, and the ability to produce intricate features in a single setup, reducing cumulative error and improving repeatability.
While aluminum is the most commonly used material due to its favorable strength-to-weight ratio, machinability, and corrosion resistance, these brackets can also be produced from other materials such as steel, ABS, and nylon—each selected based on mechanical, thermal, and environmental requirements.
Below is a summary of the technical specifications for custom aluminum brackets and related capabilities:
| Feature | Specification Details |
|---|---|
| Manufacturing Process | 3-axis, 4-axis, and 5-axis CNC milling; CNC turning (for turned features or inserts) |
| Typical Materials | Aluminum (6061-T6, 7075-T6), Steel (1018, 4140, 303/304 Stainless), ABS, Nylon (6/66) |
| Tolerance Range | ±0.001″ to ±0.005″ (tight tolerance achievable with process control and inspection) |
| Surface Finish | 32 to 125 μin (typical); finer finishes available with post-processing |
| Maximum Work Envelope | Up to 24″ x 36″ x 20″ (varies by machine; larger parts accommodated via segmentation) |
| Secondary Operations | Deburring, anodizing (Type II & III), passivation, sandblasting, precision tapping |
| Inspection & Quality | CMM, optical comparators, micrometers, and height gauges; First Article Inspection (FAI) reports available |
| Lead Time | 7–15 business days (varies based on complexity, material, and finishing requirements) |
| Applications | Aerospace, robotics, medical devices, automation, defense, and industrial equipment |
Material selection plays a critical role in performance. Aluminum is preferred for lightweight, high-strength applications. Steel offers higher durability and wear resistance for load-bearing brackets. ABS and nylon are used when electrical insulation, reduced weight, or corrosion resistance in non-metallic systems is required—though typically for prototyping or low-stress environments.
All parts are manufactured to print, with full GD&T support and adherence to ASME Y14.5 standards. Design for Manufacturability (DFM) feedback is provided to optimize cost, lead time, and performance.
From CAD to Part: The Process
Honyo Prototype delivers custom aluminum brackets through a rigorously controlled digital manufacturing workflow designed for speed, precision, and design integrity. Our process begins when a client uploads a native CAD file (STEP, IGES, or native SolidWorks formats preferred) to our secure customer portal. This file undergoes automated geometry validation to confirm completeness and unit consistency before entering the quoting phase.
The AI Quote engine immediately processes the validated CAD geometry, applying material science models specific to 6061-T6 and 7075-T6 aluminum alloys. It calculates raw material volume, machine time based on feature complexity, and secondary operation requirements while referencing our real-time shop floor capacity and material costs. Crucially, the AI performs a preliminary manufacturability screen, flagging potential issues like non-standard hole depths or thin wall sections below 0.8mm, and generates a detailed technical quote with lead time estimation within 4 business hours. This quote includes a preliminary DFM risk score visible to the client.
Upon quote acceptance, the project enters the formal Design for Manufacturability (DFM) review. Our senior manufacturing engineers conduct a hands-on analysis focused on aluminum machining characteristics. We evaluate critical factors such as tool access for internal features, optimal stock sizing to minimize waste, clamping strategies to prevent part deflection during milling, and thermal management considerations for tight tolerances. Common bracket-specific issues requiring collaborative resolution include:
| Common Bracket DFM Issue | Aluminum-Specific Consideration | Honyo Resolution Approach |
|---|---|---|
| Thin wall features < 1.0mm | Vibration during milling causing chatter marks | Recommend localized ribbing or tolerance relaxation with FEA validation |
| Blind tapped holes > 1.5x diameter | Chip evacuation challenges in aluminum | Propose through-holes with helicoils or adjust depth-to-diameter ratio |
| Tight positional tolerances on mounting surfaces | Thermal expansion during machining | Implement in-process CMM verification with temperature compensation |
| Complex compound angles | 5-axis setup complexity vs. cost | Optimize for 3+2 axis machining with strategic stock allowance |
This collaborative DFM phase typically concludes within 24-48 hours with a signed-off manufacturing drawing incorporating mutually agreed design refinements. Production commences only after formal DFM sign-off, utilizing our network of Haas and DMG MORI 5-axis CNC mills with documented process capability indices (CpK > 1.67 for critical dimensions). Aluminum brackets undergo in-process probing for critical datum features, with final inspection performed on a calibrated Zeiss CMM against the approved drawing. Secondary operations including deburring, precision anodizing (Type II or III per MIL-A-8625), and laser marking occur in-house under strict environmental controls.
All custom aluminum brackets ship with full traceability: material certs (including mill test reports), first-article inspection reports, and a comprehensive dimensional conformance package. Standard delivery is 7-10 business days post-DFM sign-off for quantities under 50 pieces, with expedited options available. We maintain real-time shipment tracking and provide proactive notifications at each process milestone through the client portal, ensuring complete visibility from CAD submission to certified delivery.
Start Your Project
Looking for custom aluminum brackets tailored to your specifications? Partner with Honyo Prototype for precision-engineered solutions manufactured in our Shenzhen facility.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a fast, competitive quote.
Honyo Prototype
Shenzhen Manufacturing Facility
Email: [email protected]
Let us deliver high-quality, custom aluminum brackets built to meet your exact design and performance needs.
