Introduction: Navigating the Global Market for concentricity callout

In today’s competitive global market, sourcing precise concentricity callouts is essential for manufacturers aiming to ensure high-performance components. Achieving the desired level of concentricity can be a complex challenge, often resulting in costly production delays and quality issues. This guide comprehensively addresses the nuances of concentricity callouts, covering various types, applications, and the intricacies of supplier vetting. By delving into measurement techniques, potential cost implications, and best practices for implementation, we empower international B2B buyers—especially those in Africa, South America, the Middle East, and Europe—to make informed purchasing decisions.

Navigating the world of concentricity requires a strategic approach, particularly as the need for precision grows in sectors such as automotive, aerospace, and machinery. This guide serves as a valuable resource, providing insights into the latest standards, effective measurement methodologies, and alternative GD&T symbols that can simplify processes while maintaining quality. As buyers explore their options, the information within this guide will enable them to identify reliable suppliers who can meet their specific concentricity requirements, ultimately leading to enhanced operational efficiency and product reliability.

Understanding concentricity callout Types and Variations

Type Name	Key Distinguishing Features	Primary B2B Applications	Brief Pros & Cons for Buyers
Concentricity	Controls the median points of a feature relative to a datum axis; 3D cylindrical tolerance zone.	Precision machinery, aerospace components	Pros: Ensures precise alignment; Cons: Difficult to measure and costly.
Circular Runout	Measures the variation of a surface as it rotates; focuses on the actual surface instead of median points.	Automotive parts, rotating machinery	Pros: Easier to measure; Cons: May not control mass distribution as effectively.
Total Runout	Combines circular runout and axial runout; assesses both circular and axial variations.	High-speed rotating equipment, turbines	Pros: Comprehensive control; Cons: More complex measurement process.
True Position	Ensures a feature’s location is within a specified tolerance; focuses on the axis rather than median points.	General manufacturing, assembly processes	Pros: Versatile and easier to measure; Cons: May not address mass distribution concerns.
Symmetry	Controls the median points of features about a central plane; often used in conjunction with concentricity.	Optical components, precision instruments	Pros: Enhances aesthetic and functional quality; Cons: Still complex to measure.

What are the Characteristics of Concentricity Callout?

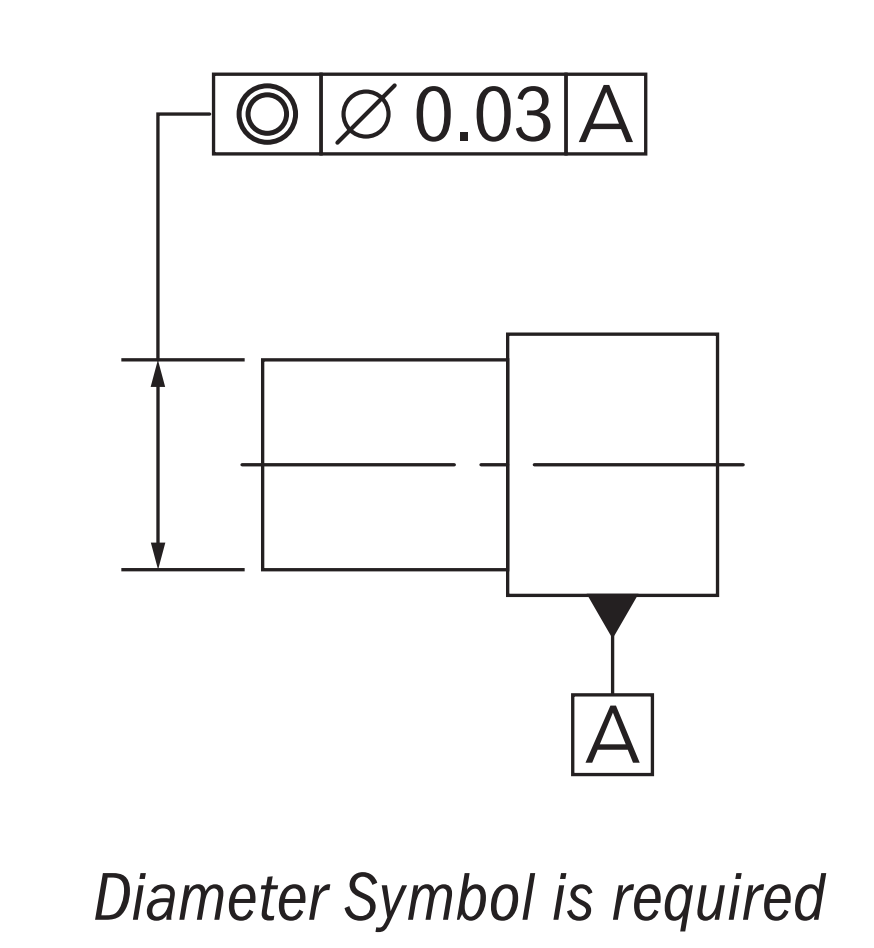

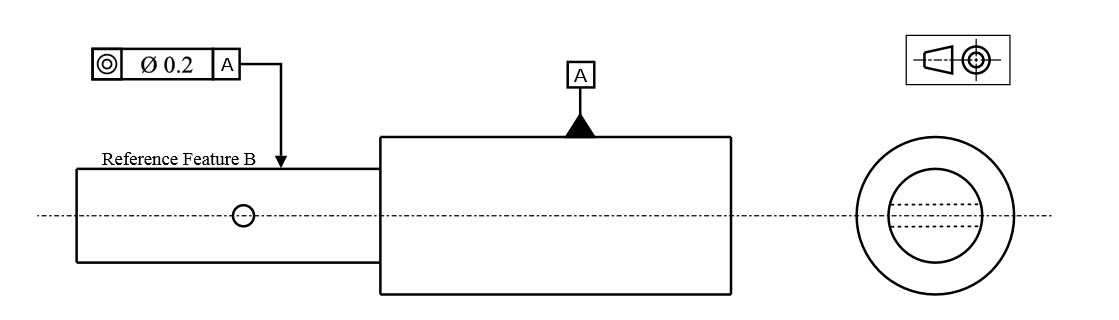

Concentricity is a tolerance that ensures all derived median points of a cylindrical feature align within a cylindrical tolerance zone defined by a datum axis. This callout is critical in applications where uniform mass distribution is essential, such as in high-speed rotating machinery. Buyers should consider the complexity and cost of measuring concentricity, as it typically requires advanced equipment like Coordinate Measuring Machines (CMMs).

How Does Circular Runout Differ from Concentricity?

Circular runout focuses on the actual surface of a part as it rotates, measuring variations that can affect performance. Unlike concentricity, which relies on median points, circular runout can be measured using simpler tools, making it a more accessible option for manufacturers. This makes it suitable for applications in automotive and rotating machinery, where ease of measurement is essential. Buyers should assess their production capabilities when choosing between these two callouts.

Why Choose Total Runout for Complex Applications?

Total runout encompasses both circular and axial variations, providing a comprehensive view of a part’s performance. It is particularly useful in high-speed applications, such as turbines, where both types of runout can impact functionality. However, measuring total runout can be more complex and time-consuming, requiring specialized setups. Buyers should weigh the benefits of thorough control against the potential for increased measurement costs.

What Makes True Position a Versatile Option?

True position is a geometric tolerance that specifies the exact location of a feature concerning a datum. This callout is widely used in various manufacturing processes due to its versatility and relatively straightforward measurement methods. While true position may not directly address mass distribution issues, it offers a practical solution for many applications, making it a popular choice among manufacturers. Buyers should evaluate their specific needs to determine if true position can effectively meet their requirements.

How Does Symmetry Enhance Product Quality?

Symmetry is a tolerance that ensures features are evenly distributed about a central plane, which is particularly important in optical components and precision instruments. While it complements concentricity, symmetry can be just as complex to measure. Buyers looking for enhanced aesthetic and functional qualities in their products should consider symmetry as a valuable addition to their design specifications, keeping in mind the associated measurement challenges.

Key Industrial Applications of concentricity callout

Industry/Sector	Specific Application of concentricity callout	Value/Benefit for the Business	Key Sourcing Considerations for this Application
Automotive	Precision transmission gears	Ensures smooth operation and reduces wear and tear	Suppliers should provide advanced measurement capabilities and certifications in GD&T.
Aerospace	Engine component alignment	Critical for safety and performance in high-speed applications	Look for manufacturers with experience in high-precision aerospace tolerances.
Oil & Gas	Drill bit design and manufacturing	Enhances efficiency and reduces failure rates in drilling operations	Sourcing from suppliers with robust quality assurance processes is essential.
Medical Devices	Surgical instruments and implants	Guarantees reliability and safety in critical medical applications	Suppliers must adhere to strict regulatory standards and demonstrate precision engineering capabilities.
Electronics	Rotor assemblies in electric motors	Improves operational efficiency and extends product lifespan	Seek manufacturers who utilize advanced CNC machining and GD&T practices.

How is Concentricity Callout Used in the Automotive Industry?

In the automotive sector, concentricity callouts are vital for precision transmission gears. These gears must align perfectly to avoid oscillations that can lead to premature wear or failure. The concentricity ensures that the gear’s mass distribution is uniform, which is crucial when the vehicle operates at high speeds. Buyers in this sector should prioritize suppliers who have sophisticated measurement tools and a strong understanding of GD&T standards to ensure compliance with industry specifications.

What Role Does Concentricity Play in Aerospace Applications?

In aerospace, the alignment of engine components is paramount for safety and performance. Concentricity callouts help ensure that components such as shafts and rotors are perfectly aligned about a datum axis. This precision is essential to prevent catastrophic failures during flight. International buyers should seek manufacturers with proven track records in aerospace tolerances, as well as those equipped with advanced measurement technologies to guarantee compliance with stringent industry regulations.

How is Concentricity Important in Oil & Gas Drilling Operations?

The oil and gas industry relies on precise concentricity in drill bit design to optimize drilling efficiency and minimize equipment failure. Concentricity ensures that the drill bit maintains uniform wall thickness, preventing weak points that could lead to catastrophic failures during operations. Buyers must consider sourcing from suppliers that have robust quality assurance protocols and experience in high-pressure applications to ensure reliability in their drilling operations.

Why is Concentricity Critical for Medical Devices?

In the medical device industry, the concentricity of surgical instruments and implants is crucial for patient safety and device reliability. A concentric design helps ensure that these devices function correctly, minimizing the risk of complications during procedures. Buyers should prioritize suppliers who not only meet rigorous regulatory standards but also demonstrate expertise in precision engineering to ensure the highest quality in medical applications.

How Does Concentricity Affect Electronics Manufacturing?

In electronics, concentricity is essential for rotor assemblies in electric motors, where misalignment can lead to inefficiencies and increased wear. A precise concentricity callout allows for improved operational efficiency and extends the lifespan of electric motors. International buyers should look for manufacturers skilled in CNC machining and GD&T practices, as these capabilities are critical for achieving the necessary tolerances in electronic components.

3 Common User Pain Points for ‘concentricity callout’ & Their Solutions

Scenario 1: Difficulty in Achieving Accurate Concentricity Measurements

The Problem: Many B2B buyers, particularly in industries like automotive and aerospace, struggle with the precision required to measure concentricity effectively. The challenge lies in establishing the derived median points of cylindrical features, which can be complex and time-consuming. This often leads to potential errors in manufacturing, causing delays and increased costs. Buyers may find that traditional measurement techniques are inadequate, resulting in frustration and uncertainty about whether their components meet specifications.

The Solution: To address these measurement difficulties, buyers should invest in advanced measurement technologies such as Coordinate Measuring Machines (CMMs) equipped with specialized software. When specifying concentricity callouts, it is crucial to clearly define the datum axis and tolerance zones in the technical drawings. Buyers should also ensure that their manufacturing partners are trained in using these technologies effectively. Collaborating closely with measurement experts can help streamline the process, allowing for more accurate data collection and analysis. Furthermore, buyers can consider establishing in-house measurement capabilities to reduce reliance on external services, ultimately leading to improved turnaround times and quality assurance.

Scenario 2: High Costs Associated with Concentricity Callouts

The Problem: B2B buyers often face escalating costs when implementing concentricity callouts, primarily due to the specialized measurement equipment and the time required for setup and analysis. These costs can be prohibitive, especially for small to medium enterprises that operate on tighter margins. As a result, some buyers may opt to forego necessary tolerances, risking product quality and functionality in critical applications.

The Solution: To mitigate these costs, buyers should explore alternative GD&T callouts that can achieve similar results with less complexity. For instance, using circular runout or total runout can often suffice while being easier and less expensive to measure. When designing components, buyers should engage in discussions with engineering teams to identify the most effective tolerance strategies that balance precision with cost-effectiveness. Additionally, investing in training for engineering and production staff on GD&T principles can lead to more informed decision-making, reducing the need for costly rework or adjustments later in the production process.

Scenario 3: Confusion Over Regulatory Standards and Compliance

The Problem: In the international B2B landscape, particularly among buyers in Africa, South America, and the Middle East, confusion regarding concentricity standards can create compliance issues. Different regions may adhere to varying GD&T standards, leading to misunderstandings and misalignments between buyers and suppliers. This can result in non-compliance with industry regulations, potential legal ramifications, and a loss of customer trust.

The Solution: To navigate this complexity, buyers should familiarize themselves with the GD&T standards relevant to their region and industry. Engaging with industry associations or consulting firms that specialize in GD&T can provide invaluable insights into regulatory requirements. When issuing purchase orders or contracts, buyers must clearly specify the expected standards and tolerance levels to avoid ambiguity. Establishing strong lines of communication with suppliers is also essential. Regularly reviewing compliance documentation and conducting audits can help ensure that all parties are aligned with the correct standards, fostering a transparent and trustworthy relationship that enhances product quality and market competitiveness.

Strategic Material Selection Guide for concentricity callout

What Materials Are Commonly Used for Concentricity Callouts?

When selecting materials for components that require concentricity callouts, several factors must be considered, including mechanical properties, manufacturing processes, and application environments. Below, we analyze four commonly used materials: Steel, Aluminum, Brass, and Polycarbonate.

How Does Steel Perform in Concentricity Applications?

Steel is renowned for its high strength and durability, making it an ideal choice for applications requiring precise concentricity, such as automotive and aerospace components. Key properties include excellent temperature and pressure ratings, withstanding high stress and fatigue. Steel’s corrosion resistance can be enhanced through coatings or alloying.

Pros: Steel offers superior durability and mechanical properties. It can be machined with high precision, making it suitable for complex geometries.

Cons: The cost of steel can vary significantly based on the grade and treatment. Additionally, manufacturing complexity increases with the need for heat treatment or surface finishing.

Impact on Application: Steel is compatible with various media, including fuels and lubricants, but may require protective coatings in corrosive environments.

Considerations for International Buyers: Compliance with standards such as ASTM or DIN is crucial. Buyers in regions like Europe may prefer specific grades of steel that meet stringent regulations.

What Are the Benefits of Using Aluminum for Concentricity?

Aluminum is lightweight and offers good corrosion resistance, making it suitable for applications where weight savings are critical. Its thermal and electrical conductivity are also beneficial in specific applications.

Pros: Aluminum is easier to machine than steel, allowing for faster production times and lower manufacturing costs. Its natural corrosion resistance reduces the need for additional coatings.

Cons: While aluminum has good strength, it is generally less durable than steel. It may not perform well under high-temperature applications without specific alloys.

Impact on Application: Aluminum components are often used in automotive and aerospace industries where weight and corrosion resistance are paramount.

Considerations for International Buyers: Buyers should be aware of the differences in aluminum grades and their corresponding standards, such as JIS in Japan or EN in Europe.

How Does Brass Compare for Concentricity Applications?

Brass, an alloy of copper and zinc, is often used in applications requiring good machinability and corrosion resistance. Its properties make it suitable for plumbing fittings and electrical connectors.

Pros: Brass is easy to machine and offers excellent corrosion resistance, especially in marine environments. It also has good thermal conductivity.

Cons: Brass can be more expensive than steel and aluminum, particularly for high-purity grades. Its strength is lower than that of steel, which may limit its use in high-stress applications.

Impact on Application: Brass is ideal for applications involving water or other fluids due to its corrosion resistance.

Considerations for International Buyers: Compliance with standards such as ASTM B16 or ISO 9001 is essential, especially for buyers in Europe and the Middle East.

What Role Does Polycarbonate Play in Concentricity Applications?

Polycarbonate is a thermoplastic material known for its impact resistance and transparency. It is often used in applications like safety goggles and electronic housings.

Pros: Polycarbonate is lightweight and offers excellent impact resistance, making it suitable for safety applications. It can be easily molded into complex shapes.

Cons: Its thermal stability is lower than metals, limiting its use in high-temperature applications. Polycarbonate also has lower stiffness compared to metals.

Impact on Application: Polycarbonate is suitable for applications requiring transparency and impact resistance, but it may not be ideal for high-stress environments.

Considerations for International Buyers: Buyers should consider compliance with materials regulations in their region, particularly regarding safety and environmental standards.

Summary of Material Selection for Concentricity Callouts

Material	Typical Use Case for concentricity callout	Key Advantage	Key Disadvantage/Limitation	Relative Cost (Low/Med/High)
Steel	Automotive and aerospace components	High strength and durability	Higher manufacturing complexity	Medium
Aluminum	Lightweight automotive and aerospace parts	Easy to machine and corrosion-resistant	Lower strength compared to steel	Medium
Brass	Plumbing fittings and electrical connectors	Excellent corrosion resistance	Higher cost and lower strength	High
Polycarbonate	Safety goggles and electronic housings	Lightweight and impact-resistant	Limited thermal stability	Medium

This analysis provides a comprehensive overview for B2B buyers looking to select the appropriate materials for components requiring concentricity callouts, ensuring informed decision-making based on performance, cost, and application suitability.

In-depth Look: Manufacturing Processes and Quality Assurance for concentricity callout

What Are the Key Stages in Manufacturing Processes for Concentricity Callout?

Manufacturing components that require a concentricity callout involves a multi-step process that ensures precision and quality. The main stages typically include material preparation, forming, assembly, and finishing.

How Does Material Preparation Impact Concentricity?

Material preparation is the foundational stage where the right materials are selected based on the desired mechanical properties. For concentric components, materials must demonstrate uniformity in density and minimal internal stress. This reduces the risk of warping during subsequent processes. Precision cutting techniques such as laser cutting or waterjet cutting are often employed to ensure that initial dimensions are as close to specifications as possible, setting the stage for accurate concentricity.

What Forming Techniques Are Commonly Used in Concentricity Manufacturing?

Forming is a critical stage where the material is shaped into the desired geometric features. Techniques like turning, milling, and grinding are commonly used to create cylindrical features essential for concentricity. CNC (Computer Numerical Control) machines are particularly beneficial, as they provide the high precision required to maintain tight tolerances. During this phase, continuous monitoring of the machine’s calibration is crucial, as even minor deviations can lead to significant concentricity issues.

How Is Assembly Managed to Ensure Concentricity?

In the assembly stage, components must be aligned accurately to maintain concentricity. This often involves the use of jigs and fixtures that are designed to hold parts in place during assembly, ensuring that they remain coaxial. In industries such as automotive or aerospace, where concentricity is paramount, specialized alignment tools may be employed to verify that the assembly meets the required specifications. This step is vital because even slight misalignments can result in performance issues, leading to failures in high-stress applications.

What Finishing Techniques Are Essential for Achieving Concentricity Tolerance?

Finishing processes, such as honing or polishing, play a crucial role in achieving the final tolerances required for concentricity. These processes not only refine the surface finish but also help in removing any minor imperfections that could affect the performance of the component. Advanced techniques like laser engraving or surface hardening may also be applied to enhance durability while ensuring that the concentricity specifications are met.

What Quality Control Measures Should Be Implemented for Concentricity?

Quality control (QC) is integral to the manufacturing of concentric components, particularly due to the complexity and precision required. Implementing a robust QC system ensures that products consistently meet specifications.

Which International Standards Are Relevant for QC in Concentricity?

International standards such as ISO 9001 provide a framework for quality management systems that can enhance product consistency. Additionally, industry-specific standards like CE for European markets or API for oil and gas applications set specific quality benchmarks that manufacturers must adhere to. Understanding these standards is essential for B2B buyers, as they dictate the quality assurance processes that suppliers must implement.

What QC Checkpoints Are Critical During Manufacturing?

Several checkpoints are essential in the QC process, including Incoming Quality Control (IQC), In-Process Quality Control (IPQC), and Final Quality Control (FQC).

• IQC involves inspecting raw materials to ensure they meet the required specifications before they enter the production line.
• IPQC monitors the manufacturing processes to catch any deviations early. This may include real-time measurements of features to ensure they are within the established tolerance zones.
• FQC is the final check before products are shipped, where finished components are evaluated against the specified requirements, including concentricity.

What Testing Methods Are Commonly Used for Verifying Concentricity?

Testing methods for concentricity often involve advanced measurement techniques. Coordinate Measuring Machines (CMM) are widely used, allowing for precise measurement of derived median points against the established tolerance zones. Other methods include using laser scanning technology or specialized concentricity gauges, though the latter may sometimes measure runout instead.

How Can B2B Buyers Verify Supplier Quality Control?

B2B buyers should adopt a multi-faceted approach to verify a supplier’s QC processes.

What Are the Best Practices for Conducting Supplier Audits?

Conducting regular audits is crucial. Buyers should request access to audit reports that detail the supplier’s compliance with international standards and their internal QC processes. During an audit, buyers can assess the supplier’s facilities, equipment, and quality management systems, ensuring they align with the expected standards for concentricity manufacturing.

How Important Are Third-Party Inspections in Ensuring Quality?

Utilizing third-party inspection services can provide an unbiased assessment of the supplier’s capabilities. These inspectors can verify that the supplier’s processes and outputs meet the required specifications, including concentricity tolerances. This is particularly important for international transactions, where differences in standards and practices can pose risks.

What Nuances Should International B2B Buyers Consider for Quality Control?

For B2B buyers from regions like Africa, South America, the Middle East, and Europe, understanding local regulations and standards is vital. Different countries may have specific requirements for quality certifications, which can affect the importation of components. For instance, buyers in Germany may prioritize suppliers with ISO certifications, while those in Saudi Arabia may focus on compliance with local oil and gas standards.

Additionally, cultural differences in business practices can impact communication and expectations around quality. Establishing clear communication channels and understanding the local context can greatly enhance the buyer-supplier relationship, ensuring that quality control measures are mutually understood and adhered to.

In summary, ensuring concentricity in manufactured components involves a comprehensive understanding of the manufacturing processes and quality control measures. By being informed and proactive, B2B buyers can effectively navigate the complexities of sourcing high-precision components in a global marketplace.

Practical Sourcing Guide: A Step-by-Step Checklist for ‘concentricity callout’

When sourcing components requiring a concentricity callout, it is essential to approach the process with a detailed understanding of the technical requirements and supplier capabilities. This checklist provides a systematic approach for B2B buyers, ensuring that you procure parts that meet your specific concentricity standards while minimizing risks associated with measurement complexities.

Step 1: Define Your Technical Specifications

Clearly outline the concentricity requirements for your project.
Understanding the exact tolerance levels and application of concentricity is crucial for ensuring that the sourced components meet operational needs. Consider factors such as the acceptable tolerance zone and the importance of mass distribution in your application, especially if high-speed rotation is involved.

Step 2: Research GD&T Standards

Familiarize yourself with the relevant GD&T standards.
Since concentricity is a complex geometric dimensioning and tolerancing (GD&T) concept, being well-versed in the applicable standards (e.g., ASME Y14.5) can help you articulate requirements effectively to suppliers. Understanding the nuances of concentricity versus other tolerances like circular runout will enable you to make informed decisions.

Step 3: Evaluate Potential Suppliers

Thoroughly vet potential suppliers for their expertise and capabilities.
Assessing suppliers is critical to ensure they can meet your concentricity requirements. Request company profiles, case studies, and references from previous clients, particularly those in similar industries or geographic regions. Check their experience with high-precision machining and GD&T applications to gauge their reliability.

Step 4: Request Sample Measurements

Ask for samples with documented concentricity measurements.
Before finalizing a supplier, request samples of their products along with measurement reports that demonstrate their ability to meet concentricity specifications. This practical evaluation helps verify the supplier’s capability and gives you confidence in their manufacturing processes.

Step 5: Verify Measurement Techniques

Ensure that suppliers utilize advanced measurement technologies.
Concentricity measurement is notoriously difficult; thus, confirm that your suppliers employ appropriate measurement techniques, such as Coordinate Measuring Machines (CMM) or computer-aided measurement systems. Effective measurement methodologies will directly impact the quality and reliability of the components you procure.

Step 6: Discuss Quality Assurance Processes

Engage in discussions about the supplier’s quality control protocols.
Understanding how a supplier maintains quality throughout the manufacturing process is vital. Inquire about their quality assurance practices, including how they monitor and control concentricity during production, to ensure that your components consistently meet specifications.

Step 7: Establish Clear Communication Channels

Set up effective communication with your chosen supplier.
Establishing open lines of communication is essential for addressing any concerns or adjustments needed throughout the sourcing process. Discuss how you will communicate specifications, changes, and feedback to facilitate a smooth collaboration.

By following this practical checklist, B2B buyers can effectively navigate the complexities of sourcing components with concentricity callouts, ensuring that they acquire parts that meet their precise requirements while fostering strong relationships with reliable suppliers.

Comprehensive Cost and Pricing Analysis for concentricity callout Sourcing

What Are the Key Cost Components for Sourcing Concentricity Callouts?

When evaluating the cost structure for sourcing concentricity callouts, several critical components come into play. These include materials, labor, manufacturing overhead, tooling, quality control (QC), logistics, and profit margins.

• Materials: The selection of high-quality materials is paramount, particularly for components subject to high-speed rotation. Metals like aluminum and steel are commonly used, with specific grades impacting the cost. Premium materials will incur higher prices but can lead to better performance and longevity.

• Labor: Skilled labor is necessary for the precise measurement and machining processes involved in achieving concentricity. The complexity of the measurement process, often requiring Computerized Numerical Control (CNC) machines and Coordinate Measuring Machines (CMM), contributes to increased labor costs.

• Manufacturing Overhead: This includes costs associated with the facilities, utilities, and equipment needed to produce concentricity callouts. Given the specialized nature of the work, overhead can be significant, particularly in regions with higher labor costs.

• Tooling: Tooling costs can vary based on the complexity of the part being manufactured. Custom tooling may be required for specific applications, adding to the upfront costs.

• Quality Control (QC): Given the precision required for concentricity, rigorous QC processes are essential. This may involve advanced measurement techniques and equipment, which can drive up costs.

• Logistics: Transportation costs are influenced by the distance between the supplier and the buyer, as well as the chosen Incoterms. Efficient logistics management can mitigate some of these costs, but international shipping can introduce variability due to customs and tariffs.

• Margin: Suppliers typically build a margin into their pricing to cover risks and ensure profitability. This margin can fluctuate based on market conditions and competition.

How Do Price Influencers Affect the Cost of Concentricity Callouts?

Numerous factors can influence the pricing of concentricity callouts, making it essential for buyers to understand these dynamics.

• Volume/MOQ (Minimum Order Quantity): Higher order volumes often lead to reduced per-unit costs due to economies of scale. Suppliers may offer discounts for bulk orders, making it economically advantageous for buyers to consolidate their purchases.

• Specifications and Customization: Customized parts that meet specific engineering requirements may incur additional costs. Standardized components, on the other hand, usually have lower prices due to established manufacturing processes.

• Materials and Quality Certifications: The choice of materials can significantly impact price. Additionally, suppliers offering certifications (such as ISO) may charge a premium for the assurance of quality and compliance with industry standards.

• Supplier Factors: The reputation and reliability of the supplier can influence pricing. Established suppliers with a proven track record may command higher prices, but they can also offer superior quality and service.

• Incoterms: The chosen Incoterms affect the responsibilities of buyers and sellers in the transportation and delivery process, impacting overall costs. Understanding these terms can aid in negotiating better shipping arrangements.

What Are the Best Tips for Negotiating Costs Effectively?

To optimize sourcing costs for concentricity callouts, buyers should consider several strategies:

• Negotiate Terms: Engage suppliers in discussions about pricing, payment terms, and delivery schedules. Flexibility on both sides can lead to mutually beneficial agreements.

• Focus on Total Cost of Ownership (TCO): Evaluate not just the purchase price but also the long-term costs associated with maintenance, potential failures, and lifecycle costs. A lower initial price may not always translate to overall savings.

• Understand Pricing Nuances for International Purchases: Different regions have varying cost structures influenced by labor rates, material availability, and regulatory environments. Buyers from Africa, South America, the Middle East, and Europe should research local market conditions to inform negotiations.

• Leverage Volume for Better Pricing: Consider consolidating orders or collaborating with other businesses to achieve higher order volumes, thus securing better pricing from suppliers.

Disclaimer on Indicative Prices

Pricing for concentricity callouts can vary widely based on the factors discussed. It is advisable for buyers to request quotes from multiple suppliers to gain a comprehensive understanding of market rates and to factor in all associated costs for a more accurate budget assessment.

Alternatives Analysis: Comparing concentricity callout With Other Solutions

Exploring Alternatives to Concentricity Callout in Geometric Dimensioning and Tolerancing

In the realm of Geometric Dimensioning and Tolerancing (GD&T), concentricity callouts are often complex and challenging to measure. B2B buyers looking for precision in manufacturing may find it beneficial to explore alternative solutions that can achieve similar results with potentially less complexity and cost. Below, we compare concentricity callouts against two viable alternatives: Circular Runout and True Position.

Comparison Aspect	Concentricity Callout	Circular Runout	True Position
Performance	High precision for uniform mass distribution	Good for surface irregularities; controls circularity and concentricity	Excellent for location accuracy; versatile
Cost	High due to complex measurement processes	Lower; simpler measurement tools available	Moderate; requires specific tools
Ease of Implementation	Difficult; requires specialized equipment (CMM)	Easy; can use basic tools like dial indicators	Moderate; requires knowledge of datums
Maintenance	High; ongoing calibration of measurement systems	Low; standard tools require minimal upkeep	Moderate; depends on tooling and training
Best Use Case	High-speed rotating components needing exact mass distribution	Parts where surface consistency is critical	General applications needing precise location

Understanding Circular Runout as an Alternative

Circular runout measures the actual surface of a part against a tolerance zone. It’s relatively easy to measure using simple tools such as a dial indicator and a V-block. This method provides reliable results for ensuring that parts do not deviate from their intended shape while allowing for variations in mass distribution.

However, circular runout does not specifically address the mass distribution around an axis as concentricity does. While it can indirectly control concentricity when the surface is perfectly circular, it is not as precise for applications where balanced mass is critical, such as high-speed rotating components.

Evaluating True Position as an Alternative

True position is another GD&T callout that focuses on the exact location of a feature relative to a datum. It allows for a more flexible tolerance zone that can accommodate variations in both position and orientation. True position is particularly advantageous in assemblies where parts need to fit together accurately, making it a versatile option across various applications.

The downside to true position is that it can sometimes be less intuitive to apply than concentricity or runout, especially for those new to GD&T. Furthermore, it requires a good understanding of the datum reference system to ensure accurate measurements and tolerances.

Making the Right Choice for Your Business

When deciding between concentricity callouts and its alternatives, B2B buyers should assess their specific application needs. If precision in mass distribution is paramount, concentricity may be necessary despite its complexity. However, for many applications, circular runout or true position can provide adequate performance with greater ease of measurement and lower costs.

Ultimately, the choice should be guided by the specific requirements of the components being manufactured, the production capabilities of the business, and the expertise available for measurement and quality control. This strategic approach will ensure that buyers select the most effective and efficient GD&T method for their operations.

Essential Technical Properties and Trade Terminology for concentricity callout

What Are the Key Technical Properties of Concentricity Callout?

Concentricity callouts play a critical role in ensuring that cylindrical features are accurately aligned along a common axis. Understanding the essential technical properties associated with concentricity is crucial for international B2B buyers in various industries, including manufacturing and engineering. Here are some of the most important specifications:

1. Tolerance Value
   Tolerance refers to the permissible limit of variation in a physical dimension. For concentricity, this is defined as the diameter of the cylindrical tolerance zone within which the derived median points must lie. Understanding tolerance is vital as it directly impacts product performance, quality, and compliance with industry standards. A tighter tolerance may be necessary for high-speed rotating parts to minimize vibrations and wear.

2. Material Grade
   The material grade of a component affects its mechanical properties, including strength, ductility, and machinability. For parts that require concentricity, materials with high tensile strength and fatigue resistance are often preferred. This ensures that the part can withstand operational stresses, particularly in applications like automotive or aerospace, where precision is paramount.

3. Datum Reference
   A datum is a reference point, line, or surface from which measurements are made. In concentricity callouts, the datum axis is crucial as it serves as the baseline for establishing the tolerance zone. Understanding the datum reference is essential for accurate measurements and ensures that all derived median points are consistently evaluated against the same standard.

4. Measurement Methodology
   The method used to measure concentricity is typically sophisticated and often requires Coordinate Measuring Machines (CMMs). This complexity can lead to increased costs and time in production. Buyers must be aware of the measurement methodologies to assess the reliability of the manufacturing process and the potential for defects.

5. Runout Control
   Runout is closely related to concentricity and refers to the total variation of a surface as it rotates. Understanding the relationship between runout and concentricity is essential for buyers, as controlling runout can often replace the need for a concentricity callout, simplifying the manufacturing process and reducing costs.

6. Application Context
   The context in which concentricity is applied can significantly influence its specifications. For instance, in high-speed rotating machinery, maintaining concentricity is crucial to avoid oscillations that may lead to failure. Buyers should consider the specific applications of the components they are procuring to ensure they meet the necessary concentricity requirements.

What Common Trade Terms Should B2B Buyers Know Regarding Concentricity Callout?

Understanding industry terminology is crucial for effective communication and decision-making in B2B environments. Here are several key terms that relate to concentricity and its implications in trade:

1. OEM (Original Equipment Manufacturer)
   OEMs are companies that produce parts or equipment that may be marketed by another manufacturer. Knowing if a supplier is an OEM can assure buyers of the quality and compatibility of the components with existing systems.

2. MOQ (Minimum Order Quantity)
   MOQ refers to the smallest quantity of a product that a supplier is willing to sell. Understanding MOQs is essential for budget planning and inventory management, especially when dealing with precision components that require specific tolerances.

3. RFQ (Request for Quotation)
   An RFQ is a document sent to suppliers requesting pricing and terms for specific products or services. For components requiring concentricity, providing detailed specifications in an RFQ can lead to more accurate quotes and ensure that all necessary tolerances are understood.

4. Incoterms (International Commercial Terms)
   Incoterms are a set of rules that define the responsibilities of sellers and buyers in international transactions. Familiarity with Incoterms is critical for B2B buyers to understand shipping responsibilities, risk transfer, and cost allocation, particularly when importing precision-engineered parts.

5. CMM (Coordinate Measuring Machine)
   A CMM is a device used to measure the physical geometrical characteristics of an object. Understanding the role of CMMs in measuring concentricity can help buyers appreciate the complexity and precision involved in manufacturing processes.

6. Tolerance Stack-Up
   This term refers to the cumulative effect of individual tolerances in a mechanical assembly. Being aware of tolerance stack-up is important for ensuring that all components work together effectively, particularly when concentricity is a critical requirement.

By familiarizing themselves with these technical properties and trade terms, B2B buyers can make informed decisions and ensure that the products they procure meet the necessary specifications for their applications.

Navigating Market Dynamics and Sourcing Trends in the concentricity callout Sector

Market Overview & Key Trends in the Concentricity Callout Sector

The concentricity callout sector is currently influenced by several global drivers, including the increasing demand for precision engineering and the proliferation of advanced manufacturing technologies. Industries such as automotive, aerospace, and medical devices are prioritizing high-tolerance components to enhance performance and safety. For international B2B buyers, particularly in regions like Africa, South America, the Middle East, and Europe, understanding these trends is crucial for sourcing decisions.

Emerging technologies, such as additive manufacturing and automation, are reshaping how concentricity is achieved and measured. Companies are increasingly adopting Computer Numerical Control (CNC) machining and Coordinate Measuring Machines (CMM) to ensure stringent tolerance requirements are met. Additionally, the integration of Industry 4.0 principles is facilitating real-time monitoring of manufacturing processes, allowing for immediate adjustments that can enhance concentricity without compromising production efficiency.

In terms of market dynamics, global supply chain fluctuations have prompted buyers to consider localized sourcing options to mitigate risks associated with international logistics. This shift is particularly relevant in regions like Saudi Arabia and Germany, where there is a growing emphasis on regional suppliers who can provide both quality and reliability. Moreover, as industries strive for sustainability, the demand for materials and processes that adhere to environmental standards is rising, which further influences sourcing strategies in the concentricity callout sector.

How Can Sustainability & Ethical Sourcing Impact the Concentricity Callout Sector?

Sustainability and ethical sourcing are becoming increasingly vital in the concentricity callout sector. As global awareness of environmental impacts grows, B2B buyers are prioritizing suppliers who demonstrate a commitment to sustainable practices. The production of components with concentricity callouts can have significant environmental implications, particularly regarding material waste and energy consumption during manufacturing.

Buyers should consider suppliers who adhere to recognized environmental certifications, such as ISO 14001, which ensures that organizations are meeting environmental management standards. Additionally, the use of ‘green’ materials—such as recycled metals or sustainably sourced alloys—can not only minimize environmental impact but also enhance a company’s brand reputation in a competitive market.

Ethical supply chains are equally important, as businesses face increasing scrutiny over labor practices and sourcing methods. Ensuring that suppliers uphold ethical standards in their operations can mitigate risks related to compliance and brand image. By focusing on sustainability and ethics, international B2B buyers can not only contribute to a healthier planet but also align their procurement strategies with evolving consumer expectations and regulatory requirements.

What is the Brief Evolution/History of Concentricity Callouts in B2B?

The concept of concentricity in geometric dimensioning and tolerancing (GD&T) has evolved significantly since its inception. Initially defined to ensure that cylindrical features are aligned around a common axis, concentricity has been a critical factor in high-precision industries. However, with the introduction of the 2018 ASME Y14.5 standard, concentricity was removed as a standalone callout, reflecting a shift towards more practical and easily measurable alternatives like circular runout and total runout.

This evolution highlights a broader trend in manufacturing towards simplified measurement processes and better efficiency. As technology advances, the focus has shifted from complex tolerancing methods to more user-friendly approaches that achieve the same objectives, thereby streamlining the design and manufacturing processes. For B2B buyers, this historical context underscores the importance of staying updated with industry standards and best practices to ensure competitive advantage.

Frequently Asked Questions (FAQs) for B2B Buyers of concentricity callout

1. How do I solve measurement challenges with concentricity callouts?
   To address measurement challenges with concentricity callouts, ensure you have access to advanced measurement tools such as Coordinate Measuring Machines (CMM) or laser scanning technology. These tools can accurately establish the datum axis and calculate the derived median points from multiple cross-sectional measurements. Additionally, train your measurement personnel on the specific techniques required to gather and analyze these data points effectively. Consistency in measurement procedures and regular calibration of equipment will also enhance reliability.

2. What is the best tolerance specification for cylindrical parts requiring concentricity?
   For cylindrical parts where concentricity is critical, the best tolerance specification often depends on the application requirements. While concentricity is necessary for high-precision applications such as aerospace and automotive components, consider using simpler alternatives like circular runout or total runout when applicable. These alternatives can often provide adequate performance while being easier to measure and verify. Always evaluate the specific operational conditions, such as rotational speed and load, to determine the most suitable tolerance.

3. How can I ensure the quality of concentricity callouts from suppliers?
   To ensure the quality of concentricity callouts from suppliers, implement a robust supplier evaluation process. This includes assessing their adherence to international standards such as ISO or ASME Y14.5, reviewing their quality control processes, and requesting samples for inspection. Additionally, consider conducting audits of their facilities or utilizing third-party inspection services to verify their capabilities. Establish clear communication regarding your quality expectations and engage in regular follow-ups to maintain standards throughout the production process.

4. What are common payment terms for sourcing concentricity callouts internationally?
   Payment terms for sourcing concentricity callouts can vary widely based on the supplier’s location, order size, and relationship with the buyer. Common terms include advance payment, payment upon delivery, or net 30/60 days post-invoice. It’s essential to negotiate terms that provide sufficient protection for both parties, considering factors like currency fluctuations and import duties. Utilizing secure payment methods such as letters of credit can also mitigate risks associated with international transactions.

5. What is the minimum order quantity (MOQ) for concentricity callouts from suppliers?
   Minimum order quantities (MOQs) for concentricity callouts can vary significantly among suppliers, often influenced by production capabilities and material costs. Typically, MOQs can range from a few dozen to several hundred units. When negotiating with suppliers, inquire about flexibility in MOQs, especially if you are testing new designs or entering a new market. Establishing a partnership can also help secure more favorable terms regarding MOQs, allowing for smaller initial orders as you gauge demand.

6. How do I vet suppliers for concentricity callouts in international markets?
   Vetting suppliers for concentricity callouts in international markets involves several key steps. Start by researching the supplier’s reputation through industry reviews and certifications. Request references from previous clients to assess their reliability and quality of work. Additionally, review their production processes, quality assurance measures, and technology used for measurement. Engaging in direct communication can provide insight into their responsiveness and willingness to meet your specific needs.

7. What logistical considerations should I be aware of when sourcing concentricity callouts?
   When sourcing concentricity callouts, consider logistical factors such as shipping methods, lead times, and customs regulations. Choose shipping options that balance speed and cost-effectiveness, keeping in mind that precision parts may require careful handling to avoid damage. Be aware of import duties and taxes specific to your region, as these can impact overall costs. Collaborating with experienced logistics partners can streamline the process and ensure timely delivery of your components.

8. What customization options are available for concentricity callouts?
   Customization options for concentricity callouts can include tailored tolerance specifications, materials used, and surface finishes to meet specific application needs. Discuss your project requirements with potential suppliers to explore how they can adapt their manufacturing processes to accommodate unique specifications. Many suppliers also offer design assistance, which can help optimize the part for performance while adhering to concentricity requirements. Engaging in early discussions about customization can lead to better alignment with your project goals.

Important Disclaimer & Terms of Use

Top 9 Concentricity Callout Manufacturers & Suppliers List

Strategic Sourcing Conclusion and Outlook for concentricity callout

In the realm of precision engineering, the concentricity callout remains a critical consideration for international B2B buyers, especially in industries where high-speed rotation and uniform mass distribution are paramount. Understanding the intricacies of concentricity—along with its measurement challenges—can provide significant advantages in sourcing and manufacturing processes. Key takeaways include the importance of evaluating whether concentricity is essential for your application, as simpler alternatives like circular runout and true position may suffice while being easier to measure and implement.

Strategic sourcing of components that meet these tolerances ensures not only compliance with stringent quality standards but also enhances operational efficiency. For buyers in Africa, South America, the Middle East, and Europe, investing time in understanding and applying GD&T principles can lead to better supplier partnerships and optimized production lines.

As we look ahead, it is essential to stay informed about evolving manufacturing technologies and standards. By prioritizing education and collaboration with suppliers who understand the nuances of concentricity, businesses can position themselves for success in an increasingly competitive landscape. Engage with your suppliers today to explore how these insights can transform your sourcing strategy and drive innovation in your operations.
