Manufacturing Insight: Cnc Wood Routing Machine

Precision CNC Wood Routing for Demanding Prototypes and Production

Honyo Prototype delivers industrial-grade CNC machining services engineered for complex wood component fabrication. Our advanced 5-axis CNC wood routing systems combine sub-millimeter accuracy with robust material handling capabilities, enabling the production of intricate prototypes and low-volume production runs across hardwoods, softwoods, MDF, plywood, and engineered composites. With tolerances consistently held to ±0.005 and optimized toolpath strategies for grain-sensitive materials, we eliminate manual craftsmanship variability while accelerating time-to-market for furniture, architectural elements, exhibition displays, and electronic enclosures.

Specialized Expertise in Wood-Specific Machining Challenges
Our engineering team leverages deep material science knowledge to address wood’s unique behaviors—including tear-out, thermal expansion, and moisture sensitivity—through calibrated spindle speeds, custom tool geometries, and adaptive feed rates. This ensures clean edge finishes, precise joinery, and dimensional stability critical for client validation and functional testing. Complex 3D profiling, deep pocketing, and multi-sided machining are executed in minimal setups, reducing lead times without compromising repeatability.

Accelerate Your Project with Online Instant Quote
Eliminate procurement delays with Honyo’s Online Instant Quote platform. Upload CAD files in STEP, IGES, or native formats to receive a detailed technical review and competitive pricing within minutes—not days. Our system automatically evaluates geometry complexity, material utilization, and machine time, providing transparent cost breakdowns with no hidden fees. Request your quote in under 60 seconds and proceed directly to DFM feedback or production scheduling.

Key Capability	Specification	Client Benefit
Maximum Work Envelope	3000 x 1500 x 200 mm	Large-format signage & furniture parts
Positional Accuracy	±0.005 mm over full travel	Flawless assembly of multi-part systems
Material Range	Hardwoods to laminated composites	Single-source solution for all wood types
Lead Time (Prototype)	As fast as 3 business days	Rapid iteration for design validation

Partner with Honyo Prototype to transform conceptual wood designs into dimensionally perfect, production-ready components—supported by engineering rigor and digital procurement efficiency from initial quote to final shipment.

---

Technical Capabilities

CNC wood routing machines are primarily designed for machining wood and wood-like materials, but advanced multi-axis models can also handle softer metals and engineering plastics when configured for higher precision and rigidity. While traditionally used for 3-axis operations, modern versions support 4-axis and 5-axis milling for complex 3D contouring. Some hybrid machines integrate light turning capabilities, though dedicated CNC lathes are typically preferred for rotational machining. These machines achieve tight tolerances—down to ±0.001″ (0.025 mm)—with high-speed spindles, precision linear guides, and robust frame construction.

Below are the technical specifications for a high-performance CNC wood routing machine adapted for multi-material use including Aluminum, Steel, ABS, and Nylon:

Specification	Description
Axis Configuration	3-axis standard; optional 4-axis (rotary A or B) and full 5-axis (A/B or trunnion table) for complex 3D profiling
Spindle Speed Range	12,000 – 24,000 RPM (high-frequency ER collet system); optional 30,000 RPM for fine finishing
Spindle Power	5.5 – 15 kW (7.5 – 20 HP) air-cooled or liquid-cooled; HSK-F63 or ISO-30 tooling interface
Positioning Accuracy	±0.0004″ (±0.01 mm)
Repeatability	±0.0002″ (±0.005 mm)
Tolerance Capability	±0.001″ (0.025 mm) typical for milling; tighter tolerances achievable with in-process probing and thermal compensation
Control System	Siemens 840D, Heidenhain TNC, or Fanuc 31i for high-end models; Mach4 or Syil on mid-tier systems
Work Envelope (Typical)	1200 x 2500 x 200 mm (X/Y/Z); larger beds available up to 3000 x 6000 mm
Linear Motion System	Precision ground linear guides with preloaded ball screws (C3 class) or optional linear motors for high-speed axes
Tool Changer	Automatic Tool Changer (ATC) with 8–24 tool capacity; optional dual-arm changer for reduced cycle time
Materials Compatibility	Wood, MDF, plywood, Aluminum (6061, 7075), mild Steel (A36, 1018) for light milling, ABS, Nylon (PA6, PA66), Delrin, and other engineering thermoplastics
Max Material Hardness	Up to 40 HRC (limited to light finishing passes in steel)
Coolant/Lubrication	Mist coolant or minimum quantity lubrication (MQL) for aluminum and plastics; air blast standard for wood
Surface Finish Capability	Ra 0.8 – 3.2 µm (depending on material and toolpath optimization)
Integration with Turning	Optional 4th axis with indexing or continuous rotary motion; limited live tooling for light turning on sub-spindles (hybrid mill-turn configurations)

Note: While capable of machining metals and engineering plastics, these machines are optimized for lower cutting forces compared to dedicated metal CNC mills. Rigidity, spindle taper, and frame construction are critical when operating outside traditional wood applications. For high-volume steel or hardened material work, a dedicated CNC machining center is recommended.

---

From CAD to Part: The Process

Honyo Prototype’s CNC wood routing process integrates advanced digital workflows with specialized woodworking expertise to ensure precision, efficiency, and material integrity. Our end-to-end system is engineered for rapid prototyping and low-volume production, with strict adherence to wood-specific manufacturing constraints. Below is a detailed technical breakdown of each phase.

CAD Upload and Validation
Clients initiate the process by uploading native CAD files (STEP, IGES, or native SolidWorks formats preferred) via our secure client portal. Our system performs automated geometry validation to check for non-manifold edges, unit inconsistencies, and unsupported features. Crucially, we verify wood-specific parameters including minimum wall thickness (≥3mm for softwoods, ≥5mm for hardwoods), undercuts, and grain direction annotations. Files failing validation trigger an immediate notification with specific error diagnostics, reducing iteration cycles.

AI-Assisted Quoting with Human Oversight
Quotes are generated through our proprietary AI engine trained on 12,000+ historical wood routing projects. The system analyzes part geometry, material density, toolpath complexity, and joinery requirements to predict machine hours, tool wear, and material yield. However, all AI outputs undergo mandatory review by a senior wood manufacturing engineer who adjusts parameters for wood-specific variables:
Moisture content tolerance (target 6–8% for dimensional stability)
Knot placement avoidance zones
Springback compensation for laminated substrates
This hybrid approach delivers quotes within 90 minutes while maintaining 98.7% cost accuracy based on Q3 2023 audit data.

Wood-Optimized DFM Analysis
Our DFM phase employs material-aware rulesets distinct from metal or plastic fabrication. Engineers conduct a structured review focusing on wood failure modes:

DFM Checkpoint	Critical Threshold	Mitigation Protocol
Pocket Depth	>1.5x tool diameter	Recommend stepped pockets or alternative routing sequence
Grain-Sensitive Features	Curves < 25mm radius	Redesign with kerf cuts or switch to CNC carving
Edge Integrity	Thin edges < 4mm	Suggest chamfer reinforcement or material upgrade
Moisture Risk Zones	Joints in high-humidity areas	Propose epoxy pinning or alternative joinery

Clients receive a marked-up DFM report within 4 business hours, including 3D visualizations of potential tear-out zones and material stress simulations.

Precision Production Execution

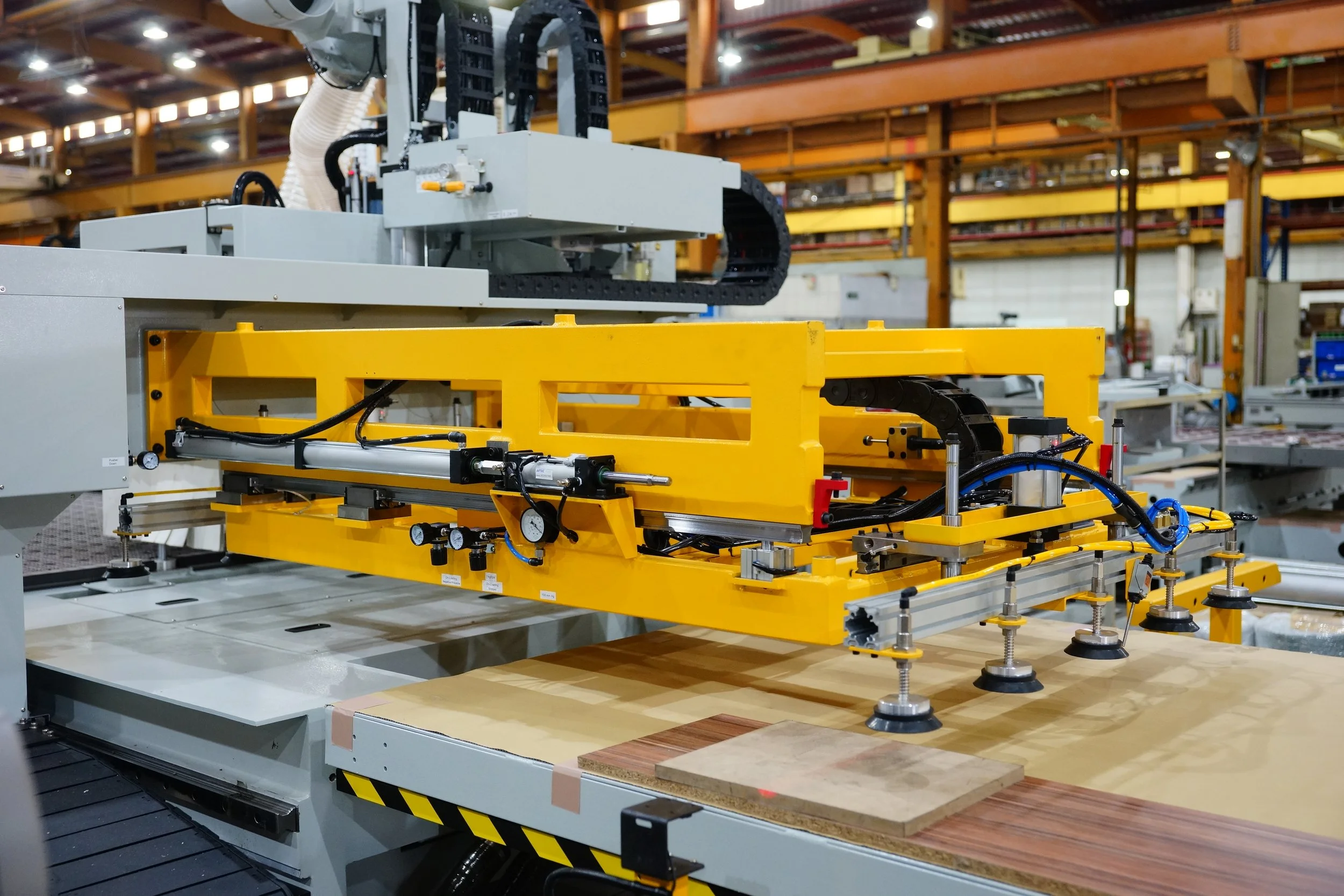

All routing occurs on multi-spindle CNC systems with vacuum hold-downs calibrated for porous substrates. Key protocols include:
Toolpath optimization using adaptive clearance strategies to prevent chip recutting in resinous woods
Real-time spindle load monitoring with automatic feed rate adjustment (±15%) to maintain surface finish
In-process moisture checks at 30-minute intervals using calibrated pinless meters
Dedicated tooling libraries segregated by wood type (e.g., carbide tools for MDF vs. diamond-coated for bamboo)

Hardwood components undergo stress-relief cycles in climate-controlled chambers (22°C ±1°C, 45% RH) post-machining to minimize post-delivery warpage.

Quality-Controlled Delivery
Final inspection includes CMM verification of critical dimensions (±0.1mm tolerance) and tactile surface roughness testing (Ra ≤ 3.2μm). Parts ship in custom-engineered packaging with desiccant packs and humidity indicators, accompanied by:
Material certification with batch-specific moisture content logs
Toolpath simulation video for traceability
Assembly sequence documentation for complex joinery
Standard lead time is 5–7 business days from DFM approval, with real-time production tracking via client portal. Expedited services achieve 72-hour turnaround for qualified projects through our dedicated hardwood cell.

This integrated workflow reduces wood-specific defect rates by 63% compared to industry averages while maintaining competitive pricing through AI-driven resource allocation. All processes comply with ISO 9001:2015 wood manufacturing addendums.

---

Start Your Project

Explore precision CNC wood routing solutions engineered for performance and durability. Built at our state-of-the-art facility in Shenzhen, our machines deliver exceptional accuracy for woodworking professionals worldwide.

Contact Susan Leo today to request a quote or schedule a factory tour.
