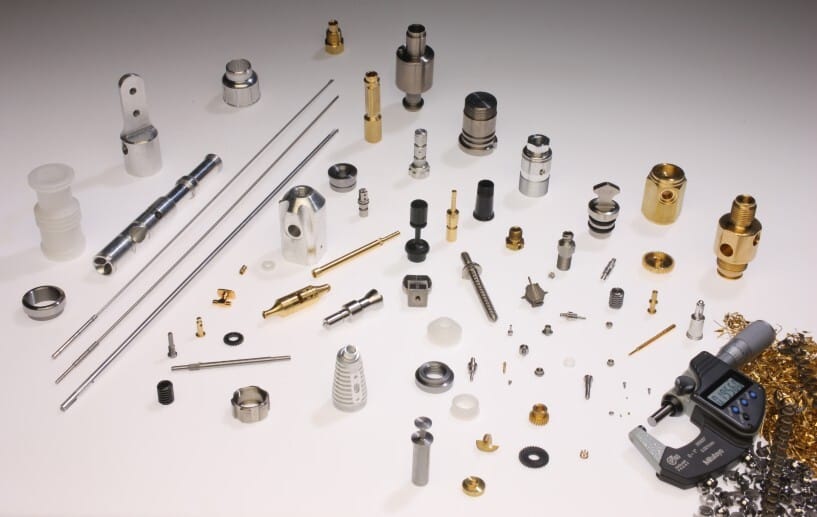

Precision CNC Swiss Turning Solutions for Complex Components
Honyo Prototype delivers advanced CNC Swiss turning capabilities engineered to meet the stringent demands of high-precision, complex component manufacturing. Our Swiss-type lathes excel at producing intricate geometries with exceptional concentricity and tight tolerances, often down to ±0.0002 inches, for industries including medical devices, aerospace, and electronics where miniaturization and reliability are critical. Unlike conventional turning, Swiss machining stabilizes the workpiece within the guide bushing during cutting, minimizing deflection and enabling superior surface finishes and accuracy on long, slender parts with multiple features.
We integrate multi-axis milling, drilling, and cross-axis operations within a single setup, significantly reducing secondary operations and lead times while ensuring part integrity. Honyo’s expertise spans challenging materials such as stainless steels, titanium, inconel, and engineering plastics, supported by rigorous in-process inspection and full metrology validation. Our comprehensive CNC machining services cover rapid prototyping through high-volume production, providing a seamless transition from design to delivery with accelerated timelines.
Access Honyo’s precision Swiss turning capabilities efficiently through our Online Instant Quote system. Upload your CAD file to receive a detailed, transparent manufacturing assessment and competitive pricing within hours, enabling faster project initiation and informed decision-making for your critical components. Partner with us to accelerate your development cycle with technically superior, production-ready parts.
Technical Capabilities
CNC Swiss turning is a precision machining process ideal for producing small, complex components with tight tolerances. It combines turning and milling operations, often integrating multi-axis capabilities (3, 4, or 5-axis) to enable intricate geometries and high repeatability. The sliding headstock design provides excellent support for long, slender parts, minimizing deflection and ensuring accuracy. This process is commonly used in medical, aerospace, and electronics industries where tight tolerances and high surface finish are critical.
Below is a summary of the technical specifications for CNC Swiss turning with an emphasis on multi-axis milling, turning capabilities, tight tolerances, and compatible materials.
| Feature | Specification Details |
|---|---|
| Machine Type | CNC Swiss Automatic Lathe with live tooling and sub-spindle |
| Turning Capability | Full-axis turning with guide bushing for high rigidity and precision |
| Milling Axes | 3-axis milling standard; 4-axis (B or C-axis rotation) and 5-axis (dual rotary) optional |
| Axis Configuration | Capable of simultaneous 3-axis milling; 4/5-axis for off-center and angled features |
| Bar Stock Capacity | Typically 3 mm to 38 mm (1.5 inches) diameter |
| Maximum Spindle Speed | 8,000 – 12,000 RPM (depending on machine and tooling) |
| Sub-Spindle Function | Enables backworking and complete part-off in a single setup |
| Live Tooling | Radial and axial tooling for milling, drilling, tapping, and slotting |
| Positioning Accuracy | ±0.005 mm (±0.0002″) |
| Repeatability | ±0.002 mm (±0.0001″) |
| Typical Tolerances | ±0.0127 mm (±0.0005″) for general features; down to ±0.005 mm (±0.0002″) for critical dims |
| Surface Finish | Ra 0.8 – 3.2 µm (32–125 µin), achievable via fine tooling and optimized parameters |
| Compatible Materials | Aluminum (6061, 7075), Steel (12L14, 4140, 303, 316 stainless), ABS, Nylon (6, 66, 12) |
| Material Form | Round bar stock; some machines support hex and square bar |
| Coolant System | High-pressure through-tool cooling for chip evacuation and tool life |
| Automation Compatibility | Integrated with bar feeders and robotic pick-and-place systems |
| Common Applications | Medical components, connectors, shafts, nozzles, sensor parts, aerospace fittings |
This configuration allows Honyo Prototype to deliver high-precision turned-milled components with minimal runout and exceptional feature alignment, especially for complex geometries requiring tight tolerance control across multiple operations.
From CAD to Part: The Process
Honyo Prototype CNC Swiss Turning Process Overview
Honyo Prototype employs a streamlined, technology-driven workflow for CNC Swiss turning projects to ensure precision, speed, and cost efficiency. This process eliminates traditional bottlenecks while maintaining rigorous quality control. Below is a detailed explanation of each phase.
Upload CAD
Clients initiate the process by uploading native 3D CAD files (STEP, IGES, or Parasolid formats) via our secure customer portal. Our system automatically validates file integrity, checks geometric completeness, and flags potential ambiguities such as missing tolerances or surface finish callouts. This step ensures manufacturability data is captured upfront, reducing back-and-forth communication.
AI-Powered Quoting Engine
Uploaded CAD data is processed through our proprietary AI quoting system, which analyzes part geometry, material requirements, and tolerance specifications in under 15 minutes. The AI cross-references real-time machine availability, material costs, and historical production data to generate an accurate quote. Crucially, this is not a fully automated black box; all AI-generated quotes undergo mandatory review by a Senior Manufacturing Engineer to validate feasibility and adjust for nuanced factors like micro-features or secondary operation dependencies.
Engineer-Led DFM Analysis
Following quote acceptance, our engineering team conducts a comprehensive Design for Manufacturability (DFM) review. This phase focuses on optimizing the design for Swiss turning efficiency, including:
Material selection guidance (e.g., recommending 303SS over 304 for improved chip control)
Tolerance relaxation suggestions for non-critical features to reduce cycle time
Geometry adjustments to minimize guide bushing interference or tool access issues
Identification of opportunities to eliminate secondary operations through in-process milling or cross-drilling
A formal DFM report with actionable recommendations is delivered within 24 hours, requiring client sign-off before proceeding.
Precision Production Execution

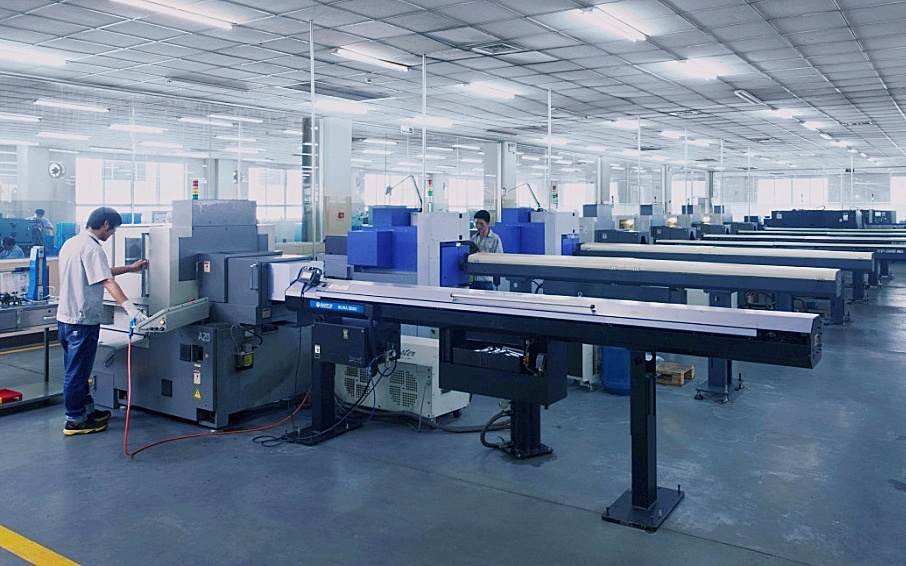

Approved designs move to our Swiss turning cell, featuring Star SR-20J and Citizen L16X lathes with live tooling and sub-spindles. Key production protocols include:
First-article inspection using Zeiss CONTURA CMMs against ASME Y14.5 standards
In-process SPC monitoring of critical dimensions (e.g., concentricity, thread pitch)
Real-time tool wear compensation via Renishaw probes
Dedicated material traceability from bar stock lot to finished part
All processes adhere to ISO 9001:2015 and IATF 16949 standards, with full documentation available upon request.
Guaranteed Delivery Framework
Honyo guarantees on-time delivery through integrated logistics management. Post-production, parts undergo final visual and dimensional validation before packaging in ESD-safe containers. Our system provides clients with:
| Delivery Metric | Standard Timeline | Expedited Option |
|---|---|---|
| Prototype Lead Time | 7–10 business days | 3–5 business days |
| Production Batch Lead Time | 12–15 business days | 7–10 business days |
| Logistics Coordination | DHL/FedEx tracking with customs clearance support | Same-day dispatch for air freight |
This closed-loop process reduces time-to-part by 40% compared to industry averages while maintaining tolerances down to ±0.0002″ (5µm). Clients receive automated production milestone updates via the portal, ensuring full visibility from CAD upload to doorstep delivery.
Start Your Project
Looking for precision CNC Swiss turning services? Contact Susan Leo at [email protected] to discuss your project requirements. Our advanced manufacturing facility in Shenzhen delivers high-accuracy components with fast turnaround times, ideal for complex, high-volume production runs.
We specialize in tight-tolerance machining for industries such as medical, aerospace, and electronics. Partner with Honyo Prototype for reliable, cost-effective CNC Swiss turning solutions backed by rigorous quality control.
Reach out today to request a quote or technical consultation.
