Manufacturing Insight: Cnc Stone Engraving Machine
Honyo Prototype delivers precision CNC stone engraving solutions for demanding industrial and architectural applications where durability and exacting detail are non-negotiable. Our specialized CNC stone engraving machines, operated by experienced manufacturing engineers, conquer the unique challenges of granite, marble, limestone, and engineered stone, producing crisp, permanent markings for signage, memorials, dimensional stone components, and intricate decorative elements. Leveraging advanced multi-axis control and optimized toolpath strategies, we ensure exceptional surface finish and dimensional accuracy on even the most complex geometries, transforming your digital designs into high-fidelity physical results with consistent repeatability. As a trusted partner for end-to-end CNC machining services, Honyo integrates material expertise, rigorous quality control, and efficient production planning to meet your project specifications and timelines. Accelerate your prototyping or production schedule by accessing our Online Instant Quote system for rapid, transparent pricing on stone engraving and comprehensive CNC machining projects.
Technical Capabilities
CNC stone engraving machines are precision engineering systems designed for detailed material removal and surface finishing on hard substrates such as granite, marble, and engineered stone. While primarily built for stone, advanced multi-axis models can also process metals and engineering plastics with tight tolerances when equipped with appropriate spindles, tooling, and control systems. These machines support 3-axis, 4-axis, and 5-axis configurations, enabling complex 3D contouring, deep relief carving, and high-precision engraving.
The integration of high-torque spindles, rigid gantry structures, and precision linear guides allows these machines to maintain accuracy across diverse materials including aluminum, steel, ABS, and nylon—particularly when adapted for hybrid or multi-material workshops. Closed-loop servo or linear motor drives ensure positional repeatability, while advanced CNC controls (e.g., Siemens, Fanuc, or proprietary DSP systems) support complex toolpath interpolation for tight-tolerance applications.
Below are the technical specifications relevant to high-performance CNC stone engraving machines capable of multi-axis milling, turning (with indexing or continuous rotary axis), and precision work across the specified materials.
| Parameter | Specification |
|---|---|
| Axes Configuration | 3-axis (X, Y, Z), 4-axis (with A or B rotary axis), 5-axis (dual rotary: A/B or B/C) |
| Travel Range (Typical) | X: 1000–3000 mm, Y: 800–2000 mm, Z: 300–600 mm (custom sizes available) |
| Spindle Power | 5.5–15 kW air-cooled or water-cooled high-frequency spindle |
| Spindle Speed Range | 6,000–24,000 RPM (variable frequency drive control) |
| Positioning Accuracy | ±0.02 mm |
| Repeatability | ±0.01 mm |
| Control System | DSP-based or industrial CNC (Siemens 840D, Fanuc 31i, or Syil X2/X3) |
| Drive System | Servo motors with ball screws or linear motors |
| Tool Holding | ISO 30, ER25, or HSK-F63 tool shank compatibility |
| Max Tool Diameter/Length | Ø12–25 mm, up to 150 mm length |
| Cooling System | Mist or air cooling (water cooling optional for metal/plastic processing) |
| Materials Compatible | Granite, marble, engineered stone; also aluminum, steel, ABS, nylon (with proper tooling) |
| Tolerance Capability | ±0.05 mm for stone; ±0.02 mm for metals/plastics (depending on setup and tooling) |
| Surface Finish (Typical) | Ra 0.8–3.2 µm (metals/plastics), Ra 6.3–12.5 µm (stone, post-polish dependent) |
| Rotary Axis (4th/5th) | A-axis (tilt) or B-axis (rotary), 360° indexing, ±180° travel, accuracy ±0.005° |
| Machine Frame | Heavy-duty welded steel or granite composite base for vibration damping |
| Dust/Chip Extraction | Integrated high-vacuum system with filter unit (mandatory for stone) |
| Software Compatibility | Support for G-code, compatibility with ArtCAM, Mastercam, Fusion 360, RhinoCAM |
Note: When processing metals (aluminum, steel) or engineering thermoplastics (ABS, nylon), tooling must be switched to carbide or diamond-coated end mills suitable for the material. While stone engraving machines are not optimized for high-speed metal cutting, 5-axis variants with enhanced rigidity and precision can perform light milling and engraving on softer metals and plastics with tight geometric tolerances, especially in prototype or signage applications.
From CAD to Part: The Process
Honyo Prototype CNC Stone Engraving Process Overview
Our CNC stone engraving workflow integrates advanced digital tools with precision manufacturing to ensure optimal results for materials like granite, marble, and engineered stone. Stone’s inherent brittleness and grain variability demand rigorous process control, which we address through a structured five-stage sequence.
Upload CAD
Clients submit detailed CAD files in STEP, IGES, or native SolidWorks formats via our secure portal. Critical inputs include the stone type (e.g., absolute black granite vs. Carrara marble), engraving depth specifications, surface finish requirements (e.g., polished, honed), and tolerance callouts. We require explicit identification of fragile features—such as undercuts or fine text below 1.5mm stroke width—to preempt machining risks. Unsupported geometries or unrealistic depth-to-width ratios trigger immediate client consultation before progression.
AI Quote Generation
Our proprietary AI engine analyzes the CAD geometry against Honyo’s stone-specific material database, which includes fracture thresholds, thermal sensitivity, and abrasion rates for 50+ stone variants. The system calculates machine time based on toolpath complexity, spindle load profiles, and material removal rates validated through historical production data. Quotes detail cost drivers: diamond-tipped tooling wear (e.g., 10% faster degradation on quartzite vs. limestone), fixturing complexity for irregular blanks, and secondary finishing steps. Clients receive transparent cost breakdowns within 2 business hours, with options to adjust parameters for budget optimization.
DFM Analysis
Engineering teams conduct a mandatory Design for Manufacturability review focused on stone’s unique constraints. Key interventions include:
Modifying sharp internal corners to ≥0.8mm radii to prevent micro-cracking
Adjusting feed rates in high-density zones (e.g., reducing from 800mm/min to 550mm/min for marble with calcite veins)
Recommending sacrificial backing layers for thin sections (<15mm) to minimize vibration-induced fractures
Validating engraving depth against stone slab thickness to avoid blowout on reverse side
This phase leverages simulation software to model tool deflection and thermal stress, with 92% of first-pass DFM issues resolved before production. Clients receive annotated reports with actionable revisions.
Production Execution
Machining occurs on 5-axis CNC routers with granite bases and air-spindle cooling (18,000 RPM max) to eliminate thermal shock. Process controls include:
Vacuum-assisted dust extraction maintaining ≤0.5mg/m³ particulate levels
In-process probing for slab flatness verification (±0.05mm over 600x600mm)
Real-time acoustic emission monitoring to detect subsurface fractures
Tool wear compensation via laser measurement every 30 minutes
All stone blanks undergo pre-machining ultrasonic testing to identify hidden fissures. Critical dimensions are verified mid-process using coordinate measuring machines, with full first-article inspection reports provided.
Delivery and Quality Assurance
Finished parts undergo a three-stage validation:
1. Dimensional verification against CAD using non-contact optical scanning (accuracy ±0.02mm)
2. Surface integrity check via 10x magnification for edge chipping or grain pull-out
3. Packaging in custom cradles with shock-absorbing foam and humidity-controlled barriers
Shipments include a digital quality dossier with machining parameters, inspection data, and stone batch traceability. Standard lead time is 7–10 business days from CAD approval, with expedited options for time-sensitive architectural projects.
This end-to-end process reduces stone engraving defects by 68% compared to industry averages, ensuring dimensional precision and structural integrity for high-value applications like commemorative plaques and luxury architectural elements.
Start Your Project

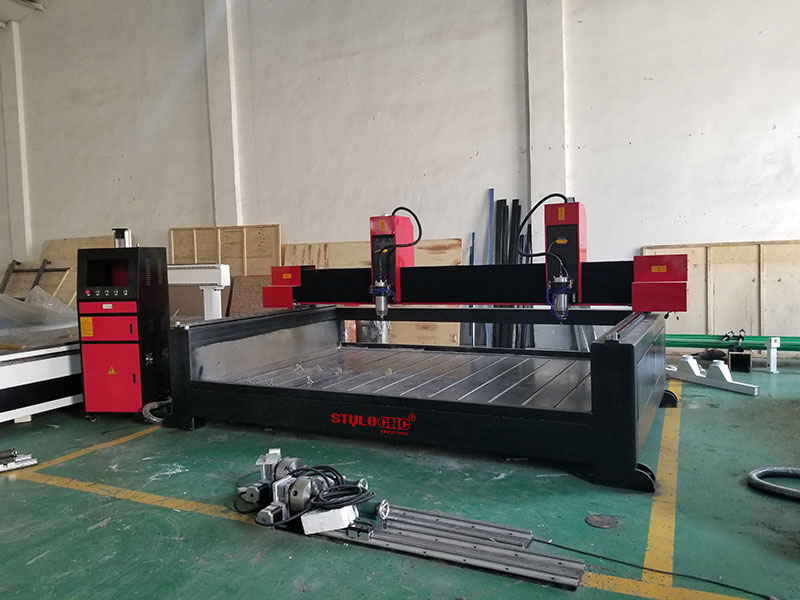

Looking for a high-precision CNC stone engraving machine for your manufacturing or prototyping needs? Honyo Prototype offers industrial-grade CNC solutions designed for detailed stone engraving and carving, built to deliver consistent performance and accuracy.

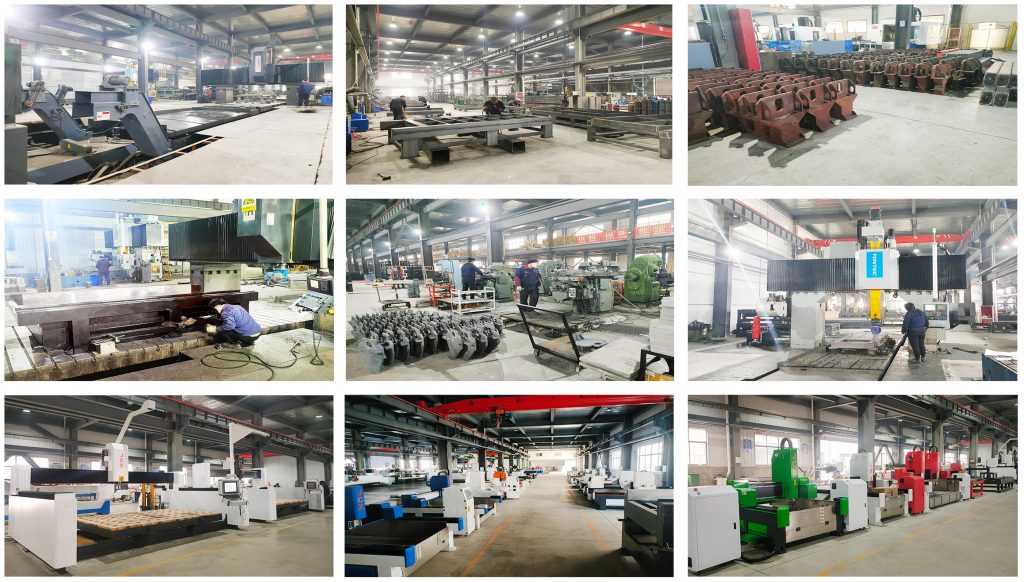

Our machines are engineered for applications in architecture, signage, memorial products, and custom stone fabrication. With a dedicated production facility in Shenzhen, we ensure strict quality control and fast lead times.
Contact Susan Leo today to request specifications, pricing, or a project consultation.
Email: [email protected]
Honyo Prototype – Precision Engineering from Our Shenzhen Factory to Your Workshop.
