Cnc Sheet Metal Bending Machine Manufacturing Service

Manufacturing Insight: Cnc Sheet Metal Bending Machine

Precision Sheet Metal Fabrication Engineered for Your Complex Bending Requirements

Honyo Prototype delivers advanced sheet metal fabrication solutions centered around state-of-the-art CNC press brake technology, ensuring exceptional accuracy and repeatability for prototyping through low-volume production. Our precision bending capabilities form a critical pillar of our end-to-end manufacturing ecosystem, enabling the consistent production of complex geometries with tight tolerances down to ±0.1mm. Utilizing modern CNC controls with automated tooling setups and real-time feedback systems, we achieve superior part consistency across diverse materials including aluminum, stainless steel, and mild steel up to 3mm thickness. This precision is seamlessly integrated with our complementary services—laser cutting, welding, finishing, and assembly—to provide fully validated components ready for your application.

The foundation of our bending excellence lies in robust equipment engineered for demanding production environments. Key specifications ensure we meet rigorous project demands:

Parameter	Capability
Max Tonnage	100 Ton
Max Bed Length	2500 mm
Material Thickness	0.5 mm – 3.0 mm
Angular Accuracy	±0.5°
Repeatability	±0.1 mm

Accelerate your development cycle with Honyo’s Online Instant Quote platform, providing detailed fabrication pricing and lead time estimates for sheet metal bending projects within minutes. This transparent, data-driven quoting system eliminates traditional procurement delays, allowing engineering teams to iterate designs rapidly and move from concept to physical prototype with unprecedented speed. Partner with Honyo Prototype to leverage precision bending capabilities backed by rigorous quality control and responsive engineering support—where every bend meets your exact specifications. Initiate your project today through our instant quoting portal for a streamlined path to high-integrity sheet metal components.

---

Technical Capabilities

Honyo Prototype – Technical Specifications for CNC Sheet Metal Bending Machine with Integrated Laser Cutting and Welding Capabilities

The following table outlines the key technical specifications of a multi-functional CNC sheet metal fabrication system capable of laser cutting, precision bending, and automated welding. This integrated machine platform supports a range of industrial-grade materials including aluminum, steel, ABS, and nylon, enabling versatile prototyping and low-to-mid volume production.

Parameter	Specification
Machine Type	CNC Fiber Laser Cutting, Hydraulic Press Brake (Bending), Robotic MIG/TIG Welding
Laser Cutting Source	Fiber Laser, 1–6 kW output, wavelength 1070 ± 10 nm
Laser Cutting Accuracy	±0.1 mm
Max Laser Cutting Thickness	Mild Steel: 25 mm, Stainless Steel: 20 mm, Aluminum: 15 mm, ABS: 8 mm, Nylon: 6 mm
Cutting Bed Size	Up to 4000 mm × 2000 mm (customizable)
Bending Method	CNC-controlled hydraulic press brake with crowning compensation
Max Bending Force	100–300 tons (depending on model)
Bending Length	Up to 4100 mm
Bending Accuracy	±0.2° angular accuracy, ±0.1 mm linear repeatability
Tooling	Standard V-dies and punches, quick-change tool system
Welding Process	Robotic MIG, TIG, or Laser Hybrid Welding (automated path programming)
Welding Materials	Aluminum, Mild & Stainless Steel (ABS and Nylon not weldable via MIG/TIG)
Positioning Accuracy (Weld)	±0.3 mm
Control System	Siemens, Fanuc, or Delem CNC with 3D CAD/CAM integration
Supported Materials	Aluminum (alloys 5052, 6061, 7075), Steel (mild, stainless, galvanized), ABS (limited to laser cutting), Nylon (limited to laser cutting)
Material Thickness Range (Bending)	Aluminum & Steel: 0.5 mm – 12 mm; ABS & Nylon: 1 mm – 8 mm (laser cut only)
Cooling System	Chiller-integrated for laser source and welding torch
Safety Features	Light curtains, emergency stop, fume extraction interface, interlocked guards
Power Requirement	400V, 3-phase, 50–60 Hz, 30–100 kVA (depending on configuration)

Notes:
ABS and Nylon are processable only via laser cutting due to their thermoplastic nature. These materials are not suitable for bending or welding in standard metal fabrication workflows.
Aluminum and steel are fully compatible across all three processes—laser cutting, bending, and welding—with appropriate parameter tuning.
The system supports offline programming using CAD/CAM software (e.g., SolidWorks, AutoCAD, SigmaNEST) for seamless integration into digital manufacturing pipelines.

For engineering inquiries or custom process validation, contact Honyo Prototype’s manufacturing solutions team.

---

From CAD to Part: The Process

Honyo Prototype employs a rigorous, technology-integrated workflow for CNC sheet metal bending projects designed to ensure precision, efficiency, and manufacturability from initial concept to final delivery. Our process eliminates traditional bottlenecks while maintaining strict engineering oversight at critical stages.

The process begins with secure CAD file upload via our encrypted customer portal. We accept native formats including STEP, IGES, DWG, DXF, and native SOLIDWORKS files. Upon upload, our proprietary AI-driven quoting engine immediately analyzes geometric complexity, material requirements, bend sequences, tooling needs, and secondary operations. This AI system cross-references real-time data on material costs, machine availability, and labor rates to generate a detailed technical quotation within minutes. The quote explicitly itemizes bending operations, identifies potential manufacturability flags requiring engineering review, and provides clear cost breakdowns per operation.

Following quotation acceptance, all projects enter our mandatory Design for Manufacturability (DFM) review phase. Senior manufacturing engineers conduct a comprehensive analysis beyond the AI assessment. This includes verifying bend allowances against material grain direction, confirming minimum flange lengths relative to material thickness, validating bend radii against tooling constraints, and optimizing bend sequences to minimize setups and avoid collisions. We proactively identify risks such as interference during bending, inadequate clearance for tooling, or features requiring specialized tooling. Clients receive a formal DFM report with actionable recommendations; unresolved critical issues halt progression to production.

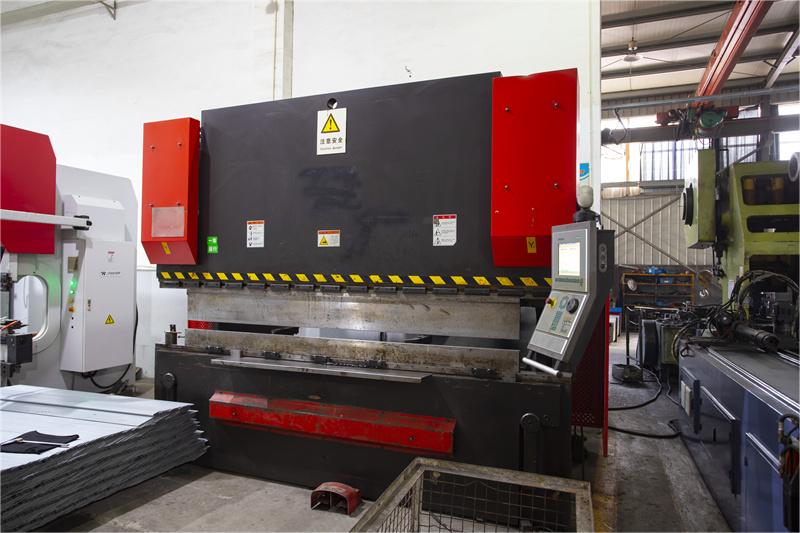

Once DFM is approved, the project moves to production scheduling. Our network of CNC press brakes—including Amada HG and Mitsubishi models with capacities up to 300 tons and bed lengths of 3 meters—executes the bending sequence. Each job leverages offline programming generated from the validated CAD model, ensuring precise backgauge positioning and ram control. In-process quality checks occur at 30% and 70% completion using calibrated height gauges and angle meters to verify dimensional accuracy against ISO 2768-mK tolerances. Material traceability is maintained throughout via serialized barcoding.

Final inspection includes full dimensional verification against the original CAD model using CMM or optical comparators where specified. Parts undergo deburring and surface protection per client requirements before packaging. We utilize custom-fit foam inserts within double-walled corrugated containers to prevent transit damage. Standard lead times from DFM approval to shipment are reflected in the following table:

Process Stage	Typical Duration	Key Dependencies
CAD Upload to Quote	< 15 minutes	File format completeness
DFM Review	4-24 hours	Design complexity, revision cycles
Production	3-7 business days	Quantity, material availability, secondary ops
Delivery	1-3 days (US)	Destination, shipping method selected

All shipments include a digital package with First Article Inspection reports, material certifications, and as-built dimensional data upon request. This integrated approach ensures that every bent component meets Honyo’s standards for geometric precision and structural integrity while providing clients with full transparency into manufacturing progress.

---

Start Your Project

Interested in high-precision CNC sheet metal bending solutions? Contact Susan Leo today for expert guidance and customized manufacturing support.

Reach out via email at [email protected] to discuss your project requirements.

Our advanced production facility is located in Shenzhen, ensuring fast turnaround times and strict quality control for every component.

Let Honyo Prototype be your trusted partner in precision sheet metal fabrication.

---
