Manufacturing Insight: Cnc Router Uses
Precision CNC Routing Solutions for Demanding Manufacturing Applications
Honyo Prototype delivers advanced CNC machining services engineered to transform complex design concepts into high-integrity physical components with sub-millimeter accuracy. Our industrial-grade CNC routing capabilities are optimized for rapid prototyping and low-to-mid volume production across aerospace, automotive, medical device, and industrial equipment sectors. Leveraging multi-axis machining centers with rigorous process validation, we ensure dimensional stability, surface finish consistency, and material integrity for critical applications where tolerance adherence is non-negotiable.
Strategic CNC Router Applications We Execute
CNC routers form the backbone of versatile manufacturing workflows at Honyo Prototype. We deploy these systems for intricate 3D contouring of composite laminates in drone frame fabrication, high-speed aluminum chassis milling for robotics enclosures, and precision wood/phenolic tooling for composite layup molds. Our machines excel at producing complex signage with fine detail engraving, architectural millwork requiring seamless joint tolerances, and custom jigs/fixtures that enhance assembly line efficiency. Material versatility is central to our process—whether machining dense hardwoods for exhibition displays or abrasion-resistant UHMW for material handling components, our adaptive toolpath strategies maintain repeatability across diverse substrates.
Material Compatibility and Performance Metrics
| Material Category | Example Materials | Max Work Envelope | Typical Tolerance Range | Surface Finish (Ra) |
|---|---|---|---|---|
| Engineering Plastics | ABS, Delrin, Nylon | 1200 x 2400 x 200 mm | ±0.05 mm | 1.6 – 3.2 µm |
| Composites | Carbon Fiber, G10, Fiberglass | 1000 x 1500 x 150 mm | ±0.08 mm | 3.2 – 6.3 µm |
| Soft Metals | Aluminum 6061, Brass | 800 x 1200 x 100 mm | ±0.025 mm | 0.8 – 1.6 µm |
| Wood & Derivatives | MDF, Plywood, Hardwoods | 2000 x 3000 x 120 mm | ±0.1 mm | 6.3 – 12.5 µm |
Accelerate your project timeline with Honyo Prototype’s Online Instant Quote system. Upload CAD files in STEP, IGES, or native formats to receive a comprehensive manufacturability analysis and firm pricing within minutes—no sales intermediary required. Our platform automatically evaluates geometric complexity, material utilization, and fixture requirements to deliver transparent costing aligned with your technical specifications. This digital workflow eliminates traditional quoting bottlenecks, enabling engineering teams to validate budgets during design phases and initiate production within 24 hours of approval.
Partner with Honyo Prototype to leverage CNC routing expertise where precision, material science, and operational agility converge. Initiate your project with confidence through our Online Instant Quote portal and experience streamlined procurement for mission-critical components.
Technical Capabilities
CNC routers at Honyo Prototype are engineered for high-precision machining across a range of advanced manufacturing applications. Our 3-axis, 4-axis, and 5-axis CNC milling systems are optimized for complex geometries, tight tolerance requirements (down to ±0.0005″), and seamless integration with both metallic and engineering-grade polymer materials. Additionally, our CNC turning centers support precision rotary machining for cylindrical components. These capabilities ensure repeatable accuracy and surface finish consistency across prototyping and low-volume production runs.
| Feature | Description |
|---|---|
| Machining Types | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning |
| Positioning Accuracy | ±0.0002″ (5 µm) on linear axes; ±0.001° rotary repeatability |
| Tolerance Capability | Standard: ±0.001″; Tight Tolerance: ±0.0005″ (12.7 µm) achievable with process controls |
| Spindle Speed Range | 8,000 – 24,000 RPM (milling); 3,000 – 12,000 RPM (turning) |
| Tool Changer | Automatic Tool Changer (ATC) with 12–30 tool capacity |
| Control System | Fanuc, Siemens, or Heidenhain CNC controls for precision path management |
| Materials Supported | Aluminum (6061, 7075), Steel (1018, 4140, Stainless 303/316), ABS, Nylon (6 & 6/6), and other engineering thermoplastics |
| Work Envelope (Max) | 3-Axis: 48″ x 36″ x 20″; 5-Axis: 30″ x 24″ x 16″ (rotary-travel dependent) |
| Surface Finish | As-machined: 32–125 µin Ra; Post-processed finishes down to 16 µin Ra available |
| Coolant & Lubrication | Through-spindle coolant (metal), air blast or mist coolant (plastics) to prevent warpage |
| Applications | Functional prototypes, jigs & fixtures, end-use parts, aerospace components, medical devices, and complex housings |
Our multi-axis systems enable single-setup machining of intricate 3D contours, reducing cumulative error and improving geometric consistency. For tight-tolerance work, thermal compensation and on-machine probing are employed to validate dimensions in real time. Material-specific toolpaths and feed strategies ensure optimal chip load, minimizing deflection and maintaining part integrity—especially critical when machining softer polymers like ABS and Nylon alongside high-strength metals.
From CAD to Part: The Process
Honyo Prototype CNC Router Process: From Design to Delivery
Our CNC router workflow is engineered for precision, speed, and transparency, specifically optimized for rapid prototyping and low-volume production of wood, plastics, composites, and soft metals. The process begins when a client uploads a CAD file to our secure client portal. We accept native formats including STEP, IGES, and DWG, alongside industry-standard STL and 3MF. Upon upload, our system performs an immediate geometric validation check to flag critical issues such as non-manifold edges, missing surfaces, or unsupported file structures, ensuring only manufacturable designs proceed.
AI-Powered Quoting with Engineering Oversight
The validated CAD model enters our proprietary AI quoting engine, which analyzes part geometry, material requirements, tolerances, and surface finish specifications. Unlike fully automated systems, this step integrates real-time shop floor data—current machine availability, material stock levels, and technician workloads—to generate a technically feasible lead time and cost estimate within 2 hours. Crucially, every AI-generated quote undergoes mandatory review by a Senior Manufacturing Engineer who verifies routing strategy feasibility, material grain orientation for wood composites, and potential fixturing constraints. Clients receive a detailed quote including process notes, material sourcing options, and a preliminary timeline.
Engineering-Driven DFM Analysis
After quote acceptance, our DFM (Design for Manufacturability) phase commences. A dedicated process engineer conducts a granular analysis focusing on CNC router-specific constraints: minimum feature thickness relative to spindle diameter, undercuts requiring specialized tooling, internal corner radii limitations, and material waste optimization through nesting efficiency. We identify risks such as thin-wall vibration during cutting or delamination in layered materials and provide actionable redesign recommendations via our collaborative portal. This stage typically resolves 85% of potential production issues upfront, reducing rework and accelerating time-to-part. Clients approve the final DFM report before programming begins.
Precision Production Execution

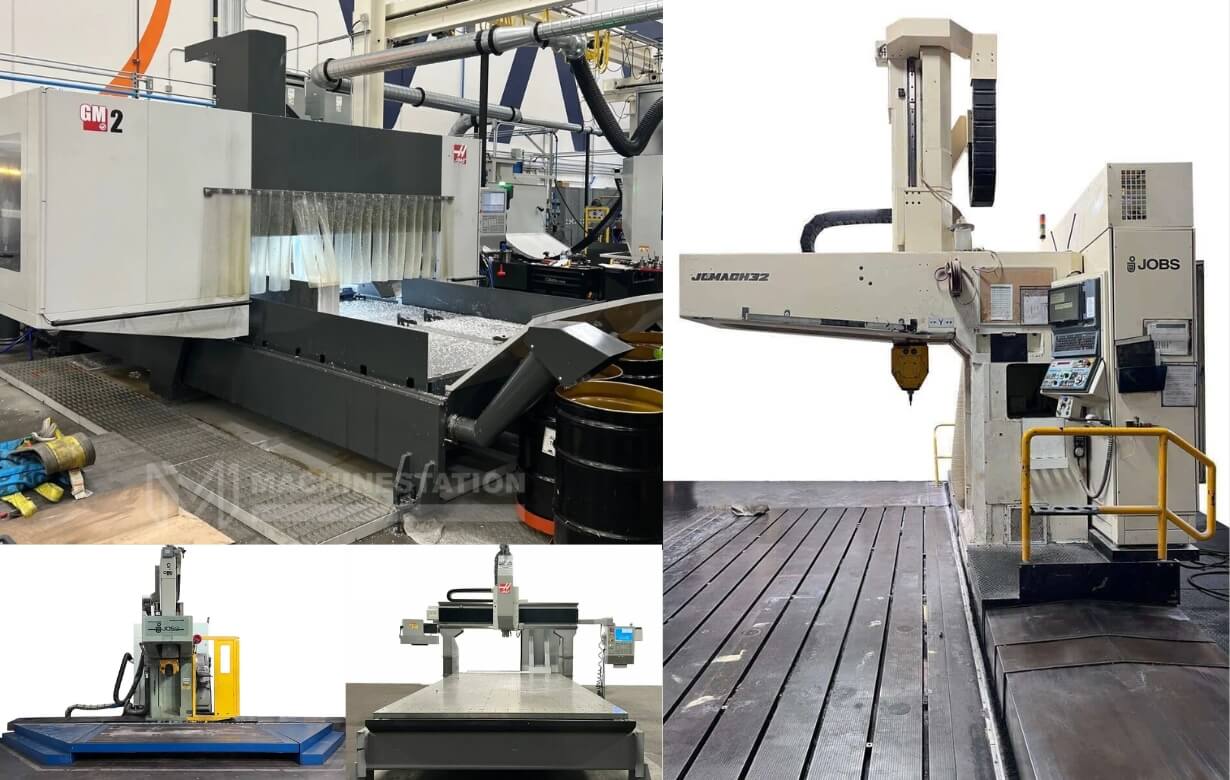

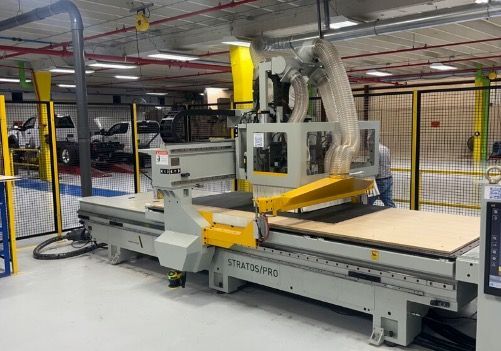

Production leverages our fleet of 3-axis and 5-axis CNC routers (including 4×8 ft and 5×10 ft travel models) with spindle speeds up to 24,000 RPM. Key practices include:
Toolpath simulation in Mastercam to eliminate collisions and optimize feed rates
In-process inspections at critical stages using calibrated CMMs for dimensional verification
Real-time vacuum table pressure monitoring to prevent workpiece shift during cutting
Material-specific dust extraction protocols meeting OSHA standards
All operations follow documented work instructions traceable to the client’s original CAD revision. Complex assemblies undergo sub-assembly verification before final machining.
Quality-Controlled Delivery
Post-machining, parts undergo final inspection against the approved drawing, with critical dimensions recorded in a digital inspection report accessible via the client portal. We apply protective packaging tailored to material sensitivity (e.g., anti-static wraps for acrylic, edge guards for MDF). Shipments include a Certificate of Conformance, material test reports (where applicable), and a process summary highlighting any deviations from the original DFM plan. Standard lead time from DFM approval to shipment is 5–7 business days for single-part prototypes, with expedited options available. This closed-loop process ensures dimensional accuracy within ±0.005″ while maintaining full traceability from digital model to physical part.
Start Your Project
Looking to learn more about the diverse applications of CNC routers in prototyping and manufacturing? Discover how precision machining can elevate your next project.
Contact Susan Leo at [email protected] to discuss your requirements and find tailored solutions. With our advanced CNC capabilities and experienced engineering team, we deliver high-accuracy parts on time and to specification.
Our manufacturing facility is located in Shenzhen, China—strategically positioned for fast turnaround and global shipping. Reach out today to request a quote or technical consultation.
