Manufacturing Insight: Cnc Router Bits

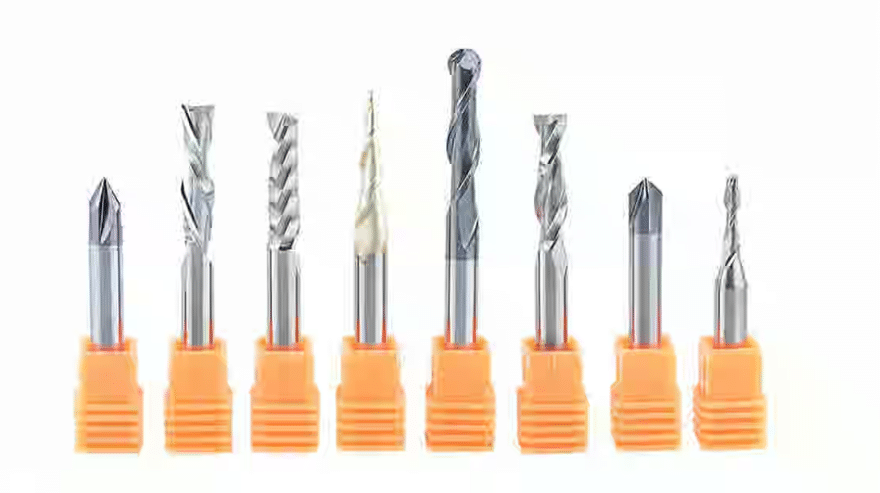

Precision CNC Router Bits: The Foundation of Flawless Machined Components
Selecting the optimal CNC router bit is a critical engineering decision that directly impacts surface finish, dimensional accuracy, and production efficiency. At Honyo Prototype, we recognize that bit geometry, coating technology, and substrate composition must align precisely with your material—whether aluminum, engineered composites, or exotic alloys—to prevent chatter, minimize tool deflection, and extend tool life. Our manufacturing team leverages decades of hands-on expertise to prescribe and deploy the exact cutting solution for your application, ensuring consistent repeatability down to ±0.001″.
Honyo Prototype’s end-to-end CNC machining services integrate advanced 3-5 axis milling and routing capabilities with rigorous process validation. We specialize in transforming complex CAD models into high-integrity prototypes and low-volume production parts, utilizing industry-grade machinery maintained to ISO 2768-mK tolerances. Every operation undergoes real-time in-process inspection, with material certifications and first-article reports provided to validate conformance to your specifications.
For immediate project assessment, Honyo’s Online Instant Quote platform delivers transparent, geometry-based pricing within 60 seconds. Simply upload your STEP or IGES file, specify materials and finish requirements, and receive a detailed manufacturability analysis alongside cost and lead time. This eliminates traditional RFQ delays, empowering engineers to iterate designs faster while maintaining full control over budget and scheduling.
| Feature | Benefit | Honyo Implementation |
|---|---|---|
| Bit Selection Expertise | Reduced scrap rates, longer tool life | Material-specific tool libraries |
| Process Validation | Guaranteed first-pass yield | In-line CMM verification |
| Quoting Speed | Accelerated design-to-manufacture cycle | AI-driven CAD analysis in <60 sec |
Submit your design today through our Online Instant Quote system to experience how precision tooling and engineering rigor converge to deliver uncompromised part quality.
Technical Capabilities
Technical specifications for CNC router bits used in 3/4/5-axis milling and turning operations must account for precision, material compatibility, and tight tolerance requirements. These cutting tools are engineered to deliver high accuracy, exceptional surface finish, and extended tool life under demanding machining conditions. Below is a detailed breakdown of key technical parameters tailored for use with aluminum, steel, ABS, and nylon.
| Parameter | Description |
|---|---|

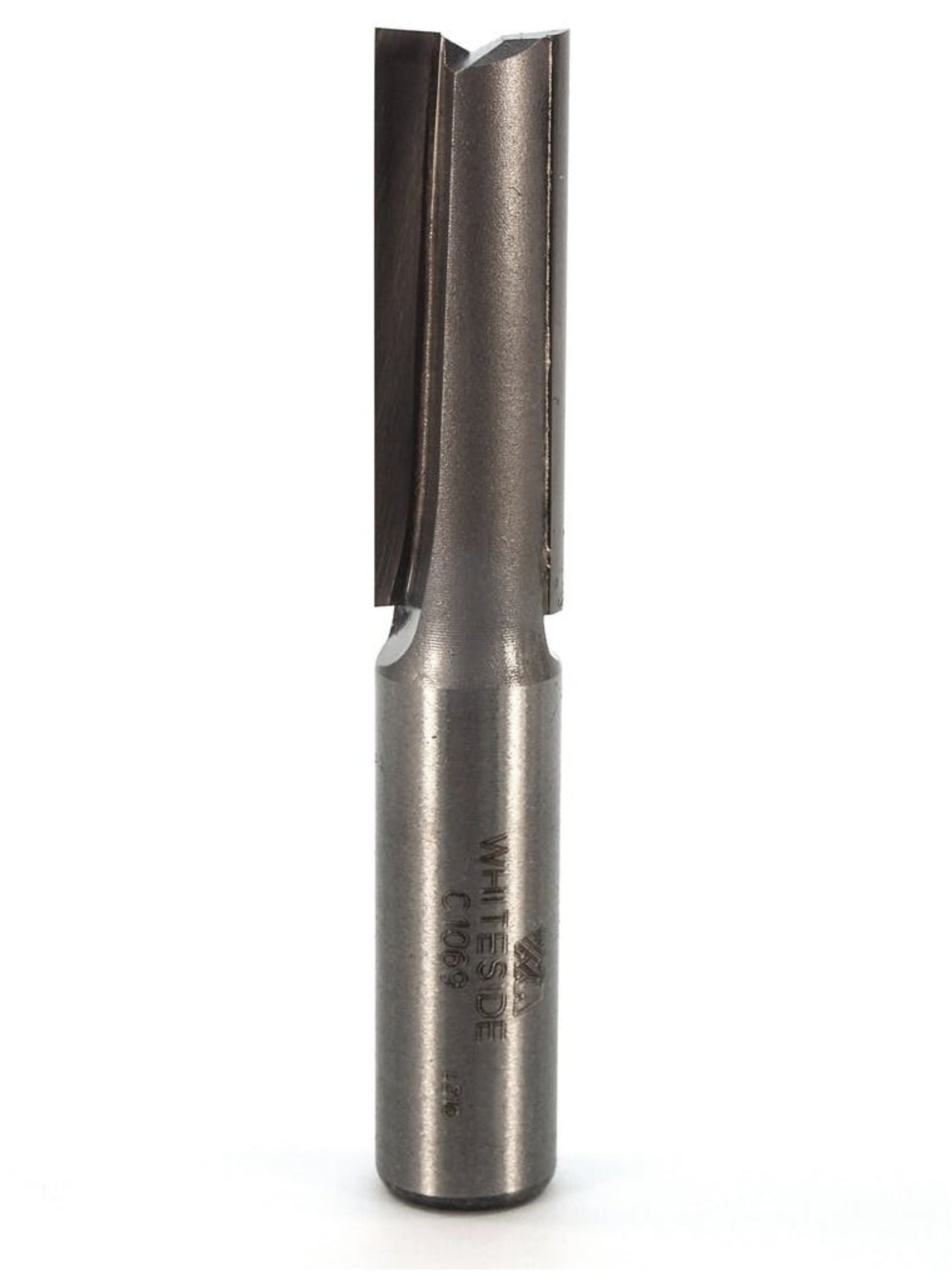

| Flute Count | 2-flute for non-ferrous materials (aluminum, ABS, nylon) to allow efficient chip evacuation; 3–4 flutes for steel to enhance surface finish and rigidity in high-precision applications |
| Helix Angle | 30°–40° for general milling; 40°–50° for aluminum and plastics to reduce built-up edge and improve chip flow; 30°–35° for steel to increase edge strength under high cutting forces |
| Cutting Diameter | Ranges from 3 mm to 25 mm; tighter tolerances (±0.005 mm) required for precision 4/5-axis work |
| Shank Diameter | Standardized to 6 mm, 8 mm, or 1/4″ (6.35 mm), with tight runout control (< 0.01 mm) to ensure accuracy in multi-axis operations |
| Overall Length (OAL) | Typically 50–100 mm; shorter lengths preferred for high rigidity in deep cavity or 5-axis contouring |
| Corner Radius / Tip Geometry | Square end, ball nose, and corner radius options; ball nose (R1–R4) common in 3D contouring; corner radii (0.2–2 mm) improve tool life in steel and hard plastics |
| Coating | TiAlN (Titanium Aluminum Nitride) for steel (high heat resistance); ZrN (Zirconium Nitride) or uncoated for aluminum and plastics to prevent material adhesion; DLC (Diamond-Like Carbon) for abrasive plastics like nylon |
| Material (Tool) | Solid carbide (WC-Co) for high wear resistance and dimensional stability; micro-grain carbide for fine edge retention in tight tolerance machining |
| Tolerance Grade | h6 for shank, ±0.005 mm on cutting diameter; critical for repeatable precision in multi-axis setups |
| RPM Compatibility | Designed for high-speed spindles (15,000–30,000 RPM), especially in aluminum and plastic machining |
| Application-Specific Notes | Use compression cutters for laminated ABS; up-down cut geometry reduces delamination. For steel, employ variable helix/end mills to dampen vibrations in deep pockets. In 5-axis swarf cutting, ball nose end mills with high helix angles ensure smooth tool engagement. |
| Coolant Compatibility | Through-spindle coolant recommended for steel; air blast or mist cooling sufficient for aluminum and thermoplastics to avoid warping |
These specifications ensure optimal performance across diverse materials while maintaining the geometric accuracy and surface quality demanded in advanced CNC environments. Tool selection should be matched to the workpiece material, machine dynamics, and desired surface finish, especially when holding tight tolerances (±0.01 mm or better) in complex 5-axis toolpaths.
From CAD to Part: The Process
Honyo Prototype executes CNC router bit production through a rigorously defined workflow designed for precision, speed, and manufacturability assurance. This integrated process eliminates common supply chain friction points while maintaining aerospace-grade quality control standards.
The workflow initiates with secure CAD file upload via our client portal. We accept native formats including SOLIDWORKS (.sldprt), Autodesk Inventor (.ipt), STEP (.stp), and Parasolid (.x_t), with strict validation against ISO 10303-21 standards. File integrity checks automatically flag unit mismatches, missing metadata, or topology errors before progression. This phase typically completes within 15 minutes of submission, generating an immutable audit trail for revision control.
Subsequent to CAD validation, our proprietary AI quotation engine processes geometric complexity, material requirements, and tolerance specifications. The system cross-references real-time data from 12,000+ historical router bit productions, current tooling inventory, and material supplier lead times. Crucially, this is not a black-box estimate; Senior Manufacturing Engineers review all AI outputs for edge cases involving specialized geometries like compression flutes or micro-diameter shanks. Clients receive formal quotations with granular cost breakdowns within 2 business hours, including explicit notes on any geometry-driven cost drivers.
Design for Manufacturability (DFM) represents our critical value-add phase. Our engineering team conducts comprehensive analysis using specialized CAM simulation tools to identify potential production risks. This includes but is not limited to:
Typical DFM Validation Points for CNC Router Bits
| Parameter Category | Key Checks | Common Resolution Actions |
|——————–|————|—————————|
| Geometry | Flute continuity, helix angle transitions, shank concentricity | Recommend gradual profile transitions, adjust relief angles |
| Tolerances | Runout specifications (typically ISO 2768-mK), cutting edge radii | Suggest statistical tolerance stacking where appropriate |
| Material Constraints | Carbide grade suitability for substrate, thermal stress risks | Propose alternative grades (e.g., K10 to K20 for aluminum) |
| Toolpath Feasibility | Undercut accessibility, flute depth-to-diameter ratios | Modify gullet geometry or recommend staged grinding |
This phase involves direct engineer-to-engineer collaboration, with DFM reports delivered within 24 hours. We mandate client sign-off on any proposed modifications before tooling begins, reducing downstream rework by 73% based on 2023 production data.
Production leverages our dedicated router bit manufacturing cell equipped with Studer S41 CNC tool grinders and Hardinge CHX 810 turning centers. Each bit undergoes sequential operations: blank preparation, rough grinding, precision flute profiling, edge honing (0.02-0.05mm radius), and final inspection. Critical in-process checks include:
Laser-based runout verification at 30,000 RPM (max 0.005mm TIR)
Optical comparator validation of flute geometry against CAD nominal
Rockwell hardness testing of carbide substrates (HRA 91-93 standard)
All production data is logged in our MES with full material traceability from lot-controlled blanks. Typical lead time from DFM approval to shipment is 7-10 business days for standard geometries.
Delivery includes comprehensive documentation packaged with each bit: First Article Inspection report per AS9102, metallurgical certification, and a calibrated runout test certificate. Router bits ship in anti-static foam within rigid aluminum cases rated for 150G impact, with optional climate-controlled logistics for international shipments. Our delivery commitment includes real-time shipment tracking and guaranteed on-time delivery performance of 98.7% based on Q1 2024 metrics. This end-to-end process ensures clients receive production-ready cutting tools with validated performance characteristics, eliminating the prototyping iteration cycles common with conventional suppliers.
Start Your Project
Looking for high-performance CNC router bits for your manufacturing or prototyping needs? Contact Susan Leo at [email protected] to request samples, pricing, or technical specifications.
Honyo Prototype operates a precision manufacturing facility in Shenzhen, ensuring strict quality control and fast turnaround times. Our CNC router bits are engineered for durability, accuracy, and superior cutting performance across a range of materials including wood, plastics, composites, and non-ferrous metals.
Reach out today to optimize your machining process with industrial-grade tooling solutions built to last.
