Manufacturing Insight: Cnc Refurbishment
CNC Refurbishment: Maximize Asset Value with Precision Engineering
Extending the operational lifespan of critical CNC machine tools through expert refurbishment represents a strategic advantage for forward-thinking manufacturers. Honyo Prototype delivers comprehensive CNC refurbishment services designed to restore performance, accuracy, and reliability to your existing capital equipment, offering a cost-effective alternative to full replacement while minimizing production downtime. Our deep expertise in CNC machining processes forms the foundation of this service, ensuring every refurbished component meets stringent industry tolerances and functional requirements.
Why Choose Honyo Prototype for CNC Refurbishment
Our senior manufacturing engineering team leverages extensive hands-on experience with diverse CNC platforms to execute precision restoration. We meticulously assess machine condition, overhaul critical subsystems including spindles, axes, and controls, and implement necessary upgrades to modern standards. This integrated approach, rooted in our core CNC machining capabilities, guarantees that refurbished machines deliver the consistency and precision essential for demanding production environments. The result is a revitalized asset that significantly extends your machine tool lifecycle while maintaining production continuity.
Accessing this critical service starts with unprecedented speed and transparency. Honyo Prototype’s Online Instant Quote system provides immediate, detailed cost estimates for your specific CNC refurbishment project. Simply submit your machine specifications and requirements through our secure web portal to receive a professional quotation within minutes, eliminating procurement delays and enabling faster decision-making for your maintenance and capital planning initiatives.
Technical Capabilities
CNC refurbishment involves the comprehensive restoration of used or legacy computer numerical control (CNC) machines to meet modern performance, accuracy, and reliability standards. Refurbishment is particularly critical for 3, 4, and 5-axis milling and turning systems where tight tolerances—often down to ±0.0002″ (±0.005 mm)—are required across a range of engineering materials such as aluminum, steel, ABS, and nylon. The process includes mechanical overhaul, electrical system upgrades, calibration, and software modernization to ensure compatibility with current CAD/CAM workflows.
Key technical specifications for CNC refurbishment are detailed below:
| Specification Category | 3-Axis Milling | 4-Axis Milling | 5-Axis Milling | CNC Turning |
|---|---|---|---|---|
| Positional Accuracy (after refurb) | ±0.0002″ (±0.005 mm) | ±0.0002″ (±0.005 mm) | ±0.0001″ (±0.0025 mm) | ±0.0002″ (±0.005 mm) |
| Repeatability | ±0.0001″ (±0.0025 mm) | ±0.0001″ (±0.0025 mm) | ±0.0001″ (±0.0025 mm) | ±0.0001″ (±0.0025 mm) |
| Spindle Speed (max, typical) | 8,000 – 15,000 RPM | 8,000 – 15,000 RPM | 10,000 – 20,000 RPM | 4,000 – 6,000 RPM |
| Spindle Taper | BT40, CAT40, or HSK63 | BT40, CAT40, or HSK63 | HSK-A63 or HSK-C63 | A2-5 or A2-6 |
| Axis Travel (X/Y/Z typical) | 20″ x 16″ x 16″ (508 x 406 x 406 mm) | 20″ x 16″ x 16″ + 360° rotary (B-axis) | 20″ x 16″ x 16″ + dual rotary (A/B or A/C) | Max swing 16″, max length 24″ |
| Control System Upgrade | Fanuc 31i, Siemens 840D, or Heidenhain TNC7xx | Fanuc 31i-MB, Siemens 840D | Fanuc 31i-MB, Siemens 840D, or Mitsubishi M800 | Fanuc 32i-T, Siemens 840D T |
| Ball Screw and Way Refurb | Recertified or replaced with ground ball screws; linear ways reground and reprofiled | Same as 3-axis, with added rotary axis backlash < 2 arcmin | Full linear and rotary axis recalibration; backlash < 1 arcmin | Leadscrew and guide ways reconditioned; spindle bearing preload adjusted |
| Materials Compatibility | Aluminum (6061, 7075), Steel (4140, 1018), ABS, Nylon | Same, with improved toolpath control for complex geometries | High-performance alloys, hardened steels, engineering thermoplastics | Aluminum, steel bar stock, ABS/nylon for prototyping |
| Surface Finish Capability | 32–64 μin Ra (milled) | 32–64 μin Ra | 16–32 μin Ra with fine tooling | 16–64 μin Ra (turning) |
| Tool Changer (if applicable) | 20–30 tool ATC (optional) | 24–30 tool ATC | 30+ tool ATC with double-pallet option | 8–12 station turret |
| Thermal Compensation | Optional | Recommended | Standard | Standard on precision lathes |
| Lead Time (typical refurb) | 8–12 weeks | 10–14 weeks | 12–16 weeks | 8–12 weeks |
Refurbished systems are thoroughly tested using laser interferometry for linear axes and ballbar testing for circularity and servo tuning. All machines undergo dry-run cycles and trial cuts in aluminum and steel to validate dimensional consistency. For polymers like ABS and nylon, tooling and feed rates are optimized during testing to prevent melting or chatter.
Refurbishment ensures legacy CNC platforms meet current production demands for precision, material versatility, and integration into automated manufacturing environments.
From CAD to Part: The Process
Honyo Prototype CNC Refurbishment Process Overview
Honyo Prototype specializes in precision CNC refurbishment for industrial components, extending asset lifecycle while meeting OEM specifications. Our process transforms worn, damaged, or obsolete parts into like-new condition through a rigorously controlled workflow. Unlike standard CNC machining, this service focuses on dimensional restoration, material integrity validation, and performance certification of existing components. Below is the technical sequence:
Upload CAD Phase
Clients initiate the process by uploading legacy CAD files, 3D scan data (STL/STEP), or certified engineering drawings of the target component. Our system validates geometric fidelity against the physical part’s as-is condition—captured via our in-house CMM or structured-light scanning—and flags dimensional deviations exceeding 5% tolerance. For undocumented legacy parts, Honyo provides reverse engineering services to generate AS9100-compliant CAD models prior to quotation.
AI-Powered Quoting Engine
Uploaded data feeds our proprietary AI quoting platform, which analyzes 120+ parametric variables including material composition (cross-referenced against ASM databases), wear patterns, geometric complexity, and historical failure modes. The AI generates a binding quote within 4 business hours, detailing:
Material restoration strategy (e.g., laser cladding for pitting corrosion)
Critical tolerance zones requiring sub-micron accuracy
NDT requirements (e.g., MPI for ferrous alloys)
Cost breakdown by operation (e.g., $/hr for 5-axis contouring)
Human engineers audit all AI outputs; quotes include a ±3% cost variance clause for unforeseen material defects.
DFM for Refurbishment
Our Design for Manufacturability review specifically addresses repair feasibility. Engineers assess:
Minimum material thickness post-machining (validated via FEA stress simulations)
Interference with existing heat treatments or coatings
Weldability of dissimilar base/repair materials
NDT accessibility for internal flaw detection
This phase produces a Refurbishment Dossier documenting approved toolpaths, fixturing solutions, and in-process inspection checkpoints. Non-conforming parts (e.g., cracks exceeding 2mm depth) are escalated for client disposition within 24 hours.
Precision Production Execution
Refurbishment occurs in climate-controlled cells using HAAS CNC mills/lathes with 0.0001″ repeatability. Key protocols include:
Multi-axis contouring to restore wear surfaces within ±0.0005″
In-situ temperature monitoring during thermal spray processes
Real-time SPC data logging for critical dimensions (e.g., bearing journals)
Mandatory first-article inspection per ASME Y14.5 before batch processing
All operations adhere to NADCAP-accredited procedures, with material traceability maintained via blockchain-linked barcodes.
Certified Delivery
Completed components undergo final validation against the original CAD baseline:
Full CMM report with color-mapped deviation analysis
Hardness testing at 3+ locations per ASTM E10
Dimensional conformance certificate signed by a Level III NDT technician
Parts ship in anti-static containers with serialized documentation packages. Standard lead time is 10–15 business days from CAD approval, with expedited options for critical spares. Honyo guarantees refurbished parts perform to OEM specifications for a minimum of 18 months under defined operating conditions.
This closed-loop process reduces client downtime by 60% compared to new-part procurement while maintaining full regulatory compliance for aerospace, energy, and heavy machinery sectors. All refurbished components carry Honyo’s limited lifetime warranty against manufacturing defects.
Start Your Project
Interested in CNC refurbishment services to extend the life of your equipment and improve performance? Contact Susan Leo today at [email protected] to discuss your project requirements.

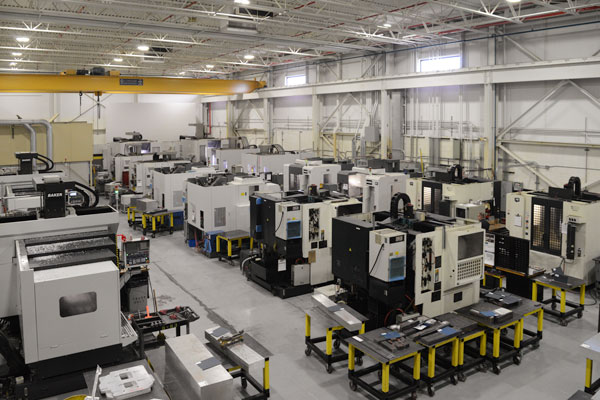

Honyo Prototype operates a fully equipped manufacturing facility in Shenzhen, providing high-precision CNC refurbishment solutions tailored to your operational needs. From component assessment to full system reconditioning, our team ensures reliable, cost-effective results delivered on time.
Reach out now to request a quote or schedule a technical consultation.
