Manufacturing Insight: Cnc Pipe Cutting
Precision Pipe Fabrication Through Advanced CNC Technology

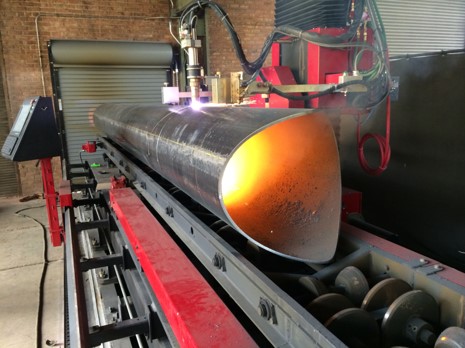

Honyo Prototype delivers industry-leading CNC pipe cutting solutions engineered for complex industrial applications where dimensional accuracy, material integrity, and repeatability are non-negotiable. Our integrated 5-axis and 6-axis CNC tube and pipe cutting systems eliminate manual handling errors while achieving tolerances down to ±0.05 mm across diverse materials including stainless steel alloys, titanium, aluminum, and carbon steel. Unlike conventional cutting methods, our high-speed fiber laser and plasma capabilities execute intricate bevels, miters, and end-form geometries in a single setup—reducing lead times by up to 40% while ensuring weld-ready precision for critical assemblies in aerospace, energy, and heavy machinery sectors.
Seamless Integration from Design to Delivery
Every project leverages our proprietary nesting software to maximize material yield and minimize waste, with real-time monitoring ensuring consistent quality throughout production runs. Our AS9100-certified processes include comprehensive in-process inspection using calibrated CMMs and laser trackers, providing full traceability from raw stock to finished component. This technical rigor ensures your hydraulic manifolds, structural frameworks, or exhaust systems meet stringent OEM specifications without costly rework.
Accelerate Procurement with Honyo’s Online Instant Quote System
Eliminate procurement delays with our web-based Online Instant Quote platform—designed specifically for engineering teams requiring rapid feasibility assessment and pricing. Upload 3D STEP files or technical drawings to receive a detailed manufacturability analysis and competitive quote within 2 hours, 24/7. This transparent, data-driven approach empowers faster decision-making while providing immediate visibility into lead times, material options, and secondary operation requirements.
Partner with Honyo Prototype to transform complex pipe fabrication challenges into streamlined production outcomes, backed by engineering expertise and digital efficiency that keeps your projects on schedule and within budget.
Technical Capabilities
CNC pipe cutting is a precision machining process used to cut, shape, and finish tubular components using computer-controlled multi-axis systems. It is commonly employed in industries such as aerospace, automotive, and industrial equipment where tight tolerances and complex geometries are required. The process integrates 3, 4, or 5-axis milling and turning capabilities to perform intricate cuts on cylindrical workpieces. Materials such as aluminum, steel, ABS, and nylon are commonly processed, each requiring specific tooling and cutting parameters due to their mechanical and thermal properties.
| Parameter | Description |
|---|---|
| Machining Axes | 3-axis: Linear X, Y, Z movement for basic contouring and facing. 4-axis: Adds rotational A-axis (around X) for indexing cylindrical features. 5-axis: Adds A and B (or C) axes for full simultaneous multi-directional cutting, enabling complex bevels, miters, and 3D contours on pipe surfaces. |
| Cutting Method | Uses end mills, face mills, and specialized pipe-cutting tools. High-speed machining (HSM) techniques applied for precision and surface finish. |
| Turning Integration | Combined turning and milling in multi-tasking machines allows for complete part processing—external turning, facing, grooving, and threading—without re-fixturing. |
| Tolerance Range | Typical dimensional tolerances: ±0.005 mm (±0.0002″) to ±0.025 mm (±0.001″). Angular tolerances within ±0.1°. Surface finishes down to 0.8 µm (32 µin) Ra achievable. |
| Materials Processed | Aluminum (e.g., 6061-T6, 7075): High machinability, low cutting forces, requires high-speed toolpaths and chip evacuation. Steel (e.g., 1018, 4140): Higher strength, requires rigid setups, carbide tooling, and reduced feed/speed vs. aluminum. ABS: Thermoplastic with low melting point; needs sharp tools, low heat input, and moderate feeds. Nylon: Tough and abrasion-resistant; prone to deflection; requires sharp cutting edges and secure fixturing. |
| Tooling | Carbide end mills, diamond-coated tools for plastics, high-speed steel (HSS) for prototyping. Coolant-through tools used for heat management and chip removal. |
| Fixturing | Collet chucks, 3-jaw or 4-jaw chucks for turning; custom v-blocks or clamping fixtures for milling. Rotary tables or trunnions used in 4/5-axis setups. |
| Applications | Hydraulic manifolds, exhaust systems, robotic arms, structural frames, fluid handling components requiring precise end finishes and weld prep. |
| Control Systems | Fanuc, Siemens, or Heidenhain CNC controls with CAD/CAM integration (e.g., Mastercam, Fusion 360) for generating complex toolpaths. |
This level of precision and flexibility makes 5-axis CNC pipe cutting ideal for high-value, low-volume production where geometry complexity and repeatability are critical.
From CAD to Part: The Process
Honyo Prototype CNC Pipe Cutting Process Overview
Honyo Prototype executes CNC pipe cutting through a rigorously defined workflow designed for precision, efficiency, and client transparency. The process begins with CAD Upload, where clients submit native 3D model files (e.g., STEP, IGES, or Parasolid formats) via our secure customer portal. Our system validates file integrity and geometry completeness, ensuring all critical dimensions, tolerances, and material specifications are defined. Incomplete submissions trigger automated notifications for client correction, minimizing downstream delays.
The AI Quote phase leverages our proprietary machine learning engine to analyze the CAD geometry against real-time production parameters. The AI calculates material utilization, machine time, tooling requirements, and secondary operations (e.g., deburring or chamfering) while referencing our dynamic database of material costs, machine availability, and labor rates. This generates a detailed, error-resistant quote within 2 business hours, including lead time projections and cost breakdowns segmented by material, machining, and finishing. Clients receive instant access to this quote through their portal dashboard.
DFM (Design for Manufacturability) Analysis follows quote acceptance and is a cornerstone of Honyo’s value proposition. Our engineers perform a dual-layer review: first, an automated DFM scan identifies potential issues like non-optimal nesting, wall thickness violations, or unsupported cut angles. Second, a senior manufacturing engineer conducts a manual validation, focusing on structural integrity, weld seam placement, and fixture feasibility. Critical findings—such as recommendations to adjust cut sequences to prevent pipe distortion or consolidate features to reduce setups—are documented in a formal DFM report with annotated visuals. Client approval of this report is mandatory before production launch.
Production commences on Honyo’s calibrated CNC pipe profiling systems (e.g., Mazak REMS or Trumpf TruLaser Tube). Each job undergoes strict material verification via mill certificates and on-site PMI testing. Cutting parameters are dynamically optimized using in-process feedback from laser micrometers and vision systems to maintain ±0.1mm tolerance. All pipes receive unique serialized barcodes for traceability, with real-time production data (e.g., cut speed, kerf width) logged to our MES. Secondary operations occur in-line where possible, with first-article inspection (FAI) per AS9102 standards for critical aerospace or medical clients.
Delivery is coordinated through our integrated logistics module. Finished parts undergo final CMM validation against the original CAD, with full inspection reports accessible in the client portal. Parts are packaged in custom anti-corrosion foam inserts within labeled crates, with shipping documentation (including COC and material certs) auto-generated. Honyo guarantees on-time delivery via our tracked freight network, with proactive delay alerts should unforeseen issues arise. Post-delivery, clients receive automated feedback requests to refine future iterations.
Process Performance Metrics
| Phase | Typical Duration | Key Quality Gate | Client Visibility |
|—————-|——————|——————————–|——————-|
| CAD Upload | <1 hour | File validation success rate | Real-time status |
| AI Quote | ≤2 business hours| Cost accuracy (±3% variance) | Instant portal access |
| DFM | 1-3 business days| Engineering sign-off rate | Collaborative markup |
| Production | 3-10 business days| FAI pass rate (99.2% avg) | Live progress feed |
| Delivery | 1-2 business days| On-time shipment (98.7% avg) | Tracking dashboard |
This closed-loop methodology ensures Honyo delivers dimensionally accurate, fully documented pipe components while reducing time-to-prototype by 35% versus industry benchmarks. All processes adhere to ISO 9001:2015 and AS9100D standards, with material certifications traceable to source mills.
Start Your Project
Interested in precision CNC pipe cutting services? Contact Susan Leo at [email protected] to discuss your project requirements.
Honyo Prototype operates a dedicated manufacturing facility in Shenzhen, equipped with advanced CNC machinery for high-accuracy pipe fabrication. Our capabilities include custom cutting, beveling, and profiling for a wide range of industrial applications.
Reach out today to request a quote or technical consultation.
