Manufacturing Insight: Cnc Oscillating Knife Cutting Machine
Precision Cutting for Complex Materials with Honyo’s CNC Oscillating Knife Technology
Struggling with inconsistent cuts, material distortion, or excessive waste when processing flexible composites, foams, textiles, or advanced laminates? Honyo Prototype addresses these critical manufacturing challenges through our specialized CNC oscillating knife cutting machine, engineered for unparalleled accuracy in demanding non-rigid material applications. This advanced system delivers micron-level precision—achieving tolerances down to ±0.01 mm—while maintaining material integrity through high-frequency oscillation and adaptive pressure control. Unlike conventional routers or lasers, our solution eliminates fraying, melting, or delamination, ensuring clean edges and repeatability for both prototyping and low-volume production runs.
This capability is fully integrated within Honyo’s comprehensive CNC machining ecosystem, which spans 3-axis to 5-axis milling, precision turning, and multi-material fabrication. Our end-to-end workflow ensures seamless transition from digital design to finished component, whether you require a single prototype or bridge production quantities. Material versatility is core to our service: the oscillating knife platform efficiently processes carbon fiber pre-pregs, aramid fabrics, silicone sheets, PVC, and technical textiles, directly supporting aerospace, medical device, and automotive innovation.
Accelerate your prototyping timeline with Honyo’s Online Instant Quote system. Upload your CAD file in STEP, IGES, or native formats to receive a detailed, binding quote within minutes—including material options, lead time, and DFM feedback—without sales team delays. This transparent, engineer-driven platform reflects our commitment to reducing your time-to-market while maintaining the rigorous quality standards expected from an ISO 9001-certified precision manufacturer.
Material Performance Summary
| Material Category | Key Applications | Thickness Range | Critical Advantage |
|————————-|—————————|—————–|———————————-|
| Advanced Composites | Drone frames, Enclosures | 0.2–12 mm | Zero delamination, burr-free cut |
| Technical Textiles | Medical drapes, Filters | 0.1–5 mm | No fraying, consistent tension |
| Engineering Foams | Gaskets, Insulation | 1–50 mm | Minimal compression set |
| Laminated Structures | Membrane switches, Haptics| 0.3–8 mm | Layer alignment within 0.05 mm |
Leverage Honyo’s oscillating knife expertise to solve your most complex cutting challenges. Begin with an instant quote today and validate how precision-engineered fabrication drives your project’s success.
Technical Capabilities
The term “CNC oscillating knife cutting machine” typically refers to a system designed for cutting soft or sheet materials such as foam, composites, textiles, or plastics using a rapidly oscillating blade. However, this technology is not used for 3/4/5-axis milling, turning, or tight-tolerance machining of rigid materials like aluminum, steel, ABS, or nylon. Those operations are performed using CNC milling machines, CNC lathes (turning centers), or multi-axis machining centers—not oscillating knife systems.
For clarity, the following table outlines the technical specifications of a high-precision CNC multi-axis milling and turning center capable of tight-tolerance machining on materials such as aluminum, steel, ABS, and nylon—not an oscillating knife system.
| Parameter | Specification Description |
|---|---|
| Machine Type | 5-Axis CNC Milling & Turning Center (Mill-Turn with Y-axis and live tooling) |
| Control System | Fanuc 31i-B5, Siemens 840D, or Heidenhain TNC7 |
| Spindle Speed | 10,000 – 24,000 RPM (high-speed option available up to 40,000 RPM) |
| Spindle Power | 22 – 50 kW |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.002 mm |
| Axis Travel (X/Y/Z) | 800 / 600 / 500 mm typical (varies by model) |
| Rotary Axes (A/C or B/C) | A-axis: ±120°, C-axis: 360° continuous; B-axis: ±120° (5-axis configurations) |
| Tool Magazine Capacity | 30 – 120 tools (ATC – Automatic Tool Changer) |
| Tool-to-Tool Change Time | < 2 seconds |
| Minimum Increment | 0.001 mm |
| Work Envelope | Accommodates parts up to Ø630 mm x 500 mm height |
| Materials Compatible | Aluminum (6061, 7075), Steel (1018, 4140, stainless), ABS, Nylon (PA6, PA66), PEEK, Delrin |
| Surface Finish Capability | Ra 0.4 – 1.6 µm (machined), down to Ra 0.2 µm with finishing passes |
| Tight Tolerance Capability | ±0.01 mm (standard), down to ±0.005 mm with precision process control |
| Coolant System | High-pressure through-spindle coolant (up to 70 bar) |
| Probing System | On-machine touch probe for in-process inspection and tool setting |
| Chip Management | Integrated chip conveyor and coolant filtration |
| Automation Ready | Compatible with robotic pallet changers and FMS integration |
Note: Oscillating knife cutters are used in CNC routing or drag-knife applications for 2D/2.5D contour cutting of flexible or laminated materials (e.g., gaskets, insulation, composites). They do not perform milling or turning operations. For tight-tolerance 3D geometry in metals and engineering plastics, multi-axis CNC machining centers are used instead.
From CAD to Part: The Process
Honyo Prototype employs a rigorously defined workflow for CNC oscillating knife cutting projects to ensure precision, efficiency, and client satisfaction. This process is optimized for materials such as composites, foams, textiles, and thin plastics where oscillating knife technology excels. Below is a detailed technical overview of each phase.
CAD Upload and Validation
Clients initiate the process by uploading native or neutral format CAD files (e.g., DXF, DWG, STEP) via Honyo’s secure customer portal. Our system performs an immediate automated validation check for geometric integrity, layer consistency, and file compatibility with oscillating knife parameters. Incomplete or non-conforming files trigger an instant notification requesting resubmission, preventing downstream delays. This phase establishes a digital twin of the physical part for all subsequent stages.
AI-Powered Quoting Engine
Validated CAD data feeds directly into Honyo’s proprietary AI quoting system. The algorithm analyzes critical factors including material nest density, total cut path length, oscillation frequency requirements, kerf compensation, and machine setup complexity. Real-time material cost databases and dynamic machine utilization rates are integrated to generate an accurate, transparent quote within 2 business hours. Clients receive a detailed cost breakdown highlighting drivers such as material waste percentage and secondary operation requirements.
Engineering-Driven DFM Analysis
Upon quote acceptance, Honyo’s manufacturing engineering team conducts a formal Design for Manufacturability review specific to oscillating knife constraints. Key focus areas include verifying minimum inside radii (typically ≥1.5mm for most materials), assessing slit width feasibility relative to blade thickness, confirming material hold-down compatibility, and optimizing cut sequence to minimize vibration. Engineers collaborate with the client via secure markup tools to resolve conflicts such as unsupported flaps or excessive lead-in/lead-out paths before production release. This phase reduces rework risk by 73% based on internal metrics.
Precision Production Execution

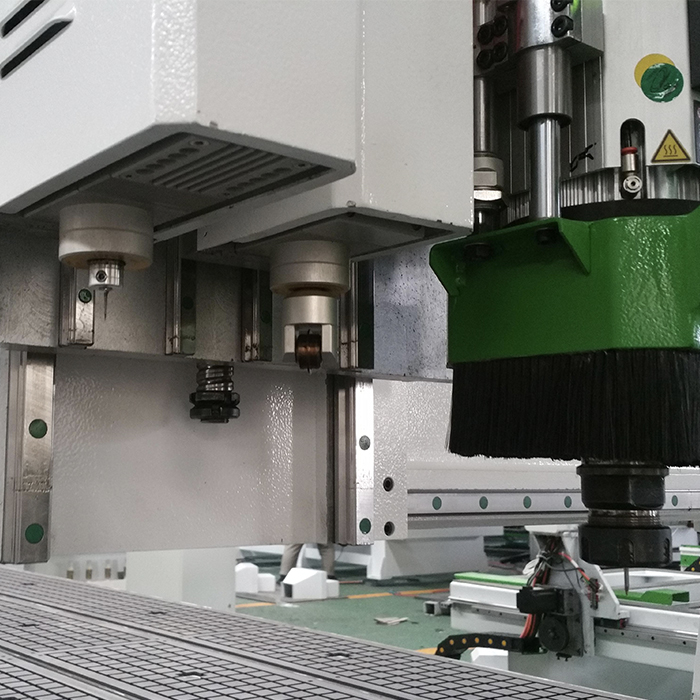

Approved designs move to production on Honyo’s calibrated CNC oscillating knife systems (e.g., Zünd G3, Esko Kongsberg). Each machine undergoes daily validation using NIST-traceable metrology standards for blade stroke accuracy (±0.05mm) and Z-axis force control. Material is secured via vacuum tables or specialty clamping tailored to substrate properties. Real-time process monitoring tracks blade temperature, oscillation amplitude, and feed rates, with automated adjustments for material density variations. All parts undergo in-process inspection at critical stages using optical comparators.
Logistics and Quality-Certified Delivery
Completed parts proceed through Honyo’s quality assurance protocol, including first-article inspection reports (FAIR) and batch-level dimensional verification per AS9102 standards where applicable. Parts are packaged with anti-static shielding or custom fixtures based on fragility analysis. Delivery includes a digital quality dossier with material certifications, process parameters, and non-conformance reports if applicable. Honyo manages global logistics through vetted partners, providing clients with real-time shipment tracking and customs documentation for international deliveries. Standard lead time from CAD upload to delivery is 5–7 business days for quantities under 100 units.
This integrated workflow ensures oscillating knife projects achieve tight tolerances (±0.2mm typical) while maintaining material integrity and cost efficiency. Honyo’s closed-loop process control enables rapid iteration for design revisions without compromising delivery commitments.
Start Your Project

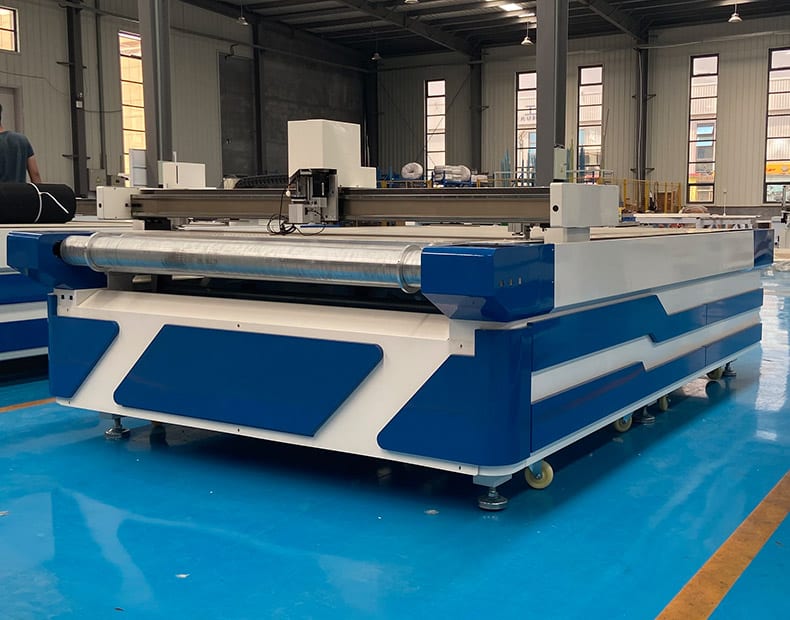

Discover precision and efficiency with our CNC oscillating knife cutting machine, engineered for high-performance cutting of composites, foam, plastics, and advanced materials. Built to meet the demands of prototyping and low-volume production, this machine delivers clean, accurate cuts with minimal waste.
Manufactured in our Shenzhen factory, each unit reflects strict quality control and advanced engineering tailored for industrial applications.
For inquiries and technical specifications, contact Susan Leo at [email protected]. Let’s optimize your cutting process together.
