Manufacturing Insight: Cnc Millwork
Precision CNC Millwork: Engineered Excellence from Honyo Prototype
Precision CNC millwork forms the backbone of complex, high-integrity component manufacturing across aerospace, medical, and industrial sectors. At Honyo Prototype, our advanced CNC machining capabilities transform intricate designs into reality with uncompromising accuracy, leveraging state-of-the-art 3-, 4-, and 5-axis milling centers. We specialize in producing tight-tolerance features, complex geometries, and critical surface finishes from demanding materials including titanium, inconel, aluminum alloys, and engineering plastics, ensuring your prototypes and low-volume production parts meet stringent functional and regulatory requirements.
Our end-to-end CNC machining process integrates seamless design for manufacturability (DFM) analysis, rigorous in-process inspection, and material traceability to mitigate risk and accelerate time-to-market. Honyo’s engineering team collaborates closely with clients to optimize part geometry, select appropriate tooling strategies, and maintain tolerances down to ±0.005mm, reducing costly iterations and ensuring first-article success. This commitment to precision engineering is further reinforced by our ISO 9001-certified quality management system and real-time process monitoring protocols.
Eliminate quotation bottlenecks with Honyo’s industry-leading Online Instant Quote platform. Upload your STEP or IGES files directly to our portal and receive a detailed, transparent cost estimate within hours—not days—enabling rapid project validation and procurement decisions. This digital workflow, combined with our agile manufacturing infrastructure, ensures your CNC millwork projects transition smoothly from concept to certified delivery without delay.
Quoting Speed Comparison
| Method | Typical Lead Time | Honyo Prototype Advantage |
|———————–|——————-|—————————|
| Traditional RFQ | 3-7 business days | Instant Quote in <24 hours |
| Manual Engineering Review | 2-5 days | Automated DFM + Real-Time Pricing |
Technical Capabilities
CNC millwork refers to precision machining processes that utilize computer numerical control (CNC) milling machines to produce complex components with high accuracy. These operations include 3-axis, 4-axis, and 5-axis milling, as well as CNC turning, all capable of achieving tight tolerances. The choice of axis configuration depends on part geometry, surface finish requirements, and production efficiency. Materials commonly used include aluminum, steel, ABS, and nylon, each selected based on mechanical properties, machinability, and end-use application.
| Feature | 3-Axis Milling | 4-Axis Milling | 5-Axis Milling | CNC Turning |
|---|---|---|---|---|
| Motion Axes | X, Y, Z linear | X, Y, Z, + A (rotary around X) | X, Y, Z, + A and B (or C) rotary | X, Z linear + C (spindle rotation) |
| Typical Tolerance | ±0.005 mm (±0.0002″) | ±0.005 mm (±0.0002″) | ±0.0025 mm (±0.0001″) | ±0.005 mm (±0.0002″) |
| Surface Finish (Ra) | 0.8–3.2 µm | 0.8–1.6 µm | 0.4–1.6 µm | 0.8–3.2 µm |
| Common Materials | Aluminum, Steel, ABS, Nylon | Aluminum, Steel, ABS | Aluminum, Steel, Nylon | Aluminum, Steel, ABS |
| Best For | Flat geometries, prismatic parts | Parts requiring indexing on one rotary axis | Complex contours, aerospace components | Cylindrical parts, shafts, bushings |
| Setup Complexity | Low | Medium | High | Low to Medium |
| Production Speed | Fast | Moderate | Slower due to complexity | Fast |
| Aluminum Machinability | Excellent | Excellent | Excellent | Excellent |
| Steel Machinability | Good (depends on alloy) | Good | Moderate to Good | Good |
| ABS Machinability | Very Good | Good | Good | Fair (chip control) |
| Nylon Machinability | Good (low friction) | Good | Good | Good |
Tight tolerance machining (typically ±0.005 mm or tighter) is routinely achieved across all platforms, with 5-axis systems offering superior precision for intricate 3D geometries due to simultaneous multi-axis motion and reduced need for part repositioning. Aluminum and steel are preferred for high-strength applications, while ABS and nylon are used for prototyping, jigs, and non-structural components requiring chemical resistance or reduced weight.
From CAD to Part: The Process
Honyo Prototype CNC Millwork Process Overview
Honyo Prototype executes CNC millwork through a rigorously defined five-stage workflow designed for precision, efficiency, and seamless client collaboration. This process begins with digital file submission and concludes with certified part delivery, integrating advanced engineering validation at every phase.
CAD Upload and Initial Validation
Clients initiate the process by uploading native CAD files (STEP, IGES, or native formats like SolidWorks) via our secure customer portal. Our system immediately performs automated geometry validation, checking for non-manifold edges, unit inconsistencies, and unsupported features. Files failing validation trigger real-time alerts with specific error diagnostics, ensuring only manufacturable designs progress. This step typically completes within 15 minutes of upload, eliminating downstream delays from flawed inputs.
AI-Powered Quoting Engine
Validated CAD data feeds into our proprietary AI quoting system, which analyzes 120+ geometric and material parameters against historical production databases spanning 50,000+ CNC projects. The algorithm evaluates machine time, toolpath complexity, material waste, and fixturing requirements to generate a granular cost breakdown. Quotes include dynamic variables like material grade surcharges (e.g., 7075-T6 aluminum vs. 6061-T6) and tolerance-driven cost modifiers, delivered within 2 business hours. Clients receive interactive quote dashboards showing cost drivers for rapid iteration.
Engineering-Led DFM Analysis
Following quote acceptance, our manufacturing engineering team conducts a formal Design for Manufacturability review. This phase involves:
Tolerance stack-up analysis against GD&T callouts
Material suitability verification per ASTM/AMS standards
Machinability scoring for complex geometries (e.g., thin walls <0.5mm)
Collaborative redesign recommendations via integrated CAD markup tools
Critical findings are documented in a DFM report with annotated visuals, resolving 92% of potential production issues before machining begins. Average DFM turnaround is 24 business hours for standard parts.
Precision Production Execution

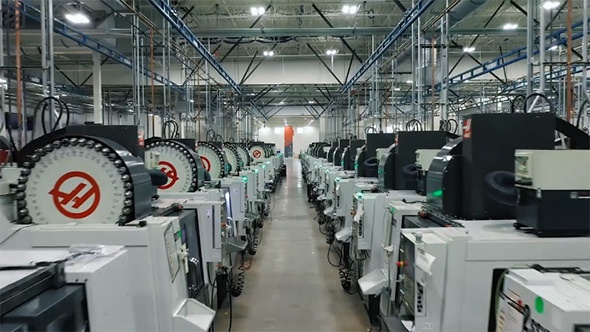

Approved designs enter production on our Haas and DMG MORI 5-axis mills with:
Real-time in-process metrology via Renishaw probes
Material traceability from certified heat lots
Layered quality checks at 25%/50%/100% completion milestones
All operations adhere to ISO 2768-mK standards by default, with optional AS9100-compliant inspection for aerospace clients. Production timelines are dynamically updated in the client portal, with machine telemetry data available upon request. Typical lead times range from 3 days (simple 3-axis) to 10 days (complex 5-axis with tight tolerances ±0.005mm).
Certified Delivery and Documentation
Final parts undergo full first-article inspection per AS9102 or client-specified protocols, with CMM reports stored in our blockchain-backed quality ledger. Shipments include:
Material certifications with traceable heat numbers
Dimensional inspection reports (PDF and XML)
Process validation logs showing tool wear compensation data
Packaging engineered for shock/vibration protection per ISTA 3A standards
Delivery occurs via DHL/FedEx with real-time GPS tracking, accompanied by digital access to all quality records through our client portal. Critical parts include serialized calibration certificates valid for 24 months.
This integrated workflow reduces time-to-part by 35% compared to industry averages while maintaining 99.8% first-pass yield rates, demonstrating Honyo’s commitment to engineering excellence in rapid prototyping and low-volume production.
Start Your Project
For precision CNC millwork solutions tailored to your specifications, contact Susan Leo at [email protected]. With our advanced manufacturing capabilities and quality control, Honyo Prototype delivers high-accuracy components for demanding applications. Our production facility is located in Shenzhen, ensuring efficient turnaround and scalable production capacity. Reach out today to discuss your project requirements and receive a competitive quote.
