Manufacturing Insight: Cnc Milling Products

Precision CNC Milling Solutions Engineered for Complex Manufacturing Challenges

At Honyo Prototype, we transform conceptual designs into mission-critical components through advanced CNC milling capabilities tailored for demanding industrial applications. Our 3-, 4-, and 5-axis machining centers deliver micron-level accuracy (±0.005mm) across diverse materials—from aerospace-grade aluminum and titanium to hardened steels and engineering plastics—ensuring your prototypes and production runs meet stringent functional and regulatory requirements. Every process is rigorously controlled under ISO 9001 standards, with real-time in-process inspection and full traceability to eliminate dimensional deviations before they reach your assembly line.

What sets Honyo apart is our seamless integration of engineering expertise with digital procurement. Our Online Instant Quote platform empowers design engineers and procurement managers to bypass traditional RFQ delays. Simply upload STEP, IGES, or native CAD files alongside technical specifications, and receive a detailed cost analysis, lead time estimate, and manufacturability feedback within minutes—24/7. This eliminates weeks of back-and-forth communication while providing transparent pricing based on actual machine runtime, material utilization, and geometric complexity. For time-sensitive projects requiring rapid iteration, this system accelerates time-to-market without compromising the precision your application demands.

Partner with Honyo to leverage CNC milling where tolerances are non-negotiable, and speed-to-prototype defines competitive advantage. Your next breakthrough component starts with a single upload.

---

Technical Capabilities

CNC Milling Products Technical Specifications

Honyo Prototype offers high-precision CNC milling and turning services optimized for rapid prototyping and low-to-mid volume production. Our capabilities span 3-axis, 4-axis, and 5-axis milling, as well as CNC turning, with a focus on tight-tolerance components across a range of engineering materials including aluminum, steel, ABS, and nylon.

Specification Category	Details
Machining Processes	3-Axis CNC Milling, 4-Axis Indexed & Continuous Milling, 5-Axis Simultaneous Milling, CNC Turning (including Mill-Turn with live tooling)
Tolerance Capability	Standard Tolerance: ±0.005 mm (±0.0002″) Tight Tolerance: ±0.0025 mm (±0.0001″) achievable with process control and inspection
Surface Finish	As-machined: 3.2 μm (125 μin) Smooth finishes down to 0.8 μm (32 μin) available with post-processing or fine toolpaths
Maximum Work Envelope	Milling: 1000 mm × 600 mm × 500 mm (X×Y×Z) Turning: Max diameter 300 mm, Max length 500 mm
Spindle Speed (Milling)	Up to 24,000 RPM (high-speed options available for aluminum and plastics)
Positioning Accuracy	±0.002 mm (±0.00008″) per axis
Repeatability	±0.0015 mm (±0.00006″)
Materials Supported	Aluminum: 6061-T6, 7075-T6, 2024-T3, 5052, etc. Steel: 1018, 1045, 4140, 4340, Stainless Steel 303, 304, 316 Plastics: ABS (Natural, Black), Nylon (PA6, PA66), Acetal (POM), PC, PEEK, PTFE
Coolant & Lubrication	High-pressure coolant for steels and aluminum; air cooling or mist for plastics to prevent deformation
Fixturing & Workholding	Vacuum tables, precision vises, custom fixtures, rotary indexing (4-axis), and tilting-rotary tables (5-axis)
Inspection & QA	In-house CMM, optical comparators, micrometers, bore gauges; full First Article Inspection (FAI) reports available (AS9102 or custom format)
Typical Lead Time	5–10 business days (varies by complexity, finishing, and inspection requirements)

All parts are manufactured to meet ISO 2768 medium or custom GD&T specifications, with options for anodizing, plating, powder coating, and other surface treatments upon request.

---

From CAD to Part: The Process

Honyo Prototype CNC Milling Workflow Overview
Honyo Prototype implements a structured, technology-driven process for CNC milling projects to ensure precision, cost efficiency, and rapid turnaround. The workflow integrates AI automation with engineering expertise across five critical phases, minimizing manual intervention while maintaining rigorous quality control. Below is a detailed technical breakdown of each stage.

CAD Upload and Initial Processing
Clients initiate the process by uploading native CAD files (STEP, IGES, or native SOLIDWORKS formats) via Honyo’s secure customer portal. The system automatically validates file integrity, checks for geometric completeness, and identifies critical features such as undercuts, thin walls, or complex cavities. File metadata—including material specifications, required tolerances (e.g., ±0.005 mm), and surface finish requirements—is extracted for downstream analysis. This phase typically completes within 15 minutes, with immediate feedback if files require correction.

AI-Powered Quoting Engine
Uploaded CAD data feeds into Honyo’s proprietary AI quoting engine, which analyzes 50+ manufacturing parameters to generate instant, data-driven cost and lead-time estimates. The AI evaluates:
Machine time based on part volume, toolpath complexity, and feature density
Material utilization efficiency and waste factors
Fixture requirements and secondary operations
Historical data from similar geometries in Honyo’s production database
Quotes include granular cost breakdowns (material, machining, finishing, QA) and are typically available within 2 hours. Crucially, the AI flags potential high-risk elements (e.g., deep pockets requiring long-reach tools) for engineering review, ensuring quotes reflect realistic manufacturability.

Engineering-Driven DFM Analysis
All projects undergo mandatory Design for Manufacturability (DFM) review by Honyo’s senior manufacturing engineers, transforming the AI’s preliminary assessment into actionable engineering insights. This phase focuses on resolving conflicts between design intent and machining realities:

DFM Focus Area	Common Adjustments	Impact on Production
Geometric Feasibility	Modifying sharp internal corners to ≥0.8mm radius	Eliminates tool breakage; reduces cycle time
Tolerance Stack-Up	Relaxing non-critical tolerances per ISO 2768	Cuts polishing time by 30–50%
Material Selection	Recommending 6061-T6 over 7075 for non-structural parts	Lowers material cost by 22% with equal performance
Fixture Strategy	Redesigning datum features for 3+2 axis setup	Enables single-setup machining; avoids secondary ops

DFM feedback is delivered via annotated CAD markups and a formal report within 24 business hours. Clients approve revisions or discuss alternatives via dedicated engineering calls—this collaborative loop typically resolves 95% of issues in one iteration.

Precision Production Execution

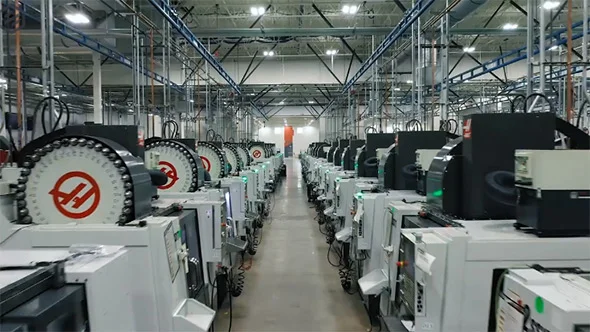

Approved designs move to Honyo’s climate-controlled CNC facility, where Haas and DMG MORI 5-axis mills execute machining under strict protocols:
Material blocks are pre-stressed and stress-relieved per AMS 4928 standards before cutting
In-process CMM checks validate critical dimensions after roughing and semi-finishing
Final inspection uses Zeiss CONTURA G2 CMMs for full GD&T verification against ASME Y14.5
Surface finishes are measured via Mitutoyo SJ-410 profilometers to confirm Ra values
All toolpaths are verified in Siemens NX CAM simulations to prevent collisions, with real-time machine monitoring via MTConnect for spindle load and vibration analysis. Batch production includes first-article inspection reports and SPC data for high-volume runs.

Logistics and Delivery Assurance
Completed parts undergo final QA sign-off, including material certification traceability and non-destructive testing if specified. Honyo coordinates delivery through integrated logistics partners:
Domestic shipments: Next-day air with real-time GPS tracking
International: DDP (Delivered Duty Paid) terms with automated customs documentation
Critical components: Temperature/humidity-monitored containers with IoT sensors
Every shipment includes a digital quality dossier (CMM reports, process logs, material certs) accessible via the client portal. Standard lead time for milled prototypes is 5–7 business days from DFM approval, with expedited 72-hour options for validated designs.

Process Differentiation and Client Value
Honyo’s integration of AI speed with deep manufacturing expertise eliminates traditional quoting ambiguities and DFM guesswork. The closed-loop workflow reduces prototyping iteration cycles by 40% versus industry averages while ensuring first-time-right production. This approach directly translates to lower total project costs and accelerated time-to-market for clients developing medical devices, aerospace components, and industrial machinery.

---

Start Your Project

Explore our precision CNC milling services for high-quality prototypes and production parts.

Manufactured in our Shenzhen facility, our CNC milling products deliver tight tolerances, superior finishes, and fast turnaround for industries ranging from automotive to medical devices.

Contact Susan Leo for technical specifications, material options, or project quotations.
