Manufacturing Insight: Cnc Milling Machine Diy

Professional CNC Machining Solutions Beyond DIY Limitations

The concept of DIY CNC milling often appeals to innovators seeking hands-on control, yet it frequently introduces significant challenges including extended setup times, inconsistent precision, compromised material integrity, and substantial hidden costs from trial-and-error iterations. For businesses requiring parts that meet exacting engineering standards, medical certifications, or aerospace-grade tolerances, professional CNC machining is not merely an alternative—it is a strategic necessity to ensure reliability, repeatability, and compliance.

At Honyo Prototype, we specialize in high-precision CNC milling services engineered for industrial applications. Our fleet of multi-axis CNC mills, operated by certified manufacturing engineers, consistently achieves tolerances down to ±0.0002 inches across diverse materials including aerospace aluminum, titanium, stainless steel, and high-performance polymers. Unlike DIY setups constrained by consumer-grade hardware and software, we integrate advanced toolpath optimization, in-process probing, and rigorous first-article inspection to deliver production-ready components on accelerated timelines. This capability eliminates the risk of costly rework while ensuring every part aligns with your technical documentation and functional requirements.

Transitioning from prototype to production demands expertise that transcends hobbyist equipment. Honyo streamlines this process through our industry-leading Online Instant Quote platform. Upload your 3D CAD file, specify materials and quantities, and receive a detailed manufacturing assessment—including lead time and DFM feedback—within minutes. This transparency accelerates procurement cycles and empowers engineering teams to iterate with confidence, knowing complex geometries and tight tolerances are executed by a partner committed to excellence. Move beyond the limitations of DIY and leverage Honyo’s precision manufacturing ecosystem for results that perform.

---

Technical Capabilities

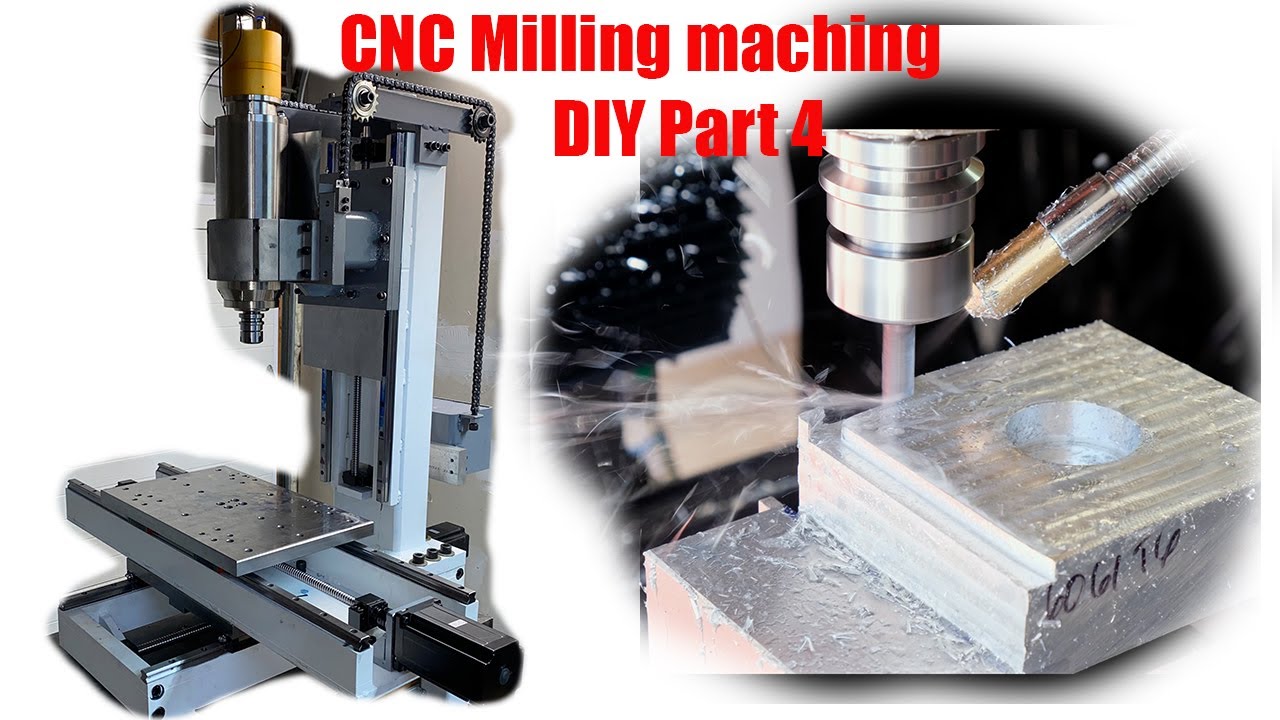

Technical Specifications for a High-Precision DIY CNC Milling Machine

The following specifications represent a robust DIY CNC milling machine build optimized for 3/4/5-axis milling and turning operations, capable of achieving tight tolerances across a range of engineering materials including aluminum, steel, ABS, and nylon. This configuration is suitable for prototyping, low-volume production, and precision machining applications.

Parameter	Specification
Machine Type	Multi-axis CNC Milling and Turning Center (DIY Build)
Axes Configuration	3-axis standard, expandable to 4-axis (rotary A-axis) and 5-axis (A+B axes)
Control System	Closed-loop stepper or servo motors with CNC controller (e.g., Mach4, LinuxCNC, or Fanuc-compatible)
Positioning Accuracy	±0.005 mm (±0.0002 in)
Repeatability	±0.002 mm (±0.0001 in)
Spindle Speed Range	6,000 – 24,000 RPM (HSK-E25 or ER-16 collet system)
Spindle Power	1.5 – 3.0 kW air-cooled or water-cooled spindle motor
Travel (X-Y-Z)	300 mm × 300 mm × 200 mm (typical benchtop size; scalable)
Rotary Axis (A or B)	360° continuous rotation, 0.001° indexing resolution
Tool Changer	Optional automatic tool changer (ATC) for 6–12 tools
Work Envelope	Supports parts up to 400 × 400 × 250 mm with modular fixturing
Maximum Cutting Feed Rate	5,000 mm/min (high-speed mode up to 10,000 mm/min)
Frame and Bed Construction	Cast aluminum or welded steel base with vibration-damping isolation mounts
Linear Motion System	Precision-ground ball screws (C5 class) or linear guides with preloaded blocks
Controller Resolution	0.001 mm (0.00004 in) minimum step increment
Coolant System	Mist or flood coolant delivery with chip evacuation
Software Compatibility	Supports G-code from Fusion 360, Mastercam, SolidCAM, and CAMBAM

Material Compatibility and Machining Performance

Aluminum: Ideal for high-speed milling with carbide end mills; achievable surface finish < 0.8 µm Ra and tolerances down to ±0.01 mm.

Steel (mild and stainless): Requires reduced feed rates and rigid setup; tolerances of ±0.015 mm achievable with proper tooling and cooling.

ABS: Compatible with high-speed routing using sharp single or multi-flute end mills; tight tolerances (±0.02 mm) possible with thermal management.

Nylon: Requires sharp tools and controlled feed to prevent melting; achievable tolerances ±0.025 mm with proper chip removal.

This DIY CNC system is engineered for stability, precision, and material versatility, enabling professional-grade results in a workshop environment. Rigidity, thermal compensation, and proper calibration are critical to maintaining tight tolerances across all materials and axis configurations.

---

From CAD to Part: The Process

Honyo Prototype delivers precision CNC milled components through a streamlined, client-centric workflow designed for efficiency and quality. While the term “DIY” implies client self-service, our process empowers clients with transparency and control while leveraging our engineering expertise at critical stages. This is not a literal DIY manufacturing model but a structured partnership where clients initiate and approve key phases. Below is the technical workflow:

CAD File Submission and Preliminary Assessment
Clients upload native or neutral format CAD files (STEP, IGES, Parasolid, or native SOLIDWORKS) via our secure online portal. The system performs an immediate geometric validation check, confirming file integrity, unit consistency, and basic manufacturability flags. This initial scan identifies obvious issues like unsealed surfaces or unsupported file types before proceeding to quoting.

AI-Powered Preliminary Quoting
Our proprietary AI quoting engine analyzes the validated CAD geometry, extracting critical parameters: part volume, bounding box dimensions, feature complexity (e.g., cavity depth-to-width ratios), and default material assumptions. It cross-references real-time data on machine availability, material stock levels, and historical cycle times to generate a rapid cost and lead time estimate. Crucially, this is a preliminary quote; final pricing requires engineering validation during DFM. Clients receive this estimate within minutes, enabling early budgetary planning.

Engineering-Led DFM Analysis and Quote Finalization
This phase involves direct collaboration with Honyo’s manufacturing engineering team. Engineers conduct a rigorous Design for Manufacturability review, assessing:
Feasibility of specified tolerances (e.g., ISO 2768-mK vs. custom GD&T)
Optimal stock material size and orientation to minimize waste
Toolpath strategy validation for deep pockets or thin walls
Surface finish achievability per client specifications
Potential design modifications to reduce cost or lead time (e.g., adding corner radii to eliminate small end mills)

The engineer documents all findings and recommendations in a formal DFM report. If design adjustments are suggested, clients approve or discuss alternatives. Only after DFM sign-off is the quote finalized and contractually binding. Below is a typical tolerance validation example from this phase:

Feature Type	Client Specification	Honyo Achievable Standard Tolerance	Recommended Action
Hole Diameter	±0.005 mm	±0.015 mm	Revise to ±0.015 mm or accept premium pricing for precision grinding
Flatness	0.02 mm	0.05 mm	Confirm if critical; otherwise align to standard capability
Edge Break Radius	0.2 x 45°	0.5 min	Increase radius to avoid deburring delays

CNC Production Execution

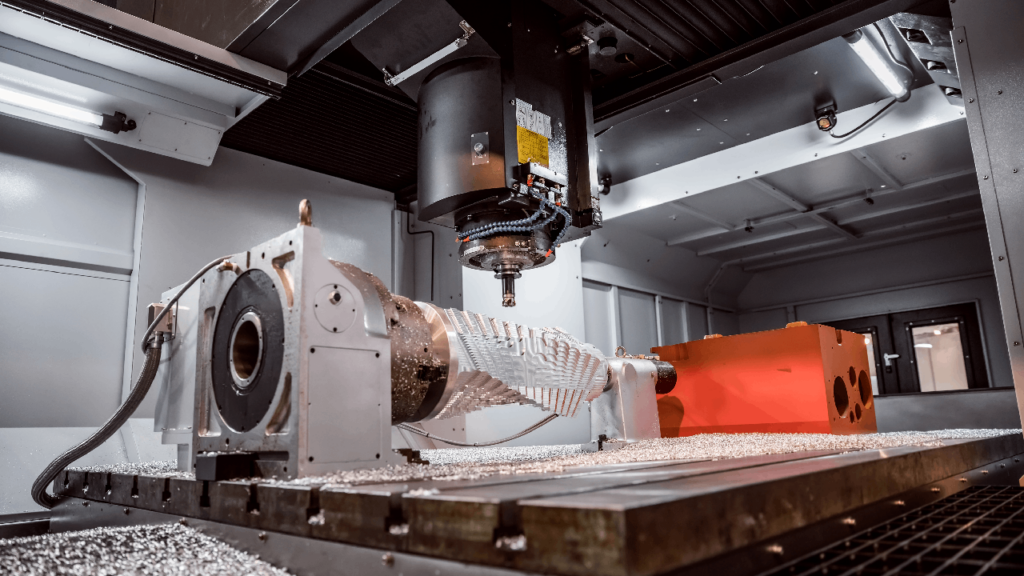

Upon client confirmation, the job enters production. Our network of Haas, DMG MORI, and Makino 3- through 5-axis mills executes the process:
Material procurement with full traceability (mill certificates provided)
CAM programming using Mastercam and hyperMILL, optimized for minimal cycle time
In-process inspections at critical stages (e.g., after roughing, before finish pass) using CMM or optical comparators
Final first-article inspection against all client-specified dimensions and surface finishes
All production data, including tooling parameters and inspection reports, is logged in our digital quality management system for full traceability.

Quality-Controlled Delivery and Post-Delivery Support
Before shipment, parts undergo final cleaning, deburring verification, and packaging per client requirements (e.g., anti-corrosion VCI bags for aluminum). A comprehensive inspection report, including as-measured CMM data, is provided digitally. Shipments include serialized tracking and customs documentation for international clients. Post-delivery, our engineering team remains available for technical support on part integration or future design iterations.

This workflow ensures clients receive production-ready components with minimized risk of delays or cost overruns. The integration of AI for rapid initial feedback combined with mandatory human engineering oversight at the DFM stage balances speed with manufacturing rigor—fundamentally different from true DIY approaches while providing clients exceptional visibility and control. Honyo’s value lies in converting client designs into reliable, high-precision components through engineered processes, not end-user machine operation.

---

Start Your Project

Looking to build your own CNC milling machine? Get the precision components and expert guidance you need to bring your DIY project to life. Contact Susan Leo at [email protected] for technical support, custom part sourcing, and prototyping solutions.

Honyo Prototype operates a fully equipped manufacturing facility in Shenzhen, specializing in CNC machining, rapid prototyping, and low-volume production. Whether you’re developing a hobbyist build or a commercial-grade machine, our engineering team can assist with design validation, material selection, and high-tolerance part fabrication.

Reach out today to discuss your CNC milling machine project and leverage our Shenzhen-based factory for reliable, cost-effective manufacturing support.

---
