Manufacturing Insight: Cnc Medicine
Precision CNC Machining for Mission-Critical Medical Applications

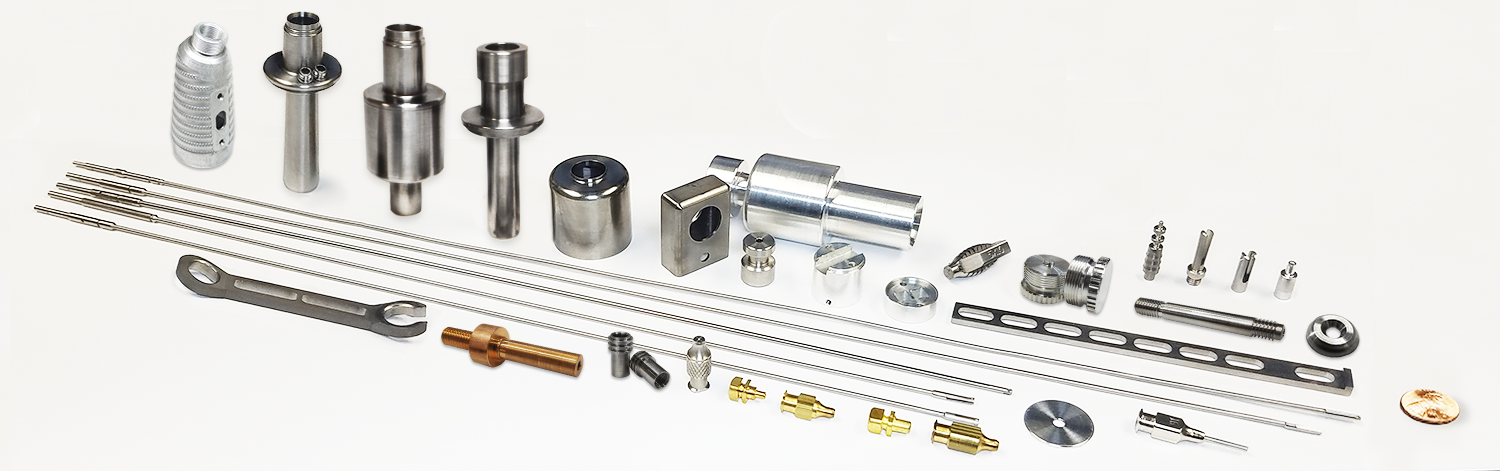

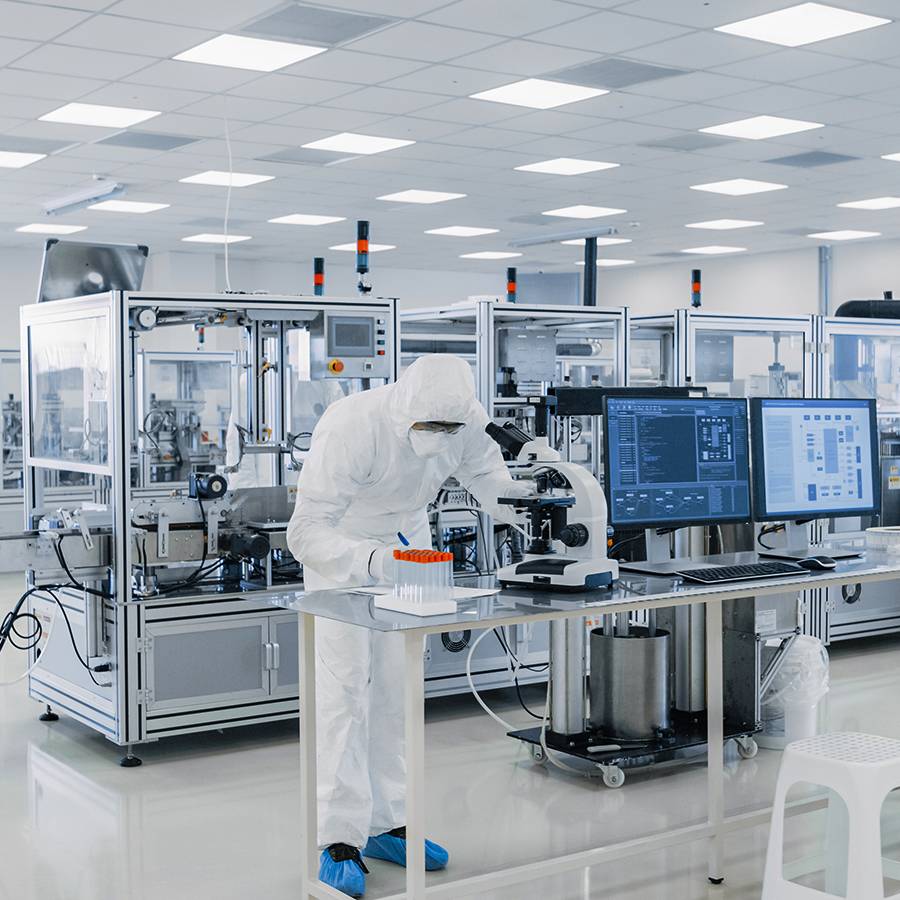

In the highly regulated medical device sector, component integrity directly impacts patient safety and regulatory approval. Honyo Prototype delivers CNC machining services engineered specifically for medical applications, where tolerances of ±0.0002″ (5 microns), biocompatible material certification, and full traceability are non-negotiable. Our ISO 13485-certified facility leverages 5-axis milling, Swiss turning, and multi-spindle technology to produce complex components—from orthopedic implants and surgical instrument housings to fluidic microsystems—using materials such as ASTM F136 titanium, PEEK, and MP35N. Every process adheres to strict cleanroom protocols (ISO Class 7) and includes documented material lot tracking, surface finish validation per ASTM F86, and first-article inspection reports compliant with FDA 21 CFR Part 820.
Honyo’s technical team collaborates directly with medical device engineers to resolve manufacturability challenges early, reducing iteration cycles for time-sensitive development projects. To accelerate your path from concept to validation, we integrate an Online Instant Quote system that provides geometry-aware pricing and lead time estimates within hours—not days—for prototypes and low-volume production. This digital workflow eliminates traditional RFQ bottlenecks while maintaining rigorous data security standards required for medical IP protection.
Material & Process Capabilities for Medical Devices
| Material Type | Example Applications | Key Machining Process | Tolerance Capability |
|————————|—————————-|————————|———————-|
| Titanium Alloys (ASTM F136) | Spinal implants, trauma plates | 5-axis milling | ±0.0002″ (5µm) |
| PEEK & PEKK | Instrument handles, MRI components | Swiss turning | ±0.0003″ (7.5µm) |
| Cobalt-Chrome (ASTM F75) | Joint replacements | Multi-spindle turning | ±0.00025″ (6µm) |
| Medical-Grade Stainless | Cannulas, biopsy tools | Micro-milling | ±0.00015″ (3.8µm) |
Partner with Honyo to transform medical design challenges into validated, production-ready components with the speed and precision the healthcare industry demands. Initiate your project with confidence using our Online Instant Quote platform for transparent, engineering-driven cost analysis.
Technical Capabilities
The term “CNC medicine” does not refer to a medical compound or pharmaceutical product. Instead, it is interpreted here as CNC machining services applied within the medical device and healthcare industries, where precision, material biocompatibility, and strict regulatory compliance are critical. Honyo Prototype specializes in high-precision CNC machining for medical applications using 3-axis, 4-axis, and 5-axis milling, as well as CNC turning, to produce components with tight tolerances and superior surface finishes.
Below are the technical specifications for CNC machining services tailored to medical-grade part production:
| Parameter | Specification Details |
|---|---|
| Machining Capabilities | 3-Axis Milling, 4-Axis Indexing Milling, 5-Axis Simultaneous Milling, CNC Turning |
| Tolerance | ±0.005 mm (±0.0002″) typical; tight tolerances down to ±0.001 mm (±0.00004″) achievable |
| Surface Finish | Ra 0.8 µm (32 µin) standard; down to Ra 0.2 µm (8 µin) with polishing or grinding |
| Materials Supported | Aluminum (6061, 7075), Stainless Steel (303, 304, 316L), Tool Steel (D2, A2), Titanium (Grade 5), Engineering Plastics: ABS, Nylon (PA6, PA66), PEEK, PC, PTFE |
| Aluminum Machining | High-speed milling with coolant; ideal for lightweight surgical instrument housings |
| Steel Machining | Carbide tooling with rigid setups; suitable for durable, sterilizable components |
| ABS Machining | Low-heat cutting strategies; used for prototypes and non-implantable enclosures |
| Nylon Machining | Controlled feed rates to prevent melting; excellent for wear-resistant, biocompatible parts |
| Work Envelope (Max) | Milling: 1000 x 600 x 500 mm; Turning: Ø300 mm x 500 mm (bar stock capacity) |
| Quality Standards | ISO 13485 compliant processes; full traceability; first article inspection (FAI) reports |
| Secondary Operations | Deburring, passivation (316L), anodizing (Al), laser marking, metrology (CMM inspection) |
All CNC medical components are machined under cleanroom-compatible practices where required and support FDA and CE regulatory pathways. Honyo Prototype ensures repeatability and precision across both prototyping and low-to-mid volume production runs.
From CAD to Part: The Process
Honyo Prototype utilizes a streamlined CNC machining workflow designed for precision, efficiency, and client transparency. The process begins when a client uploads their CAD model through our secure online portal. We accept industry-standard formats including STEP AP203/214, IGES, Parasolid, and native files from SolidWorks, Fusion 360, Creo, and CATIA. Initial geometric validation occurs automatically to ensure file integrity and compatibility with our manufacturing systems.
Following CAD upload, our proprietary AI-assisted quoting engine generates a preliminary cost and timeline estimate. This system analyzes key factors such as part geometry complexity, material requirements, tolerance specifications, and surface finish demands against real-time machine availability and material costs. The AI output provides a foundational quote within minutes, but all estimates undergo mandatory review by our applications engineering team to validate feasibility and incorporate nuanced manufacturability insights before client submission.
The Design for Manufacturability (DFM) phase represents a critical collaborative step. Our senior manufacturing engineers perform a comprehensive technical review, focusing on geometric dimensioning and tolerancing (GD&T) optimization, material selection validation, fixture strategy development, and potential cost-saving geometry modifications. Clients receive a detailed DFM report with specific recommendations, including tolerance stack-up analysis and alternative feature suggestions to reduce lead time or cost without compromising functional requirements. Client approval of the finalized DFM report is required before production commencement.

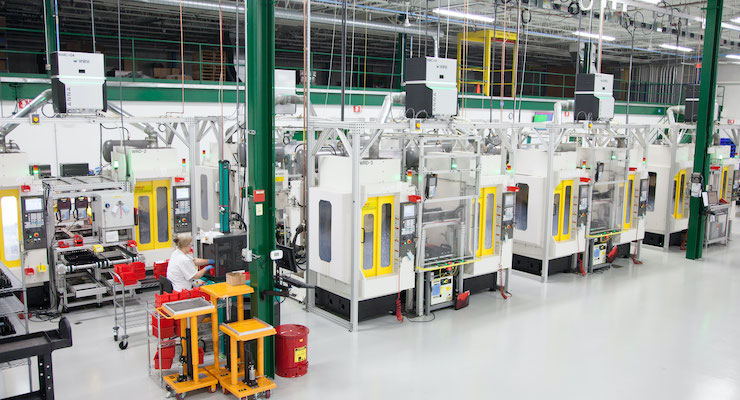

Production executes on our climate-controlled shop floor using calibrated Haas, DMG MORI, and Makino CNC machining centers. Each job follows a documented work instruction package derived from the approved DFM, including verified toolpaths, inspection plans, and material certificates. All critical dimensions undergo in-process verification using Zeiss CMMs, optical comparators, and calibrated hand tools per AS9102 First Article Inspection standards where applicable. Material traceability is maintained from raw stock to finished part via serialized barcoding.
Final delivery includes comprehensive documentation packaged with the parts. This standard package contains a signed certificate of conformance, detailed inspection report with actual measured values against print specifications, material test reports, and process validation records. Shipping utilizes tracked carriers with real-time logistics visibility, and all medical device or aerospace-critical jobs include full AS9100/ISO 13485 compliant documentation packages. Standard lead time from DFM approval to shipment is 5-7 business days for prototype quantities, with expedited options available.
The following table summarizes key phase deliverables and quality controls:
| Process Phase | Primary Deliverable | Quality Control Mechanism | Typical Duration |
|---|---|---|---|
| CAD Upload & Validation | Validated geometry file | Automated topology check, unit verification | < 15 minutes |
| AI Quote Generation | Preliminary cost/timeline estimate | AI model trained on 50k+ historical jobs, engineer oversight | 2-10 minutes |
| DFM Analysis | Approved DFM report with recommendations | Engineer-to-engineer review, tolerance stack-up simulation | 1-3 business days |
| Production | Finished machined components | In-process CMM checks, first-article inspection, final QA review | 5-7 business days (standard) |
| Delivery | Shipment with documentation package | Certificate of Conformance, dimensional report, material certs | Varies by destination |
Start Your Project
Looking for precision CNC machining solutions tailored to medical applications? Honyo Prototype delivers high-accuracy, ISO-compliant components for the medical device industry. Our Shenzhen-based factory combines advanced CNC technology with strict quality control to meet the demanding requirements of medical manufacturing.
Contact Susan Leo today at [email protected] to discuss your project specifications, request a quote, or learn more about our medical-grade machining capabilities.
